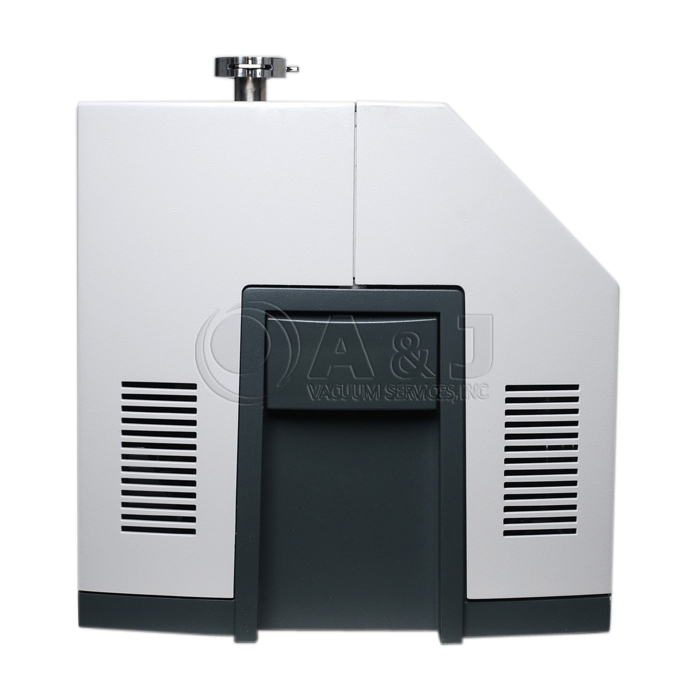

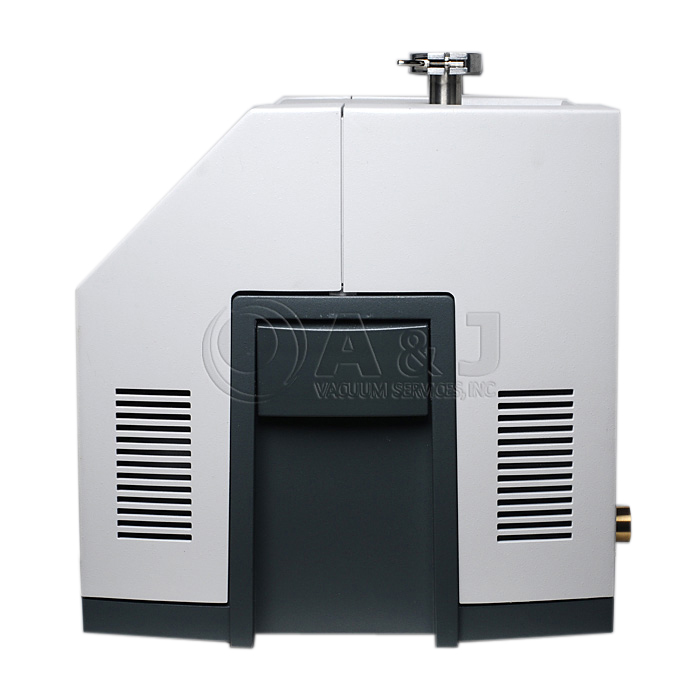

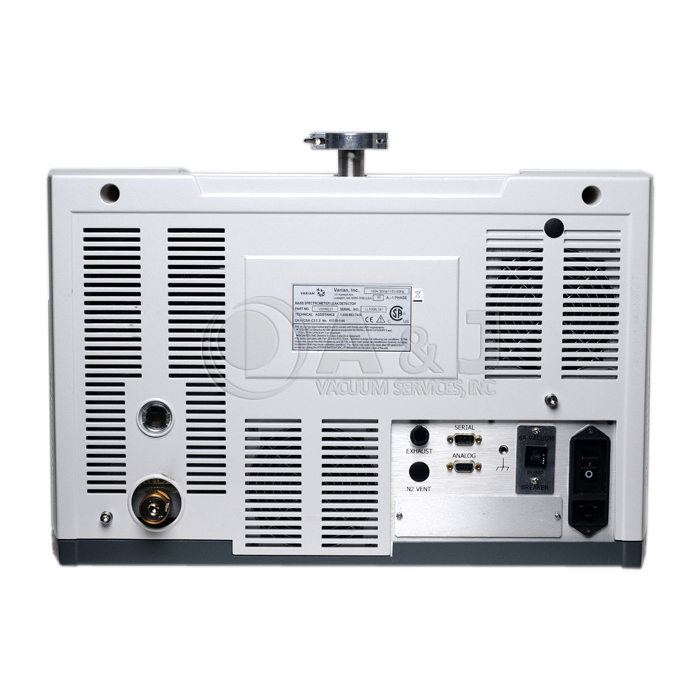

Agilent / Varian VS BR15 Bench Mount Helium Mass Spectrometer Leak Detector with DS 302 Vacuum Pump, VSBR152, 220V

Technical Data:

• Easy, two button operation with fully automated start-up and calibration.
• Color touch screen display allows users to program several test parameters.
• Can select from several languages and measurement units.
• Available with wireless remote.

VS Series leak detectors combine the simplicity of two-button operation with advanced system intelligence. Start and vent button permit simple day-to-day operation. User friendly software offers intuitive navigation to vast system capabilities. Programmable test sequences simplify daily operation, minimize operator error, and maximize production efficiency. The TFT style touch screen features high definition and brightness with wide viewing angles. Setup for worldwide use, these leak detectors can be operated in multiple languages – English, French, German, Spanish, Korean, Japanese and Chinese – and units of measure. And the VS Series conforms to CE, UL and CSA standards, assuring global acceptance.

VS Series leak detectors employ Agilent’s primary pumps – rotary vane or scroll – and high vacuum pumps that deliver high inlet pumping speed and inlet pressure tolerance minimizing test cycle time and maximizing production throughput.
State-of-the-art spectrometer and vacuum system design enable a broad range of test methods for specific applications. The high efficiency ion source and beam optics optimize sensitivity and mass separation, giving the VS Series very high sensitivity to meet the most stringent leak test requirements. At the same time, these leak detectors enjoy high test port pressure tolerance which permits detection of large leaks.

In addition, high helium pumping speed ensures fast system response and clean-up times.
Primary pump and system mounting options may be selected to best suit application requirements and test environments, and the compact, lightweight design enables easy transport from one application to another. Robust design innovations allow the VS Series to conform to the most rigorous industrial standards and operate dependently in the most challenging environments.

Easy-to-Use – Two Button Operation
VS Series Leak Detectors combine the simplicity of two-button operation with advanced expert system intelligence.

• Fully automated start-up and calibration maximized productivity
• Intuitive menu structure is easy to navigate
• Programmable test sequences improves testing efficiency
• Color touch screen provides excellent clarity, even at wide angles

Powerful – Broad Range of Test methods
The state-of-the-art spectrometer and vacuum system design provides powerful capability, enabling a broad range of test methods for specific applications.

• High test port pressure allows for detection of large leaks
• 5 x 10^12 MDL (sensitivity) meets the most stringent leak test requirements
• High helium pumping speed ensures fast system response and clean-up times
• New high efficiency ion source and beam optics optimize sensitivity and mass separation

Versatile – Multiple System Configurations
A wide range of options allows for broad configuration flexibility, meeting all application requirements and test environments.

• Primary pump and system mounting options may be selected to best suit your needs
• Multiple language and units capability permits easy implementation worldwide
• Compact lightweight design enables easy transport from one application to another

Dependable – Robust Design
Robust design innovations all the VS series to conform to the most rigorous industrial standards and operate dependably in the most challenging environments.

• Fast clean-up time enhances system up-time
• Robust Faraday cup technology delivers proven reliability with low cost of ownership
• Conforms to CE, UL and CSA standards, assuring global acceptance

Truly Portable – Wireless Remote Control/Display
Hand-held remote performs essential functions up to 100 meters (328 feet) indoors, facilitating access to all leak sites.

• Eliminates cumbersome cables while extending range
• Allows testing of large systems by a single operator
• Leak detector can be located outside cleanroom to prevent contamination
• Multiple channels for use of one remote with up to ten leak detectors.
