| Edwards Vacuum |

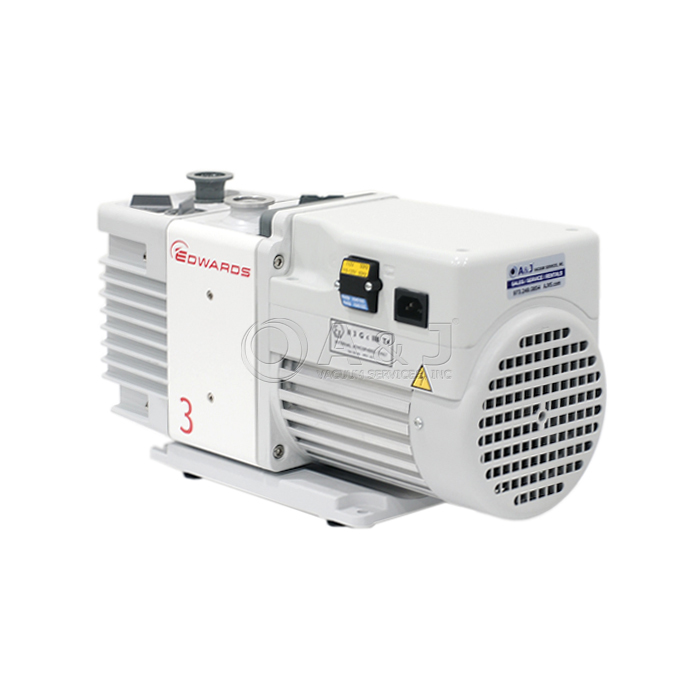

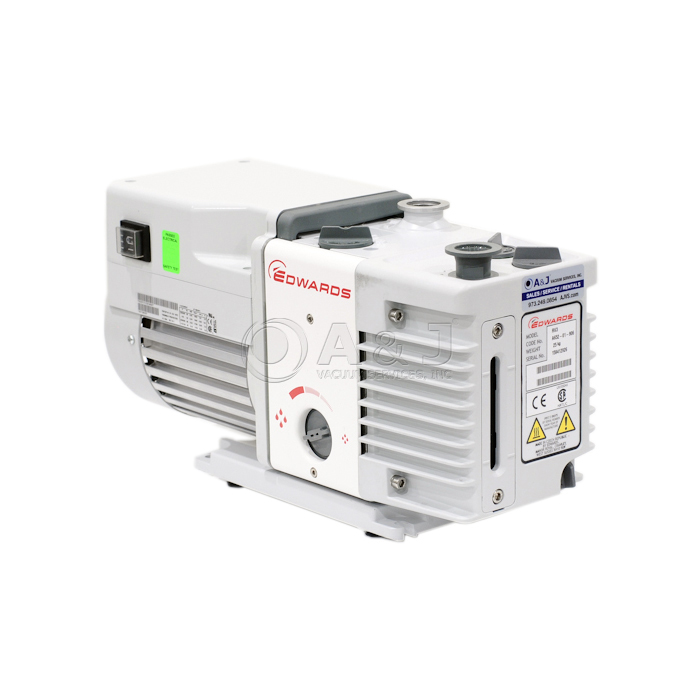

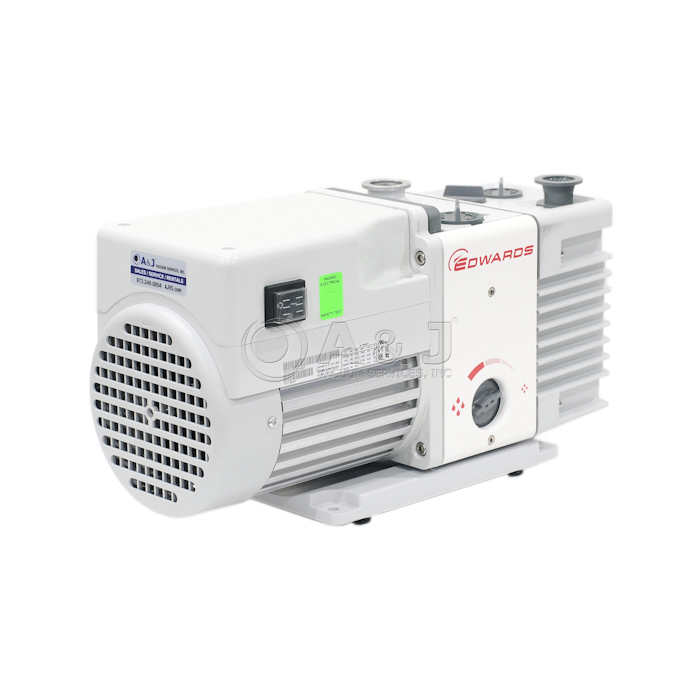

| Edwards RV 3 Rotary Vane Pump, Single Phase, 115/230 V, 50/60 Hz, Hydrocarbon Oil, A65201903, R |
|
|
In Stock, Ready to Ship
| Item#: PN04969 |
Mfr Part#: A65201903-Hydrocarbon |
|
Refurbished Edwards Vacuum RV3 Rotary Vane Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Hydrocarbon Oil, A65201903 |
|
|
|
 |
|
|
|
Overview
Refurbished Edwards RV 3 Rotary Vane Pump, Single Phase, 115/230 V, 50/60 Hz, Hydrocarbon Oil, A65201903, R Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications. The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application. In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications. PN04969 THIS ITEM COMES WITH A FULL 12 MONTH WARRANTY.
|
Specifications
|
Displacement: - 50 Hz: 3.7 m3h-1
- 60 Hz: 4.5 m3h-1
Speed: - 50 Hz: 3.3 m3h-1
- 60 Hz: 3.9 m3h-1
Ultimate Pressure: 2 x 10-3 mbar Inlet Flange: NW25 Exhaust Flange: NW25 Weight: 35 lbs |
Video
Edwards Vacuum RV3 Rotary Vane Pump | | |
| | |
Service & Repair
 A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service. We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed. We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies. Repair Steps - Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854. |
|
