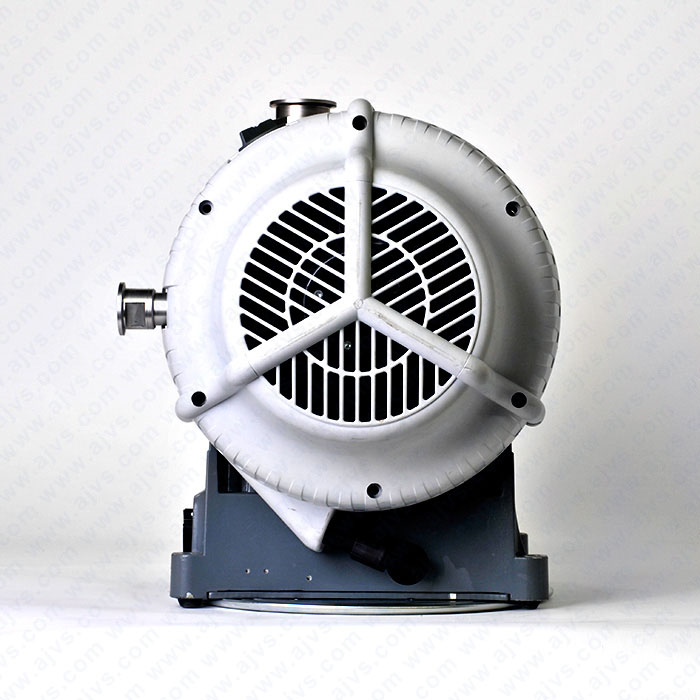

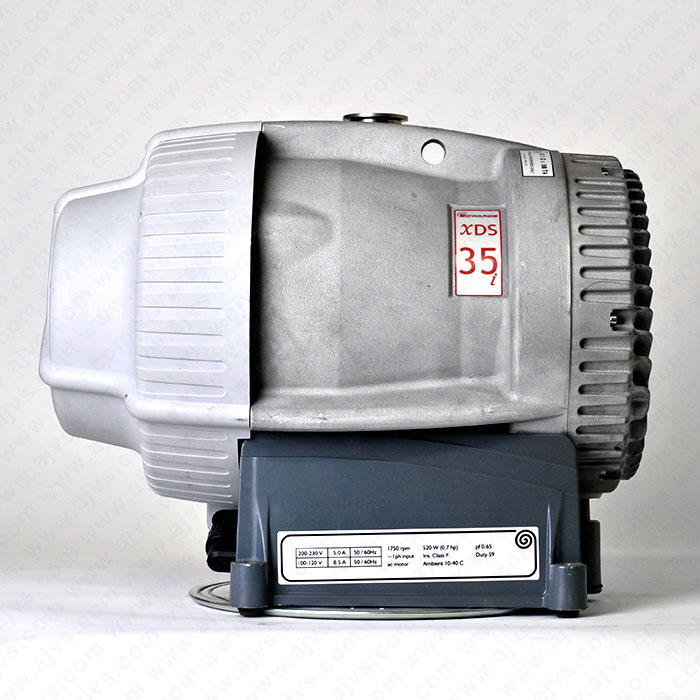

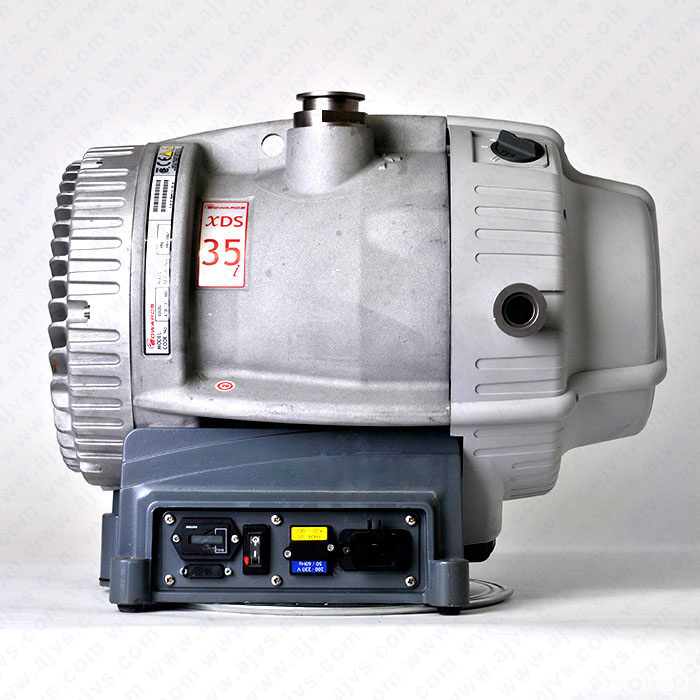

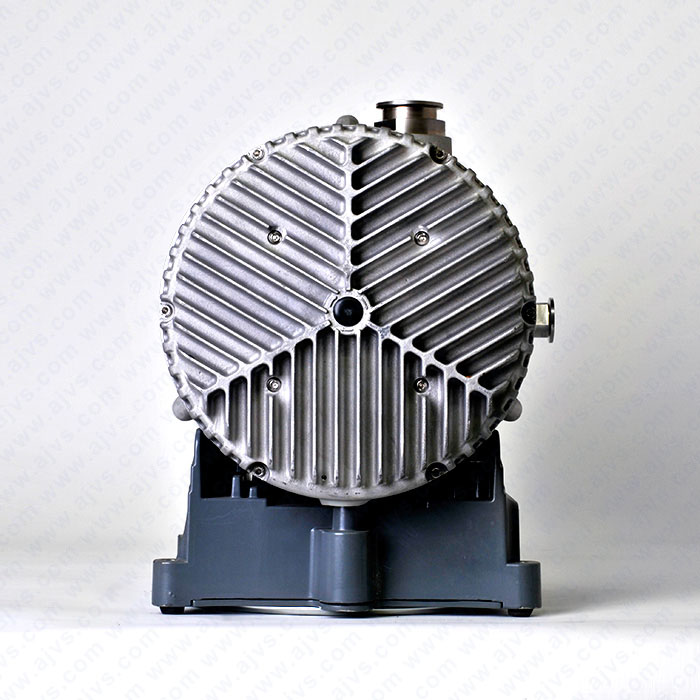

New Edwards XDS35i 100-120/200-230V, 1-ph, 50/60Hz with an IEC60320, A73001983 Overview The XDS35i pump has the same innovative bearing shield design as the XDS5 and XDS10. This isolates the vacuum environment from all forms of lubricant, not only making it totally dry but hermetically sealed. The shield also protects the bearing from any process vapours.
Gas ballast allows vapour to be handled and opens up the range of applications to many that were previously unsuited to scroll pumps. The inverter drive controls the motor characteristics and ensures the pump always runs at optimum speed. Technical Data | Displacement 50 or 60Hz | 43 m3h-1 / 25 ft3min-1 | | Peak pumping speed 50 or 60Hz | 35 m3h-1 / 21 ft3min-1 | | Ultimate vacuum (Total pressure) | 1 x 10-2 mbar / 8 x 10-3 Torr | | Max inlet pressure for water vapour | 35 mbar / 23 Torr | | Max water vapour pumping rate – GB I | 70 gh-1 | | Max water vapour pumping rate – GB II | 240 gh-1 | | Max allowed outlet pressure | 0.2 bar gauge / 2.9 psig* | | Max allowed inlet and GB pressure | 0.5 bar gauge / 7 psig | | Motor power | 0.52kW | | Power connector | IEC EN60320 C19 | | Nominal rotation speed | 1750 rpm | | Weight | 48 kg / 105 lb | | Inlet flange | NW40 | | Exhaust flange | NW25 | | Noise level | 57 dB (A) | | Vibration | <4.5mms -1 (rms) | | Leak tightness (static) | <1 x 10-6 mbar ls-1 | | Operating temperature range | 10 to 40 °C / 50 to 104 °F |
PN06796
