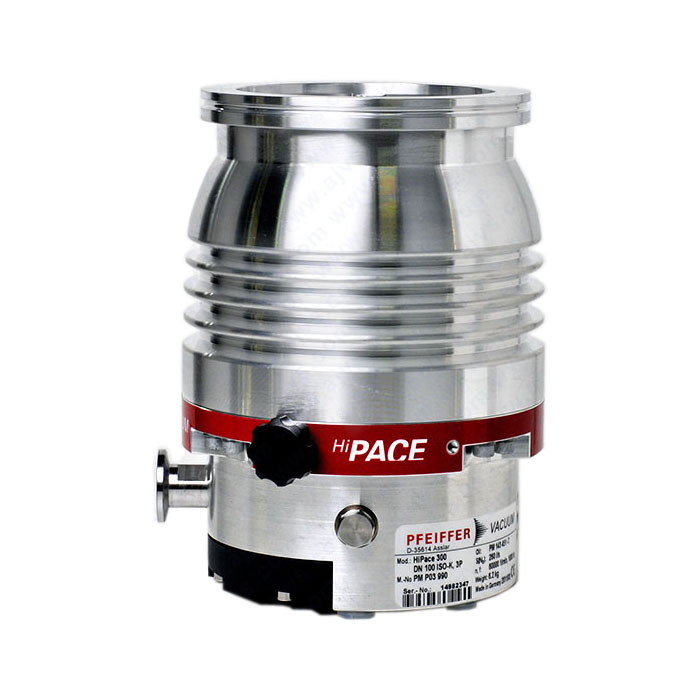

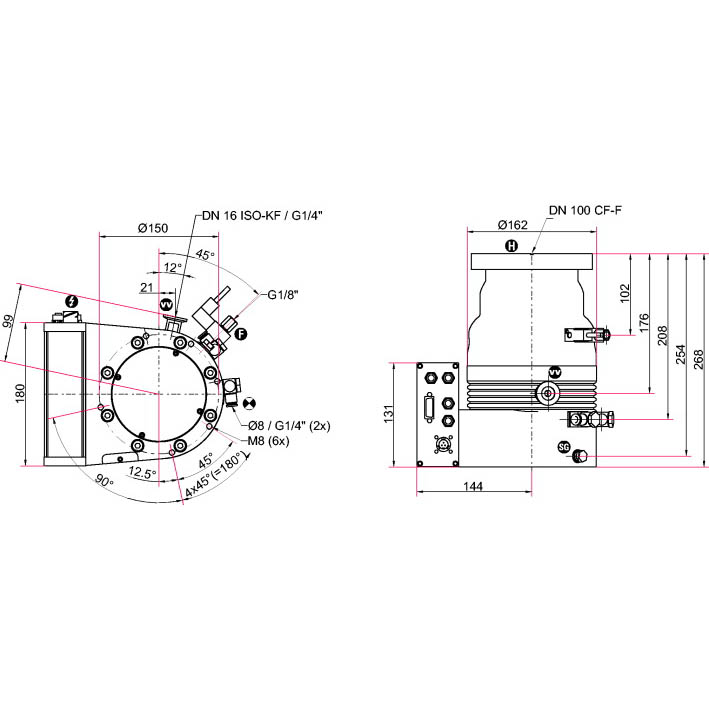

Pfeiffer Vacuum HiPace 300 M Turbomolecular Pump, DN 100 CF-F with TM 700, 48 V DC, Devicenet, PMP03958
HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 2,000 liters per second. These models afford cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. And their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs, as well as very good compression for light gases. - 5-axis magnetically levitated turbopump with a pumping speed of 255 l/s for N2
- Integrated digital magnetic bearing controller TM 700, DN 100 CF-F
- Installation in any orientation: 360° installation; flexible due to application of up to 4 accessory parts
- Integrated water cooling for maximal gas throughput
- Interface: DeviceNet and Remote
- The turbopump features extremely low vibration and is oil-free
- With patented In-field sensor calibration
- Including venting valve and patented "pulsed venting"
- Protection class IP 54
- Extensive accessories expand the range of applications
Technical data: | Bearing | Magnetically Levitated | | Compression ratio for Ar | > 1 · 1011 | | Compression ratio for H2 | 5 · 105 | | Compression ratio for He | > 1 · 108 | | Compression ratio for N2 | > 1 · 1011 | | Cooling method, optional | Air, convection | | Cooling method, standard | Water | | Cooling water consumption | 80 l/h | | Cooling water temperature | 15-35 °C | | Corrosive gas version | no | | Flange (in) | DN 100 CF-F | | Flange (out) | DN 16 ISO-KF | | Fore vacuum max. for N2 | 20 mbar | | Gas throughput at 0.1 mbar HV for Ar | 11 mbar l/s | | Gas throughput at 0.1 mbar HV for H2 | 5 mbar l/s | | Gas throughput at 0.1 mbar HV for He | 8 mbar l/s | | Gas throughput at 0.1 mbar HV for N2 | 10 mbar l/s | | Gas throughput at full rotational speed for Ar | 13 mbar l/s | | Gas throughput at full rotational speed for N2 | 28 mbar l/s | | Integrated power supply | no | | Interface, extended | DeviceNet | | Interfaces | RS-485, Remote, DeviceNet | | Low vibrations | yes | | Mounting orientation | in any orientation | | Operating voltage | 48 (± 5 %) V DC | | Particulate matter | no | | Permissible magnetic field max. | 5 mT | | Protection category | IP 54 | | Pumping speed for Ar | 250 l/s | | Pumping speed for H2 | 170 l/s | | Pumping speed for He | 215 l/s | | Pumping speed for N2 | 255 l/s | | Rotation speed ± 2 % | 60000 rpm | | Run-up time | < 2 min | | Separat electronic drive unit | no | | Sound pressure level | ≤ 45 dB (A) | | Ultimate pressure with OnTool™ DryPump | < 5 · 10-10 mbar | | Venting connection | G 1/8" | | Weight | 17.2 kg |
PN06552
Service and Repair Information  HiPace 300 M Turbomolecular Pump, DN 100 CF-F, PMP03958 Repair A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service. Due to our confidence in the quality parts and service we guarantee 6-12 month warranty for parts and labor. We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed. We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies. Repair Steps - Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
