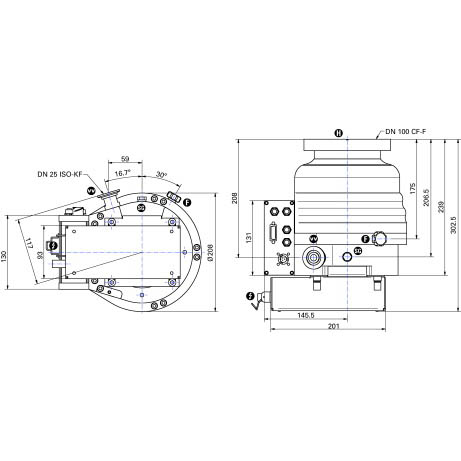

Pfeiffer Vacuum HiPace 400, inlet flange DN 100 CF-F, exhaust flange DN 25 ISO-KF/G-1/4" with TC 400 and OPS 130, PMP04321
HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 2,000 liters per second. These models afford cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. And their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs, as well as very good compression for light gases. - Compact yet powerful turbopump with a pumping speed of up to 355 l/s für N2
- DN 100 CF-F flange for UHV applications
- Drive electronics TC 400 and power supply OPS 130 integrated
- For installation in any orientation
- Integrated, powerful cooling system
- Corrosive gas version available
Technical data: | Bearing | Hybrid | | Compression ratio for Ar | > 1 · 1011 | | Compression ratio for H2 | 4 · 105 | | Compression ratio for He | 3 · 107 | | Compression ratio for N2 | > 1 · 1011 | | Cooling method, standard | Air | | Corrosive gas version | no | | Electronic drive unit | with TC 400 | | Flange (in) | DN 100 CF-F | | Flange (out) | DN 25 ISO-KF/ G 1/4" | | Fore vacuum max. for N2 | 8 mbar | | Gas throughput at full rotational speed for Ar | 1 mbar l/s | | Gas throughput at full rotational speed for H2 | 5.5 mbar l/s | | Gas throughput at full rotational speed for He | 3 mbar l/s | | Gas throughput at full rotational speed for N2 | 1.5 mbar l/s | | Integrated power supply | yes | | Interface, extended | no | | Interfaces | RS-485, Remote | | Low vibrations | no | | Mounting orientation | in any orientation | | Operating voltage | 48 (± 5 %) V DC | | Particulate matter | no | | Permissible magnetic field max. | 6 mT | | Protection category | IP 30 | | Pumping speed for Ar | 320 l/s | | Pumping speed for H2 | 445 l/s | | Pumping speed for He | 470 l/s | | Pumping speed for N2 | 355 l/s | | Rotation speed ± 2 % | 49200 rpm | | Run-up time | 5 min | | Separat electronic drive unit | no | | Sound pressure level | ≤ 50 dB (A) | | Ultimate pressure with OnTool™ DryPump | < 1 · 10-7 mbar | | Venting connection | G 1/8" | | Weight | 17.7 kg |
PN06584
