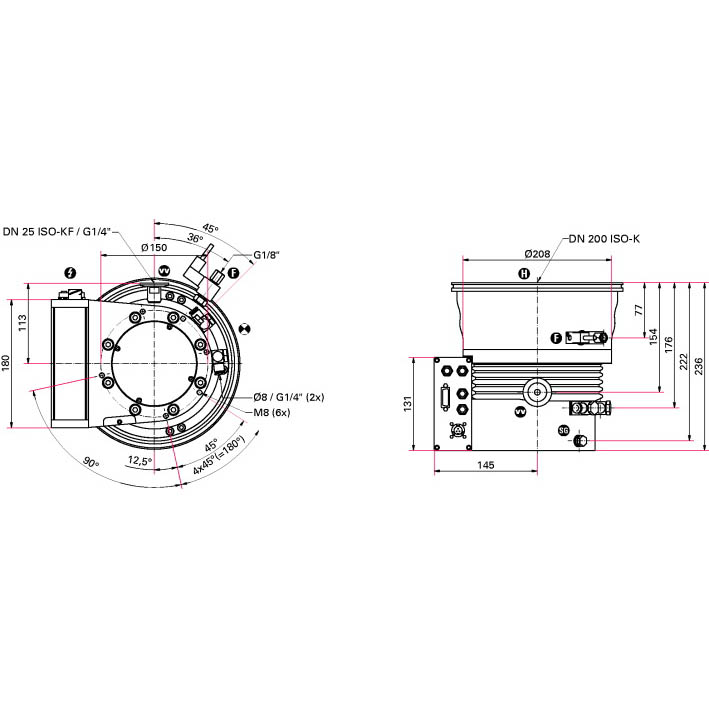

Pfeiffer Vacuum HiPace 800 M Turbomolecular Pump, DN 200 ISO-K, with TM 700, 48 V DC, Profibus, PMP04463
HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 2,000 liters per second. These models afford cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. And their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs, as well as very good compression for light gases. - 5-axis magnetically levitated turbopump with a pumping speed of 790 l/s for N2
- Integrated digital magnetic bearing controller TM 700, DN 200 ISO-K
- Installation in any orientation: 360° installation; flexible due to application of up to 4 accessory parts
- Integrated water cooling for maximal gas throughput
- Interface: RS-485 and Remote
- The turbopump features extremely low vibration and is oil-free
- With patented in-field sensor calibration
- Including venting valve and patented "pulsed venting"
- Protection class IP 54
- Extensive accessories expand the range of applications
Technical Data: | Bearing | Magnetically Levitated | | Compression ratio for Ar | > 1 · 1011 | | Compression ratio for H2 | 2 · 105 | | Compression ratio for He | > 1 · 107 | | Compression ratio for N2 | > 1 · 1011 | | Cooling method, optional | Air, Convection | | Cooling method, standard | Water | | Cooling water consumption | 80 l/h | | Cooling water temperature | 15-35 °C | | Corrosive gas version | no | | Flange (in) | DN 200 ISO-K | | Flange (out) | 25 ISO-KF | | Fore vacuum max. for N2 | 8 mbar | | Gas throughput at 0.1 mbar HV for Ar | 16 mbar l/s | | Gas throughput at 0.1 mbar HV for H2 | 9 mbar l/s | | Gas throughput at 0.1 mbar HV for He | 16 mbar l/s | | Gas throughput at 0.1 mbar HV for N2 | 16 mbar l/s | | Gas throughput at full rotational speed for Ar | 8 mbar l/s | | Gas throughput at full rotational speed for N2 | 13 mbar l/s | | Integrated power supply | no | | Interface, extended | no | | Interfaces | RS-485, Remote | | Low vibrations | yes | | Mounting orientation | in any orientation | | Operating voltage | 48 (± 5 %) V DC | | Particulate matter | no | | Permissible magnetic field max. | 5 mT | | Protection category | IP 54 | | Pumping speed for Ar | 775 l/s | | Pumping speed for H2 | 500 l/s | | Pumping speed for He | 625 l/s | | Pumping speed for N2 | 790 l/s | | Rotation speed ± 2 % | 49200 min-1 | | Run-up time | 4 min | | Separat electronic drive unit | no | | Sound pressure level | ≤ 45 dB (A) | | Ultimate pressure with OnTool™ DryPump | < 1 · 10-7 mbar | | Venting connection | G 1/8" | | Weight | 17.2 kg |
PN06625
