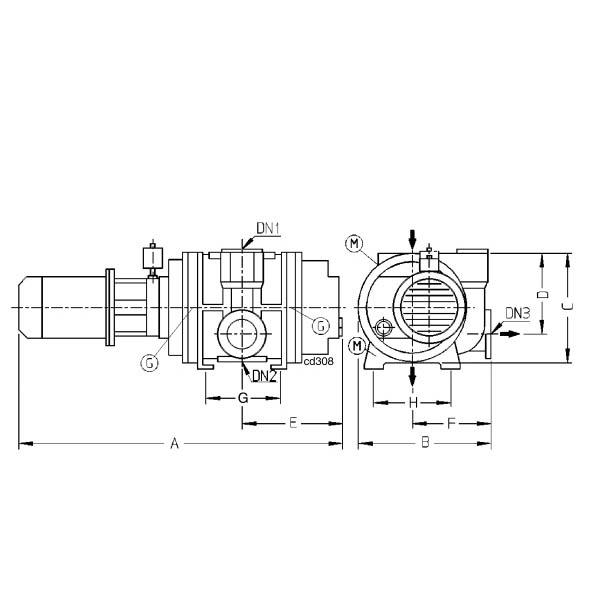

Pfeiffer Vacuum Okta 6000 AM, Roots vacuum pum 400/690 V, 50 Hz, 15 kW 440 -480 V, 60 Hz, 18,5 kW magnetic clutch, PPW77000
The pumping speed of our OktaLine Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications. The gear and bearing chambers in our Roots Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured. A further advantage: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of our proven Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases. The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps. - High-performance Roots Pump (Vacuum Booster) with a pumping speed of 6075 m3/h and magnetic coupling
- For mains voltage: 400 V, 50 Hz respectively 460 V, 60 Hz
- No thermal overload thanks to integral overflow valve
- For applications in the low and medium vacuum
Technical Data: | Differential pressure at the overflow valve | 20 mbar | | Emission sound pressure level (EN ISO 2151) at intake pressure 10 mbar | 79 dB (A) | | Emission sound pressure level (EN ISO 2151) at intake pressure 1 mbar | 74 dB (A) | | Flange (in) | DN 250 ISO-F | | Flange (out) | DN 160 ISO-F | | Leak rate | 1 · 10-5 mbar l/s | | Mains requirement: voltage | 400 V, 50 Hz | | Motor rating | 15 kW | | Nominal pumping speed | 6075 m3/h | | Operating fluid filling | 6.8 l | | Rotation speed | 3000 rpm | | Version | Hermetically sealed | | Weight | 850 kg |
PN06656
