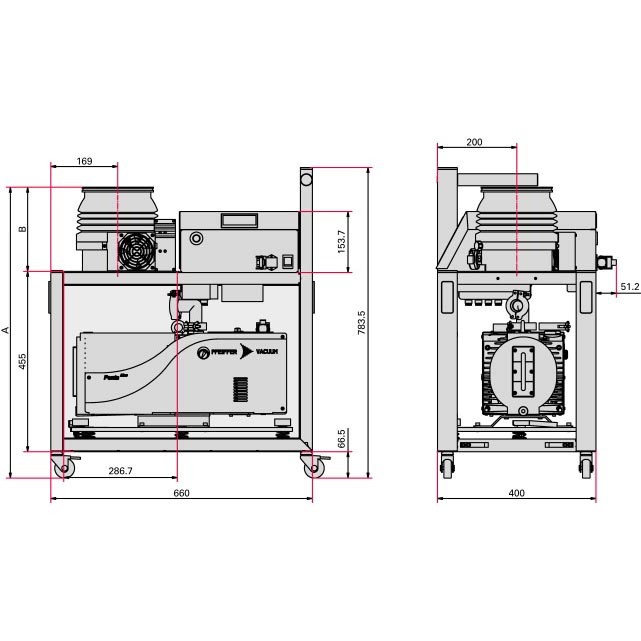

Pfeiffer Vacuum HiCube 700 Pro / Penta 35 Turbomolecular Pump Station, DN 160 ISO-K, 230V AC, 50/60 Hz, PMS4751000

The HiCube Pro pumping stations are suitable for all high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. The HiCube Pro is especially characterized by its extremely fast pump-down times. Available for selection as backing pumps are the dry pumps from the XtraDry line with pumping speeds of up to 7.5 m³ / h or rotary vane pumps with pumping speeds of up to 34 m³ / h.

• Combination pumping station incorporating turbopump and backing pump for all high vacuum applications
• Air-cooled and ready for operation with HiPace 700 and Penta 35 rotary vane backing pump
• DN 160 ISO-K
• 230 V AC, 50/60 Hz

Technical data:

With the modular design principle of the new HiCube series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speed range from 35 l/s to 685 l/s. Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.

The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. Pfeiffer Vacuum offers you the new HiCube in Pro and Classic versions; available with dry or oil-sealed backing pump and an ultimate pressure of up to 5 • 10^-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 35 l/s to 67 l/s.
