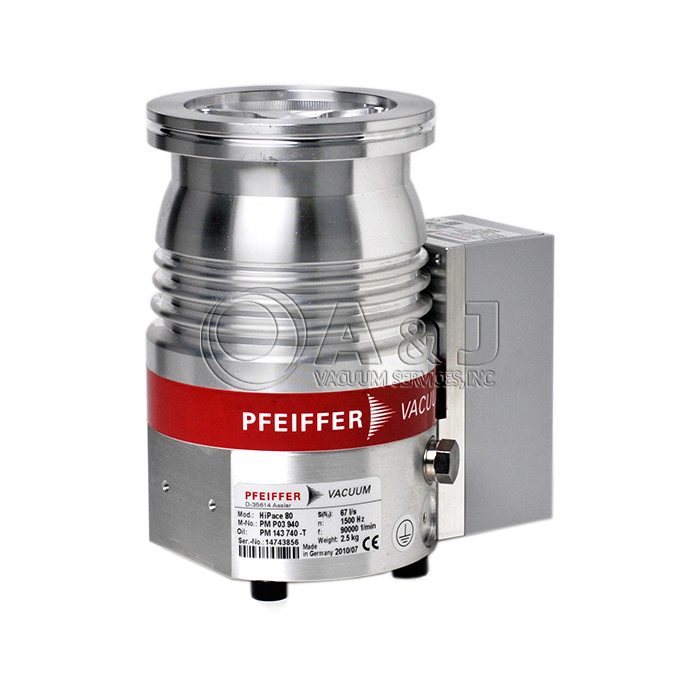

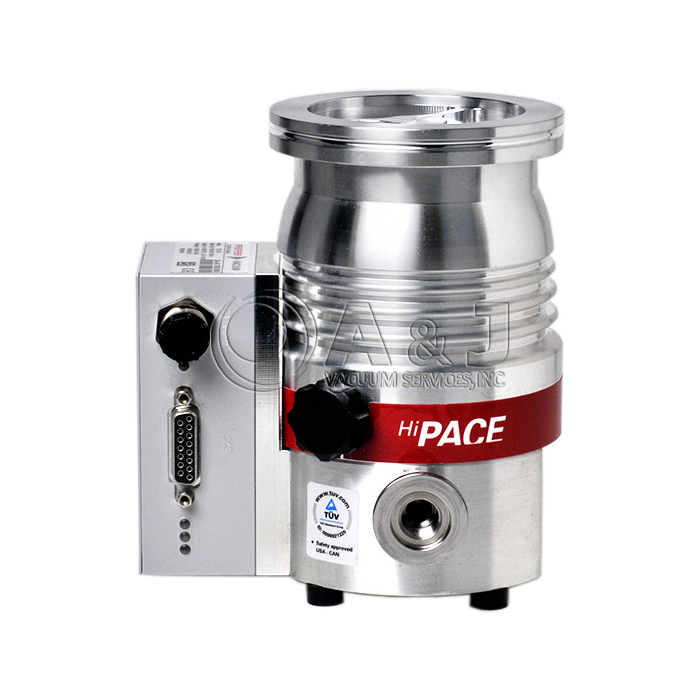

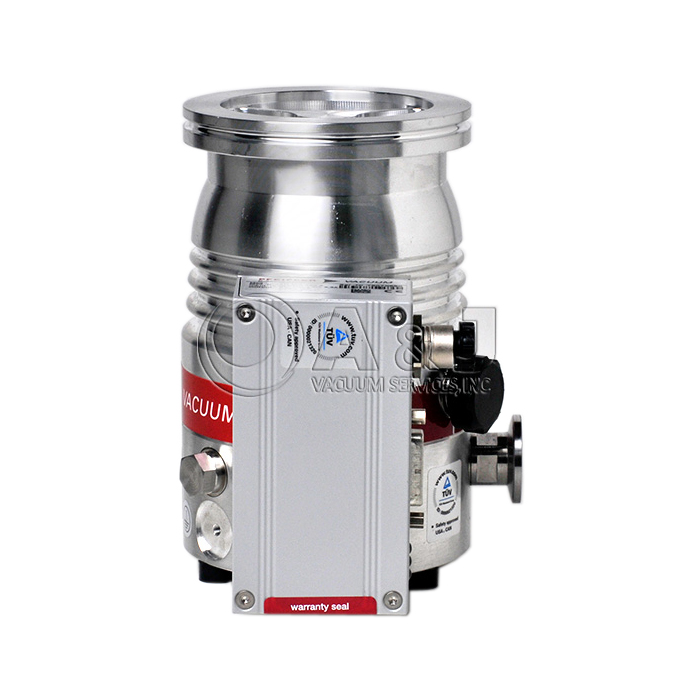

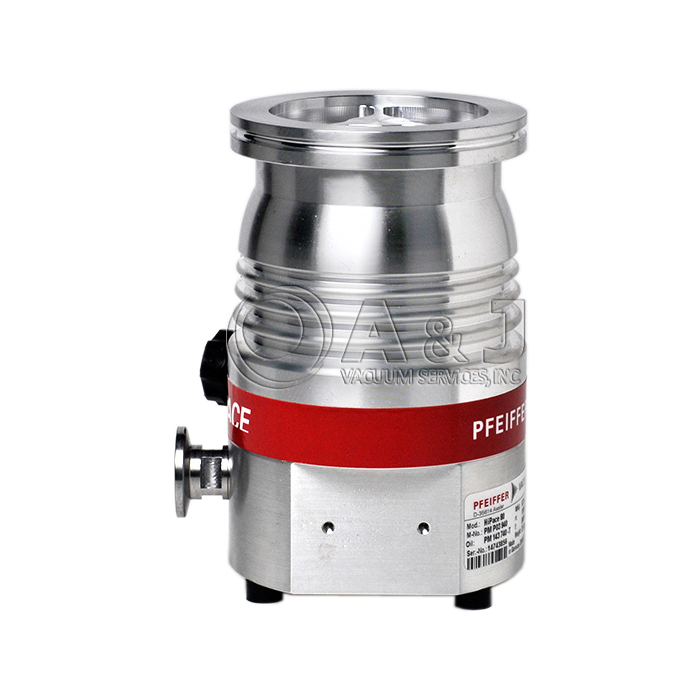

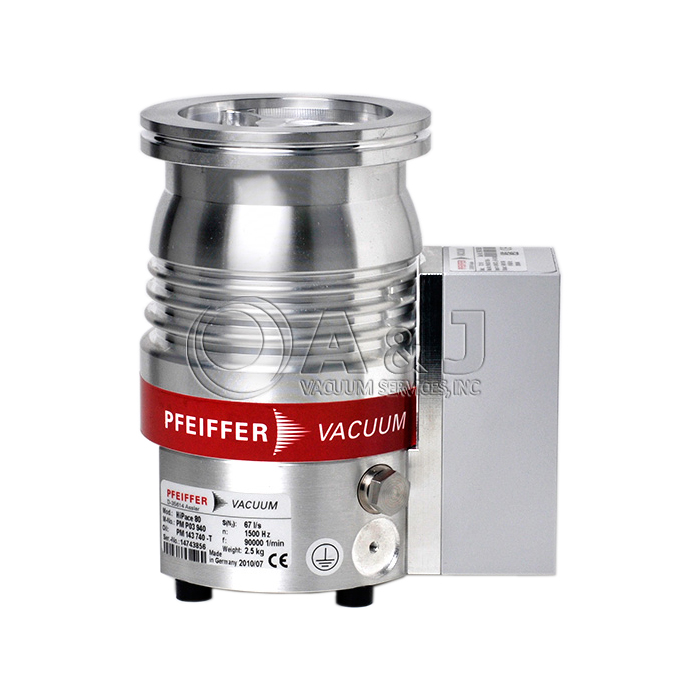

| Pfeiffer HiPace 80 Turbo Pump with TC 110, DN 63 ISO-K, PMP03940, R |
|
|
In Stock, Ready to Ship
| Item#: PN00002 |
Mfr Part#: PMP03940 |
|
Refurbished Pfeiffer HiPace 80 Turbo Pump with TC 110, DN 63 ISO-K, PM P03 940, R |
|
|
|
 |
|
|
|
Overview
Refurbished Pfeiffer HiPace 80 Turbo Pump with TC 110, DN 63 ISO-K, PMP03940, R The refurbished Pfeiffer HiPace 80 is a compact and versatile turbo pump that can obtain a pumping speed of 67 liters per second (l/sec) for nitrogen. These cost effective turbomolecular vacuum pumps are designed with durable high quality construction and can be installed in any orientation. The Pfeiffer HiPace 80 turbo drag pump is built with a dependable bearing scheme that offers optimal reliability and efficiency. The advanced rotor architecture of these turbo pumps makes for higher pumping speeds, higher gas throughputs and excellent compression for light gases. The Pfeiffer Vacuum HiPace 80 is a suitable turbo pump for applications in many fields including Analytics, Coating Technology and Vacuum Metallurgy. - Small yet powerful turbopump with a pumping speed of up to 67 l/s for N2
- Integrated TC 110 drive electronics, DN 63 ISO-K flange
- For installation in any orientation
- Ideal for dependable systems integration
- Extensive accessories expand the range of applications
PN00002 THIS ITEM COMES WITH A FULL 12 MONTH WARRANTY. |
Specifications
|
Technical Data: | Bearing | Hybrid | | Compression ratio for Ar | > 1 · 1011 | | Compression ratio for H2 | 1.4 · 105 | | Compression ratio for He | 1.3 · 107 | | Compression ratio for N2 | > 1 · 1011 | | Cooling method, optional | Air/Water | | Cooling method, standard | Convection | | Cooling water consumption | 75 l/h | | Cooling water temperature | 5-25 °C | | Corrosive gas version | no | | Electronic drive unit | with TC 110 | | Flange (in) | DN 63 ISO-K | | Flange (out) | DN 16 ISO-KF / G 1/4" | | Fore vacuum max. for N2 | 22 mbar | | Gas throughput at full rotational speed for Ar | 0.54 mbar l/s | | Gas throughput at full rotational speed for H2 | 15.3 mbar l/s | | Gas throughput at full rotational speed for He | 2.7 mbar l/s | | Gas throughput at full rotational speed for N2 | 1.3 mbar l/s | | Integrated power supply | no | | Interface, extended | no | | Interfaces | RS-485, Remote | | Low vibrations | no | | Mounting orientation | in any orientation | | Operating voltage | 24 (± 5 %) V DC | | Particulate matter | no | | Permissible magnetic field max. | 3.3 mT | | Protection category | IP 54 | | Pumping speed for Ar | 66 l/s | | Pumping speed for H2 | 48 l/s | | Pumping speed for He | 58 l/s | | Pumping speed for N2 | 67 l/s | | Rotation speed ± 2 % | 90000 rpm | | Run-up time | 1.7 min | | Separat electronic drive unit | no | | Sound pressure level | ≤ 48 dB (A) | | Ultimate pressure with OnTool™ DryPump | < 1 · 10-7 mbar | | Venting connection | G 1/8" | | Weight | 2.4 kg | |
Video
Pfeiffer Vacuum HiPace 80 Turbo Pump | | |
| | Pfeiffer Vacuum HiPace 80 Turbo Pump | | |
| | |
Service & Repair
 A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service. We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed. We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies. Repair Steps - Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854. |
|
