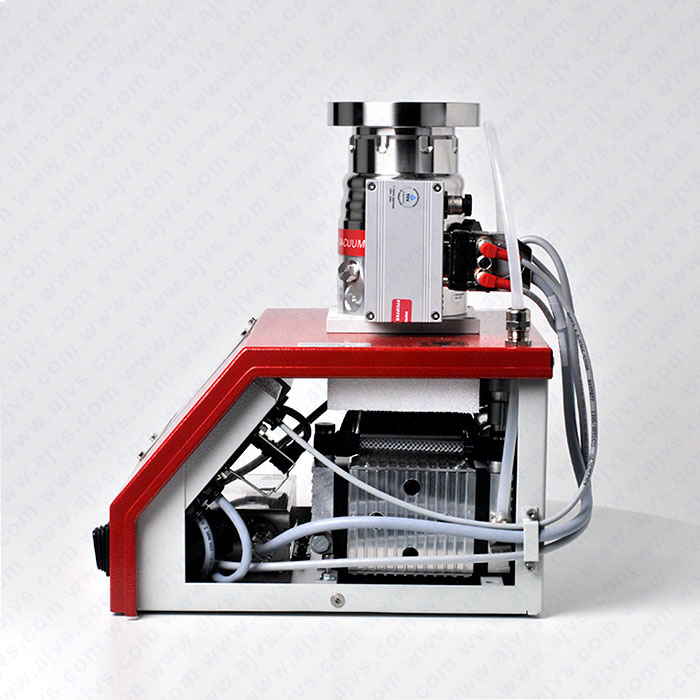

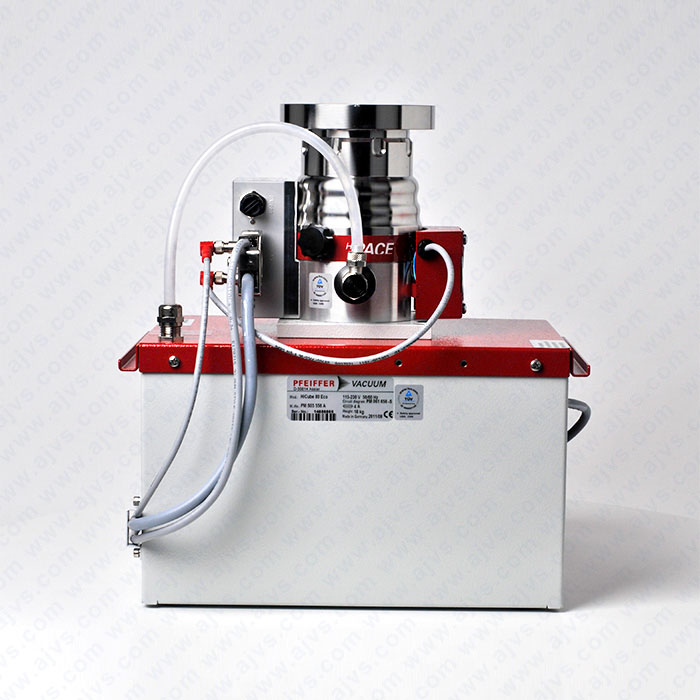

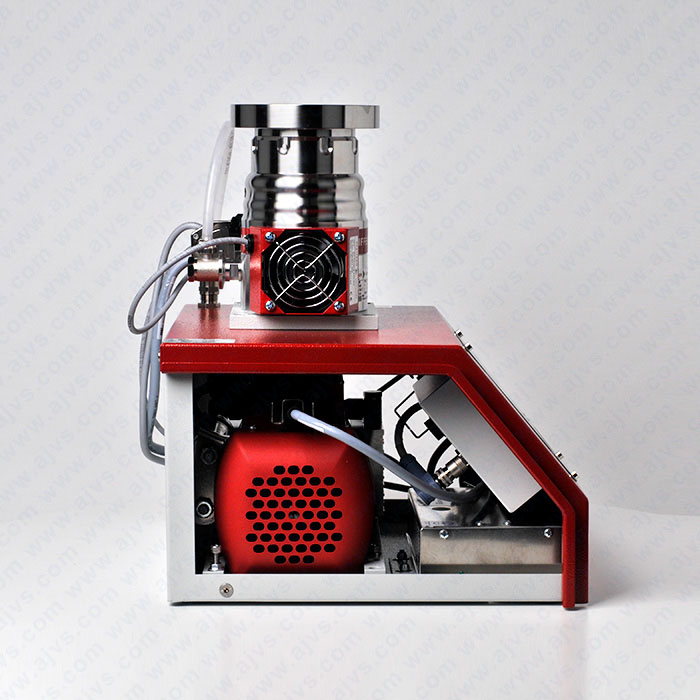

Pfeiffer Vacuum HiCube 80 Eco Turbo Pumping Station, DN40 ISOK-F, with MVP015 Diaphragm Vacuum Pump, DCU 002, PMS03557

Home » Turbo Pumps » Turbo Pumping Stations » PMS03557

Pfeiffer Vacuum HiCube 80 Eco Turbo Pumping Station, DN40 ISOK-F, with MVP015 Diaphragm Vacuum Pump, DCU 002, PMS03557, N

$5,995.00

Quantity:

Item#: PN00048

Mfr Part#: PMS03557

New Pfeiffer Vacuum HiCube 80 Eco Turbo Pumping Station, DN40 ISOK-F, with MVP015 Diaphragm Vacuum Pump, DCU 002, PMS03557, Compact series of pumping stations for all high vacuum applications Air-cooled and ready for operation with HiPace 80 and MVP 015 (MVP015) dry diaphragm backing pump DN63 ISOK With DCU 002

Description

New Pfeiffer Vacuum HiCube 80 Eco Turbo Pumping Station, DN40 ISOK-F, with MVP015 Diaphragm Vacuum Pump, DCU 002, PMS03557

Compact series of pumping stations for all high vacuum applications
Air-cooled and ready for operation with HiPace 80 and MVP 015 dry diaphragm backing pump
DN 40 ISO-K

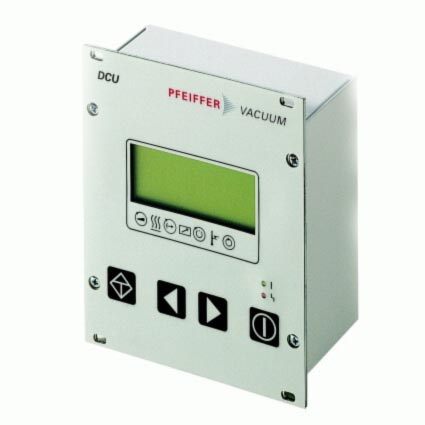

With DCU 002
90-132 V AC, 50/60 Hz ; 185-265 V AC, 50/60 Hz
Pfeiffer Vacuum ActiveLine optionally connectable

Parameter	HiCube 80 Eco	HiCube 80 Eco	HiCube 80 Eco
Flange (in)	DN 63 ISO-K	DN 63 CF-F	DN 40 ISO-KF
Pumping speed for N2	67 l/s	67 l/s	35 l/s
Pumping speed backing pump at 50 Hz	0.9 m3/h	0.9 m3/h	0.9 m3/h
Ultimate pressure	< 1 · 10-7 mbar	< 1 · 10-7 mbar	< 1 · 10-7 mbar
Mains requirement	110 V, 50/60 Hz ;	110 V, 50/60 Hz ;	110 V, 50/60 Hz ;
	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz
Mains requirement: power consumption	230 V AC	230 V AC	230 V AC
Weight	17 kg	17 kg	17 kg

Applications:

- Analytical
- Leak detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy

PN00048

For more information, please visit this products webpage.

Action	Filename
Download	HiCube_80_Eco_DN_40_ISO_KF_MVP_015_DCU_002.pdf
Download	Pfeiffer_Vacuum_Display_And_Operating_Unit_DCU_002.pdf
Download	Pfeiffer_Vacuum_HiCube_80_Eco_Manual.pdf
Download	Pfeiffer_Vacuum_HiPace_80_Manual.pdf
Download	Pfeiffer_Vacuum_HiPace_DCU_002_Display_control_unit.pdf
Download	Pfeiffer_Vacuum_MVP-015_Manual.pdf
Download	Turbo_pumping_station_HiCube_80_Eco.pdf
