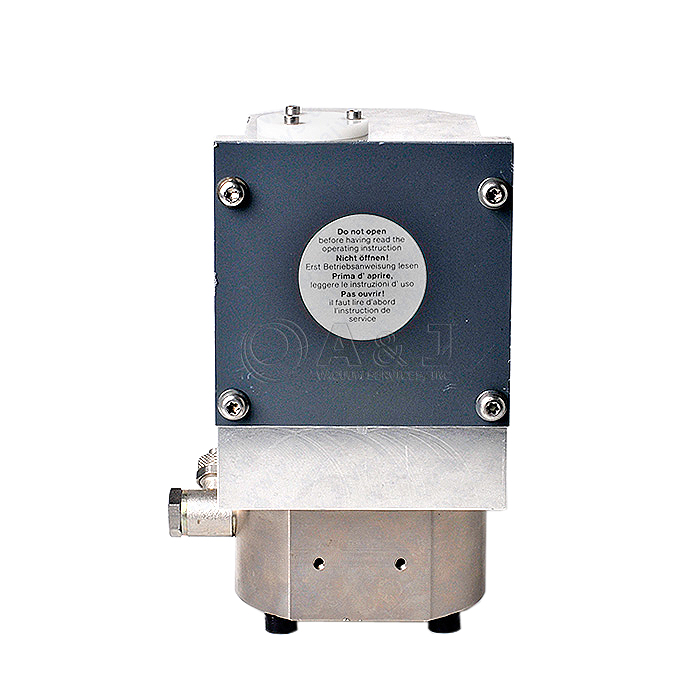

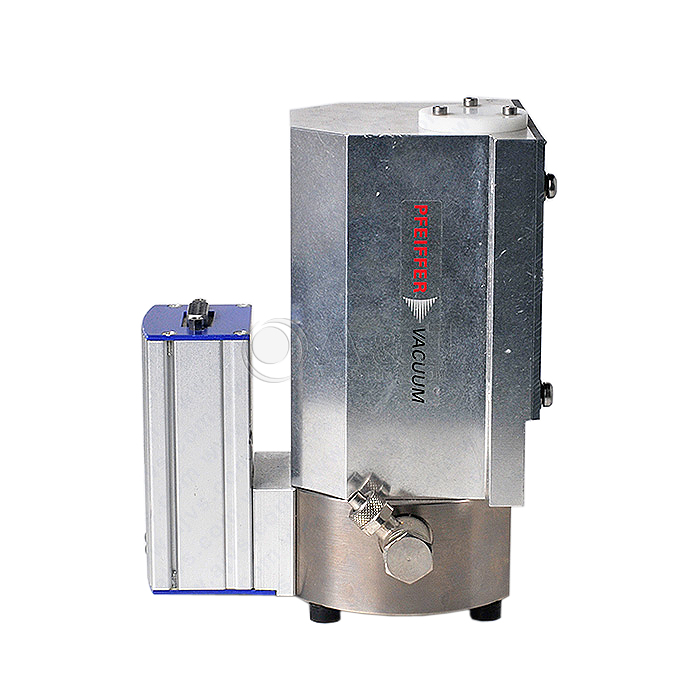

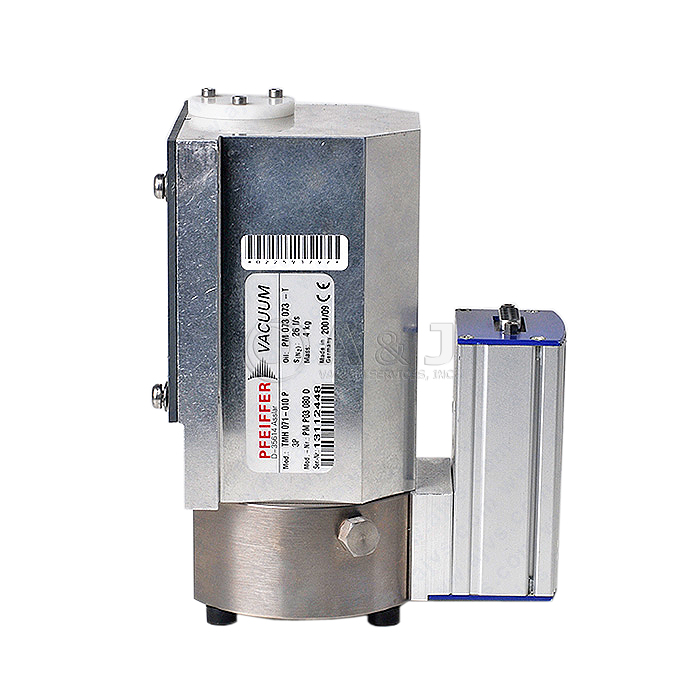

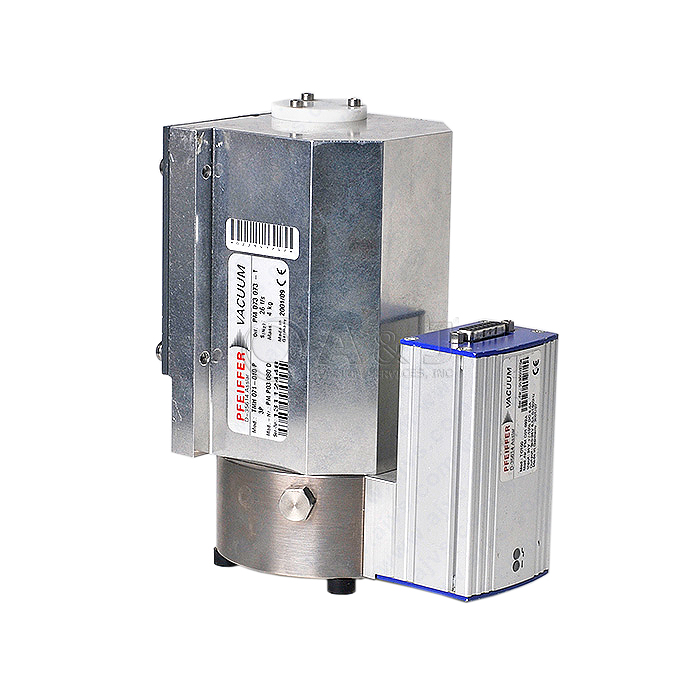

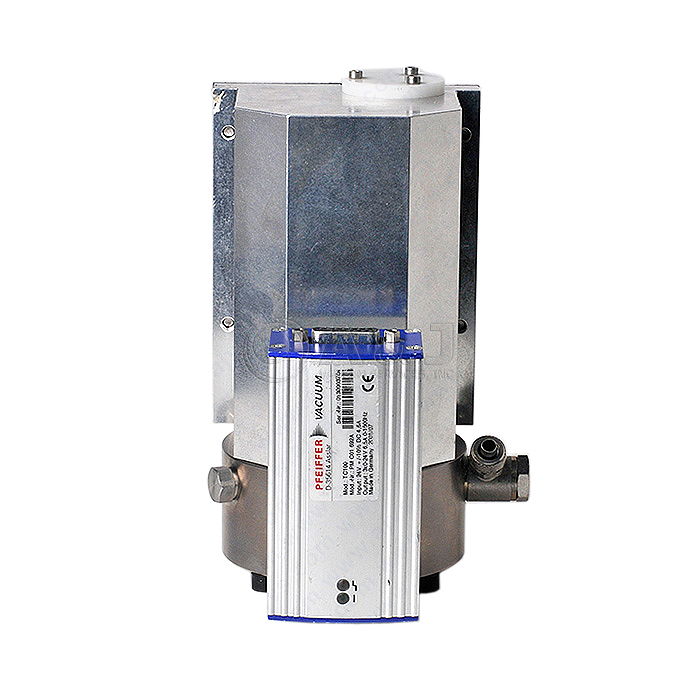

Pfeiffer Vacuum TMH 071-010 P (TMH071-010) Turbo Pump, with TC 100, PMP03080D / PMC01962

Main image
Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7
Condition: Remanufactured
Call us for Availability
Item#:PN06838
Mfr Part#:PMP03080D / PMC01962
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Request a repair estimate Request sales quote Financing available
Remanufactured Pfeiffer Vacuum TMH 071-010 P (TMH071-010) Turbo Pump, with TC 100, PMP03080D / PMC01962
Features:
  • Cooling water temperature °C 5 - 25
  • Protection class 7) IP 30
  • Heating power consumption W 32
  • Weight kg 2.8
  • Overview
  • Specifications
  • Manuals
  • Videos
  • Spare Parts
  • Accessories
  • Service & Repair
12 months warranty

Pfeiffer Vacuum TMH 071-010 P (TMH071-010) Turbo Pump, with TC 100, PMP03080D / PMC01962



TMH 071-010 P / PMP03080D Overview:

Fully refurbished Pfeiffer Vacuum TMH071-010P (TMH071), PMP03080D Turbo Pump. This particular Turbomolecular Drag Pump has a pumping velocity of 60 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TMH 071P Turbo Pump comes with an entire 12-Month Warranty. The Turbomolecular Pumps TMH 071 P/TMU 071 P may only be used for the purpose of generating vacuum. The turbopumps may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved.



A&J Vacuum Services offers full repair/service of Pfeiffer Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

This item is non-returnable/non-refundable

Pfeiffer Vacuum TMH 071-010 P (TMH071-010) Turbo Pump, with TC 100, PMP03080D / PMC01962



Pfeiffer TMH 071-010 P Technical Data:

Feature Unit TMH 071 P
Connection nominal diameter
Inlet   DN 40 ISO-KF
Outlet   DN 16 ISO-KF/G 1/4"
Venting connection   G 1/8"
Nominal rotation speed 1/min 90000
Standby rotation speed 1/min 60000
Start-up time min 2
Noise level dB (A) < 45
Final pressure, backing pump mbar < 10
Maximum permissible
rotor temperature °C 90
Permissible heat radiation power W 4
Volume flow rate for
Nitrogen N2 l/s 33
Helium He l/s 38
Hydrogen H2 l/s 39
Compression ratio for
N2   > 10 11
He   1 x 10 7
H2   > 10 5
Maximum fore-vacuum pressure for
N2 mbar 18
He mbar 17
H2 mbar 8
Maximum gas throughput 1)
With water cooling
N2 mbar l/s 1.1
He mbar l/s 2.5
N2 mbar l/s 0.45
Maximum gas throughput
at intake pressure of 0.1 mbar 3)
With water cooling
N2 mbar l/s 2.2
He mbar l/s 2.6
H2 mbar l/s 2
Vertex power characteristics line 4)
A W / Hz 80 / 1500
B W / Hz 80 / 1500
C W / Hz 55 / 1500
D W / Hz 80 / 1300
Final pressure 5)
With rotary vane pumps mbar < 1 x 10 -7
With diaphragm pumps mbar < 1 x 10 -7
Lubricant   TL 011
Maximum cooling water
consumption with water at 15 °C 6) l/h 100
Cooling water temperature °C 5 - 25
Permissible ambient temperature
with air cooling °C 0 - 35
Heating power consumption W 32
Weight kg 2.8
Permissible magnetic field mT 3
Operating voltage VDC 24 ± 5%
Duration 6) - / max. current consumption A 4.1 / 4.6
Duration 6) - / max. power W 100 / 110
Fuse, internal V T8A/250
Protection class 7)   IP 30
Relative humidity % 5-85 non-condensing



A&J Vacuum Services offers full repair/service of Pfeiffer Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
