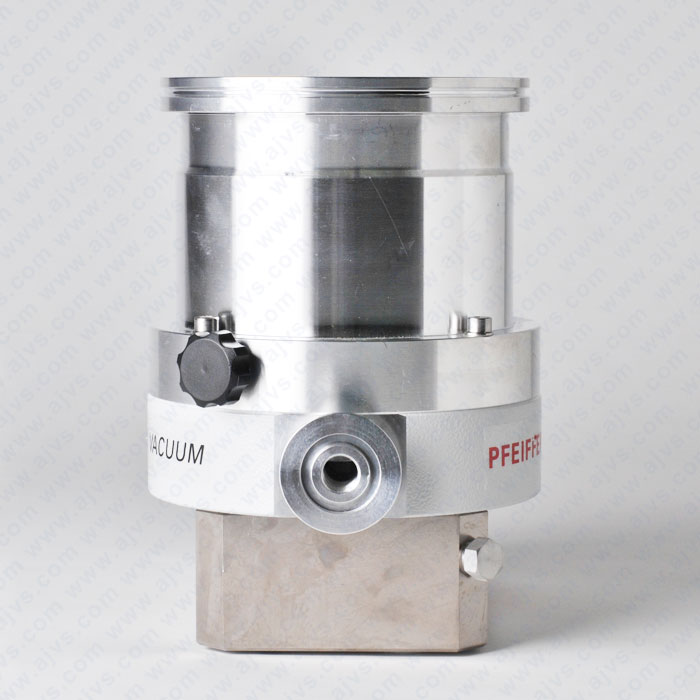

Pfeiffer Vacuum TMH 261 P Turbo Pump, PMP02821 with TC 600, PMC01720, DN-100 ISO Inlet Flange, KF-25 Outlet Flange.

Fully rebuilt Pfeiffer Vacuum TMH 261P PMP02821 with TC600, PMP01720 Turbo Pump coupled with a DN-100 ISO Inlet Flange and KF-25 Outlet Flange. This particular Turbomolecular Drag Pump has a pumping velocity of 210 liters per second and a final pressure of 1x(10^7). It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TMH 261P Turbo Pump comes with an entire 12-Month Warranty.

Overview:

• Pumping speed: 210 l/sec for N2

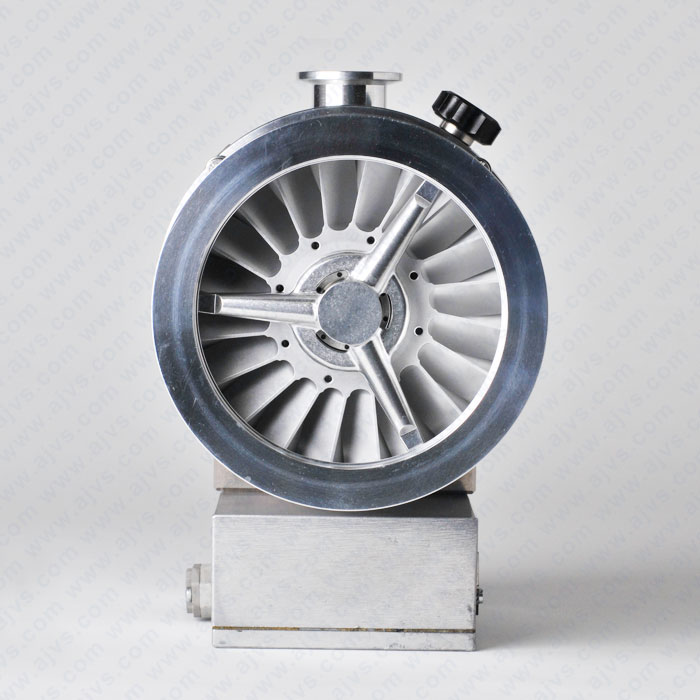

• DN-100 ISO Inlet Flange
• KF-25 Outlet Flange
• Ultimate pressure with rotary vane pump 1x(10^7) Mbar
• Air or Water Cooling required / available.
• This Pfeiffer pump package is fully rebuilt and comes with a  FULL 12-MONTH WARRANTY!

This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.

Technical Data: Parameter TMH 261 P TMH 261 YP Flange (in) DN 100 ISO-K Flange (out) DN 25 ISO-KF / G 1/4" Venting connection G 1/8" Rotational speed ±2% 60000 rpm Run-up time 1.6 min Ultimate pressure with rotary vane pump < 1·10-7 mbar Ultimate pressure with diaphragm pump < 1·10-7 mbar Fore Vacuum max. for N2 10 mbar Compression ratio for N2 >1·109 Compression ratio for He 3·105 Compression ratio for H2 1.4·104 Compression ratio for Ar >1·109 Gas throughput at 0.1 mbar HV for N2 7 mbar l/s Gas throughput at 0.1 mbar HV for He 6 mbar l/s Gas throughput at 0.1 mbar HV for H2 3.5 mbar l/s Gas throughput at 0.1 mbar HV for Ar 7 mbar l/s Gas throughput at full rotational speed for N2 7 mbar l/s Gas throughput at full rotational speed for He 9 mbar l/s Gas throughput at full rotational speed for H2 43 mbar l/s Gas throughput at full rotational speed for Ar 4 mbar l/s Pumping speed backing pump for the listed gas throughputs at least 10 m3/h Pumping speed for N2 210 l/s Pumping speed for He 220 l/s Pumping speed for H2 175 l/s Pumping speed for Ar 200 l/s Cooling method, standard Water, air Max. cooling water temperature 25 °C Cooling water consumption 100 l/h Weight 6.1kg / 13.4 lb

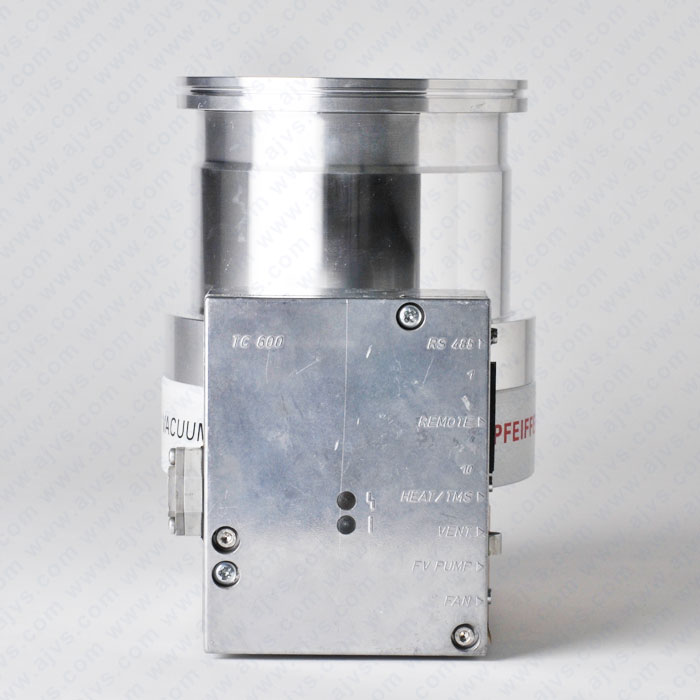

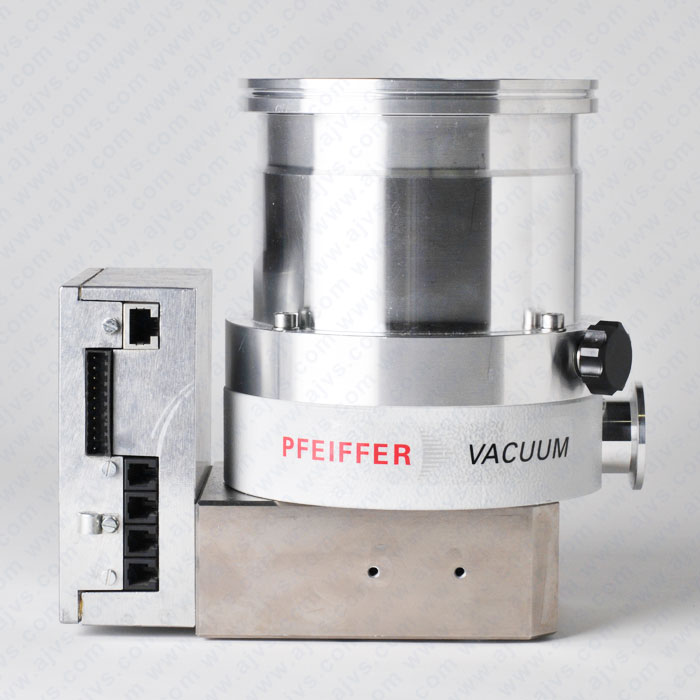

Main Features: TurboDrag Pump TMH 261 P 4 High vacuum flange 8 Electronic drive [unit TC 600] 17 Venting screw 20a Fore-vacuum flange 98 Remote plug TMH 261P_PMP02820_TC600.jpg" target="_blank">TMH 261P_PMP02820_TC600.jpg" vspace="1" width="180" /> click to enlarge

Turbo Pump Applications

• Freeze drying - packaging industry
• Degassing, casting, dry vacuum smelting (super-pure metals)
• Incandescent lamp manufacturing
• Electronic tubes
• Thin film deposition
• Space simulation
• Cryogenic research
• Electron microscopy
• Nuclear physics, Plasma physics, High energy physics
• Particle accelerators - Storage rings

Technology

A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.

A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.
