AJ-ELITE A is synthetic fluid put through a high vacuum molecular distillation process and contains a high temperature anti-oxidation additive package. This product is twice the molecular weight of harbocarbon fluids and exhibits much lower backstreaming tendencies.AJ- Elite A Should not be used in applications with high oxygen content. Applications include: Mass spectrometers, leak detection, freeze dryers, optical coating and semiconductor.
Vapor Pressure @ 25*C 1X10-7 Torr
Viscosity @ 40*C 48 cst, 225 sus
Pour Point -60*C. -70*F.
Specific Gravity @22*C .83g/ml
Flash Point - C.O.C. 249*C 480*F
Fire Point - C.O.C. 279*C 535*F
CAUTION: These products are not non-flammable and should not be used in applications where there is risk of explosion from high oxygen enriched enviroments. |
|
|
|
|
|
AJ-ELITE Z is a higher viscosity version of the AJ- ELITE A synthetic vacuum pump fluid. AJ-ELITE Z is an excellent choice for hot running vane pumps and enhanced resistance to water vapor.
Vapor Pressure @ 25*C 1X10-7 Torr
Viscosity @ 40*C 55 cst, 256 sus
Pour Point -54*C. -65*F.
Specific Gravity @22*C .84g/ml
Flash Point - C.O.C. 268*C 515*F
Fire Point - C.O.C. 305*C 581*F |
|
|
|
TL-011 is turbo pump fluid. |
|
|
CMP 500 is a turbo pump fluid which is chemically identical to Leybold HE 500 and Pfeiffer TL-011
Vapor Pressure @ 342*F 0.1mm
Viscosity @ 130*F 8.7 cst
Pour Point -80*F.
Specific Gravity @22*C 0.922 g/ml
Flash Point - C.O.C. 218*C 475*F |
|
|
MP 30 is a severely hydrotreated hydrocarbon fluid, diffusion pump fluid which is put through a high vacuum molecular distillation process to further enhance its ultimate vapor pressure characteristics.This product is recommended for applications with heavy gas loads such as vacuum melting and vacuum heat treating.
Vapor Pressure @ 25*C 1X10-6 Torr
Viscosity @ 40*C 75 cst, 350 sus
Pour Point -12*C. 10*F.
Specific Gravity @22*C .86 g/ml
Flash Point - C.O.C. 257*C 495*F
Fire Point - C.O.C. 282*C 540*F |
|
|

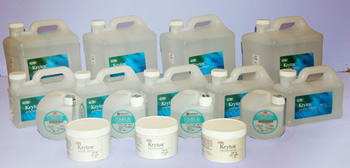

KRYTOX fluids are non-flammable chemically inert a thermally stable fluids that were developed by Dupont. They are safe for oxygen service, highly resistant lewis acids.
Vapor Pressure @ 20*C 4X10-7 Torr
Viscosity @ 20*C 62 cst,
Pour Point -45*C
Specific Gravity @22*C .83g/ml
Flash Point - C.O.C. none
Fire Point - C.O.C. none
Approved by all major pump manufacturing companies. Safe for oxygen service. Manufactured in United States by DuPont. |
|
|
KRYTOX 1514 is the middle viscosity of the KRYTOX line fluids.
Viscosity @ 20*C 142 cst,
Pour Point -40*C
Flash Point - C.O.C. none
Fire Point - C.O.C. none
Approved by all major pump manufacturing companies. Safe for oxygen service. Manufactured in United States by DuPont. |
|
|
KRYTOX 1525 is the highest viscosity fluid in the KRYTOX line of fluids.
Viscosity @ 20*C 261 cst,
Pour Point -35*C
Density 1.90 g/ml
Flash Point - C.O.C. none
Fire Point - C.O.C. none
Approved by all major pump manufacturing companies. Safe for oxygen service. Manufactured in United States by DuPont. |
|
|
|
