Found 16 products
Item#: PN15594 Mfr Part#: 9693515 Manufacturer: Agilent Technologies / Varian
PRICE: $657.00
WEB SAVINGS: $28.00
YOU PAY: $629.00

The Agilent Technologies HeliTest Prob Set is designed to be used with the PHD 4 Portable Helium Leak Detector.

The Agilent Varian PHD-4 Portable Helium Leak Detector permits fully automatic detection of concentrations of helium down to a lower limit of 2 parts for million (ppm). The value of the leak is shown in real time on the graphic display on the front panel. The instrument, which emits an acoustic signal proportional to the concentration of helium detected, incorporates a self-test program, making it possible to carry out any type of operation using the soft-keys on the front control panel. The operator can use the straps provided to carry the unit and locate leaks using the extensible probe.

The system to be tested is filled with a mixture of helium/air. The probe is passed over areas considered to be critical and, via a sampling pump, the mix of gases around the areas examined is sampled and piped towards the internal sensor. The sensor consists of a pressure detector and of a heated quartz capillary which is highly permeable to the molecules of helium, while permeability for all other atmospheric gases is negligible. While the atmospheric gases are vented to the outside, the molecules of helium reach the pressure detector. The electric signal proportional to the partial pressure of the helium taken from the detector, is processed by the microprocessor of the central unit. This permits direct readout of the concentration of helium on the display.


Condition: New In Stock
Item#: PN15596 Mfr Part#: SR0370288 Manufacturer: Agilent Technologies / Varian
PRICE: $0.00
YOU PAY: $403.00

PHD4 Battery Charger Transformer / 110 - 220 for Agilent PHD-4 Portable Helium Leak Detector, SR03702888

The Agilent Technologies Transformer / Battery Charger is designed to be used with the PHD 4 Portable Helium Leak Detector.

PHD4 Charger kit includes Manis Cables for 115 VAC, and 230 VAC

The Agilent Varian PHD-4 Portable Helium Leak Detector permits fully automatic detection of concentrations of helium down to a lower limit of 2 parts for million (ppm). The value of the leak is shown in real time on the graphic display on the front panel. The instrument, which emits an acoustic signal proportional to the concentration of helium detected, incorporates a self-test program, making it possible to carry out any type of operation using the soft-keys on the front control panel. The operator can use the straps provided to carry the unit and locate leaks using the extensible probe.

The system to be tested is filled with a mixture of helium/air. The probe is passed over areas considered to be critical and, via a sampling pump, the mix of gases around the areas examined is sampled and piped towards the internal sensor. The sensor consists of a pressure detector and of a heated quartz capillary which is highly permeable to the molecules of helium, while permeability for all other atmospheric gases is negligible. While the atmospheric gases are vented to the outside, the molecules of helium reach the pressure detector. The electric signal proportional to the partial pressure of the helium taken from the detector, is processed by the microprocessor of the central unit. This permits direct readout of the concentration of helium on the display.


Condition: New In Stock
Item#: PN07039 Mfr Part#: G8600A100 Manufacturer: Agilent Technologies / Varian
Price upon request

Wireless Remote, Base Unit Allows communication with wireless hand-held remote control, ordered separately (p/n VSLDWRC).


Condition: New
Item#: PN07040 Mfr Part#: G8600A100 Manufacturer: Agilent Technologies / Varian
Price upon request

Condition: New
Item#: PN07041 Mfr Part#: G8601B101 Manufacturer: Agilent Technologies / Varian
Price upon request
Discrete IO Interface allows control and monitoring via PC or PLC. 12 outputs permit total control of the instrument and 6 inputs allow recording of key test data.

Condition: New
Item#: PN07107 Mfr Part#: VSLTDW Manufacturer: Agilent Technologies / Varian
Price upon request

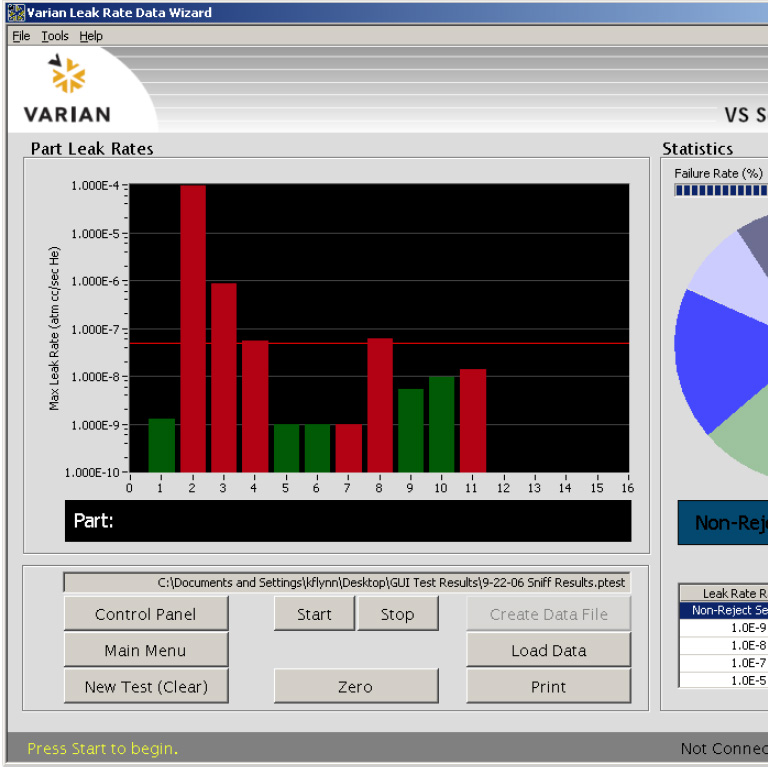

Capturing and analyzing leak test data are increasingly critical to the leak test process. Aggressive manufacturing yield and efficiency targets, demanding quality control procedures, and ISO and regulatory compliance requirements have created a need for a capable, user-friendly data management tool. To meet this need, Varian has designed the Leak Test Data Wizard, a comprehensive data management software package for use with our VS Series mass spectrometer leak detectors. The Leak Test Data Wizard is a flexible PC based, graphic-rich tool that makes full use of the data from the VS leak detector to customize automation of basic leak test processes, assuring testing uniformity over time or between operators.

Features:

  • Data recording and plotting mode stores and plots leak rate vs. time and pressure vs. time data for analysis
  • Multiple parts testing mode provides basic automation of a leak testing process without the need for third party support
  • Four reject set points with custom messaging capability guides the operator through step-by step process
  • Background test set-up function identifies bad parts early in the testing cycle
  • Leak test library allows access to previous test set-ups
  • Clearly track trends during the testing process with the graphical display of results in easy-to-read formats




Condition: New
Item#: PN07216 Mfr Part#: K9565306 Manufacturer: Agilent Technologies / Varian
Price upon request

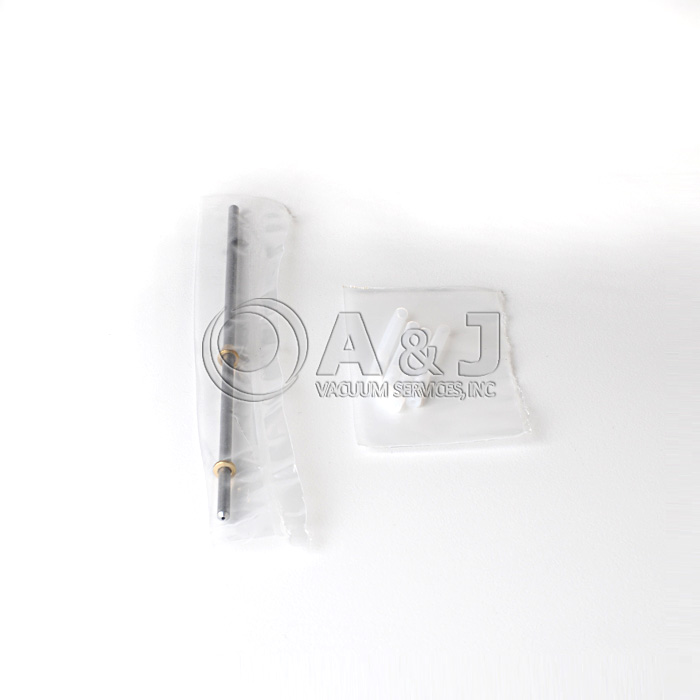

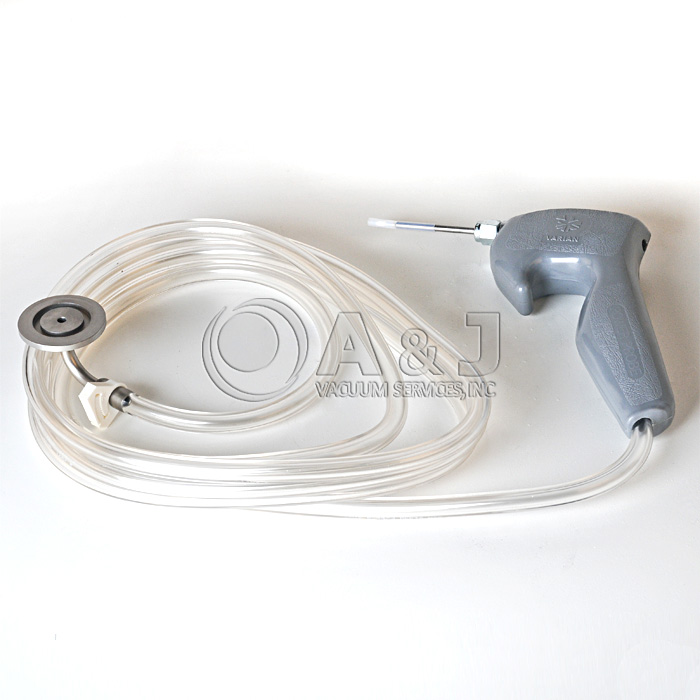

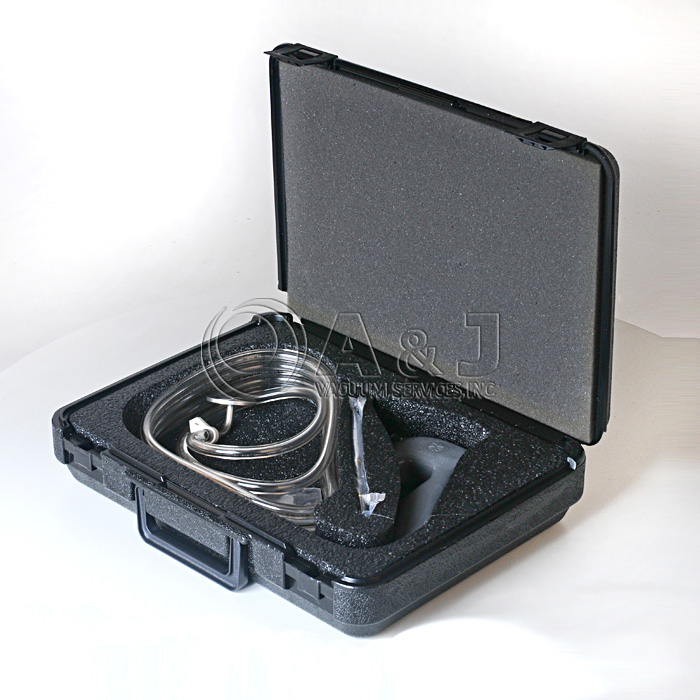

Agilent Varian Helium Leak Detector Sniffer Probe Power Probe with KF 25 Flange, 10 feet Length, K9565306


Overview:

The Power Probe is a "sniffer" probe designed to locate leaks emanating from sealed containers internally pressurized with helium.

The Power Probe adjusts for varying sensitivity and response time.

It is extremely rugged and can be easilly disassembled for cleaning.

It is ideal for fast response sniffing with MacroTorr pumped leak detectors.








Condition: New
Item#: PN07380 Mfr Part#: F8473324 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies offers helium leaks traceable to NIST standards for use in calibrating your leak detector.

A NW 25 or 1 1/8" OD tube fitting and isolation valve are provided as standard on the external leaks.


Condition: New
Item#: PN16023 Mfr Part#: F8473321 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies offers helium leaks traceable to NIST standards for use in calibrating your leak detector.

A NW 25 or 1 1/8" OD tube fitting and isolation valve are provided as standard on the external leaks.


Condition: New
Item#: PN16024 Mfr Part#: F8473322 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies offers helium leaks traceable to NIST standards for use in calibrating your leak detector.

A NW 25 or 1 1/8" OD tube fitting and isolation valve are provided as standard on the external leaks.


Condition: New
