Pfeiffer / Adixen Replacement Cartridge For OME 25 S Oil Mist Eliminator, KF 25 Flange, 068304
Pfeiffer Filter Element Repalcement 068304 Overview:
During rotary vane pump operation, oil mist escapes from the exhaust port; mainly when pumping between atmospheric pressure and 1 mbar
Oil mist eliminators retain oil mist contained in the exhausted gases with a high level of separation; an internal over pressure valve prevents exceeding the maximum permissible exhaust pressure.
The Pfeiffer Adixen OME 25 S Oil Mist Eliminator is desinged to be used with the following pumps:
- Pfeiffer Adixen 2005 I
- Pfeiffer Adixen 2005 SD
- Pfeiffer Adixen 2010 I
- Pfeiffer Adixen 2010 SD
- Pfeiffer Adixen 2015 I
- Pfeiffer Adixen 2015 SD
- Pfeiffer Adixen 2021 I
- Pfeiffer Adixen 2021 SD
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer / Adixen Replacement Cartridge For OME 25 HP Oil Mist Eliminator, KF 25 Flange, 100522
Pfeiffer Vacuum OME25 HP / 100552 Fileter Element Replacement Overview:
Filter element material:
- Original filter element from manufacturer: Cartridge: glass microfibers and epoxy resin.
Filetration Level:
- Trapping: 99.99% of vapor droplets greater than 0.6 microns in diameter.
During rotary vane pump operation, oil mist escapes from the exhaust port; mainly when pumping between atmospheric pressure and 1 mbar
Pfeiffer OME 25 HP Oil mist eliminators retain oil mist contained in the exhausted gases with a high level of separation; an internal over pressure valve prevents exceeding the maximum permissible exhaust pressure.
Specially designed for applications involving frequent cycling or high pressure operation; OME 25 HP is mainly dedicated to 15 m3/h and 21 m3/h rotary vane pumps.
The Alcatel Adixen OME 25 HP Oil Mist Eliminator is desinged to be used with the following pumps:
- Alcatel Adixen 2005 I
- Alcatel Adixen 2021 I
- Alcatel Adixen 1005 SD
- Alcatel Adixen 1015 SD
- Alcatel Adixen 2005 SD
- Alcatel Adixen 2021 SD
Pfeiffer Adixen OME 40 and OME 40 S Oil Mist Eliminator O-Ring.
Pfeiffer Replacement Filter Cartridge for OME 40 C2 / 068942 Oil Mist Eliminator, 100802
Pfeiffer / Adixen Replacement Cartridge For OME 25 HP+ Oil Mist Eliminator, KF 25 Flange, 107494
Pfeiffer Adixen OME25 HP+ 107494 Fileter Elemennt Overview:
OME 25HP+ 107494 Fileter element material:
- Original filter element from manufacturer: Borosilicate glass fiber PF impregnated and 100 % polyester fi ber /NBR binder
OME 25HP+ 107494 Filtration Level:
- Trapping: 99.99% of vapor droplets greater than 0.3 microns in diameter.
During rotary vane pump operation, oil mist escapes from the exhaust port; mainly when pumping between atmospheric pressure and 1 mbar
Oil mist eliminators retain oil mist contained in the exhausted gases with a high level of separation; an internal over pressure valve prevents exceeding the maximum permissible exhaust pressure.
Specially designed for applications involving frequent cycling or high pressure operation; OME 25 HP is mainly dedicated to 15 m3/h and 21 m3/h rotary vane pumps.
The Alcatel Adixen OME 25 HP Oil Mist Eliminator is desinged to be used with the following pumps:
- Pfeiffer Adixen 2005 I
- Pfeiffer Adixen 2005 SD
- Pfeiffer Adixen 2010 I
- Pfeiffer Adixen 2010 SD
- Pfeiffer Adixen 2015 I
- Pfeiffer Adixen 2015 SD
- Pfeiffer Adixen 2021 I
- Pfeiffer Adixen 2021 SD
Pfeiffer / Adixen Replacement Cartridge For DFT 25 Inlet Dust Filter, 068445
Overview:
The Alcatel Adixen DFT 25 Inlet Dust Filter is designed to be used with the following pumps:
- Alcatel Adixen 2005 I
- Alcatel Adixen 2021 I
- Alcatel Adixen 1005 SD
- Alcatel Adixen 1015 SD
- Alcatel Adixen 2005 SD
- Alcatel Adixen 2021 SD
Unit is NEW and comes with a FULL 6-MONTH WARRANTY!
Pfeiffer / Adixen Replacement Cartridge For ES 25 S External Silencer, KF 25 Flange, 109797
Overview:
Use of the External Exhaust Silencer ES 25 S will significantly reduce the noise level when operating ACP pumps at high pressures.
The Alcatel Adixen ES 25 S External Silencer can be used at the exhaust of the following vacuum pumps:
- Alcatel Adixen ACP 15
- Alcatel Adixen ACP 28
- Alcatel Adixen ACP 40
Pfeiffer / Adixen Replacement Cartridge For OME 40 S Oil Mist Eliminator, KF 40 Flange, 068443
During rotary vane pump operation, oil mist escapes from the exhaust port; mainly when pumping between atmospheric pressure and 1 mbar
Oil mist eliminators retain oil mist contained in the exhausted gases with a high level of separation; an internal over pressure valve prevents exceeding the maximum permissible exhaust pressure.
Specially designed for applications involving frequent cycling or high pressure operation ; OME 40 S, with its efficient cartridge, allows practically oil free exhausted gases. It is mainly dedicated for 33/63 m3/h rotary vane pumps.
The Alcatel Adixen OME 40 S Oil Mist Eliminator is designed to be used with the following pumps:
- Alcatel Adixen 2033 SD
- Alcatel Adixen 2063 SD

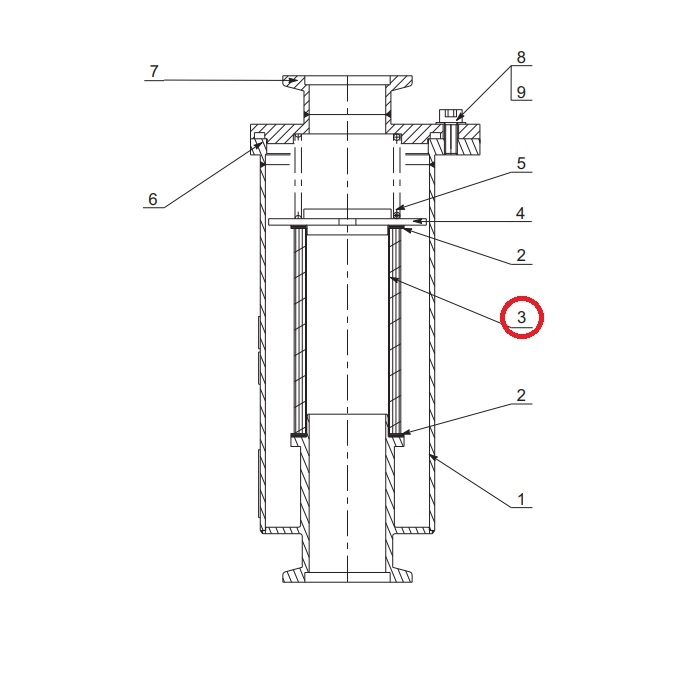

Pfeiffer / Adixen Replacement Cartridge For OME 25 C Oil Mist Eliminator, KF 25 Flange, 066800
Overview:
During rotary vane pump operation, oil mist escapes from the exhaust port; mainly when pumping between atmospheric pressure and 1 mbar
Oil mist eliminators retain oil mist contained in the exhausted gases with a high level of separation; an internal over pressure valve prevents exceeding the maximum permissible exhaust pressure.
Specially designed for applications involving frequent cycling or high pressure operation; OME 25 C is mainly dedicated to 15 m3/h and 21 m3/h rotary vane pumps.
The Alcatel Adixen OME 25 C Oil Mist Eliminator is desinged to be used with the following pumps:
- Alcatel Adixen 2005 I
- Alcatel Adixen 2021 I
- Alcatel Adixen 1005 SD
- Alcatel Adixen 1015 SD
- Alcatel Adixen 2005 SD
- Alcatel Adixen 2021 SD

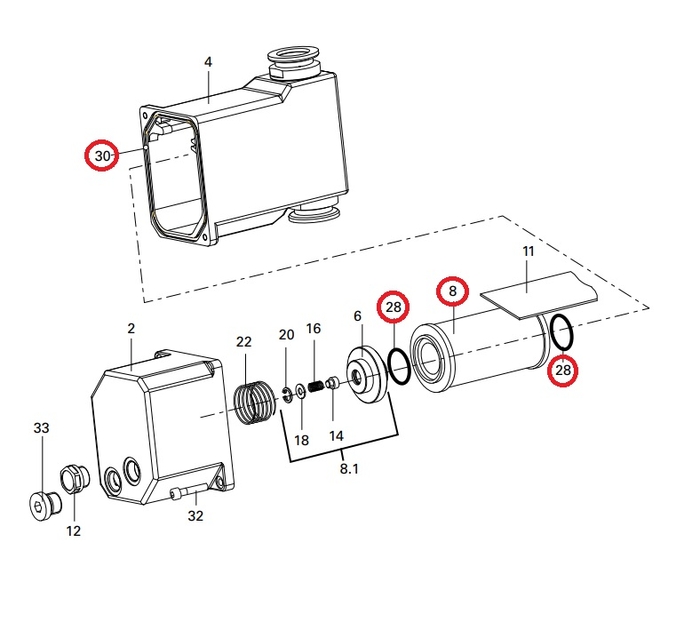

Pfeiffer ONF 16 and OME 25 M Oil Mist Filter Maintenance Kit PK E37 001-T, ONF16, PKE37001-T
OME 16 / ONF 16 Fileter Element Replacement Kit Overview:
Pfeiffer ONF 16 M and ONF 25 M Oil Mist Filter Maintenance Kit PKE37001-T is designed to be used with Pfieffer ONF 16 and Pfeiffer ONF 25 only.
Following Pfeiffer kit PK E37 001-T contains the following parts:
- # 8 Filter Element (insert)
- # 28 O-ring
- # 30 O-ring
Please reffer to Manual for Pfeiffer Spare Parts package exploded view
