Found 3 products
Item#: PN24315 Mfr Part#: US920000 Manufacturer: Pfeiffer Vacuum
PRICE: $17,995.00
WEB SAVINGS: $2,095.00
YOU PAY: $15,900.00

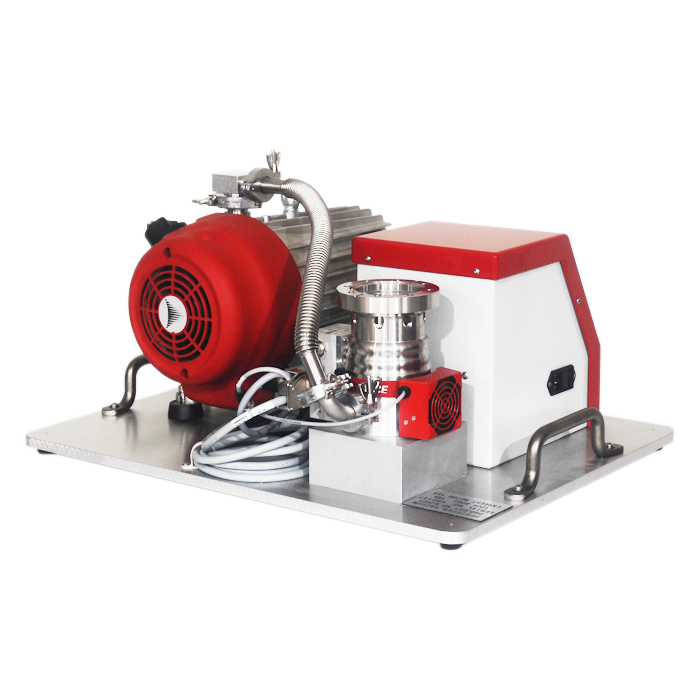

Pfeiffer HiCube S80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 40 ISO-K), Dry HiScroll 6 Vacuum Pump and DCU 002 Control Unit, HiCube S80 Eco Hicube80 Eco, US920000



Pfeiffer HiPace S80 Overview:


The pump system consists of a HiPace 80 turbopump controlled by a digital system controller with integrated display and a HiScroll 6 rough pump. The scroll type backing pump is quiet and when combined with the HiPace turbopump, provides robust high vacuum performance with long maintenance intervals.

The Pfeiffer Vacuum HiCube S80 Eco Turbo Pumping Station is the reliable and robust bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).

The Hicube S80 Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a Pfeiffer Hiscroll 6 dry scroll backing pump designed for the user’s specific application needs.

The Pfeiffer HiCube S80 Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube S80 Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All Pfeiffer HiCube S80 Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Pfeiffer HiPace S80 Eco Features:


  • Compact series of pumping stations for all high vacuum applications
  • Air-cooled and ready for operation with HiPace 80 Turbo Pump and Hiscroll 6 Dry Scroll Backing Pump
  • Pfeiffer HiCube S80 Eco comes with DN 40 ISO-K inlet flange
  • DCU 002 Control Unit
  • Pfieffer HiCube S80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz

Typical High Vacuum Hicube S80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiCube S80 Includes:

Pfeiffer HiPace 80 Turbo Pump / PMP03942

Pfeiffer HiSCroll 6 Dry Scroll Pump / PDS10000

Pfeiffer DCU-002 Display / PM061348AT





Click Here for Pfeiffer HiPace 80 Manual

Click Here for Pfeiffer Hiscroll 6 Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube S 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
Item#: PN24323 Mfr Part#: US900000 Manufacturer: Pfeiffer Vacuum
PRICE: $17,995.00
WEB SAVINGS: $2,095.00
YOU PAY: $15,900.00

Pfeiffer HiCube S80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 ISO-K), Dry HiScroll 6 Vacuum Pump and DCU 002 Control Unit, HiCube S80 Eco Hicube80 Eco, US900000



Pfeiffer HiPace S80 with DN 63 ISO Inlet Flange Overview:


The pump system consists of a HiPace 80 turbopump controlled by a digital system controller with integrated display and a HiScroll 6 rough pump. The scroll type backing pump is quiet and when combined with the HiPace turbopump, provides robust high vacuum performance with long maintenance intervals.

The Pfeiffer Vacuum HiCube S80 Eco Turbo Pumping Station is the reliable and robust bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).

The Hicube S80 Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a Pfeiffer Hiscroll 6 dry scroll backing pump designed for the user’s specific application needs.

The Pfeiffer HiCube S80 Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube S80 Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All Pfeiffer HiCube S80 Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Pfeiffer HiPace S80 Eco Features:


  • Compact series of pumping stations for all high vacuum applications
  • Air-cooled and ready for operation with HiPace 80 Turbo Pump and Hiscroll 6 Dry Scroll Backing Pump
  • Pfeiffer HiCube S80 Eco comes with DN 40 ISO-K inlet flange
  • DCU 002 Control Unit
  • Pfieffer HiCube S80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz

Typical High Vacuum Hicube S80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiCube S80 Includes:

Pfeiffer HiPace 80 Turbo Pump / PMP03942

Pfeiffer HiSCroll 6 Dry Scroll Pump / PDS10000

Pfeiffer DCU-002 Display / PM061348AT





Click Here for Pfeiffer HiPace 80 Manual

Click Here for Pfeiffer Hiscroll 6 Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube S 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
Item#: PN24324 Mfr Part#: US910000 Manufacturer: Pfeiffer Vacuum
PRICE: $17,995.00
WEB SAVINGS: $2,095.00
YOU PAY: $15,900.00

Pfeiffer HiCube S80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), Dry HiScroll 6 Vacuum Pump and DCU 002 Control Unit, HiCube S80 Eco Hicube80 Eco, US910000



Pfeiffer HiPace S80 with DN 63 CF-F Inlet Flange Overview:


The pump system consists of a HiPace 80 turbopump controlled by a digital system controller with integrated display and a HiScroll 6 rough pump. The scroll type backing pump is quiet and when combined with the HiPace turbopump, provides robust high vacuum performance with long maintenance intervals.

The Pfeiffer Vacuum HiCube S80 Eco Turbo Pumping Station is the reliable and robust bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).

The Hicube S80 Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a Pfeiffer Hiscroll 6 dry scroll backing pump designed for the user’s specific application needs.

The Pfeiffer HiCube S80 Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube S80 Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All Pfeiffer HiCube S80 Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Pfeiffer HiPace S80 Eco Features:


  • Compact series of pumping stations for all high vacuum applications
  • Air-cooled and ready for operation with HiPace 80 Turbo Pump and Hiscroll 6 Dry Scroll Backing Pump
  • Pfeiffer HiCube S80 Eco comes with DN 40 ISO-K inlet flange
  • DCU 002 Control Unit
  • Pfieffer HiCube S80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz

Typical High Vacuum Hicube S80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiCube S80 Includes:

Pfeiffer HiPace 80 Turbo Pump / PMP03942

Pfeiffer HiSCroll 6 Dry Scroll Pump / PDS10000

Pfeiffer DCU-002 Display / PM061348AT





Click Here for Pfeiffer HiPace 80 Manual

Click Here for Pfeiffer Hiscroll 6 Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube S 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
