Found 7 products
Item#: PN23264 Mfr Part#: 800100V0004 Manufacturer: Leybold
PRICE: $1,855.00
WEB SAVINGS: $315.00
YOU PAY: $1,540.00

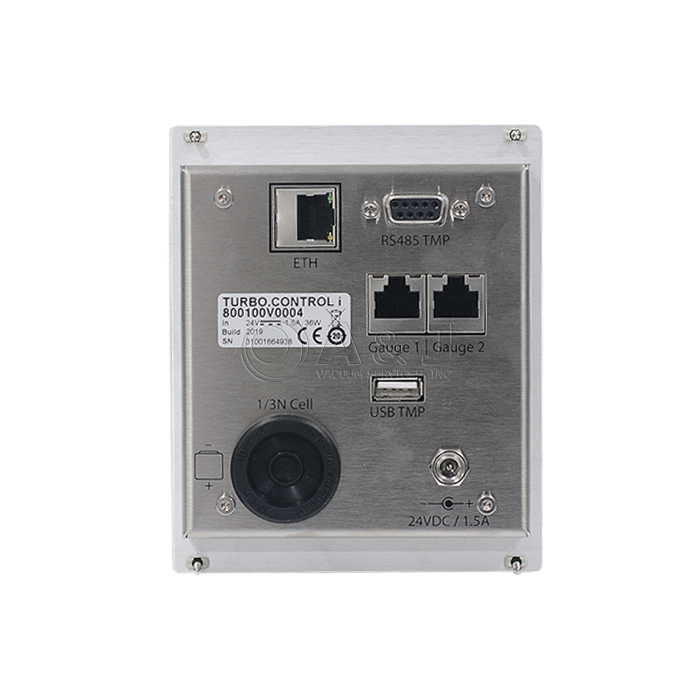

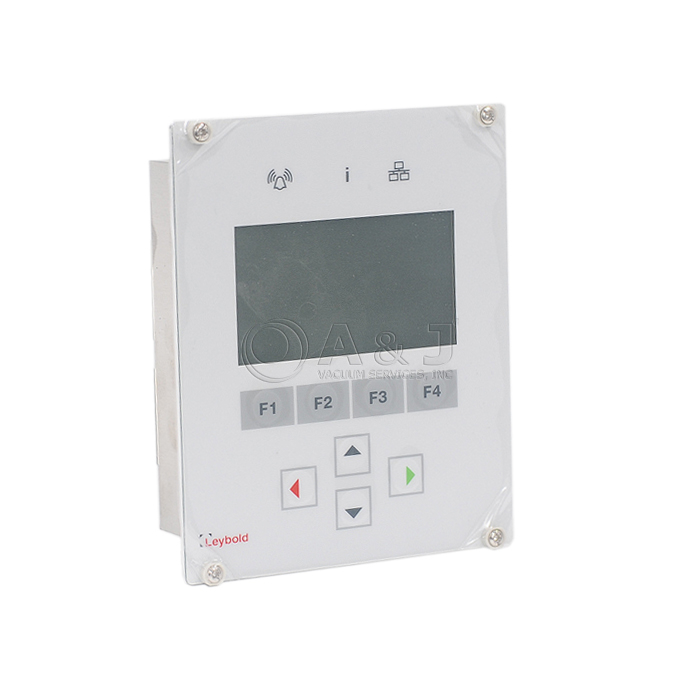

Leybold Turbo Control i for TURBOVAC i and TURBOVAC iX, Turbo pump, 800100V0004




Leybold Turbo Control i Overview:


The Leybold TURBO CONTROL i serves to control and monitor a TURBOVAC i and TURBOVAC iX turbomolecular pump. Only one pump can be controlled and monitored. The 24 VDC voltage supply can be provided by a plug power supply with round plug. The power supply unit is available as an accessory. The Leybold TURBO CONTROL i has two communication channels (RS 485 & USB) to the pump control and provides the possibility of attaching two measuring gauges. Leybold Turbo Control can be connect a remote computer via the integrated Ethernet port to the web server of the TURBO-CONTROL i. Then use the installed internet browser to control and monitor the pump. The recorded data can be displayed and evaluated by means of the external Tool DataViewer. The Leybold TURBO-CONTROL i contains a battery (button cell) for data buffering, and can be installed in a rack or be mounted in a table housing provided for it. The table housing is available as an accessory.



Leybold Turbo Control i Functions:


  • Observe TURBOVAC i(X) during operation
  • Pump start / stop / activate standby speed / error reset
  • Leybold Turbo Control i show us parameter on the display (nominal speed, current, bearing temperature, pressure values)
  • Show warning and error memory with description
  • Read and write parameters
  • Set functions of the interface X1
  • Set functions of the 24-VDC accessory connections X201, X202, X203
  • Activate TURBOVAC i(X) depending on pressure
  • Attach laptop and operate TURBOVAC i(X) via web server
  • View logged data in real-time
  • Read out logging memory and analyse with DataViewer PC tool
  • Read out parameter set and error memory of the TURBOVAC i(X) with a PC

A&J Vacuum Services offers full repair/service of Leybold Pumps, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN17337 Mfr Part#: 800073V0003 Manufacturer: Leybold
Price upon request

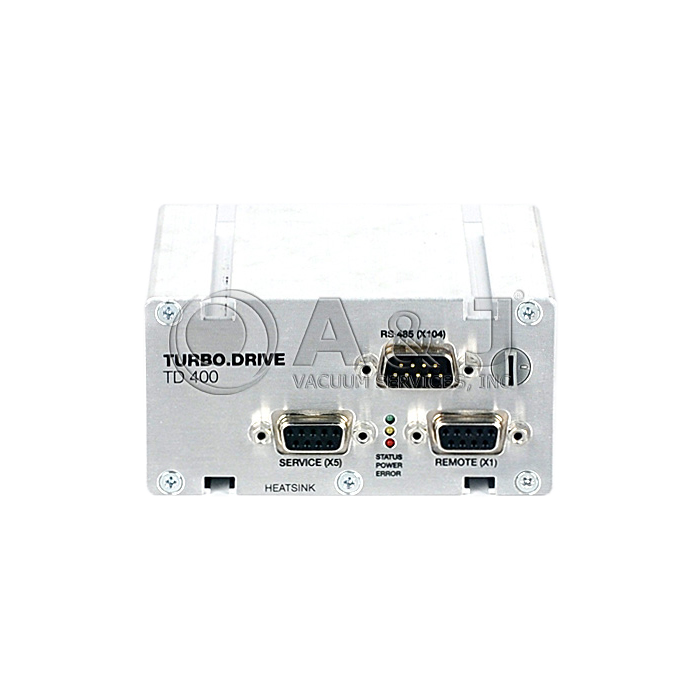

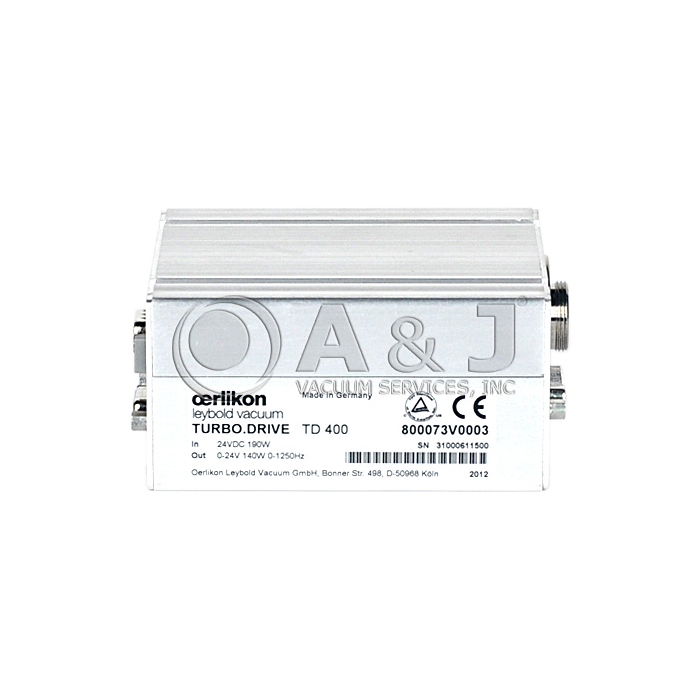

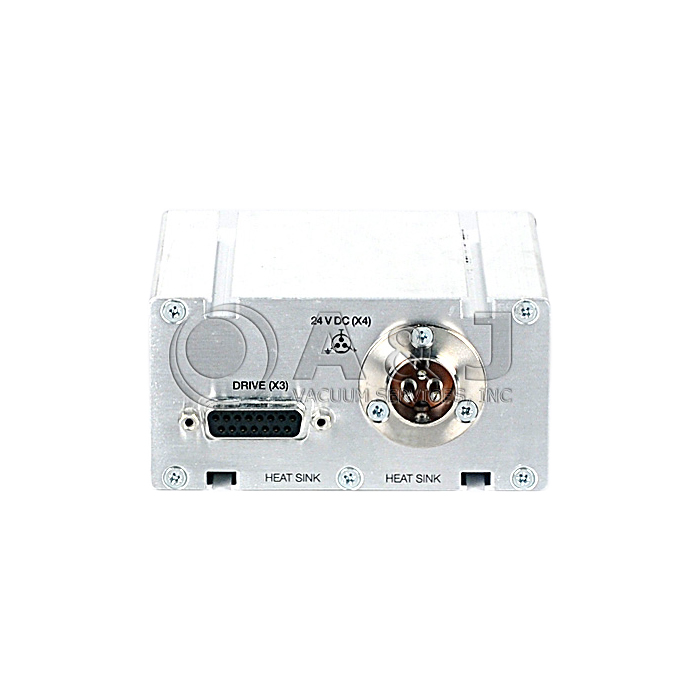

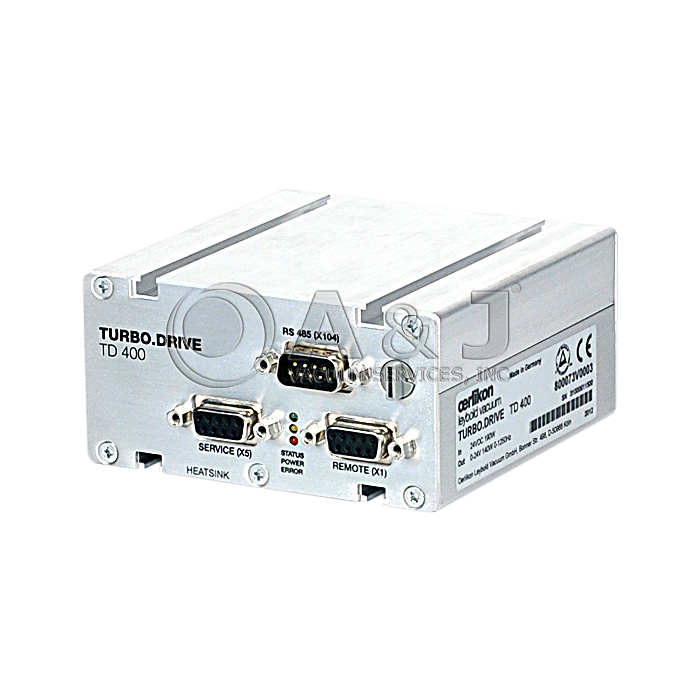

Oerlikon / Leybold Turbo Drive TD 400 Turbo Vacuum Pump Controller, RS 485, 800073V0003


The Oerlikon / Leybold Turbo Drive TD400 supplies power to the TW series turbo pumps and is used to control their operation.

The Turbo Drive TD-400 is suited for operation of the following pumps:

  • TURBOVAC TW 70 H
  • TURBOVAC TW 220/150 S, TW 220/150/15 S
  • TURBOVAC TW 250 S
  • TURBOVAC TW 300, TW 300 H

Other pumps may only be operated after approval from Leybold or if the operation of such pumps is expressly permitted in the Operating Instructions for the specific pump. The Turbo Drive TD 400 is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable. The Turbo Drive TD 400 requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMOTE) and an optional interface for serial communication. The Turbo Drive TD 400 complies with SELV requirements (Safety Extra Low Voltage).


A&J Vacuum also repair / rebuild and service Oerlikon Turbo Drive 400 Turbo Pump controllers and TW400/300 Turbo Pumps  along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: New
Item#: PN18227 Mfr Part#: 800075V0001 Manufacturer: Leybold
PRICE: $3,665.00
WEB SAVINGS: $333.00
YOU PAY: $3,332.00

Features:

  • For operating the Turbovac 151 (C), 361 (C), 600 C, 1000 C and 1100 C Turbo Pumps
  • Front Panel with LED: Status, Power, Error, pump run-up, pumping power
  • Wide voltage range mains input
  • Current interfaces like Profibus, DeviceNet, Ethernet/IP, RS 232 C, RS 485 C and 25-way terminal strip available as options

Advantages:

  • Easy integration within a vacuum system owing to the large variety of different modern interfaces as well as for modernizing older systems
  • Start/stop function through keys on the front panel
  • Remote control and process control through analog and PLC compatible inputs and outputs
  • Compatible to frequency converter NT 20, NT 151/361 and NT 361

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: New
Item#: PN18228 Mfr Part#: 800075V0002 Manufacturer: Leybold
PRICE: $6,500.00
WEB SAVINGS: $200.01
YOU PAY: $6,299.99

Features:

  • For operating the Turbovac 151 (C), 361 (C), 600 C, 1000 C and 1100 C Turbo Pumps
  • Front Panel with LED: Status, Power, Error, pump run-up, pumping power
  • Wide voltage range mains input
  • Current interfaces like Profibus, DeviceNet, Ethernet/IP, RS 232 C, RS 485 C and 25-way terminal strip available as options

Advantages:

  • Easy integration within a vacuum system owing to the large variety of different modern interfaces as well as for modernizing older systems
  • Start/stop function through keys on the front panel
  • Remote control and process control through analog and PLC compatible inputs and outputs
  • Compatible to frequency converter NT 20, NT 151/361 and NT 361

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: New
Item#: PN18556 Mfr Part#: 800073V0002 Manufacturer: Leybold
PRICE: $1,329.40
WEB SAVINGS: $9.40
YOU PAY: $1,320.00

The Oerlikon / Leybold Turbo Drive TD 400 supplies power to the TW series turbo pumps and is used to control their operation.

The Turbo Drive TD 400 is suited for operation of the following pumps:

  • TURBOVAC TW 70 H
  • TURBOVAC TW 220/150 S, TW 220/150/15 S
  • TURBOVAC TW 250 S
  • TURBOVAC TW 300, TW 300 H

Other pumps may only be operated after approval from Leybold or if the operation of such pumps is expressly permitted in the Operating Instructions for the specific pump. The Turbo Drive TD 400 is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable. The Turbo Drive TD 400 requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMOTE) and an optional interface for serial communication. The Turbo Drive TD 400 complies with SELV requirements (Safety Extra Low Voltage).



THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: New
Item#: PN18598 Mfr Part#: 800072V0001 Manufacturer: Leybold
Price upon request

This product is discontinued with no replacement.



Design and function

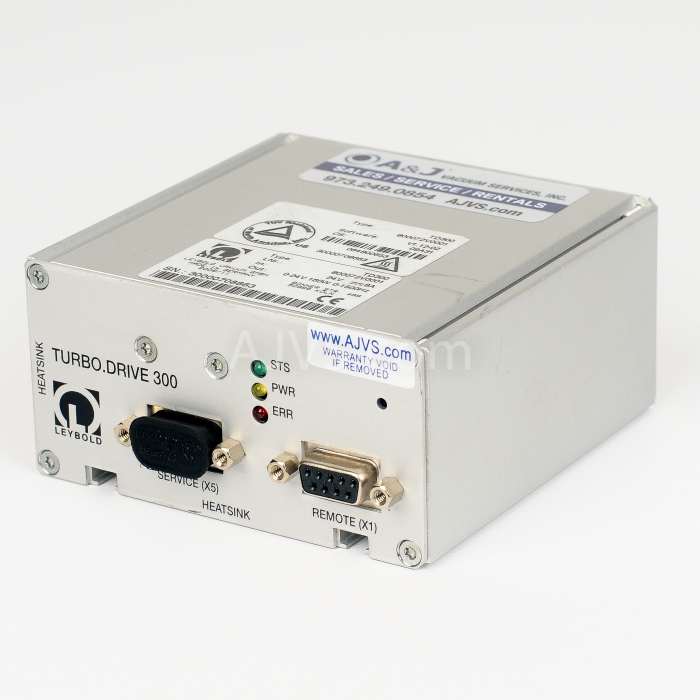

The TURBO.DRIVE 300 supplies power to the TW series



turbomolecular pumps and is used to control their operation.



The TURBO.DRIVE 300 is either integrated in the pump or



it is separate and linked to the pump by means of a



connecting cable.



The TURBO.DRIVE 300 requires a supply voltage of 24 V



DC. It is equipped with interfaces for programmable controls



(REMOTE) and an optional interface for serial communication.



THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.










Condition: New
Item#: PN20072 Mfr Part#: 800073V0003 Manufacturer: Leybold
PRICE: $1,750.00
WEB SAVINGS: $400.00
YOU PAY: $1,350.00

Oerlikon / Leybold Turbo Drive TD 400 Turbo Pump Controller, RS 485, 800073V0003, Demo Unit, Like New !


The Oerlikon / Leybold Turbo Drive TD400 supplies power to the TW series turbo pumps and is used to control their operation.

The Turbo Drive TD-400 is suited for operation of the following pumps:

  • TURBOVAC TW 70 H
  • TURBOVAC TW 220/150 S, TW 220/150/15 S
  • TURBOVAC TW 250 S
  • TURBOVAC TW 300, TW 300 H

Other pumps may only be operated after approval from Leybold or if the operation of such pumps is expressly permitted in the Operating Instructions for the specific pump. The Turbo Drive TD 400 is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable. The Turbo Drive TD 400 requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMOTE) and an optional interface for serial communication. The Turbo Drive TD 400 complies with SELV requirements (Safety Extra Low Voltage).


A&J Vacuum also repair / rebuild and service Oerlikon Turbo Drive 400 Turbo Pump controllers and TW400/300 Turbo Pumps  along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: Demo Ships Within 1-3 Days
