Item#: PN19935 Mfr Part#: PMP04681A Manufacturer: Pfeiffer Vacuum
PRICE: $29,480.00
WEB SAVINGS: $1,380.00
YOU PAY: $28,100.00

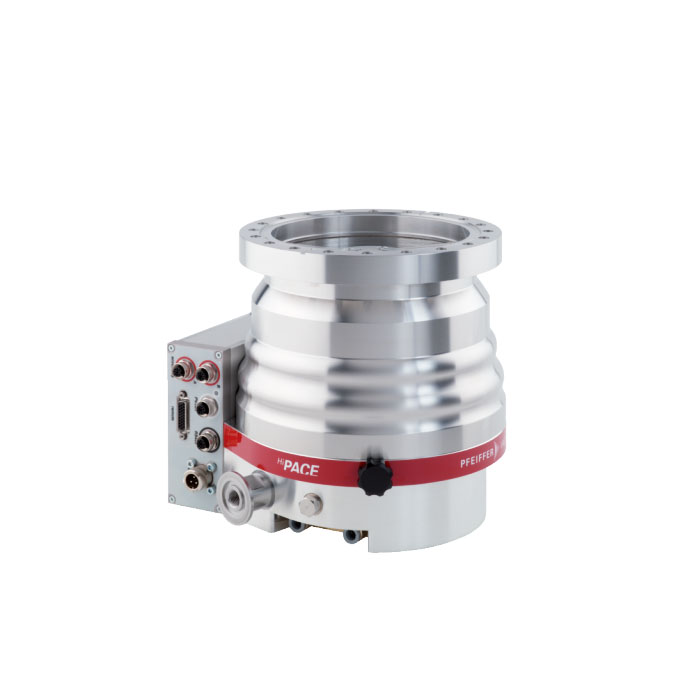

Pfeiffer HiPace 700 P Turbo Pump with TC 400 Controller, DN 160 CF-F, PMP04681A



Pfeiffer HiPace 700 P Overview:


The Pfeiffer HiPace 700 P PMP04681A is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation.

The Pfeiffer HiPace 700 P proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

The turbopump HiPace 700 P forms a complete unit together with the electronic drive unit TC 400. This turbopump offers water as well as air cooling (optional). This pump has not integrated power supply.

Complete Operating Instruction for HiPace 700 P PM P04 681 A is available in PDF format below.



Pfeiffer Hipace 700 P Features:


  • Minimum footprint and maximum reliability
  • High gas throughput and high pumping speed
  • Suitable for industrial environments - Protection class IP54
  • Semi S2- and UL/CSA certification
  • Maximum reliability through monitoring of operating data
  • Process-oriented, insensitive to dust
  • Ideal for coating and semiconductor processes and dust-sensitive industrial applications such as electron beam welding machines
  • Rugged, powerful turbopump with a pumping speed of up to 670 l/s for N2
  • Integrated drive electronics TC 400, 48 V DC
  • Perfect solution for coating and semiconductor processes as well as for dusty industrial applications like electron-beam welding facilities
  • For installation in any orientation
  • With integrated water cooling for maximum gas throughput
  • Flexible through the ability to employ up to 4 accessories
  • Ideal for fast cycles
  • Extensive accessories expand the range of applications
  • Insensitive to dust

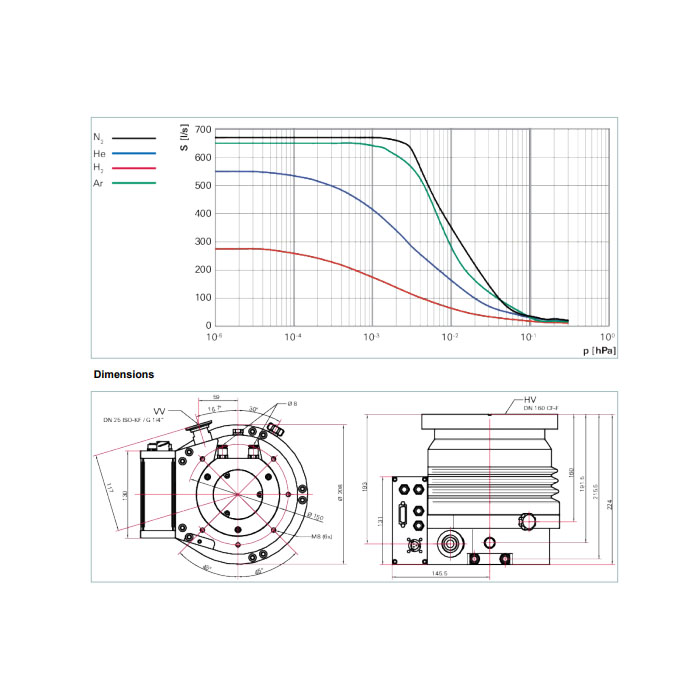

Pfeiffer HiPace 700 P Characteristic:


Pfeiffer HiPace 700 Characteristic, PMP04681A



Pfeiffer HiPace 700 P Dimensions:


Pfeiffer HiPace 700 Dimensions, PMP04681A




Click Here to view Pfeiffer Vacuum HiPace 700 P - Turbo Pump Operating Instructions


A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum  Hipace 700 P Turbo  Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New
