Found 3 products
Item#: PN07153 Mfr Part#: 800051V0023 Manufacturer: Leybold
PRICE: $8,550.00
WEB SAVINGS: $555.00
YOU PAY: $7,995.00

Fully Remanufactured Leybold TW701 Turbo Pump with Turbo Drive L Controller, Water Cooled, DN 160 ISO Inlet Flange, 800051V0023, TW 701



Leybold Turbovac TW 701 Overview:


The Leybold TURBOVAC TW 700 and TW 701 is a turbomolecular pump with compound stage. The frequency converter is integrated. The pump is designed to evacuate vacuum chambers down to pressure levels in the high vacuum range. It is suitable for pumping air and/or clean gases. A forevacuum pump is required for its operation.

These pumps are not suitable for:

  • pumping liquids
  • pumping corrosive or reactive gasses
  • operation without a forevacuum pump

During operation the pressure inside the pump is so low that there is no danger of ignition (at pressures below about 20 mbar). A hazardous condition will be created if flammable mixtures enter the hot pump at pressures above 20 mbar. During operation the pump can reach temperatures as high as 110°C (230 °F).

The TW701 pumps comprise essentially of the pump housing, a multi-stage rotor with the stator group, and the drive.

The TW 701 rotor consists of a turbomolecular pumping stage and a compound pumping stage (= Holweck stage). The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classic turbomolecular pump.

The rotor shaft runs in two ceramic ball bearings, lubricated with grease.



Leybold TW701 Applications:


  • Mass spectrometers
  • Data Storage
  • Flat panel displays
  • Research and Development (UHV systems, Particle accelerators)
  • Load locks and transfer chambers



Leybold TW701 Features and Advantages:


  • Integrated frequency converter
  • Operation in any orientation
  • Highest pumping speed and throughput for Nitrogen and Argon
  • High foreline tolerance allows the use of downsized fore-vacuum pumps
  • Oil-free pump for generating clean high- and ultrahigh-vacuum conditions
  • Space-saving
  • Easy to integrate into complex vacuum systems
  • High productivity
  • Low operating costs
  • Highly reliable operation

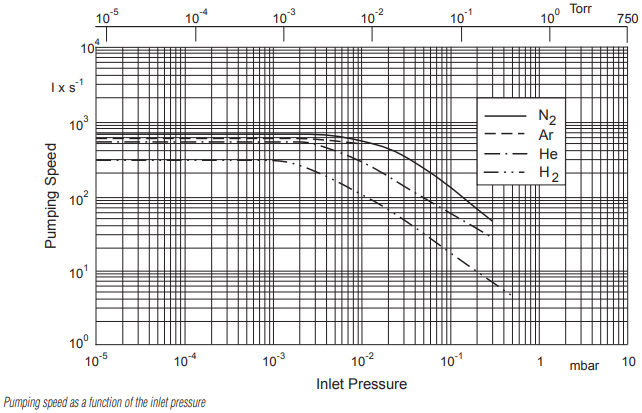

Leybold TW 701 Pumping Speed:


Leybold TW 701 Pumping Speed, 800051V0023


Click Here for Leybold TW 701 Brochure


A&J Vacuum Rrepair / Rebuild and Service Leybold TW701 800051V0023 Turbo Pumps  Leybold  Vacuum pumps, Oerlikon Leybold Turbo Pumping Stations  along with all other  Leybold Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN07154 Mfr Part#: 800051V0121 Manufacturer: Leybold
PRICE: $8,550.00
WEB SAVINGS: $555.00
YOU PAY: $7,995.00

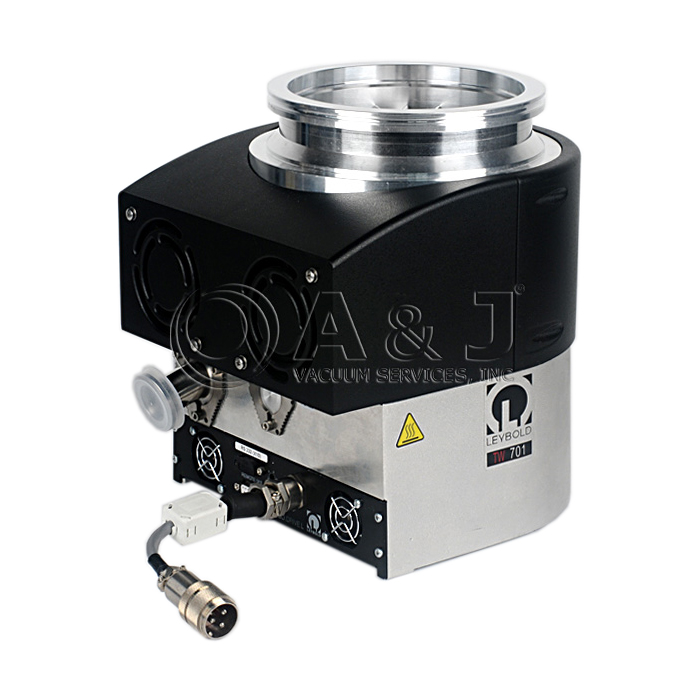

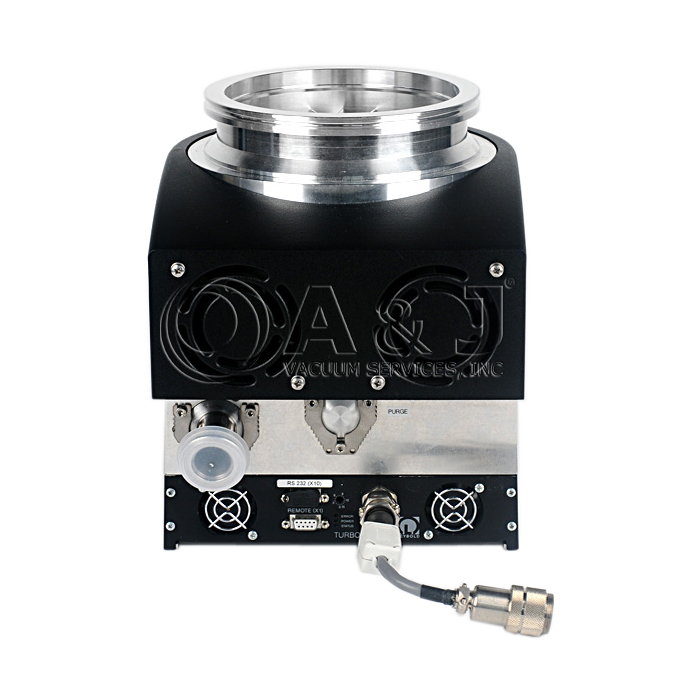

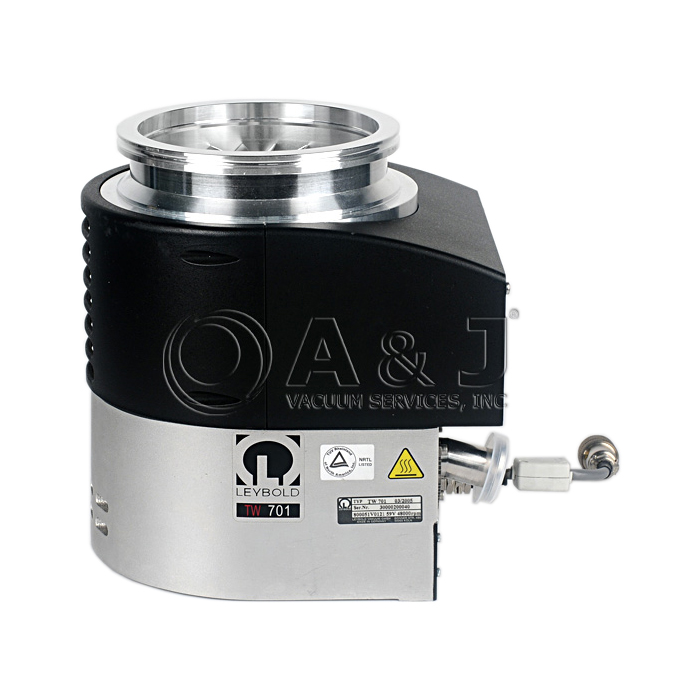

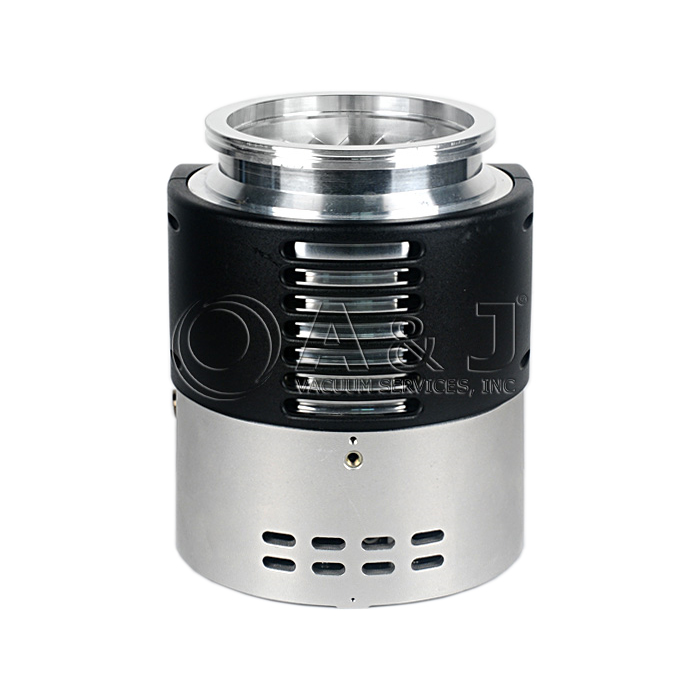

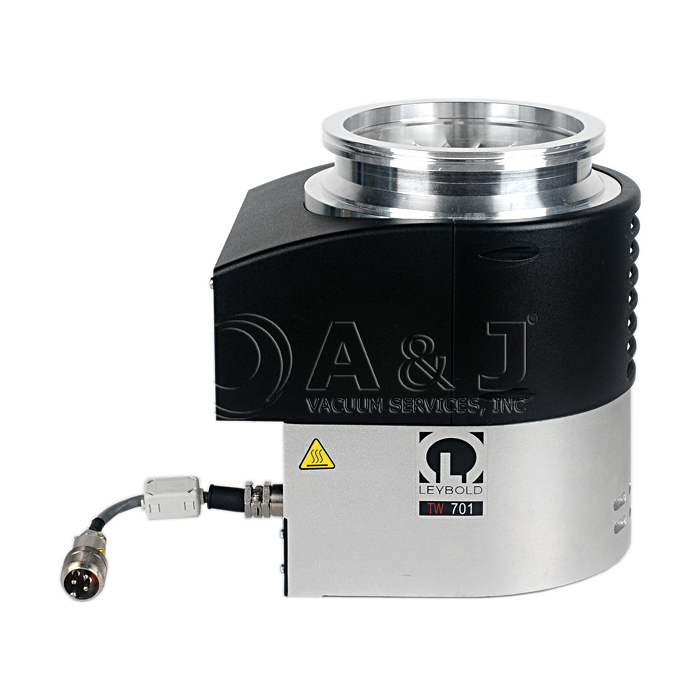

Fully Remanufactured Leybold TW 701 Turbo Pump with Turbo Drive 700 Controller, Air Cooled, DN 160 ISO Inlet Flange, 800051V0121



Leybold Turbovac TW 701 Overview:


The Leybold TURBOVAC TW 700 and TW 701 is a turbomolecular pump with compound stage. The frequency converter is integrated. The pump is designed to evacuate vacuum chambers down to pressure levels in the high vacuum range. It is suitable for pumping air and/or clean gases. A forevacuum pump is required for its operation.

These pumps are not suitable for:

  • pumping liquids
  • pumping corrosive or reactive gasses
  • operation without a forevacuum pump

During operation the pressure inside the pump is so low that there is no danger of ignition (at pressures below about 20 mbar). A hazardous condition will be created if flammable mixtures enter the hot pump at pressures above 20 mbar. During operation the pump can reach temperatures as high as 110°C (230 °F).

The TW701 pumps comprise essentially of the pump housing, a multi-stage rotor with the stator group, and the drive.

The TW 701 rotor consists of a turbomolecular pumping stage and a compound pumping stage (= Holweck stage). The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classic turbomolecular pump.

The rotor shaft runs in two ceramic ball bearings, lubricated with grease.



Leybold TW701 Applications:


  • Mass spectrometers
  • Data Storage
  • Flat panel displays
  • Research and Development (UHV systems, Particle accelerators)
  • Load locks and transfer chambers



Leybold TW701 Features and Advantages:


  • Integrated frequency converter
  • Operation in any orientation
  • Highest pumping speed and throughput for Nitrogen and Argon
  • High foreline tolerance allows the use of downsized fore-vacuum pumps
  • Oil-free pump for generating clean high- and ultrahigh-vacuum conditions
  • Space-saving
  • Easy to integrate into complex vacuum systems
  • High productivity
  • Low operating costs
  • Highly reliable operation



Leybold TW 701 Pumping Speed:


Leybold TW 701 Pumping Speed, 800051V0121

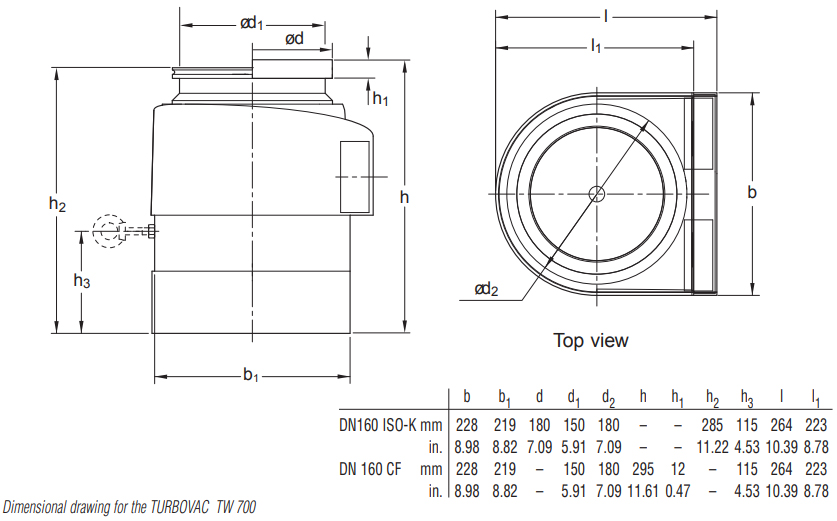

Leybold TW 701 Dimensions:


Leybold TW 701 Dimensions, 800051V0121


Click Here for Leybold TW 701 Brochure


A&J Vacuum Rrepair / Rebuild and Service Leybold TW701 800051V0121 Turbo Pumps  Leybold  Vacuum pumps, Oerlikon Leybold Turbo Pumping Stations  along with all other  Leybold Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
Item#: PN17127 Mfr Part#: 800051V0021 Manufacturer: Leybold
PRICE: $9,950.00
WEB SAVINGS: $1,990.00
YOU PAY: $7,960.00

Fully Remanufactured Leybold TW 701 Turbo Pump 800051V0021 with Turbo Drive L Controller 800071V0002,Air Cooled, DN 160 ISO Inlet Flange



Leybold Turbovac TW 701 / 800051V0021 Overview:


The Leybold TURBOVAC TW 700 and TW 701 is a turbomolecular pump with compound stage. The frequency converter is integrated. The pump is designed to evacuate vacuum chambers down to pressure levels in the high vacuum range. It is suitable for pumping air and/or clean gases. A forevacuum pump is required for its operation.

These pumps are not suitable for:

  • pumping liquids
  • pumping corrosive or reactive gasses
  • operation without a forevacuum pump

During operation the pressure inside the pump is so low that there is no danger of ignition (at pressures below about 20 mbar). A hazardous condition will be created if flammable mixtures enter the hot pump at pressures above 20 mbar. During operation the pump can reach temperatures as high as 110°C (230 °F).

The TW701 pumps comprise essentially of the pump housing, a multi-stage rotor with the stator group, and the drive.

The TW 701 rotor consists of a turbomolecular pumping stage and a compound pumping stage (= Holweck stage). The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classic turbomolecular pump.

The rotor shaft runs in two ceramic ball bearings, lubricated with grease.



Leybold TW701 Applications:


  • Mass spectrometers
  • Data Storage
  • Flat panel displays
  • Research and Development (UHV systems, Particle accelerators)
  • Load locks and transfer chambers



Leybold TW701 Features and Advantages:


  • Integrated frequency converter
  • Operation in any orientation
  • Highest pumping speed and throughput for Nitrogen and Argon
  • High foreline tolerance allows the use of downsized fore-vacuum pumps
  • Oil-free pump for generating clean high- and ultrahigh-vacuum conditions
  • Space-saving
  • Easy to integrate into complex vacuum systems
  • High productivity
  • Low operating costs
  • Highly reliable operation



Leybold TW 701 Pumping Speed:


Leybold TW 701 Pumping Speed, 800051V0023



Leybold TW 701 Dimensions:


Leybold TW 701 Dimensions, 800051V0023


Click Here for Leybold TW 701 Brochure


A&J Vacuum Rrepair / Rebuild and Service Leybold TW701 800051V0023 Turbo Pumps  Leybold  Vacuum pumps, Oerlikon Leybold Turbo Pumping Stations  along with all other  Leybold Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
