Found 2 products
Item#: PN21917 Mfr Part#: 9698926 Manufacturer: Agilent Technologies / Varian
PRICE: $12,950.00
WEB SAVINGS: $4,550.00
YOU PAY: $8,400.00

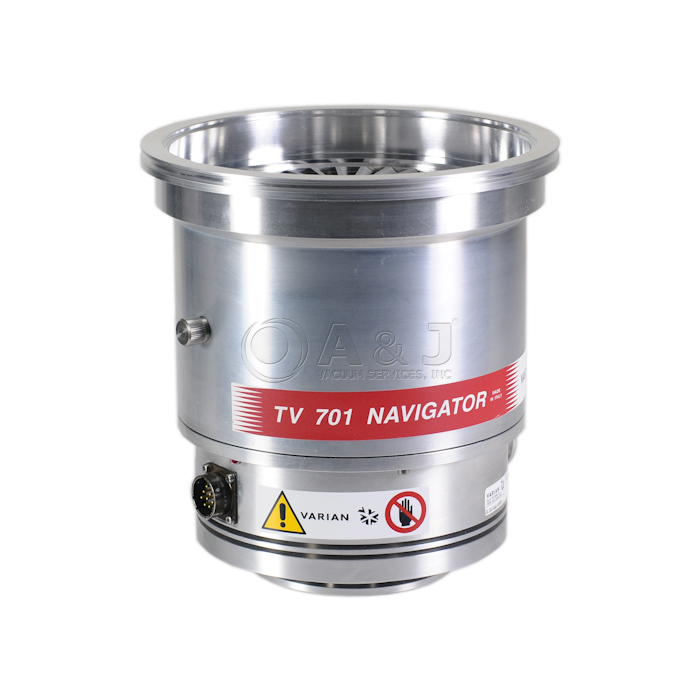

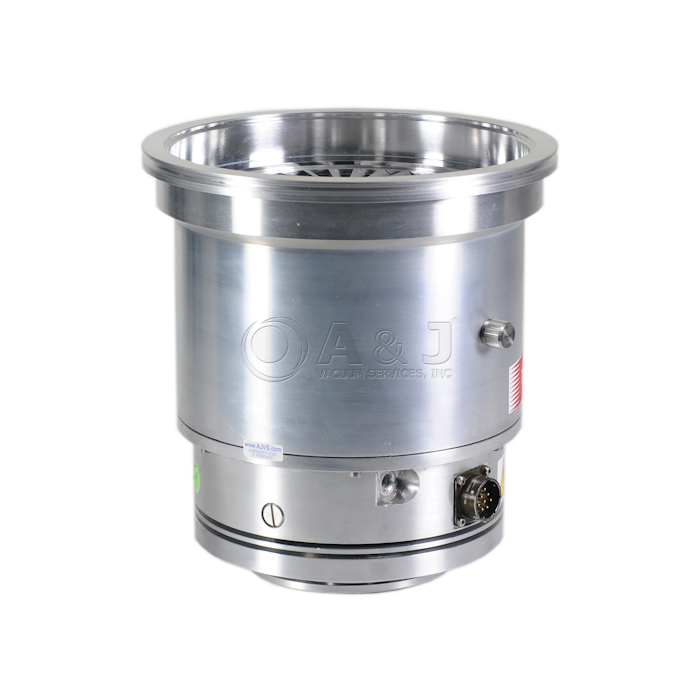

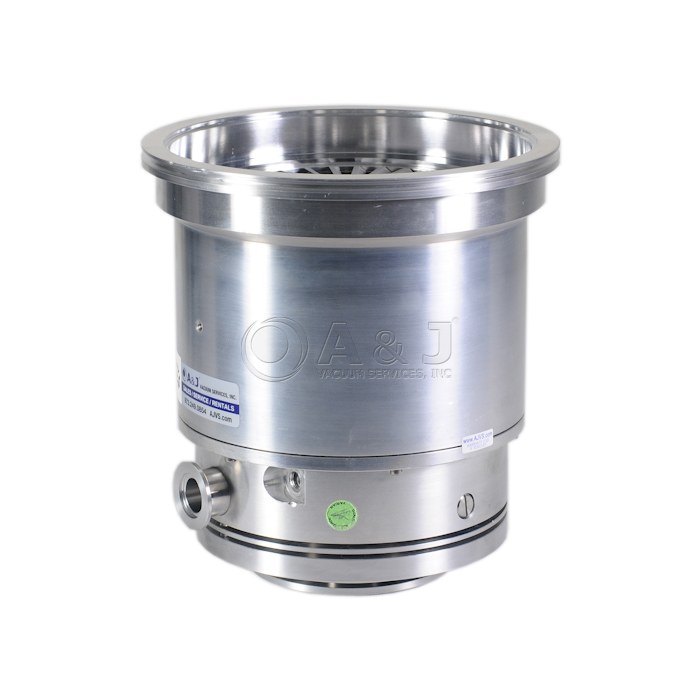

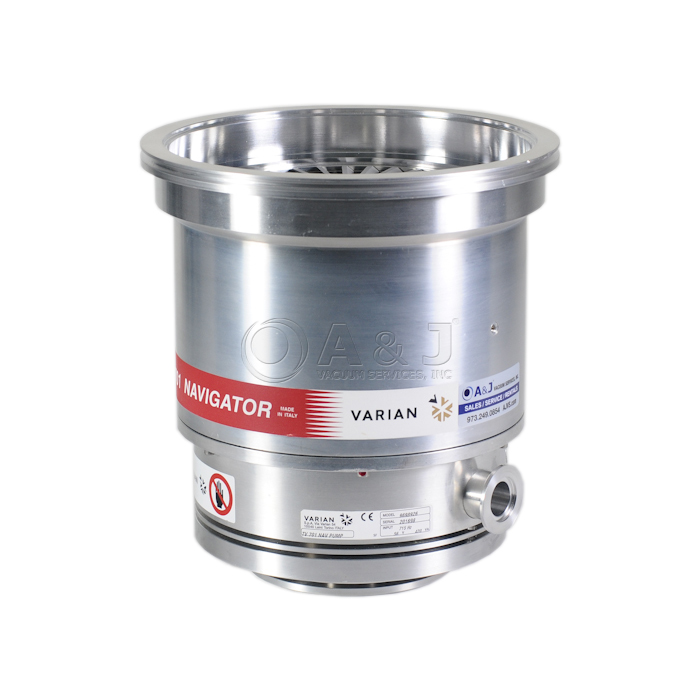

Fully Remanufactured Varian TV-701 Navigator Turbo Pump, DN 200 ISO, 9698926, Agilent TV701, 969-8926



Varian TV701 Overview:


Fully Rebuild Varian TV701 NAV / 969-8926 Navigator Turbomolecular Pump has DN 200-ISO Inlet Flange.

Varian Turbo-V701 consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end.

The Agilent TV-701 P/N 9698926 turbine is made of high-strength aluminium alloy, machined from a single block. The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel.

These are supported and accurately positioned by spacer rings. The Macrotorr V701 stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.

During normal operation Varian V-701 969-8926 the motor is fed with a voltage of 54 Vac three-phase at 715 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio. The pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating.


The Agilent TV701 Navigator pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange. The connection of the forevacuum on the side of the pump is a KF 25 NW flange.


Agilent V-701 Turbo Pump is very popular among many Analytical Instrument manufacturers. Varian Navigator pump is being used in many SEM Scanning Electron Microscopes, Mass Spectrometers along with Ion-Beam Instruments and Systems. Agilent Varian Turbo-V701 Navigator turbomolecular pump is very cost efective for many applications within semiconductor applications and manufacturing.

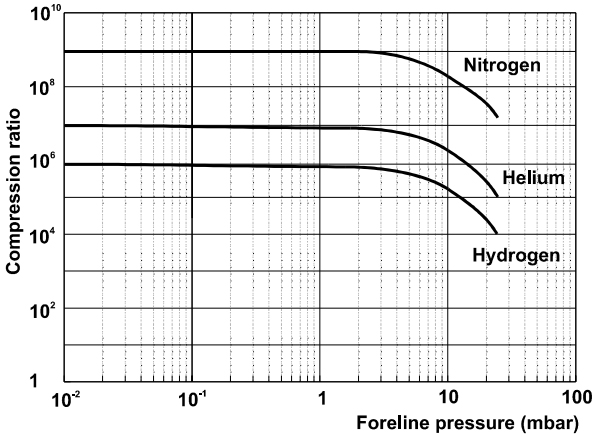

Varian TV701 Compression Ratio:


Varian TV701 Compression Ratio, 969-8926, 9698926

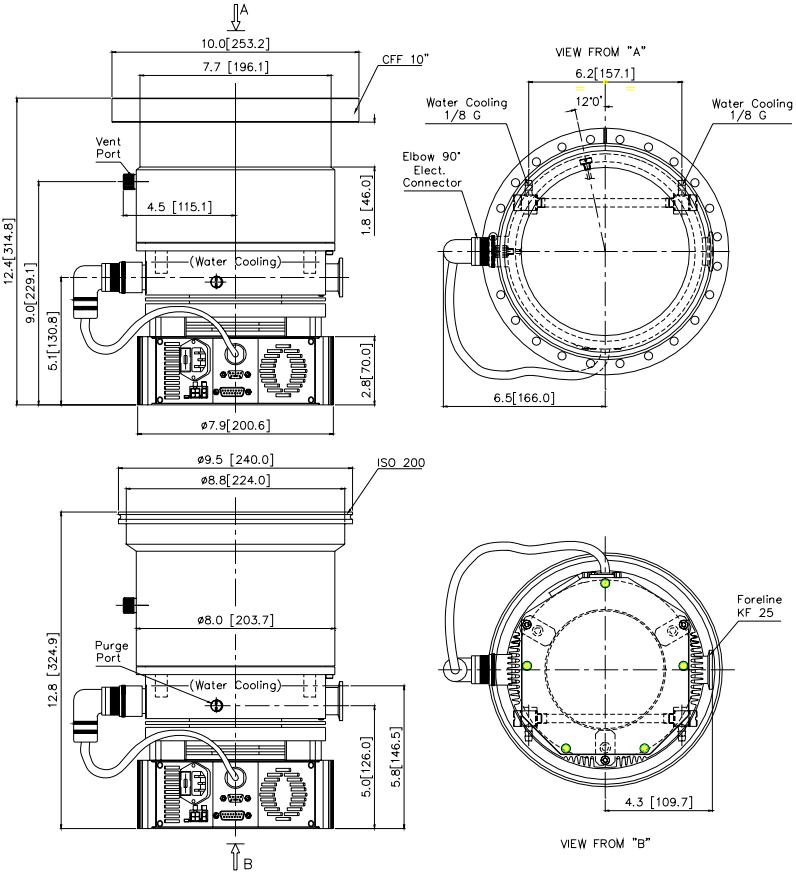

Varian TV701 Dimensions:


Varian TV701 Dimensions, 969-8926, 9698926


Click Here for Varian V701 Manual


A&J Vacuum also repair / rebuild and service Varian TV-701 9698926 Turbo pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN41251 Mfr Part#: 8698938R001 Manufacturer: Agilent Technologies / Varian
Price upon request

Fully Remanufactured Agilent TV 701 SEM Navigator Turbo Pump, DN 200 ISO, 8698938R001, Varian TV701SEM



Varian TV701SEM Overview:


Fully Rebuild Varian TV701 SEM / 869-8938R001 Navigator Turbomolecular Pump has DN 200-ISO Inlet Flange.

Varian Agilent Turbo-V701SEM consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end.

The Agilent TV-701SEM P/N 8698938R001 turbine is made of high-strength aluminium alloy, machined from a single block. The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel.

These are supported and accurately positioned by spacer rings. The Agilent TV701 SEM stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.

During normal operation Varian TV-701 869-8938R001 the motor is fed with a voltage of 54 Vac three-phase at 715 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio. The pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating.


The Agilent TV701SEM Navigator pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange. The connection of the forevacuum on the side of the pump is a KF 25 NW flange.






Varian TV701 Compression Ratio:


Varian TV701 Compression Ratio, 969-8926, 9698926



Varian TV701 Dimensions:


Varian TV701 Dimensions, 969-8926, 9698926


Click Here for Varian V701 Manual


A&J Vacuum also repair / rebuild and service Varian TV-701SEM 869-8932R001 Turbo pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
