Found 8 products
Item#: PN00226 Mfr Part#: 9698901 Manufacturer: Agilent Technologies / Varian
PRICE: $4,950.00
WEB SAVINGS: $500.00
YOU PAY: $4,450.00

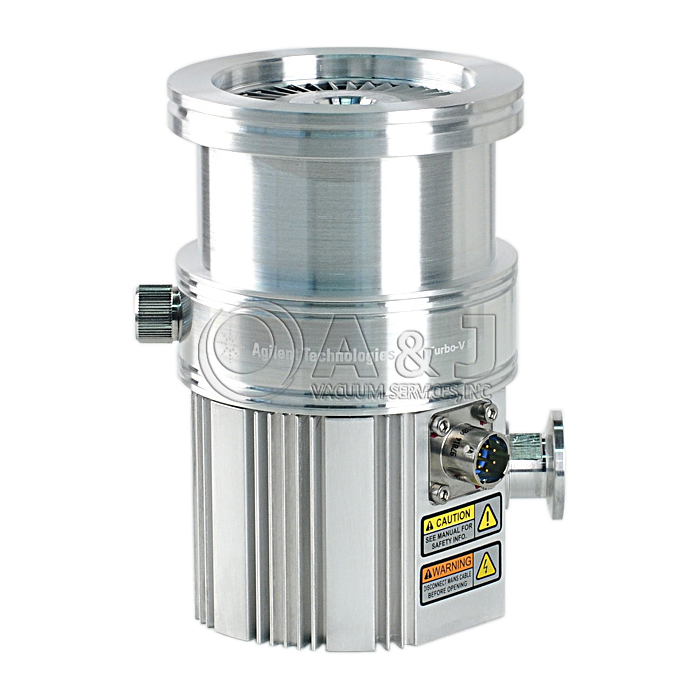

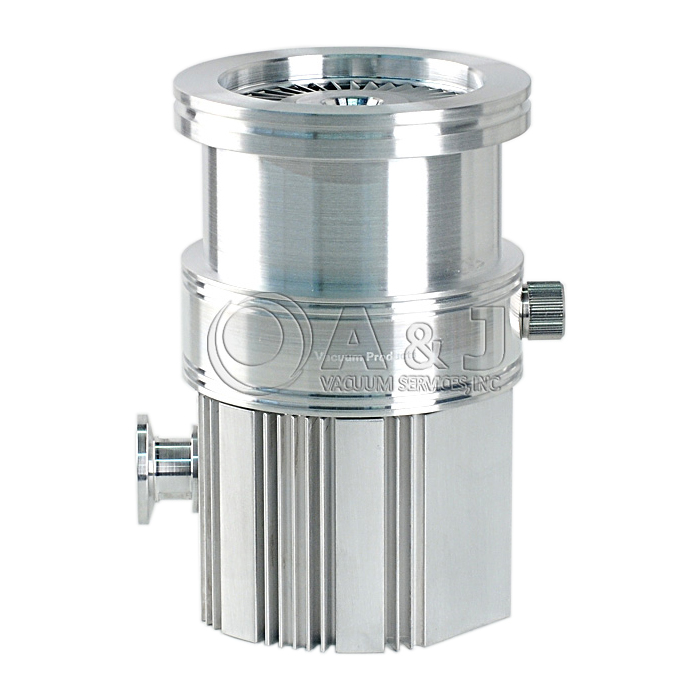

Fully Remanufactured Agilent Technologies / Varian Turbo TV81M Turbo Vacuum Pump, ISO 63, 969-8901



Agilent TV 81M Overview:


The Agilent TV 81M turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81M (9698901) has the compression ratio 3 x 108. The weight of Agilent TV 81-M is 1.99 kg.

The Varian TV 81M Turbo Pump consists of a high frequency motor driving a turbine fitted with 9 bladed stages and 3 Macrotorr stages.

The Agilent Turbo Pump / 969 8901 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The V81M turbine is made of high-strength aluminium alloy, machined from a single block.

The Agilent TV81 or Varian V81 Macrotorr stages are in the form of three discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Varian Macrotorr pump stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs.

Agilent 969 8901 is made of aluminium alloy.

During normal operation turbomolecular pump the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.

The TV 81 pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange.

The connection of the forevacuum on the side of the pump is a KF 16 NW flange.



Agilent TV 81M Pumping Speed:


Agilent TV 81T Pumping speed, 969-8901M004



Agilent TV 81M Dimensions:


Agilent TV 81T Dimensions, 969-8901M004


Click Here for Agilent TV 81M Manual


A&J Vacuum repair / rebuild and service all Varian TV81M, Agilent V81 9698901 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN00741 Mfr Part#: 9698903 Manufacturer: Agilent Technologies / Varian
PRICE: $4,950.00
WEB SAVINGS: $300.00
YOU PAY: $4,650.00

Fully Remanufactured Agilent Technologies / Varian Turbo TV81M Turbo Vacuum Pump, CFF 4.5", 969-8903



Agilent TV 81M Overview:


The Agilent TV 81M turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81M (9698903) has the compression ratio 3 x 108. The weight of Agilent TV 81-M is 1.99 kg.

The Varian TV 81M Turbo Pump consists of a high frequency motor driving a turbine fitted with 9 bladed stages and 3 Macrotorr stages.

The Agilent Turbo Pump / 969 8901 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The V81M turbine is made of high-strength aluminium alloy, machined from a single block.

The Agilent TV81 or Varian V81 Macrotorr stages are in the form of three discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Varian Macrotorr pump stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs.

Agilent 969 8903 is made of aluminium alloy.

During normal operation turbomolecular pump the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.

The TV 81 pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange.

The connection of the forevacuum on the side of the pump is a KF 16 NW flange.



Agilent TV 81M Pumping Speed:


Agilent TV 81T Pumping speed, 969-8903



Agilent TV 81M Dimensions:


Agilent TV 81T Dimensions, 969-8903


Click Here for Agilent TV 81M Manual


A&J Vacuum repair / rebuild and service all Varian TV81M, Agilent V81 9698903 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN07199 Mfr Part#: 9698902 Manufacturer: Agilent Technologies / Varian
PRICE: $4,650.00
WEB SAVINGS: $200.00
YOU PAY: $4,450.00

Fully Remanufactured Agilent Technologies / Varian Turbo TV81M Turbo Vacuum Pump, KF 40, 969-8902, TV-81M



Agilent TV 81M Overview:


The Agilent TV 81M turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81M (9698902) has the compression ratio 3 x 108. The weight of Agilent TV 81-M is 1.99 kg.

The Varian TV 81M Turbo Pump consists of a high frequency motor driving a turbine fitted with 9 bladed stages and 3 Macrotorr stages.

The Agilent Turbo Pump / 969 8901 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The V81M turbine is made of high-strength aluminium alloy, machined from a single block.

The Agilent TV81 or Varian V81 Macrotorr stages are in the form of three discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Varian Macrotorr pump stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs.

Agilent 969 8902 is made of aluminium alloy.

During normal operation turbomolecular pump the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.

The TV 81 pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange.

The connection of the forevacuum on the side of the pump is a KF 16 NW flange.



Agilent TV 81M Pumping Speed:


Agilent TV 81T Pumping speed, 9698902



Agilent TV 81M Dimensions:


Agilent TV 81T Dimensions, 9698902


Click Here for Agilent TV 81M Manual


A&J Vacuum repair / rebuild and service all Varian TV81M, Agilent V81 9698901 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN22855 Mfr Part#: 9698905M002 Manufacturer: Agilent Technologies / Varian
PRICE: $6,478.00
WEB SAVINGS: $1,828.00
YOU PAY: $4,650.00

Agilent TV81T Turbo Pump For GCMS, ISO 63, 9698905M002, 969-8905M002 also known as P/N 393076401



Agilent TV 81T Overview:


The Agilent TV 81T turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81T (9698905M002) has the compression ratio 7 x 106. The weight of Agilent TV 81-T is 1.83 kg.

The Fully Refurbished Agilent V81T Turbo Pump consists of a high frequency motor driving a turbine fitted with 3 macrotorr stages and 9 bladed stages.

The Varian TV81-T / 969-8905 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The turbine is made of high-strength aluminium alloy, machined from a single block. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings.

The V 81T turbo pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange. The connection of the forevacuum on the side of the pump is a KF 16 NW flange.

During normal operation TV 81-T, the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio. The pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating.



Agilent TV 81T Pumping Speed:


Agilent TV 81T Pumping speed, 9698905M002



Agilent TV 81T Dimensions:


Agilent TV 81T Dimensions, 9698905M002


Click Here for Agilent TV 81T Manual


A&J Vacuum repair / rebuild and service all Varian TV81T, Agilent V81 9698905 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN41132 Mfr Part#: 9698905M005 Manufacturer: Agilent Technologies / Varian
PRICE: $6,478.00
WEB SAVINGS: $1,828.00
YOU PAY: $4,650.00

Agilent TV81 T Turbo Pump For GCMS, ISO 63, 9698905M005, 969-8905M005, TV81T



Agilent TV 81T / 9698905M005 Overview:


The Agilent TV 81T turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81 T (9698905M005) has the compression ratio 7 x 106. The weight of Agilent TV 81-T is 1.83 kg.

The Fully Refurbished Agilent V81T Turbo Pump consists of a high frequency motor driving a turbine fitted with 3 macrotorr stages and 9 bladed stages.

The Varian TV81-T / 969-8905M005 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The turbine is made of high-strength aluminium alloy, machined from a single block. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings.

The V 81T turbo pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange. The connection of the forevacuum on the side of the pump is a KF 16 NW flange.

During normal operation TV 81-T, the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio. The pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating.



Agilent TV 81T / 9698905M005 Pumping Speed:


Agilent TV 81T Pumping speed, 9698905M002



Agilent TV 81T Dimensions:


Agilent TV 81T Dimensions, 9698905M002


Click Here for Agilent TV 81T Manual


A&J Vacuum repair / rebuild and service all Varian TV81T, Agilent V81 9698905 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN07200 Mfr Part#: 9698904 Manufacturer: Agilent Technologies / Varian
Price upon request

Fully Remanufactured Agilent Technologies / Varian Turbo TV81M Turbo Vacuum Pump, CFF 2.75", V81, 969-8904



Agilent TV 81M Overview:


The Agilent TV 81M turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81M (9698904) has the compression ratio 3 x 108. The weight of Agilent TV 81-M is 1.99 kg.

The Varian TV 81M Turbo Pump consists of a high frequency motor driving a turbine fitted with 9 bladed stages and 3 Macrotorr stages.

The Agilent Turbo Pump / 969 8901 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The V81M turbine is made of high-strength aluminium alloy, machined from a single block.

The Agilent TV81 or Varian V81 Macrotorr stages are in the form of three discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Varian Macrotorr pump stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs.

Agilent 969 8902 is made of aluminium alloy.

During normal operation turbomolecular pump the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.

The TV 81 pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange.

The connection of the forevacuum on the side of the pump is a KF 16 NW flange.



Agilent TV 81M Pumping Speed:


Agilent TV 81T Pumping speed, 969-8901M004



Agilent TV 81M Dimensions:


Agilent TV 81T Dimensions, 969-8901M004


Click Here for Agilent TV 81M Manual


A&J Vacuum repair / rebuild and service all Varian TV81M, Agilent V81 9698904 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
Item#: PN07504 Mfr Part#: 9698905M001 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies / Varian Turbo TV81T Turbo Vacuum Pump For GCMS, ISO 63, 969-8905M001



Agilent TV 81T Overview:


The Agilent TV 81T turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81T (9698905M001) has the compression ratio 7 x 106. The weight of Agilent TV 81-T is 1.83 kg.

The Fully Refurbished Agilent V81T Turbo Pump consists of a high frequency motor driving a turbine fitted with 3 macrotorr stages and 9 bladed stages.

The Varian TV81-T / 969-8905 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The turbine is made of high-strength aluminium alloy, machined from a single block. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings.

The V 81T turbo pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange. The connection of the forevacuum on the side of the pump is a KF 16 NW flange.

During normal operation TV 81-T, the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio. The pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating.



Agilent TV 81T Pumping Speed:


Agilent TV 81T Pumping speed, 9698905M001



Agilent TV 81T Dimensions:


Agilent TV 81T Dimensions, 9698905M001


Click Here for Agilent TV 81T Manual


A&J Vacuum repair / rebuild and service all Varian TV81T, Agilent V81 9698905 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
Item#: PN20563 Mfr Part#: 9698901M004 Manufacturer: Agilent Technologies / Varian
Price upon request

Fully Remanufactured Agilent / Varian Turbo TV81M Turbo Vacuum Pump, ISO 63, 969-8901M004



Agilent TV 81M Overview:


The Agilent TV 81M turbo pump has the pumping speed up to 77 l/s N2. Agilent TV 81M (9698901M004) has the compression ratio 3 x 108. The weight of Agilent TV 81-M is 1.99 kg.

The Varian TV 81M Turbo Pump consists of a high frequency motor driving a turbine fitted with 9 bladed stages and 3 Macrotorr stages.

The Agilent Turbo Pump / 969 8901 turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The V81M turbine is made of high-strength aluminium alloy, machined from a single block.

The Agilent TV81 or Varian V81 Macrotorr stages are in the form of three discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Varian Macrotorr pump stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs.

Agilent 969 8902 is made of aluminium alloy.

During normal operation turbomolecular pump the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz (max). To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.

The TV 81 pump can be water cooled or air cooled: in the first case the customer can use a dedicated external plate made of nickel-plated brass, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange.

The connection of the forevacuum on the side of the pump is a KF 16 NW flange.



Agilent TV 81M Pumping Speed:


Agilent TV 81T Pumping speed, 969-8901M004



Agilent TV 81M Dimensions:


Agilent TV 81T Dimensions, 969-8901M004


Click Here for Agilent TV 81M Manual


A&J Vacuum repair / rebuild and service all Varian TV81M, Agilent V81 9698901 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
