Item#: PN22253 Mfr Part#: X3502-64001, X350264001 Manufacturer: Agilent Technologies / Varian
PRICE: $3,850.00
WEB SAVINGS: $487.00
YOU PAY: $3,363.00

Agilent TwisTorr 84 FS Turbo Pump with KF 40 Inlet Flange, 49 l/sec Pumping Speed, X3502-64001, X350264001



Agilent TwisTorr 84FS Overview


The Agilent Technologies TwisTorr 84 FS is a turbomolecular pump for high and ultra-high vacuum applications. The TwisTorr 84 FS is equipped with new and improved bearings and its TwisTorr drag state technology enables high compression of gases such as Helium and Hydrogen. The TwisTorr 84 FS is designed to pump any type of non corrosive gas and can be used with a smaller backing pump (5 m3/h).

The Agilent Varian TwisTorr 84 FS pumping action is obtained through a high speed turbine (max. 81000 rpm) driven by a high performance 3-phase electric motor. The TwisTorr 84 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.

The TwisTorr 84 FS pump consists of a high frequency motor and a high-strength aluminum alloy turbine fitted with 9 bladed stages and 3 TwisTorr drag stages which are in the form of four disks. The turbine rotates counterclockwise when viewed from the high vacuum flange end. The TwisTorr 84 FS rotor is supported by permanently lubricated ceramic ball bearings. The static blades are precisely situated with the help of spacer rings and are made of stainless steel. The TwisTorr stators are in the form of machined disks with parallel spiral pumping channels. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz.

The Agilent TwisTorr 84 FS turbomolecular pump can be water cooled or air cooled. In order to prevent the pump from overheating, a thermistor sensor is mounted near the upper bearing.



Agilent Technologies TwisTorr 84 FS Turbo Pump Applications


  • Mass Spectrometry and Analytical Instrumentation, including GC/MS, LC/MS, ICP-MS, TOF.

  • Vacuum in Research and Development, including high energy physics, fusion technology, general research.

  • Industrial Vacuum Processing, including thin film deposition, device processing, and general processes such as vacuum furnaces.

  • Nanotechnology Instrumnets, including electron microscopy, focused ion beam systems, surface analysis, semiconductor manufacturing.



Agilent TwisTorr 84FS Pumpins Speed vs. Inlet Pressure


Agilent TwisTorr 84 FS Graph, Characteristic, X350264001, X3502-64001

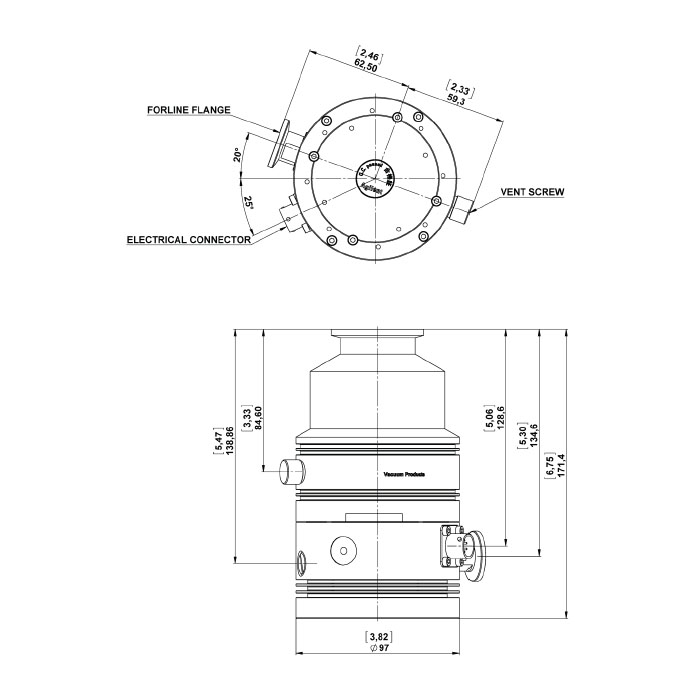

Agilent TwisTorr 84FS Dimensions


Agilent TwisTorr 84 FS Dimensions, X350264001, X3502-64001


Please click here to view operating instructions for Agilent Varian TwisTorr 84 FS Turbo Pump.

Please click here to learn more about the Agilent Varian TwissTorr Turbo Pump Family and view Agilent Technologies TwissTorr Brochure.


A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Remanufactured Call us for Availability
Item#: PN22254 Mfr Part#: X3502-64002, X350264002 Manufacturer: Agilent Technologies / Varian
PRICE: $4,850.00
WEB SAVINGS: $725.00
YOU PAY: $4,125.00

Agilent TwisTorr 84 FS Turbo Pump with CFF 4.5in Inlet Flange, 67 l/sec Pumping Speed, X3502-64002, X350264002



Agilent TwisTorr 84FS Overview


The Agilent Technologies TwisTorr 84 FS is a turbomolecular pump for high and ultra-high vacuum applications. The TwisTorr 84 FS is equipped with new and improved bearings and its TwisTorr drag state technology enables high compression of gases such as Helium and Hydrogen. The TwisTorr 84 FS is designed to pump any type of non corrosive gas and can be used with a smaller backing pump (5 m3/h).

The Agilent Varian TwisTorr 84 FS pumping action is obtained through a high speed turbine (max. 81000 rpm) driven by a high performance 3-phase electric motor. The TwisTorr 84 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.

The TwisTorr 84 FS pump consists of a high frequency motor and a high-strength aluminum alloy turbine fitted with 9 bladed stages and 3 TwisTorr drag stages which are in the form of four disks. The turbine rotates counterclockwise when viewed from the high vacuum flange end. The TwisTorr 84 FS rotor is supported by permanently lubricated ceramic ball bearings. The static blades are precisely situated with the help of spacer rings and are made of stainless steel. The TwisTorr stators are in the form of machined disks with parallel spiral pumping channels. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz.

The Agilent TwisTorr 84 FS turbomolecular pump can be water cooled or air cooled. In order to prevent the pump from overheating, a thermistor sensor is mounted near the upper bearing.



Agilent Technologies TwisTorr 84 FS Turbo Pump Applications


  • Mass Spectrometry and Analytical Instrumentation, including GC/MS, LC/MS, ICP-MS, TOF.

  • Vacuum in Research and Development, including high energy physics, fusion technology, general research.

  • Industrial Vacuum Processing, including thin film deposition, device processing, and general processes such as vacuum furnaces.

  • Nanotechnology Instrumnets, including electron microscopy, focused ion beam systems, surface analysis, semiconductor manufacturing.



Agilent TwisTorr 84FS Pumpins Speed vs. Inlet Pressure


Agilent TwisTorr 84 FS Graph, Characteristic, X350264002, X3502-64002



Agilent TwisTorr 84FS Dimensions


Agilent TwisTorr 84 FS Dimensions, X350264002, X3502-64002


Please click here to view operating instructions for Agilent Varian TwisTorr 84 FS Turbo Pump.

Please click here to learn more about the Agilent Varian TwissTorr Turbo Pump Family and view Agilent Technologies TwissTorr Brochure.


A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Remanufactured Call us for Availability
Item#: PN22255 Mfr Part#: X3502-64003, X350264003 Manufacturer: Agilent Technologies / Varian
PRICE: $4,200.00
WEB SAVINGS: $737.00
YOU PAY: $3,463.00

Agilent TwisTorr 84 FS Turbo Pump with CFF 2.75in Inlet Flange, 56 l/sec Pumping Speed, X3502-64003, X350264003



Agilent TwisTorr 84FS Overview


The Agilent Technologies TwisTorr 84 FS is a turbomolecular pump for high and ultra-high vacuum applications. The TwisTorr 84 FS is equipped with new and improved bearings and its TwisTorr drag state technology enables high compression of gases such as Helium and Hydrogen. The TwisTorr 84 FS is designed to pump any type of non corrosive gas and can be used with a smaller backing pump (5 m3/h).

The Agilent Varian TwisTorr 84 FS pumping action is obtained through a high speed turbine (max. 81000 rpm) driven by a high performance 3-phase electric motor. The TwisTorr 84 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.

The TwisTorr 84 FS pump consists of a high frequency motor and a high-strength aluminum alloy turbine fitted with 9 bladed stages and 3 TwisTorr drag stages which are in the form of four disks. The turbine rotates counterclockwise when viewed from the high vacuum flange end. The TwisTorr 84 FS rotor is supported by permanently lubricated ceramic ball bearings. The static blades are precisely situated with the help of spacer rings and are made of stainless steel. The TwisTorr stators are in the form of machined disks with parallel spiral pumping channels. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz.

The Agilent TwisTorr 84 FS turbomolecular pump can be water cooled or air cooled. In order to prevent the pump from overheating, a thermistor sensor is mounted near the upper bearing.



Agilent Technologies TwisTorr 84 FS Turbo Pump Applications


  • Mass Spectrometry and Analytical Instrumentation, including GC/MS, LC/MS, ICP-MS, TOF.

  • Vacuum in Research and Development, including high energy physics, fusion technology, general research.

  • Industrial Vacuum Processing, including thin film deposition, device processing, and general processes such as vacuum furnaces.

  • Nanotechnology Instrumnets, including electron microscopy, focused ion beam systems, surface analysis, semiconductor manufacturing.



Agilent TwisTorr 84FS Pumpins Speed vs. Inlet Pressure


Agilent TwisTorr 84 FS Graph, Characteristic, X350264003, X3502-64003



Agilent TwisTorr 84FS Dimensions


Agilent TwisTorr 84 FS Dimensions, X350264003, X3502-64003


Please click here to view operating instructions for Agilent Varian TwisTorr 84 FS Turbo Pump.

Please click here to learn more about the Agilent Varian TwissTorr Turbo Pump Family and view Agilent Technologies TwissTorr Brochure.


A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Remanufactured Call us for Availability
