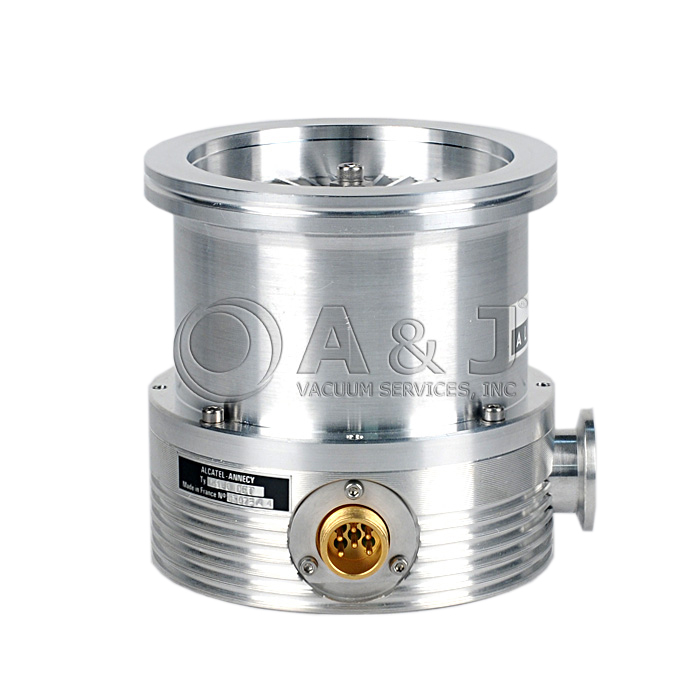

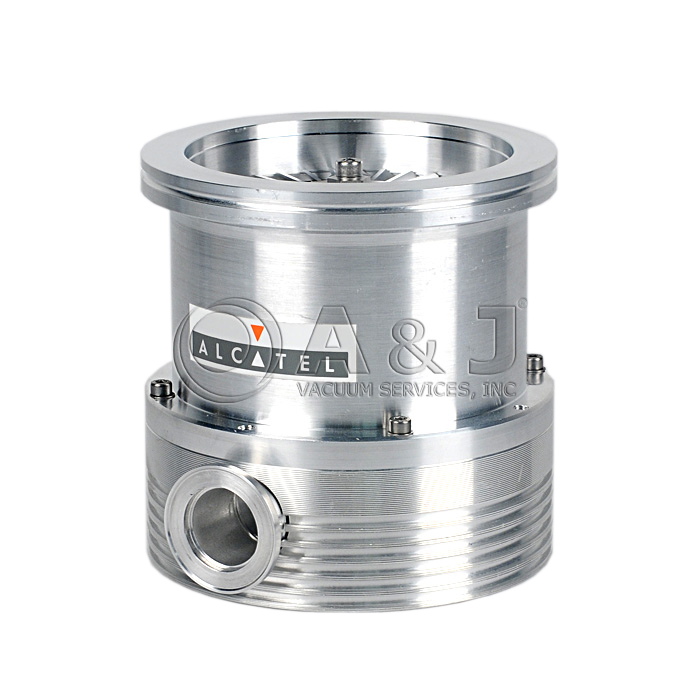

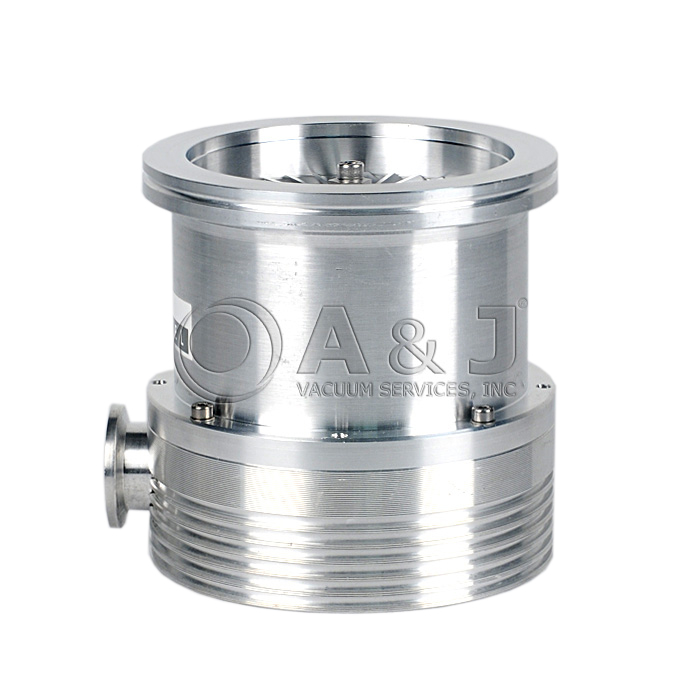

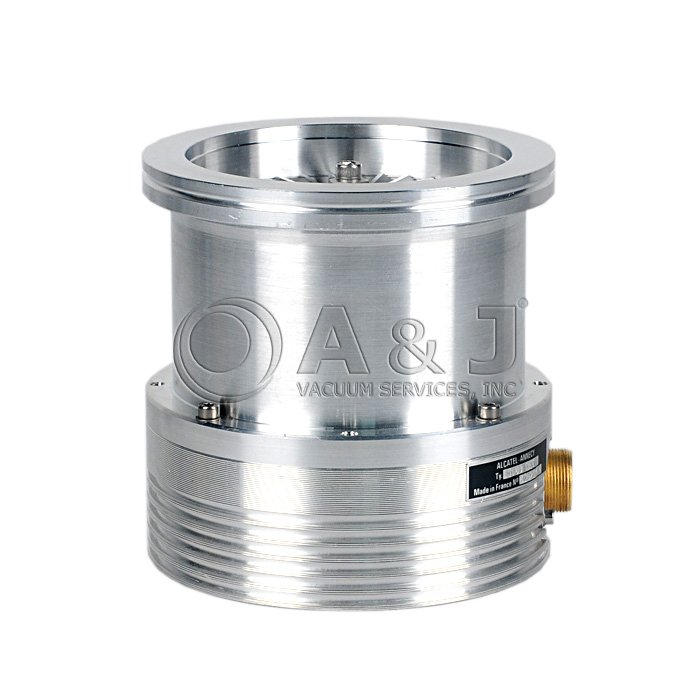

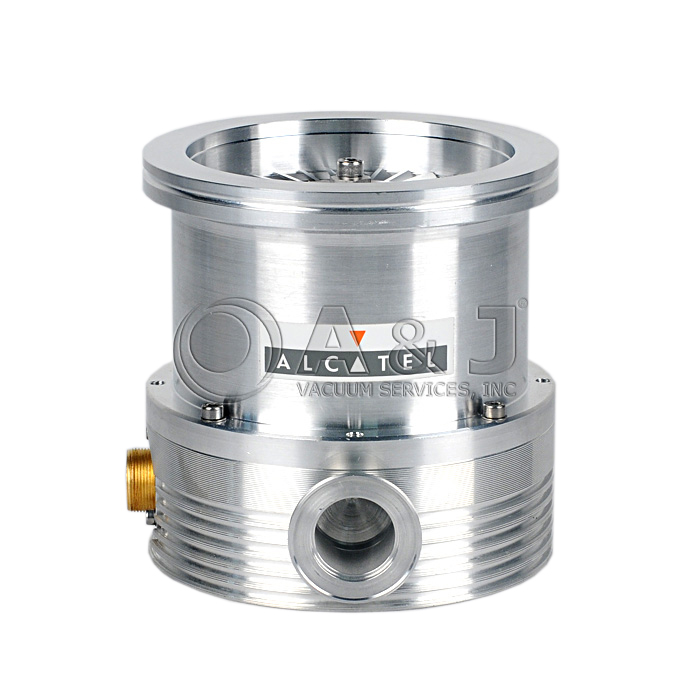

The Alcatel / Adixen 5100 Turbo Vacuum Pump is fully refurbished and is ready for a wide variety of applications in the research and development industries. It is fitted with an ISO 100 inlet flange and a KF 25 exhaust flange. This fully refurbished turbo pump comes with a full six month warranty.
The Alcate 5100 Turbo Pump is designed for a wide range of applications in the research industry. DN 100-K
Air Cooling Available
The Alcatel CFV-100 Turbo Pump Controller is needed to operate the Alcatel 5100 Turbo Pump.
|Pumping Speed:||N2: 100 l/s|
Ultimate Pressure with Rotary Vane Pump:
|1 x 10-9 mbar|
|Recommended Backing Pump:||1.5-16 m3|
A&J Vacuum Rrepair / Rebuild and Service Alcatel 5080 Turbo Pumps Adixen 5080 Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Alcatel 5081 turbomolecular pump, is a one hundred percent turbomultistages design. The rotational speed is 27000 rpm.
The heart of the pump is assembled at the end a shaft that turns in two grease lubricated high-precision ball bearings, located in the forevacuum. The pumping elements are made of aluminum alloy.
The inlet housing including the connecting is made of stainless steel.
The pump is powered by a 450 Hz electric motor, mounted between the two ball bearings. The rotor fits directly on the shaft, and the stator, mounted in the body of the pump, is cooled by a fan located outside the pump, or by a water cooling ring, or by natural convection.
This Turbo Pump has been design for Alcatel Adixen ASM180, ASM181, and ASM182 Helium Leak Detectors.

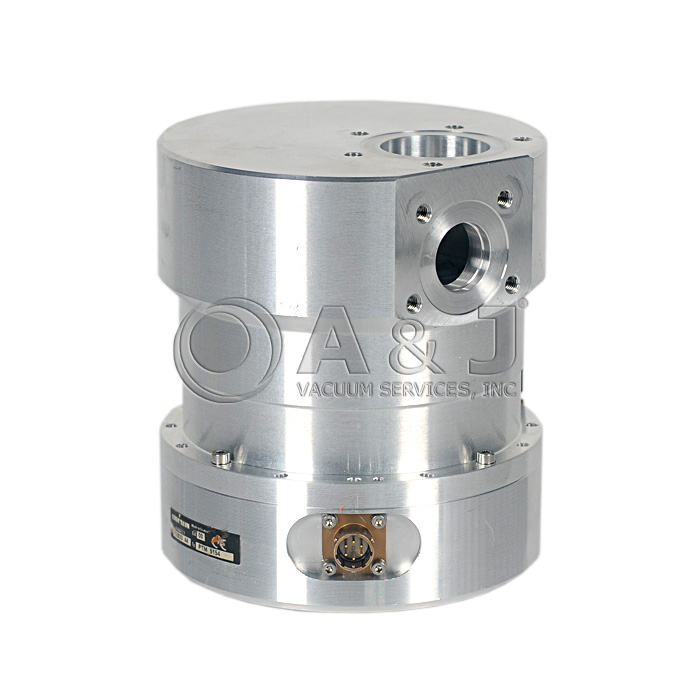

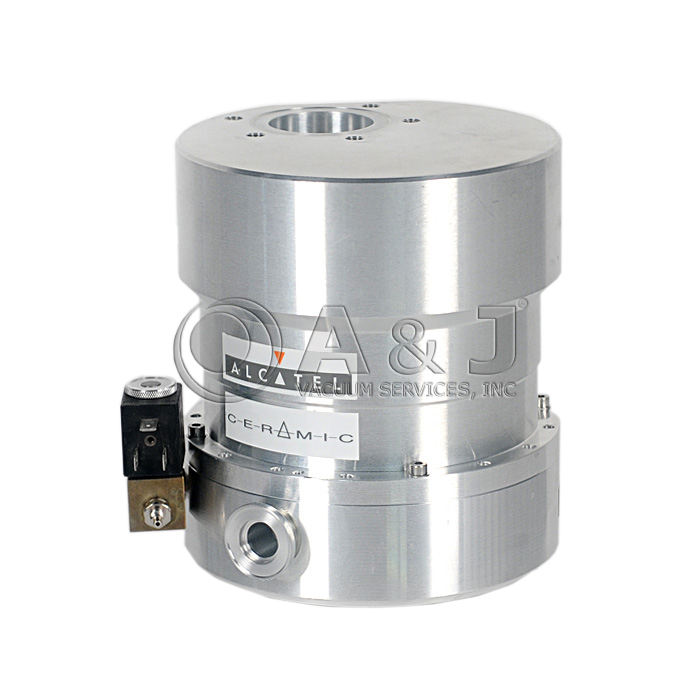

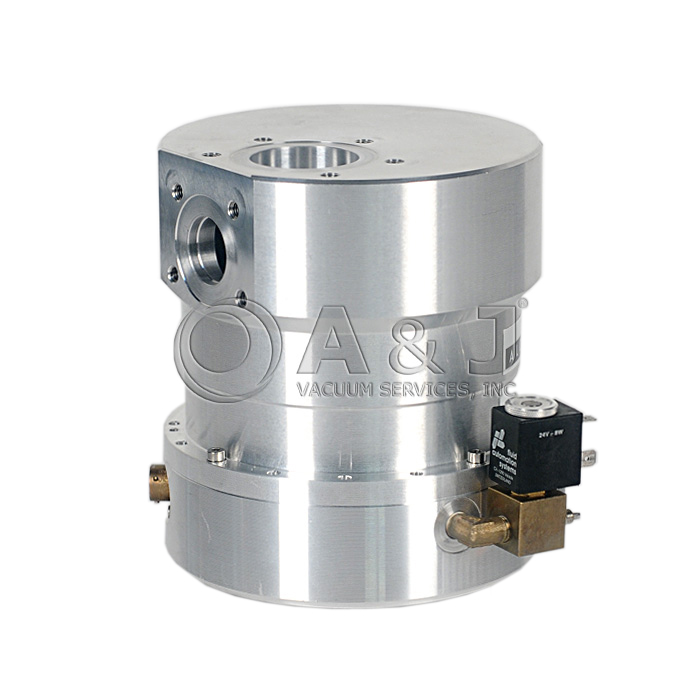

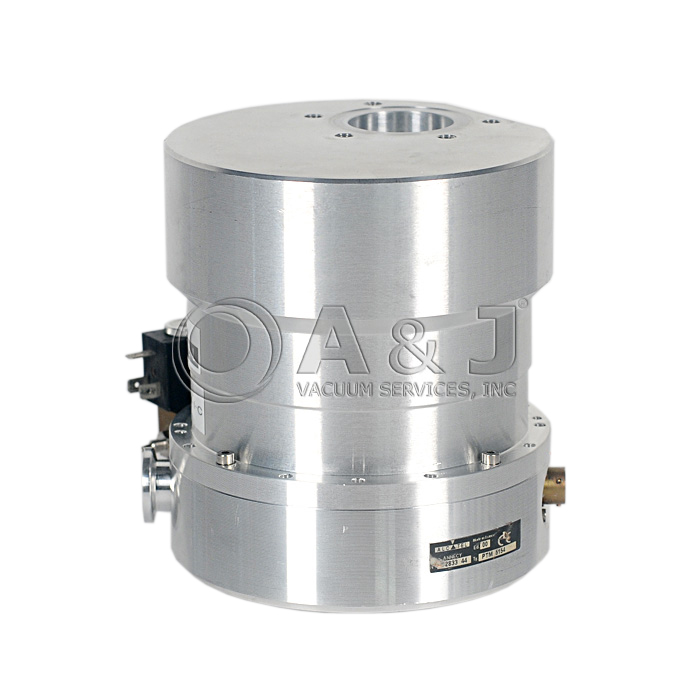

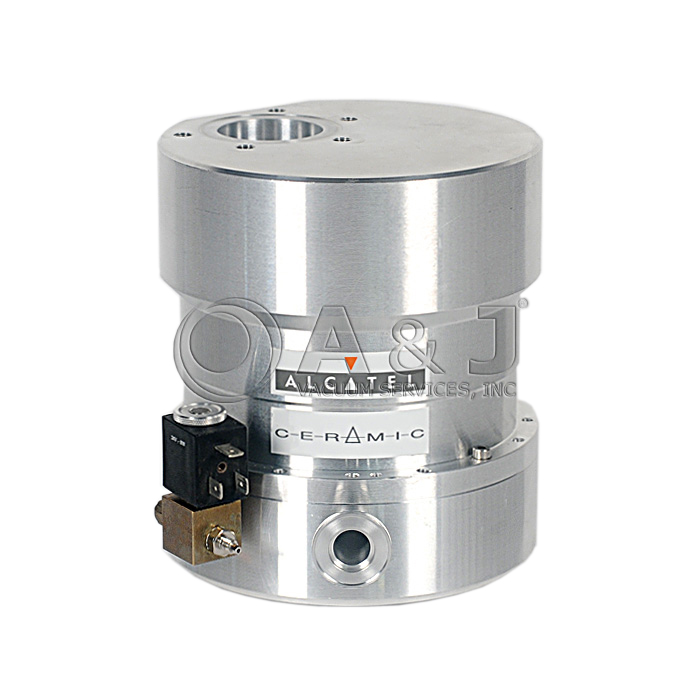

Adixen PTM5154 Turbo Pump is equipped with selonoid purge valve. This is a special version of Turbo Pump and it will only fit those specific ASM-180, ASM-181, and ASM182 Leak Detectors.
A&J Vacuum services and repairs Pfeiffer Adixen ASM 180, ASM 181 and ASM 182 Helium Leak Detectors. We service wide range of turbo pumps and leak detector backing pumps, along with all other helium leak detectors available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Fully Remanufactured Alcatel 5101 Turbo Pump, ISO 100 inlet Flange, PTM5101
The Alcatel 5101 Turbomolecular Pump is fully refurbished and is ready for a wide variety of applications in the research and development industries. It is fitted with an DN-100 ISO inlet flange and a KF 25 exhaust flange.
Required frequency converter Alcatel CFV 100 from 0 to 450 Hz.
The rotational speed is 27000 rpm.
Roughing pump recommended 4 m3/h (3.2 CFM)
A&J Vacuum repair / rebuild and service Alcatel MDP 5101 Turbo Pumps along with all other Alcatel turbomolecular and Adixen Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
