Found 38 products
Item#: PN00323 Mfr Part#: 9699504S0011 Manufacturer: Agilent Technologies / Varian
PRICE: $1,313.25
WEB SAVINGS: $25.75
YOU PAY: $1,287.50

Overview:

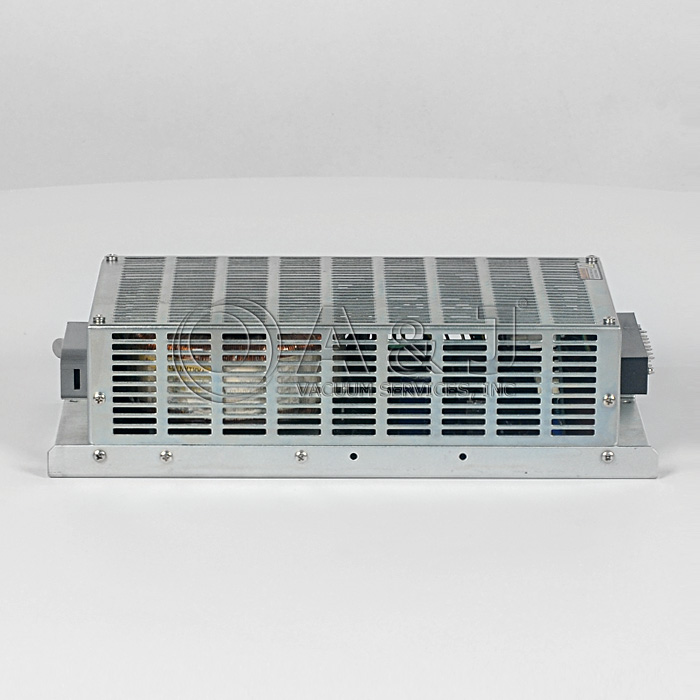

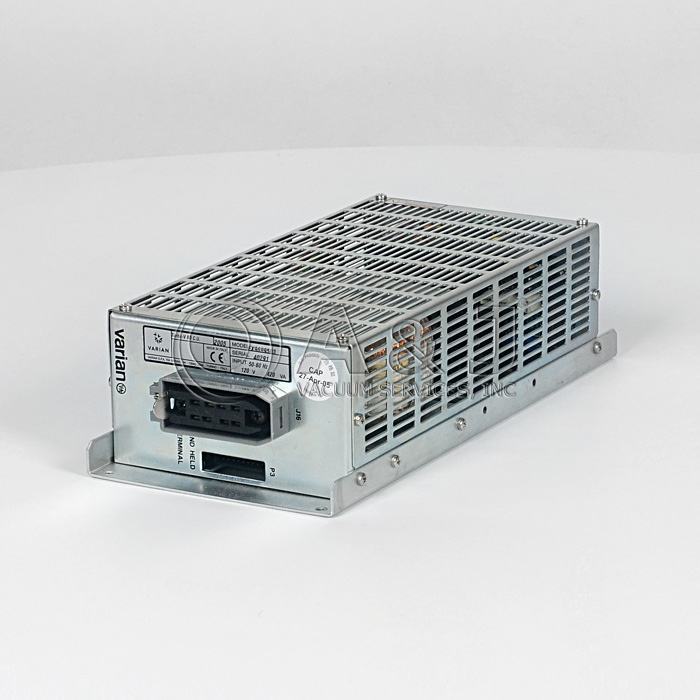

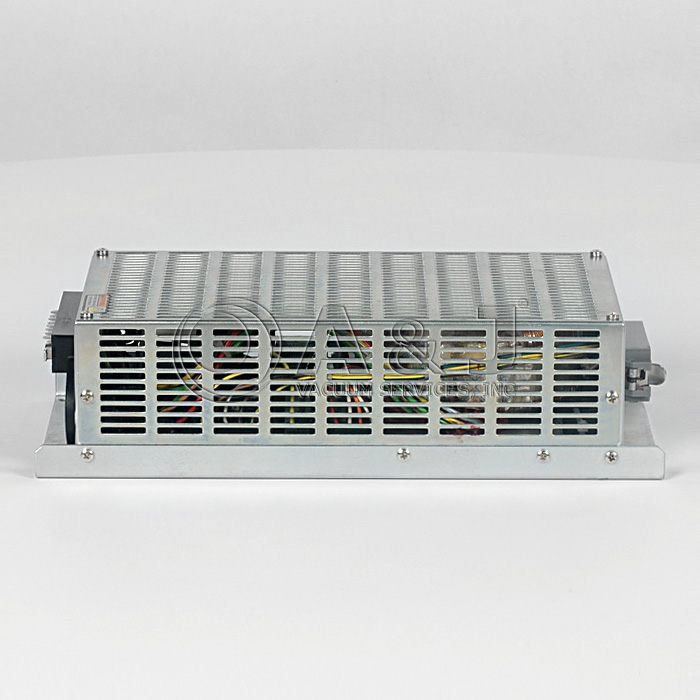

The Varian Turbo V 250 Turbo Pump Controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:

  • Power transformer

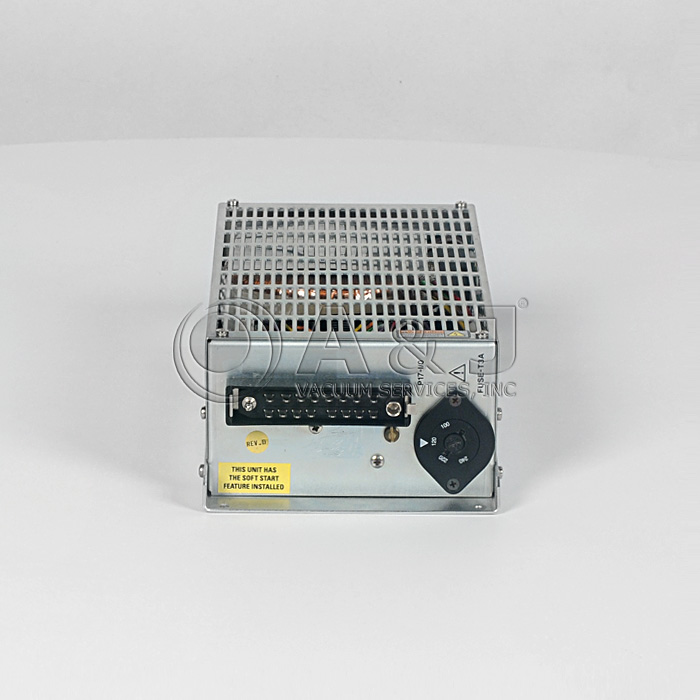

  • Left panel with input/output connector
  • Right panel with pump connector and hand held terminal connector
  • PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section
  • PCB external input/output interface

The power supply and the 3-phase output converts the single phase (50-60 Hz0 AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo V Pump.

The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.

It manages signals from sensors, input/output connection information to be displayed and gives outputs for a fully automatic operation.

A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.

The controller can be operated by remote signals via the left panel connector and may be monitored/reprogrammed using the optional hand held terminal via the right panel connector.

This Controller is designed to be used with the Varian V 250 Turbomolecular Pump.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: Remanufactured In Stock
Item#: PN07098 Mfr Part#: 9699503S007 Manufacturer: Agilent Technologies / Varian
PRICE: $1,040.09
WEB SAVINGS: $20.39
YOU PAY: $1,019.70

Overview:

The Varian Turbo V 250 Turbo Pump Controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:

  • Power transformer
  • Left panel with input/output connector
  • Right panel with pump connector and hand held terminal connector
  • PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section
  • PCB external input/output interface

The power supply and the 3-phase output converts the single phase (50-60 Hz0 AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo V Pump.

The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.

It manages signals from sensors, input/output connection information to be displayed and gives outputs for a fully automatic operation.

A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.

The controller can be operated by remote signals via the left panel connector and may be monitored/reprogrammed using the optional hand held terminal via the right panel connector.

This Controller is designed to be used with the Varian V 250 Turbomolecular Pump.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: Remanufactured In Stock
Item#: PN07159 Mfr Part#: 9699545S018 Manufacturer: Agilent Technologies / Varian
PRICE: $2,994.21
WEB SAVINGS: $58.71
YOU PAY: $2,935.50

Varian V 700HT CU Turbomolecular Pump Controller, 120V, 9699545S018



Varian V 700HT Overview:


The Varian Turbo-V 700HT series controllers are microprocessor controlled, solid-state, frequency converters with selfdiagnostic and self-protection features. The controllers drive the Turbo-V 550 turbo pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump. They incorporate all the facilities required for the automatic operation of the Turbo-V 700 pump series.

Remote start/stop, pump status signals, forepump start/stop, interlock control (for pressure switch, water flow switch, etc.) capability, are provided via auxiliary connectors.

The Varian V 700HT series controllers are provided with a front panel with an LCD alphanumeric display to indicate the operating conditions/parameters of the Turbo-V pump and a keyboard, and a rear panel with input/output connectors.

The Turbo-V controller can be used as a bench unit or a rack module, but it must be positioned so that free air can flow through the holes. Do not install or use the controller in an environment exposed to atmospheric agents (rain, snow, ice), dust, aggressive gases, or in explosive environments or those with a high fire risk.

The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:

  • Power transformer
  • Front panel display and keyboard
  • Rear panel with input/output connectors

PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits. The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.

The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.

The V 700HT manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation.

An EEPROM internal to the microprocessor is used to store pump operating parameters and the input/output programmed information.

The controller can be operated via:

  • Front panel switches
  • Remote signals via rear panel connectors
  • RS 232/485/422 serial link



Varian V 700HT Dimensions:


Varian V 700HT, 9699545S018 Dimensions





THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Click Here for Varian V 700HT Manual


A&J Vacuum Services offers full repair/service of Varian Pumps, along with all other brands offered on our website. AJVS also services Varian Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured In Stock
Item#: PN07173 Mfr Part#: 9699546 Manufacturer: Agilent Technologies / Varian
PRICE: $2,784.09
WEB SAVINGS: $54.59
YOU PAY: $2,729.50

Varian V 700 ICE Turbo Pump Controller, 120 VAC, 9699546, (V700)



Varian V 700 ICE Overview:


The Varian Turbo-V 700 ICE series controllers are microprocessor-controlled, solid-state, frequency converters with self-diagnostic and self-protection features.

The controllers drive (within ten steps) the Turbo-V 700 ICE pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump. They incorporate all the facilities required for the automatic operation of the Turbo-V 700 ICE pump series.

Remote start/stop commands, pump status signals, forepump start/stop commands, interlock control signals (for pressure switch, water flow switch), heater jacket control signals, flow meter control signals and purge valve management signals are provided via auxiliary connectors.

The controller is available in two versions:

  • Model 969-9447 (220 Vac, 50-60 Hz)
  • Model 969-9547 (120 Vac, 50-60 Hz)

The models are provided with a front panel with an LCD alphanumeric display to indicate the operating conditions/parameters of the Turbo-V pump and a keyboard, and a rear panel with input/output connectors.

The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:

  • Power transformer
  • Front panel display and keyboard
  • Rear panel with input/output connectors
  • PCB including: power supply analog and input/output section, microprocessor and digital section, display and keyboard circuits. The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.

The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.

Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. The heater jacket and flow meter are also handled.

An EEPROM internal to the microprocessor is used to store pump operating parameters and the input/output programmed information.

The controller can be operated via:

  • Front panel switches
  • Remote signals via rear panel connectors
  • RS 232/485/422 serial link (option)



Varian V 700 ICE Dimensions:


Varian V 700 ICE, 9699546 Dimensions





THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Click Here for Varian V 700 ICE Manual


A&J Vacuum Services offers full repair/service of Varian Pumps, along with all other brands offered on our website. AJVS also services Varian Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured In Stock
Item#: PN07175 Mfr Part#: EX9699448S003 Manufacturer: Agilent Technologies / Varian
PRICE: $4,885.29
WEB SAVINGS: $95.79
YOU PAY: $4,789.50

Varian Turbo V 2000 ICE Turbo Pump Controller, 220 VAC, EX9699448S003, (V2000ICE, 9699448)



Varian V 2000 ICE Overview:


The Varian Turbo-V 2000 ICE series controllers are microprocessor-controlled, solid-state, frequency converters with self-diagnostic and self-protection features.

The controllers drive (within ten steps) the Turbo-V 2000 ICE pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump. They incorporate all the facilities required for the automatic operation of the Turbo-V 2000 ICE pump series.

Remote start/stop commands, pump status signals, forepump start/stop commands, interlock control signals (for pressure switch, water flow switch), heater jacket control signals, flow meter control signals and purge valve management signals are provided via auxiliary connectors.

The controller is available in two versions:

  • Model 969-9448 (220 Vac, 50-60 Hz)
  • Model 969-9449 (120 Vac, 50-60 Hz)

The models are provided with a front panel with an LCD alphanumeric display to indicate the operating conditions/parameters of the Turbo-V pump and a keyboard, and a rear panel with input/output connectors.

The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:

  • Power transformer
  • Front panel display and keyboard
  • Rear panel with input/output connectors
  • 3 PCBs including: power supply analog and input/output section, microprocessor and digital section, display and keyboard circuits. The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.

The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.

Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. The heater jacket and flow meter are also handled.

An EEPROM internal to the microprocessor is used to store pump operating parameters and the input/output programmed information.

The controller can be operated via:

  • Front panel switches
  • Remote signals via rear panel connectors
  • RS 232/485/422 serial link (option)

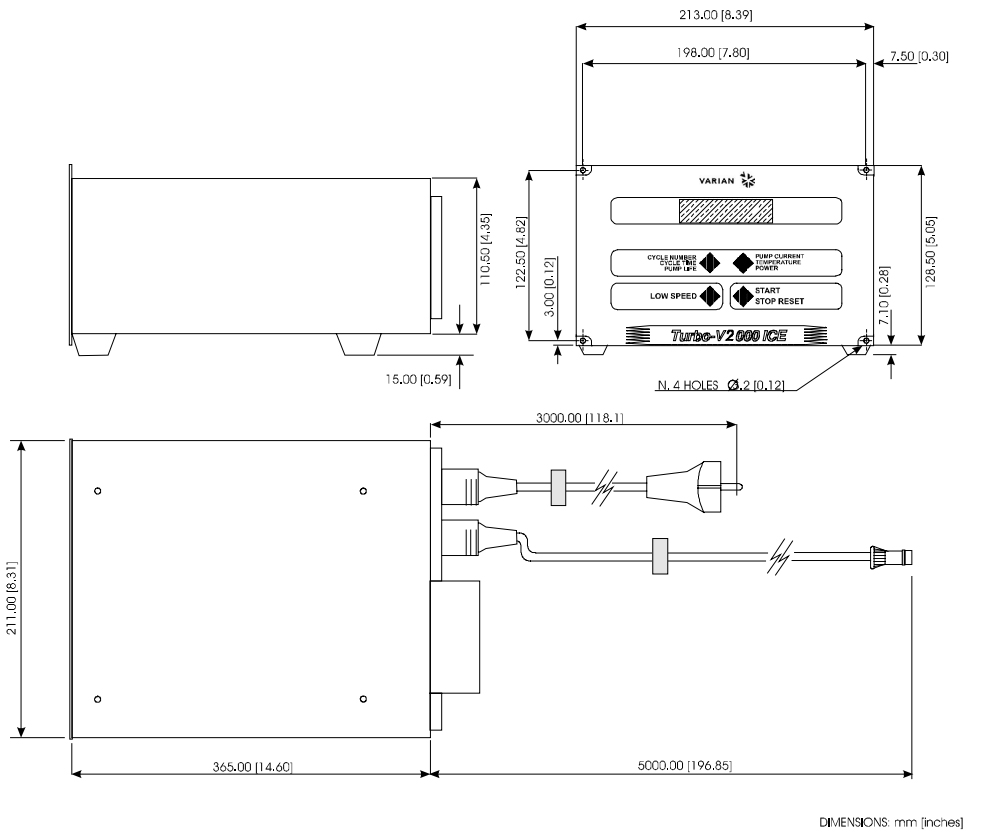

Varian V 2000 ICE Dimensions:


Varian V 2000 ICE, EX9699448S003, Dimensions





THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Click Here for Varian V 2000 ICE Manual


A&J Vacuum Services offers full repair/service of Varian Pumps, along with all other brands offered on our website. AJVS also services Varian Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured In Stock
Item#: PN07379 Mfr Part#: 9698972 Manufacturer: Agilent Technologies / Varian
PRICE: $919.28
WEB SAVINGS: $18.03
YOU PAY: $901.25



Overview:

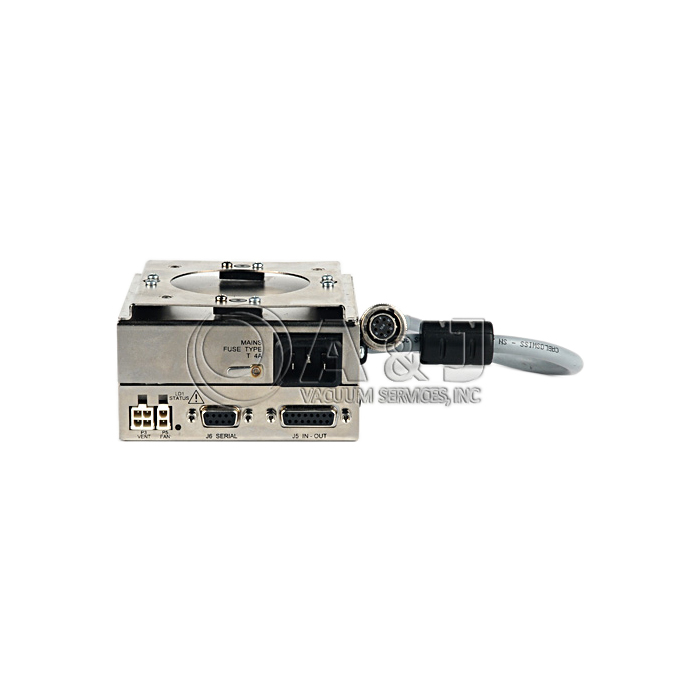

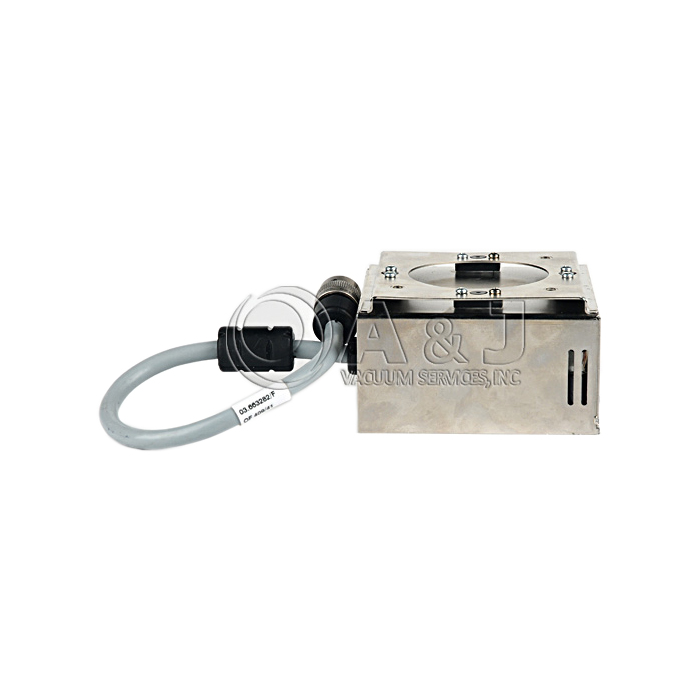

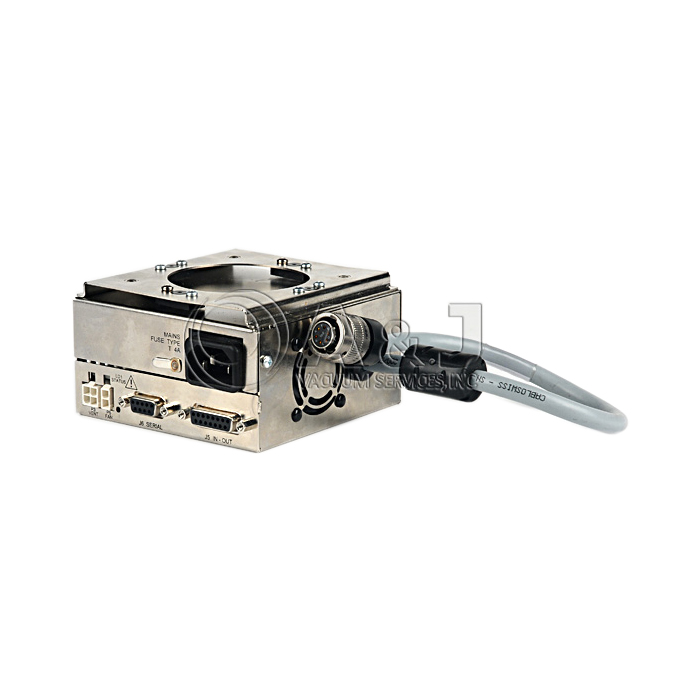

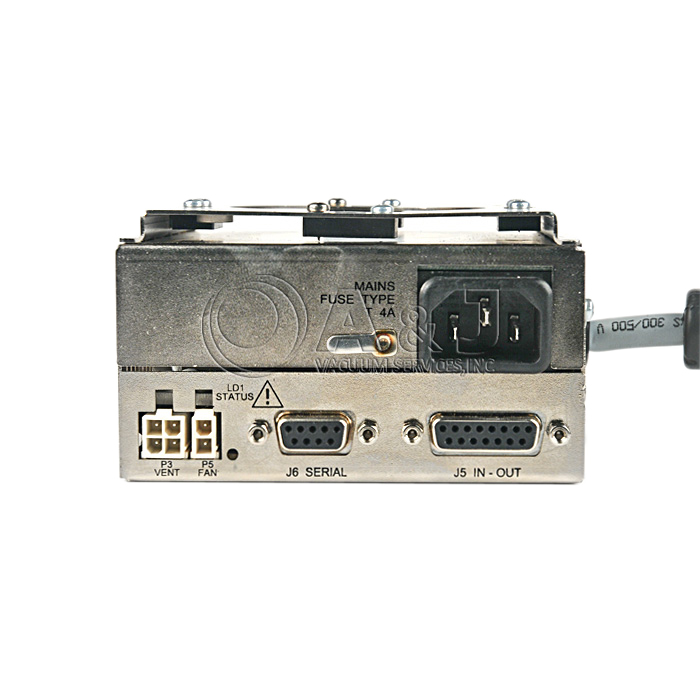

The Varian Turbo V 301 Navigator controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.

The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump.

The controller can be operated by a remote host computer via the serial connection. A Windowsbased software is available (optional).

This controller is designed to be used with the Varian TV 301 Turbomolecular Pump.

Unit is fully rebuilt and comes with a FULL 3-MONTH WARRANTY!



THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.




Condition: Remanufactured In Stock
Item#: PN14627 Mfr Part#: SQ337 Manufacturer: Agilent Technologies / Varian
PRICE: $5,350.00
YOU PAY: $5,350.00

Agilent Technologies Varian SQ337, TV 801 Navigator Turbo Pump Controller Unit (C.U.), 120/220 V, (Pump Mount), SQ337

Overview:

The Agilent SQ 337 TV-801 Navigator Turbo Pump Controller is designed to be used with the TV 801 Turbo Pump.

The TV-801 Navigator pumping system consists of a pump with a dedicated controller fixed to it. The system is available in four models and the models differ only in the high vacuum flange.







THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.




Condition: Remanufactured In Stock
Item#: PN16966 Mfr Part#: SQ158 Manufacturer: Agilent Technologies / Varian
PRICE: $1,313.25
WEB SAVINGS: $25.75
YOU PAY: $1,287.50

The Agilent Technologies / Varian Turbo V70D Turbo Pump consists of a high frequency motor driving a turbine fitted with 7 bladed stages and 4 Macrotorr stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength, light aluminum alloy, and is machined from a single block of aluminum. The turbine blades have five different angles, while the Macrotorr stages are in the form of discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearing installed on the forevacuum side of the pump.



THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.


Condition: Remanufactured In Stock
Item#: PN17661 Mfr Part#: EX9699503 Manufacturer: Agilent Technologies / Varian
PRICE: $1,040.09
WEB SAVINGS: $20.39
YOU PAY: $1,019.70

Overview:

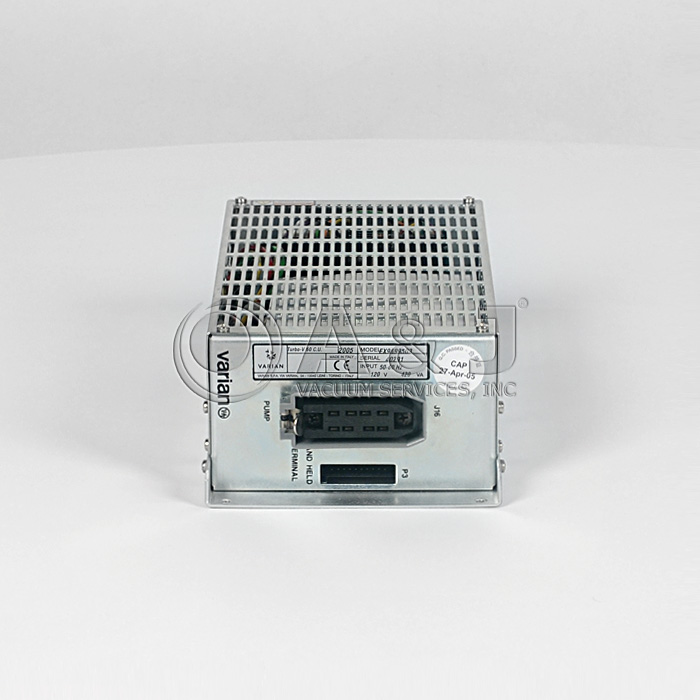

The Varian Turbo V 60 Turbo Pump Controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:

  • Power transformer
  • Left panel with input/output connector
  • Right panel with pump connector and hand held terminal connector
  • PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section
  • PCB external input/output interface

The power supply and the 3-phase output converts the single phase (50-60 Hz0 AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo V Pump.

The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.

It manages signals from sensors, input/output connection information to be displayed and gives outputs for a fully automatic operation.

A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.

The controller can be operated by remote signals via the left panel connector and may be monitored/reprogrammed using the optional hand held terminal via the right panel connector.

This Controller is designed to be used with the Varian V 60 Turbomolecular Pump.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.




Condition: Remanufactured In Stock
Item#: PN20066 Mfr Part#: 9698979M005 Manufacturer: Agilent Technologies / Varian
PRICE: $1,950.00
YOU PAY: $1,950.00

Agilent Technologies TV 401/301  Turbo Vacuum Pump Control Unit, 9698979M005


Overview:

The Agilent TV401/301  Turbo Pump Control Unit is a solid-state frequency converter which is driven by a single chip micro-computer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.

The Varian TV401/301 power supply, together with the 3-phase out-put, converts the single phase AC mains supply into a 3-phase output which is required to power the pump.

The controller can be operated in two ways:

  • via digital/analog I/O connector
  • via serial RS 232 or 485 connector

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

A&J Vacuum also repair / rebuild and service Varian Agilent TV401/301 Turbo Pumps and Turbo Pump Controllers  along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854




Condition: Remanufactured In Stock
