ALCATEL DRYTEL 34C DRY HIGH VACUUM TURBO PUMPING SYSTEM FOR CORROSIVE APPLICATIONS
Alcatel Drytel 34C Overview:
Alcatel Drytel34C (Corrosive version) PN 798620 is an oil-free turbo drag high vacuum pumping system, Alcatel olso known as Adixen with Extras, DN63-ISO to DN40-KF adapter with DN63 ISO protection screen, centering ring and four double clow clamps included.
ALCATEL DRYTEL 34C is an oil-free turbo drag high vacuum pumping system design to handle corrosive light duty applications.The Drytel 31 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar. Simple one button operation. DRYTEL 34C is Equiped with N2 port for Turbo Pump Purging.
DRYTEL 34 C high vacuum pumping system is composed of a Turbo Drag Pump MDP5011 CP (Corrosive version) backed with MD4C Diaphragm Pump, also design to handle light duty corrosive vacuum applications.
The Alcatel MDP-5011 CP Turbomolecular Drag Pump is the primary high vacuum pump with DN-63-ISO inlet flange, Alcatel Drytel 34C system produce outstanding high vacuum flow rates. The ALCATEL DRYTEL 34 comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.
Alcatel Drytel 34C P/N 798620 oil-free turbo drag high vacuum pumping system is fully air cooled with an internal cooling fan, no additional cooling is required. Drytel 34C is designed for use with high vacuum chambers as a bench top unit. They are ideal for dry high vacuum applications & high vacuum instruments.
Alcatel Drytel 34C usual applications: university research, space research, physics research laboratories, semiconductor process, analytical instruments, analytical laboratories, pharmaceutical research, chemical research, development laboratories, solar indusry, space simulation, mass spectrometry, leak detection, surface analysis, ion pump evacuation, vacuum gauge calibration, helium leak testing, along with many other high vacuum application.
If you are not sure if this system will meet your application requirements, please contact one of our Technical Specialist to discuss all technical questions.
Our knowledgeable staff will be happy to assist you.
Alcatel Drytel 34C Pumping speed / Inlet pressure (N2):
Alcatel Drytel 34C Dimensions:
Click Here for Alcatel Drytel 34 and 34C Manual
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Rebuilt Adixen Drytel 1025 Turbo Pumping Station, with MDP5011 Turbo Pump and Adixen AMD-4 Dry Diaphragm Pump, 115/220 VAC Set to 115 VAC, D025AQLPS810, Also known as Alcatel Drytel 1025
Overview:
The Adixen Drytel 1025 series of products are dry pumping systems that include an Alcatel MDP 5011 or also known as Adixen MDP5011 Turbo molecular drag pump (MDP) or a hybrid turbo pump (AMH) and an oil-free forepump. Designed to be used on a bench top or easily integrated into a system, these units provide a dry, clean vacuum from atmosphere to 10-8mbar (Torr).
Please note: System is curently set to U.S. 115 VAC, it can be changed to high 220 VAC.
Alcatel Drytel 1025 Station has a complete offer of tiny dry pumping groups for high vacuum applications.
The Drytel 1025 System Includes:
- Alcatel MDP5011 Turbo Drag Pump
- Alcatel AMD4 Diaphragm Dry Vacuum Pump
Please note: System does not include Venting valve
The two pumping stages working in series (MDP5011 and AMD 4 diaphragm pump) don’t require any lubricant to operate, permitting use on ultra-clean processes.
The Drytel 1025 Pumping Station series is the least expensive solution to achieve a clean vacuum down to 10-6 mbar.
The Drytel1025 series is recommended for all applications where a dry, clean vacuum is required, such as in industry:
- Semiconductor
- Analytical Instrumentation
- Pharmaceutical
- Chemical
- Research and Development laboratories
Adixen 1025 Station can also be used in various other types of applications:
- Backing of turbomolecular pumps
- Loadlock pumping
- Mass spectrometry
- Surface analysis
- Ion pump evacuation
- Cryopump regeneration
- Calibration
- Gas industry
- Gas lines
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service Alcatel Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Alcatel Drytel 34 Dry High Vacuum Turbo Pumping Station. Alcatel Drytel34 is an oil-free turbo drag high vacuum pumping system, 798619
Alcatel Drytel 34 Overview:
Alcatel Drytel34 PN 798619 is an oil-free turbo drag high vacuum pumping system, Alcatel olso known as Adixen with Extras, DN63-ISO to DN40-KF adapter with DN63 ISO protection screen, centering ring and four double clow clamps included.
ALCATEL DRYTEL 34 is an oil-free turbo drag high vacuum pumping system design to handle corrosive light duty applications.The Drytel 31 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar. Simple one button operation. DRYTEL 34 is Equiped with N2 port for Turbo Pump Purging.
DRYTEL 34 high vacuum pumping system is composed of a Turbo Drag Pump MDP5011 CP (Corrosive version) backed with MD4C Diaphragm Pump, also design to handle light duty corrosive vacuum applications.
The Alcatel MDP-5011 CP Turbomolecular Drag Pump is the primary high vacuum pump with DN-63-ISO inlet flange, Alcatel Drytel 34 system produce outstanding high vacuum flow rates. The ALCATEL DRYTEL 34 comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.
Alcatel Drytel 34 P/N 798619 oil-free turbo drag high vacuum pumping system is fully air cooled with an internal cooling fan, no additional cooling is required. Drytel 34 is designed for use with high vacuum chambers as a bench top unit. They are ideal for dry high vacuum applications & high vacuum instruments.
Alcatel Drytel 34 usual applications: university research, space research, physics research laboratories, semiconductor process, analytical instruments, analytical laboratories, pharmaceutical research, chemical research, development laboratories, solar indusry, space simulation, mass spectrometry, leak detection, surface analysis, ion pump evacuation, vacuum gauge calibration, helium leak testing, along with many other high vacuum application.
If you are not sure if this system will meet your application requirements, please contact one of our Technical Specialist to discuss all technical questions.
Our knowledgeable staff will be happy to assist you.
Alcatel Drytel 34 Pumping speed / Inlet pressure (N2):
Alcatel Drytel 34 Dimensions:
Click Here for Alcatel Drytel 34 and 34C Manual
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Rebuilt Adixen by Pfeiffer Drytel 1025 Turbo Pumping Station, with MDP5011 Turbo Pump and Adixen AMD-4 NT Dry Diaphragm Pump, 115/220 VAC Set to 115 VAC, D025AQNPS71
Drytel 1025 Turbo Station Overview:
The Adixen Drytel 1025 series of products are dry pumping systems that include an Alcatel MDP 5011 or also known as Adixen MDP5011 Turbo molecular drag pump (MDP) or a hybrid turbo pump (AMH) and an oil-free forepump. Designed to be used on a bench top or easily integrated into a system, these units provide a dry, clean vacuum from atmosphere to 10-8mbar (Torr).
Please note: System is curently set to U.S. 115 VAC, it can be changed to high 220 VAC.
Alcatel Drytel 1025 Station has a complete offer of tiny dry pumping groups for high vacuum applications.
The ADIXEN Pfeiffer Drytel 1025 System Includes:
- Alcatel MDP5011 Turbo Drag Pump
- Alcatel AMD4 NT Diaphragm Dry Vacuum Pump
The two pumping stages working in series (MDP5011 and AMD 4 NT diaphragm pump) don’t require any lubricant to operate, permitting use on ultra-clean processes.
The Drytel 1025 Pumping Station series is the least expensive solution to achieve a clean vacuum down to 10-6 mbar.
The ADIXEN by Pfeiffer Drytel 1025 series is recommended for all applications where a dry, clean vacuum is required, such as in industry:
- Semiconductor
- Analytical Instrumentation
- Pharmaceutical
- Chemical
- Research and Development laboratories
Adixen by Pfeiffer Drytel 1025 Station can also be used in various other types of applications:
- Backing of turbomolecular pumps
- Loadlock pumping
- Mass spectrometry
- Surface analysis
- Ion pump evacuation
- Cryopump regeneration
- Calibration
- Gas industry
- Gas lines
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service ADIXEN Pfeiffer Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

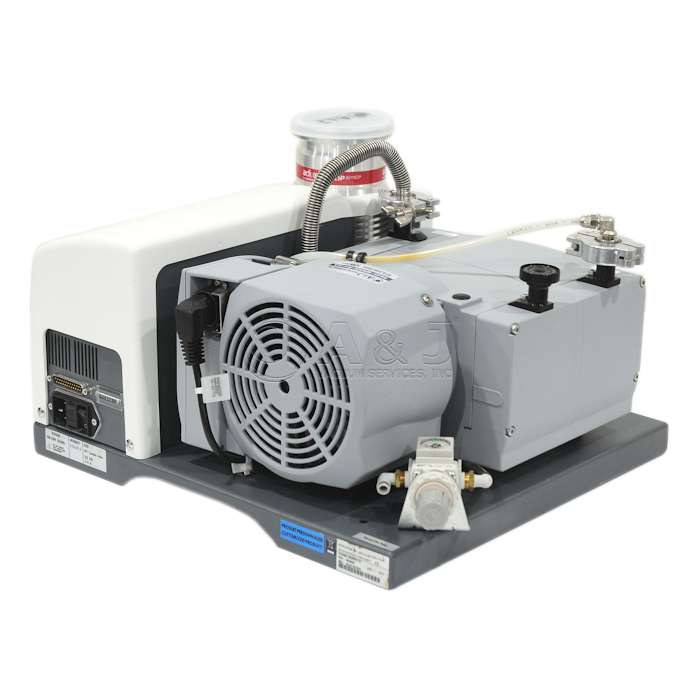

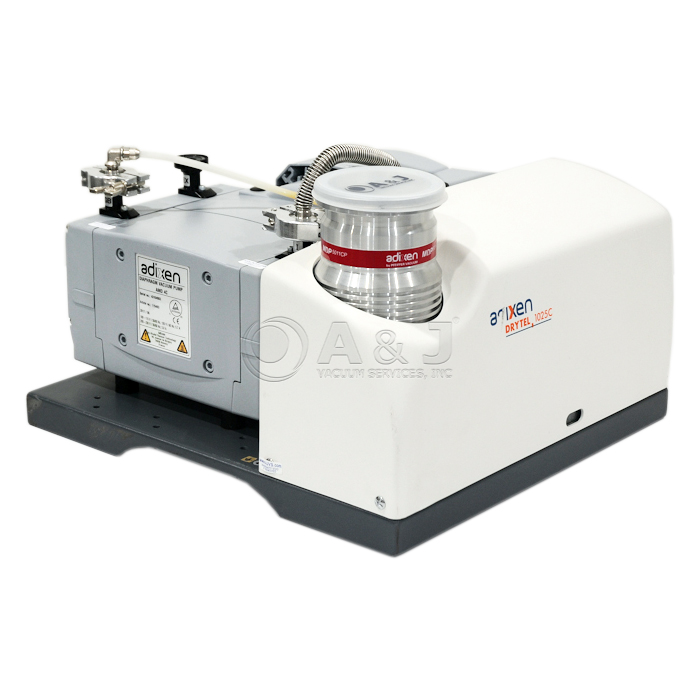

Fully Rebuilt Adixen by Pfeiffer Drytel 1025 C (Corrosive) Turbo Pumping Station, with MDP5011 CP Turbo Pump and Adixen AMD4 C NT Dry Diaphragm Pump, 115/220 VAC Set to 115 VAC, D025DRMPD71
Drytel 1025 C (Corrosive applications) Turbo Station Overview:
The Adixen Drytel 1025 C series of products are dry pumping systems that include an Adixen MDP 5011 CP Corrosive verion Turbo molecular drag pump (MDP) and an oil-free AMD4 C forepump. Designed to be used on a bench top or easily integrated into a system, these units provide a dry, clean vacuum from atmosphere to 10-8mbar (Torr).
Please note: System is curently set to U.S. 115 VAC, it can be changed to high 220 VAC.
Alcatel Drytel 1025 Station has a complete offer of tiny dry pumping groups for high vacuum applications.
The ADIXEN Pfeiffer Drytel 1025 C System Includes:
- Alcatel MDP5011 CP Turbo Drag Pump
- Alcatel AMD4 C NT Diaphragm Dry Vacuum Pump
The two pumping stages working in series (MDP5011CP and AMDC 4 NT diaphragm pump) don’t require any lubricant to operate, permitting use on ultra-clean processes.
The Drytel 1025 C Pumping Station series is the least expensive solution to achieve a clean vacuum down to 10-6 mbar.
The ADIXEN by Pfeiffer Drytel 1025 C series is recommended for all applications where a dry, clean vacuum is required, such as in industry:
- Semiconductor
- Analytical Instrumentation
- Pharmaceutical
- Chemical
- Research and Development laboratories
Adixen by Pfeiffer Drytel 1025 C Station can also be used in various other types of applications:
- Backing of turbomolecular pumps
- Loadlock pumping
- Mass spectrometry
- Surface analysis
- Ion pump evacuation
- Cryopump regeneration
- Calibration
- Gas industry
- Gas lines
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service ADIXEN Pfeiffer Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Alcatel Drytel 30 Dry Vacuum Turbo Pumping Station Drytel 30 is an oil-free turbo drag high vacuum pumping system
Overview:
Alcatel Drytel 30 is an oil-fee turbo drag high vacuum pumping system, with delayed turbo pump start. The Alcatel Drytel 30 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5 x 10-6 mbar.
Alcatel Drytel 30 high vacuum pumping system is composed of a turbo drag pump backed with a diaphragm pump. The Alcatel MDP5010 turbo drag pump is the primary high vacuum pump with DN-63-ISO inlet flange, Alcatel Drytel 30 system produce outstanding high vacuum flow rates.
The Alcatel Drytel 30 comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.
Alcatel Drytel 30 oil-free turbo drag high vacuum pumping system is fully air cooled with an internal cooling fan, no additional cooling is required.
Drytel 30 is designed for use with high vacuum chambers as a bench top unit. They are ideal for dry high vacuum applications & high vacuum instruments.
Alcatel Drytel 30 usual applications: university research, space research, physics research laboratories, semiconductor process, analytical instruments, analytical laboratories, pharmaceutical research, chemical research, development laboratories, solar industry, space simulation, mass spectrometry, leak detection, surface analysis, ion pump evacuation, vacuum gauge calibration, helium leak testing, along with many other high vacuum application.
If you are not sure if this system will meet your application requirements, please contact one of our Technical Specialist to discuss all technical questions. Our knowledgeable staff will be happy to assist you.
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Alcatel Drytel 100 is an oil-free turbo drag high vacuum pumping system, with delayed turbo pump start. The Drytel 100 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar. Simple one button operation.
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
ALCATEL DRYTEL 31 DRY VACUUM TURBO PUMPING STATION
Alcatel Drytel31 is an oil-free turbo drag high vacuum pumping system, Alcatel olso known as Adixen
ALCATEL DRYTEL 31 is an oil-free turbo drag high vacuum pumping system. The Drytel 31 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar. Simple one button operation.
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Adixen TurboStand Turbomolecular Dry Vacuum Pumping System, 400 l/sec, 110 VAC, GSDANASN0FB
Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbo Pumping Station includes the following:
- ATP 400 Turbo Pump
- ACP 28 Dry Vacuum Pump
- ACT 600 TH Pump Controller
- Cooling Fan
- Mist Eliminator
- Inlet Screen
- Mounting Hardware
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
Features:
- Compact - for installation on a workbench or inside an instrument
- Adjustable - for easy integration
- Robust - enough to incorporate valves, a vacuum chamber, gauges, etc...
- Portable - for movement throughout your plant or lab
Applications:
- R&D
- Instrumentation
- Industry
- Aerospace
- Optical Systems
Alcatel Drytel 1025 Turbo Pumping Station, with MDP5011 Turbo Pump and Adixen AMD1 Dry Diaphragm Pump, 115/220 VAC set to 115VAC, D025ASNNS710
Overview:
The Alcatel Drytel 1025 series of products are dry pumping systems that include an Alcatel MDP 5011 or also known as Adixen MDP5011 Turbo molecular drag pump (MDP) or a hybrid turbo pump (AMH) and an oil-free forepump. Designed to be used on a bench top or easily integrated into a system, these units provide a dry, clean vacuum from atmosphere to 10-8mbar (Torr).
Please note: System is curently set to U.S. 115 VAC, it can be changed to high 220 VAC.
Alcatel Drytel 1025 Station has a complete offer of tiny dry pumping groups for high vacuum applications.
The Drytel 1025 System Includes:
- Alcatel MDP5011 Turbo Drag Pump
- Alcatel AMD1 Diaphragm Dry Vacuum Pump / KF 16 Outlet Flange
Bonus Components !!!
- DN63-ISO to DN25-KF Conical Reducer
- Special MDP 5011 Protective Inlet Screen / P/N 063117
- 4 ISO 63 Aluminum mouning clamps
- DN 25-KF centering O-ring with Clamp
The two pumping stages working in series (MDP5011 and AMD1 diaphragm pump) don’t require any lubricant to operate, permitting use on ultra-clean processes.
The Drytel 1025 Pumping Station series is the least expensive solution to achieve a clean vacuum down to 10-8mbar (Torr).
The Drytel1025 series is recommended for all applications where a dry, clean vacuum is required, such as in industry:
- Semiconductor
- Analytical Instrumentation
- Pharmaceutical
- Chemical
- Research and Development laboratories
Adixen 1025 Station can also be used in various other types of applications:
- Backing of turbomolecular pumps
- Loadlock pumping
- Mass spectrometry
- Surface analysis
- Ion pump evacuation
- Cryopump regeneration
- Calibration
- Gas industry
- Gas lines
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service Alcatel Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
