Found 1 products
Item#: PN20073 Mfr Part#: A73201983 Manufacturer: Edwards Vacuum
Price upon request

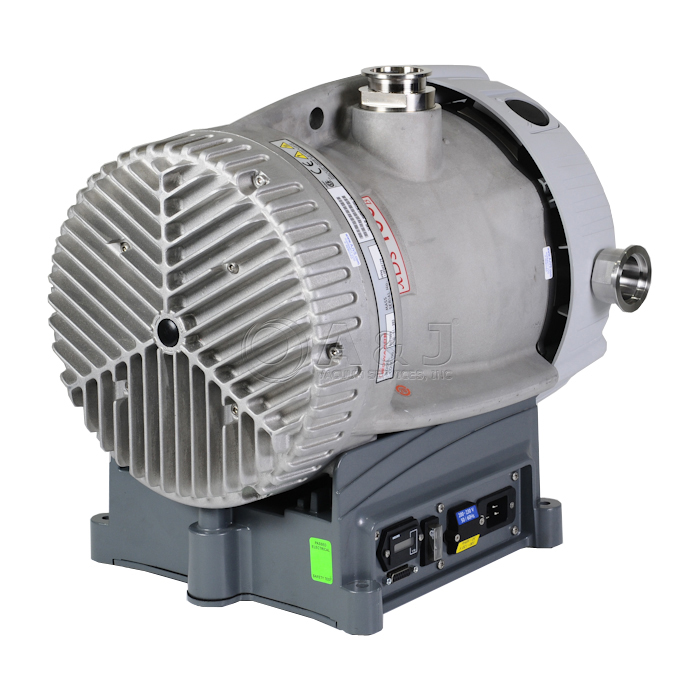

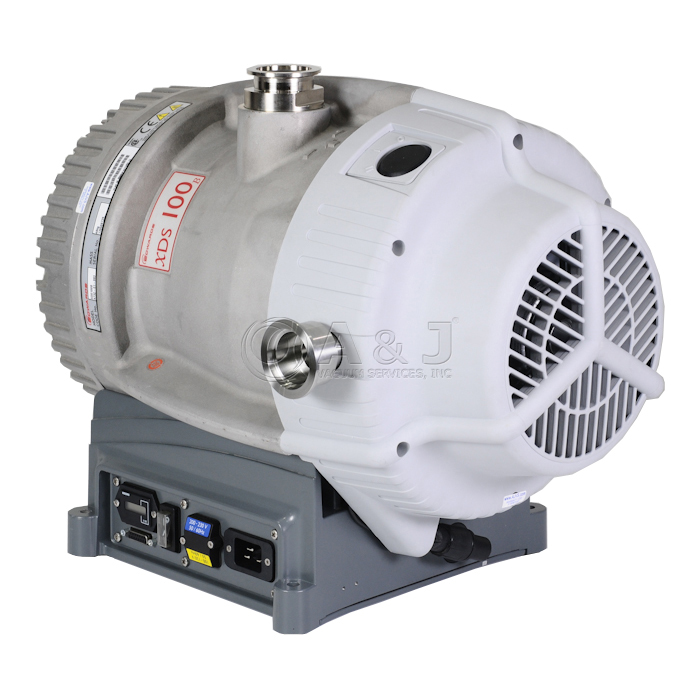

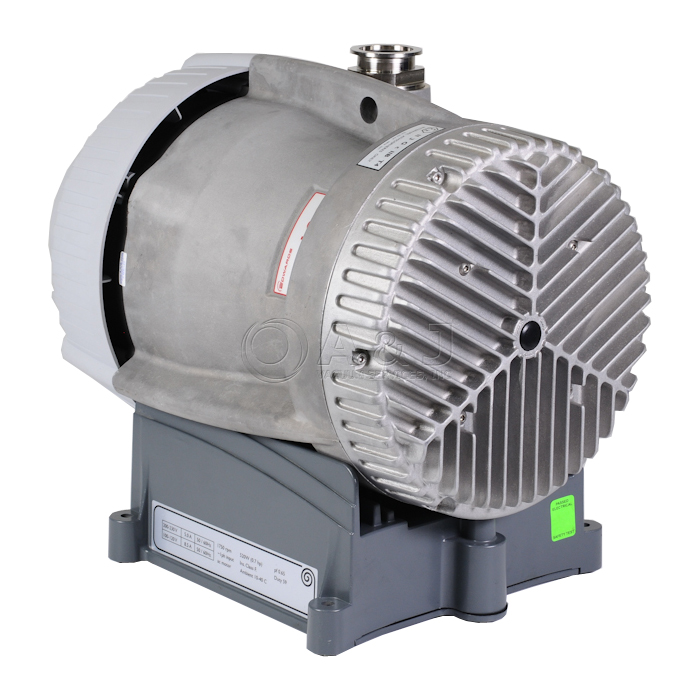

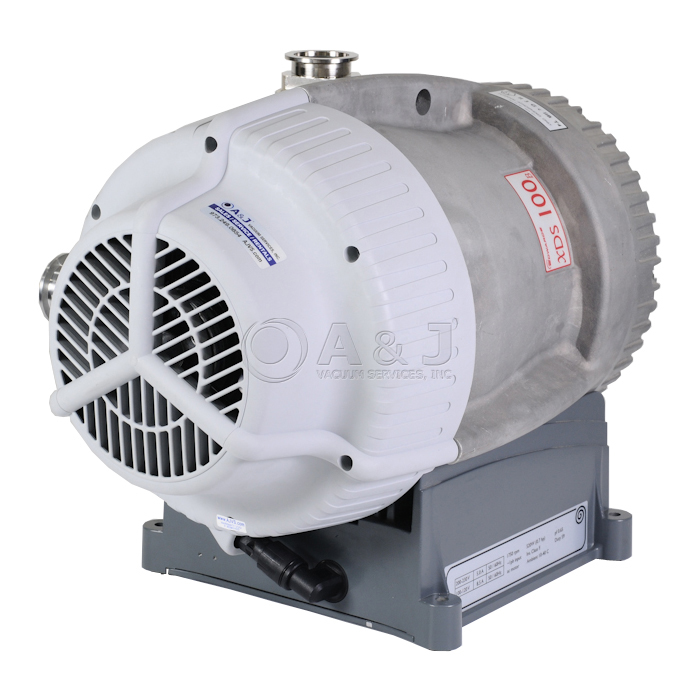

Edwards XDS100B Scroll Booster Pump, 100-120 V / 200-230 V, Single Phase, 50/60 Hz, A73201983, XDS-100B



This Item Has Been Obsolete - It Has Been Replaced By The nXL100i and nXL200i Pumps - Click Here



Edwards XDS100B Overview:


The Edwards XDS 100B Scroll Booster pump pump has an innovative bearing shield design that isolates the vacuum environment from all forms of lubricant, not only making it totally dry but hermetically sealed.

The Edwards XDS100 Scroll Booster pump is a compact and reliable booster pump which is suitable for use on vapour handling processes.

The XDS100B Booster with pumping mechanism sedign specifically for high pumping speeds. XDS-100B cannot exhaust directly to atmosphere, and must be backed by primery pump. XDS100B is intended for use in conjuction with Edwards XDS35i or Edwards XDS46i scroll pumps.

The body of XDS 100B booster pump includes a fixed scroll and orbital scroll. The XDS100B is a truly dry vacuum pump, as all the bearings with hydrocarbon lubricant are isolated from the vacuum space.

The Booster motor is controlled by an inverter, which manages the supply of current to the motor in accordance with operating conditions.

Edwards XDS 100B Scroll Booster pump does not have gas ballast option, condensation is not likely to occur in the pump as the normal operating pressure is too low.



  • Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
  • No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
  • Simple single sided scroll design means routine maintenance is done in minutes for low cost of ownership and maximum up-time
  • No oil changes required eliminating costs of contaminated oil disposal
  • Inverter drive for consistent pumping speed at 50/60 Hz




A&J Vacuum also repair / rebuild and service all Edwards XDS5, XDS10, XDS35i and XDS 100B Scroll Vacuum Pumps  along with all other Edwards Turbo Pumps, Edwards Dry 100B Pumps, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
