Found 17 products
Item#: PN15508 Mfr Part#: PKT05100 Manufacturer: Pfeiffer Vacuum
PRICE: $2,150.00
WEB SAVINGS: $800.00
YOU PAY: $1,350.00

PFEIFFER VACUUM MVP 015-2 Diaphragm Vacuum Pump, 90-127/187-265 V, 50/60 Hz, PKT05100, MVP015


Overview:

The  MVP015 is a direct replacement for discontinued Pfeiffer DUO 2.5 Vacuum Pump.

Pfeiffer MVP 15 Diaphragm vacuum pump is a two stage, dry compressor vacuum pump.

Pfeiffer MVP015 diaphragm pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.

  • The intake side on the front side of the pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
  • A pressure connection (silencer G1/8) on the front side of the pump.
  • Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
  • ON/OFF mains switch.



Pfeiffer MVP 015 Specifications:



Final Pressure: < 3.5 mbar

Ambient Temperature: 12-40 °C

Exhaust Pressure Max: 1100 hPa

Flange In: G 1/8" elbow union plus enclosed hose; DN 6 x 1000 mm with a straight union in G 1/4" at the end

Flange Out: G 1/8" plus silencer

Intake Pressure Max: 1100 hPa

Leak Rate: < 5 x 10-3 hPa l/s

Motor Rating: 120 W

Rotational Speed (50 Hz): 1500 rpm

Rotational Speed (60 Hz): 1800 rpm


A&J Vacuum repair / rebuild and service all Pfeiffer  Adixen MVP015-2 or MVP015-4 Dry  Pumps  along with all other  Pfeiffre Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock

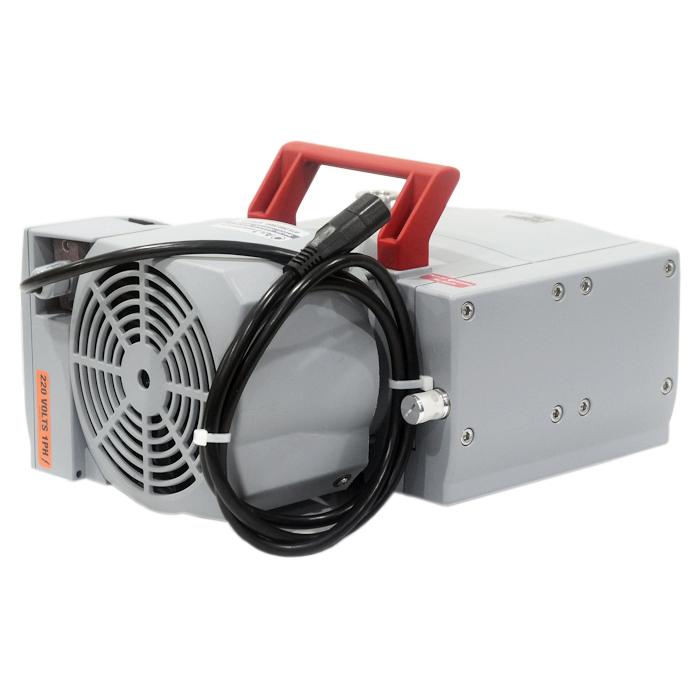

Item#: PN21373 Mfr Part#: PKT01301, G3170-80028 Manufacturer: Pfeiffer Vacuum
PRICE: $0.00
YOU PAY: $3,250.00



Overview:

The diaphragm pumps of the series MVP 055-3 series are three stage dry compressing pumps.

This means that any medium being pumped is not brought into contact with lubricating agents.

The pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.

The flow of gas causes the self-acting valves to open and close.

The pumping units are directly connected to the drive motor.






Condition: Remanufactured In Stock
Item#: PN19989 Mfr Part#: B8199999EN Manufacturer: Pfeiffer Vacuum
PRICE: $4,199.00
WEB SAVINGS: $1,614.00
YOU PAY: $2,585.00

Pfeiffer Vacuum MVP 035 Diaphragm Vacuum Pump for HLT 270 and HLT 570 Helium Leak Detectors 230 V, 50 Hz; B8199999EM

Overview:

The Pfeiffer diaphragm pump of the series MVP 035 series are two stage dry compressing pumps designed for Pfeiffer HLT 270 and Pfeiffer HLT 570 Helium Leak Detectors.

This means that any medium being pumped is not brought into contact with lubricating agents.

The Pfeiffer diaphragm pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.

The flow of gas causes the self-acting valves to open and close.

The pumping units are directly connected to the drive motor.

A&J Vacuum also repair / rebuild and service Pfeiffer Helium Leak Detectors, Turbo Pumps  along with all other Edwards pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854




Condition: Demo In Stock
Item#: PN21265 Mfr Part#: PKT01191 Manufacturer: Pfeiffer Vacuum
PRICE: $2,775.00
WEB SAVINGS: $525.00
YOU PAY: $2,250.00

Fully Refurbished Pfeiffer MVP030-3 DC Diaphragm Pump, 24 V, PKT01191, for Bruker Mass Spectrometer, MVP 030-3

Overview:

The MVP-030 Diaphragm vacuum pumps of the series MVP030-3 VDC are three stage, dry diaphragm pumps mounted on custom bracket for Bruker Mass Spectrometer.

The Pfeiffer MVP030 pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.

The gas flow causes the valves to open and close automatically.

The Pfeiffer MVP diaphragm pump units are directly connected to the drive motor.

A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP-030-3DC / PKT01191 Diaphragm  Pumps  along with all other  Pfeiffer  Vacuum Pumps , Turbo Pump and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN24362 Mfr Part#: PKT01100 / PK T01 100 Manufacturer: Pfeiffer Vacuum
PRICE: $2,750.00
WEB SAVINGS: $400.00
YOU PAY: $2,350.00

Pfeiffer Vacuum MVP 020-3 AC Diaphragm Pump, 100-120/200-230 V, 50/60 Hz, PKT01100, PK T01 100

Pfeiffer Vacuum MVP-020 3 Diaphragm Pump Overview:

The Diaphragm Vacuum Pumps of the series MVP 020-3 AC/DC are three stage, dry compressor vacuum pumps.The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.

The Pfeiffer Vacuum MVP 020 Vacuum Pump Applications:

  • Pumping Stations
  • Plants
  • Research
  • Laboratories
  • Analytical
  • Chemistry
  • Leak Detection

A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Remanufactured In Stock
Item#: PN24567 Mfr Part#: PK T01 150 / PKT01150 Manufacturer: Pfeiffer Vacuum
PRICE: $3,210.00
WEB SAVINGS: $935.00
YOU PAY: $2,275.00

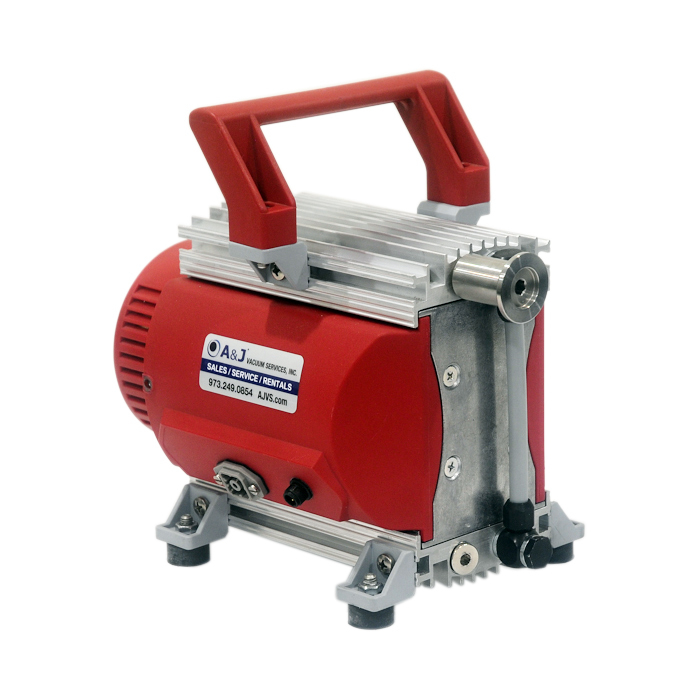

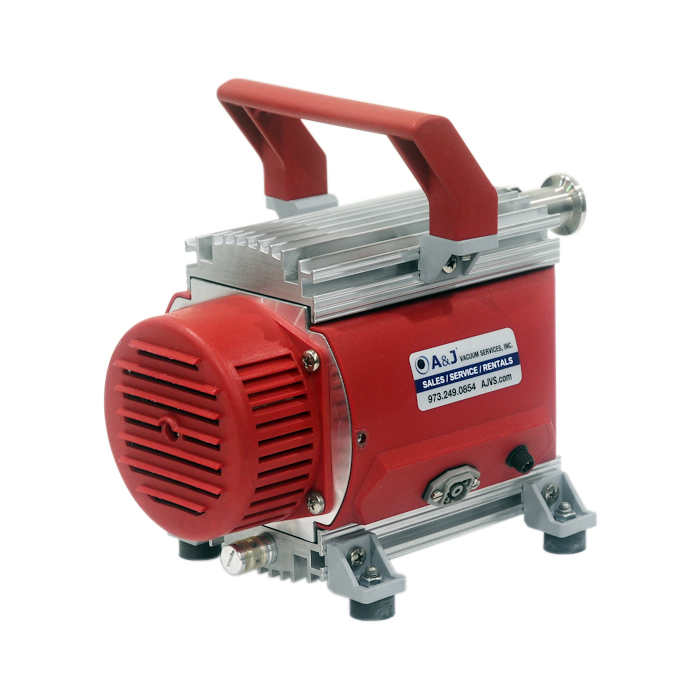

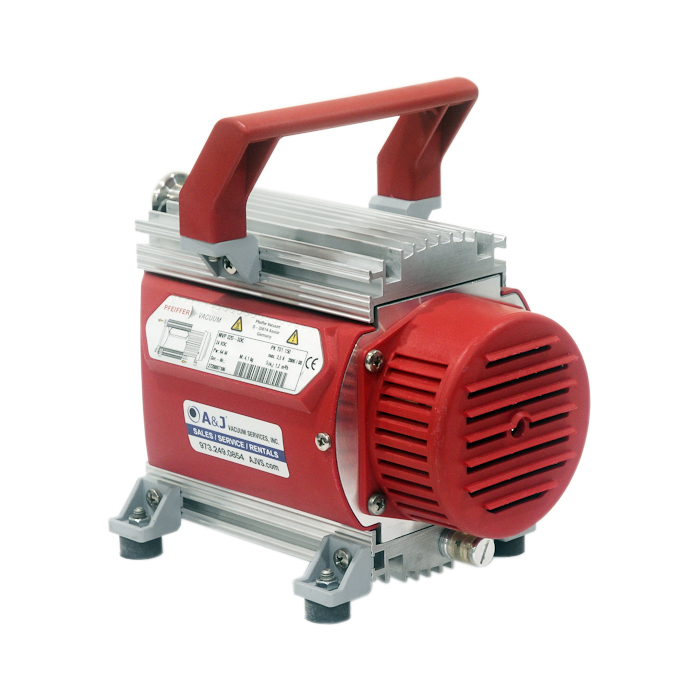

Fully Refurbished Pfeiffer Vacuum MVP 020-3 DC Diaphragm Pump, 24 V DC, PK T01 150 / PKT01150, MVP020-3

Overview:

The Pfeiffer Vacuum MVP-020-3DC Diaphragm vacuum pumps AC/DC are three stage, dry diaphragm pumps.

The Pfeiffer MVP 020 pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.

The gas flow causes the valves to open and close automatically.

The Pfeiffer MVP 020-3DC diaphragm pump units are directly connected to the drive motor.

A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP-020-3DC / PK T01 150 Diaphragm  Pumps  along with all other  Pfeiffer  Vacuum Pumps , Turbo Pump and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN07549 Mfr Part#: PKT01200 Manufacturer: Pfeiffer Vacuum
PRICE: $1,879.52
WEB SAVINGS: $36.85
YOU PAY: $1,842.67



Overview:

The diaphragm pumps of the series MVP 035-2 series are two stage dry compressing pumps.

This means that any medium being pumped is not brought into contact with lubricating agents.

The pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.

The flow of gas causes the self-acting valves to open and close.

The pumping units are directly connected to the drive motor.






Condition: Remanufactured Call us for Availability
Item#: PN07551 Mfr Part#: PKT01350A Manufacturer: Pfeiffer Vacuum
PRICE: $2,889.15
WEB SAVINGS: $56.65
YOU PAY: $2,832.50



Overview:

The diaphragm pumps of the series MVP 055-3 series are three stage dry compressing pumps.

This means that any medium being pumped is not brought into contact with lubricating agents.

The pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.

The flow of gas causes the self-acting valves to open and close.

The pumping units are directly connected to the drive motor.






Condition: Remanufactured Call us for Availability
Item#: PN15852 Mfr Part#: PK T05 058 A Manufacturer: Pfeiffer Vacuum
PRICE: $1,400.00
WEB SAVINGS: $475.00
YOU PAY: $925.00

Fully Remanufactured Pfeiffer MVP015T Diaphragm Pump, PKT05058A, PK T05 058-A

This Pfeiffer MVP-015 T is a replacement pump for Backing pump inside TSH/U 071 pumping station.

This MVP 015-T pump is equipped with Fore Vacuum connector, which is plugged directly into TC-600 Control Box.

The diaphragm vacuum pump of the series MVP 015 is a two stage, dry compressor vacuum pump The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.

  • The intake side on the front side of the pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
  • A pressure connection (silencer G1/8) on the front side of the pump.
  • Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
  • ON/OFF mains switch.

A&J Vacuum repair / rebuild and service Pfeiffer  MVP015-T Diaphragm Pumps, PKT05058 Pfeiffer Backing  Pumps along with all other  Pfeiffer  Vacuum Pumps and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
Item#: PN16271 Mfr Part#: PKT01300 Manufacturer: Pfeiffer Vacuum
PRICE: $3,159.00
WEB SAVINGS: $309.00
YOU PAY: $2,850.00



Overview:

The diaphragm pumps of the series MVP 055-3 series are three stage dry compressing pumps.

This means that any medium being pumped is not brought into contact with lubricating agents.

The pumps are of the displacement type where the movement of the diaphragm causes a periodic change in the size of the working chamber.

The flow of gas causes the self-acting valves to open and close.

The pumping units are directly connected to the drive motor.






Condition: Remanufactured Call us for Availability
