Found 4 products
Item#: PN07552 Mfr Part#: 731100,207311 Manufacturer: Vacuubrand
Price upon request

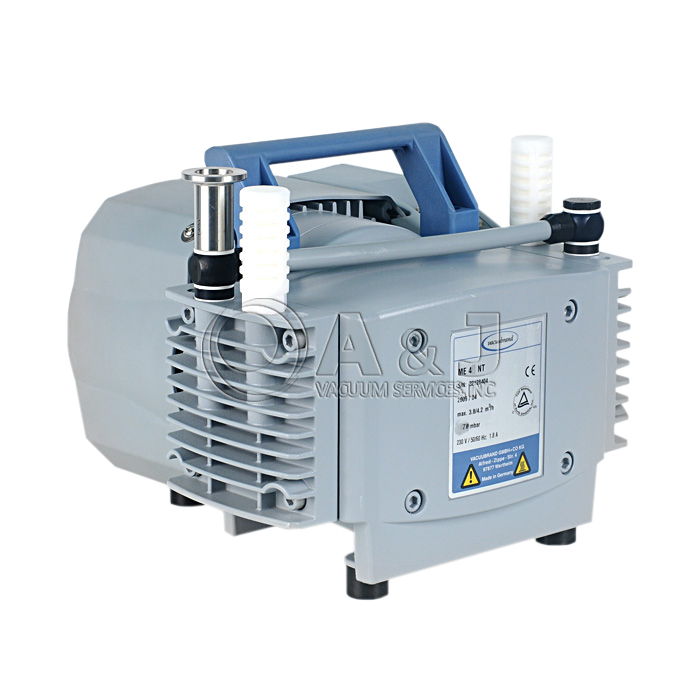

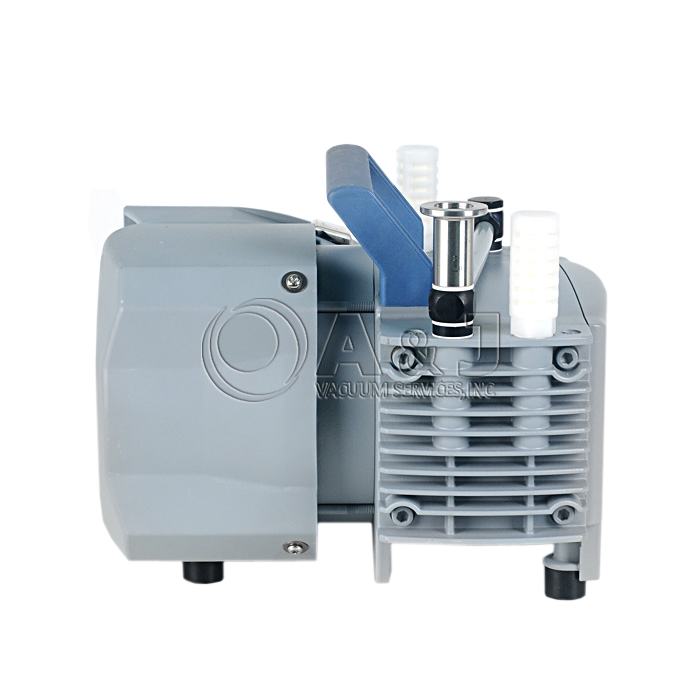

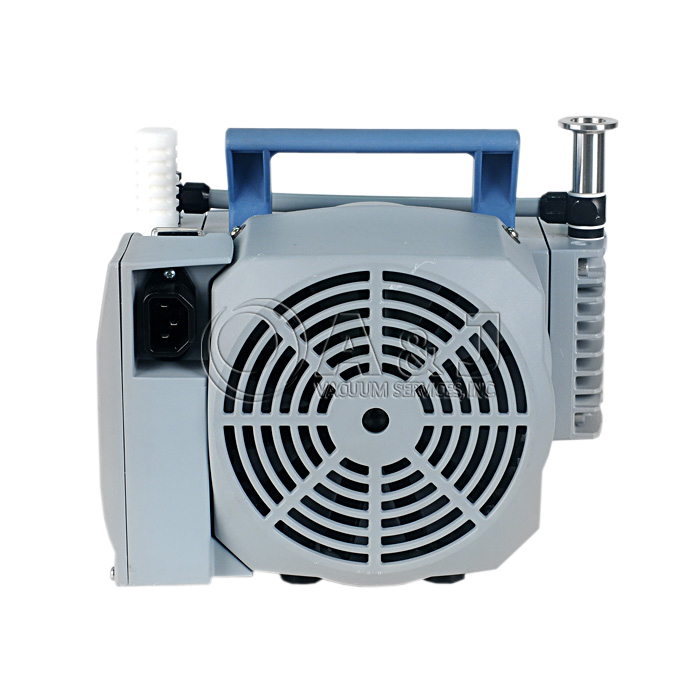

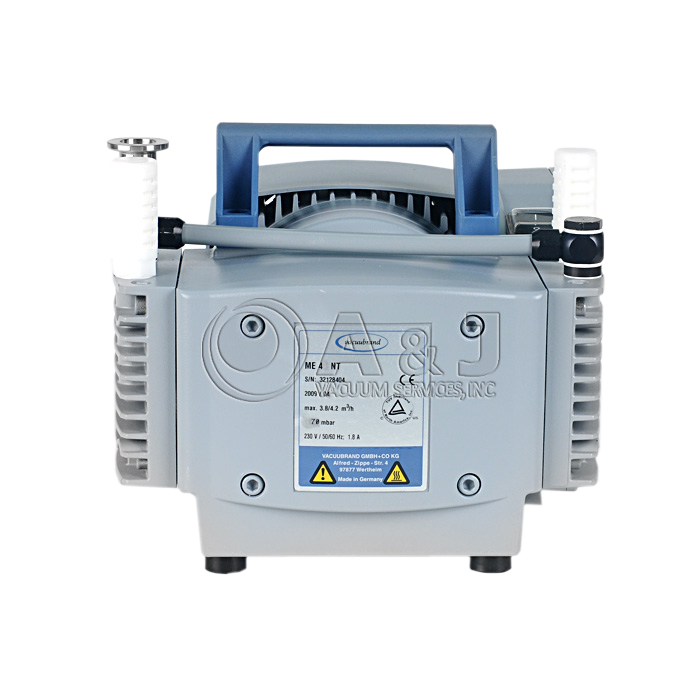

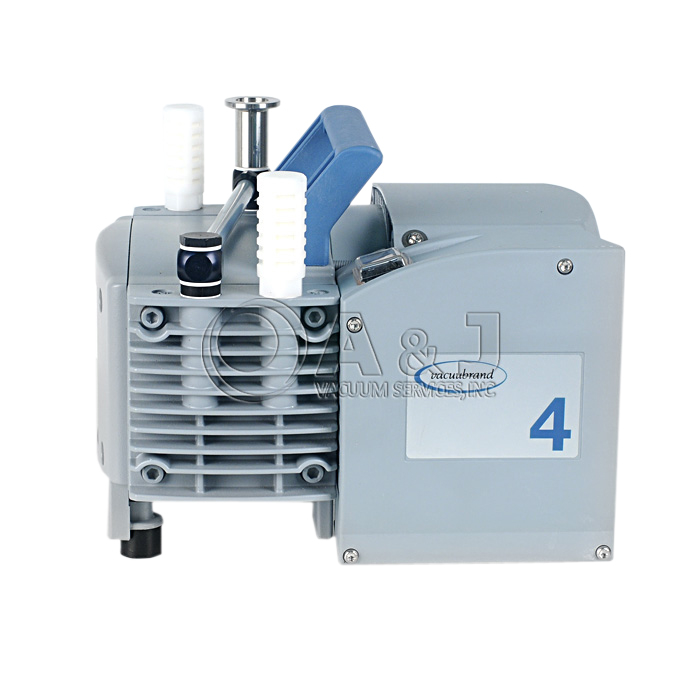

Vacuubrand ME 4 NT Diaphragm Dry Vacuum Pump, Ultimate Pressure 70 mbar, Pumping Speed 2.4 cfm, 220-230 V, 50/60 Hz, 731100, 20731100



Vacuubrand ME 4 NT Overview:


Vacuubrand ME 4 NT Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speedd and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced doublee diaphragm made of FKM is ideal for extended operating life. The new NT-series features further improved performance data.



Vacuubrand ME 4 NT Features:


  • Contamination-free pumping and evacuation
  • High flow rate even near ultimate vacuum
  • Whisper quiet
  • ME 4 NT with low vibration and higher pumping speed
  • Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

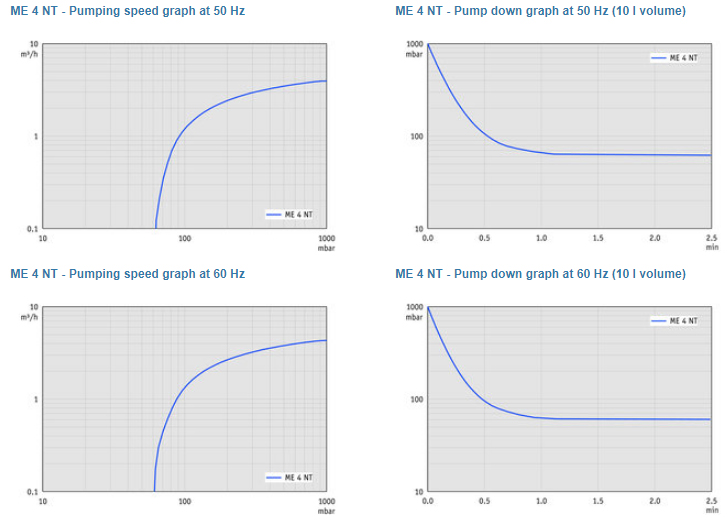

Vacuubrand ME 4 NT Pumping Speed:


vacuubrand me 4 nt pumping speed, 731100, 20731100

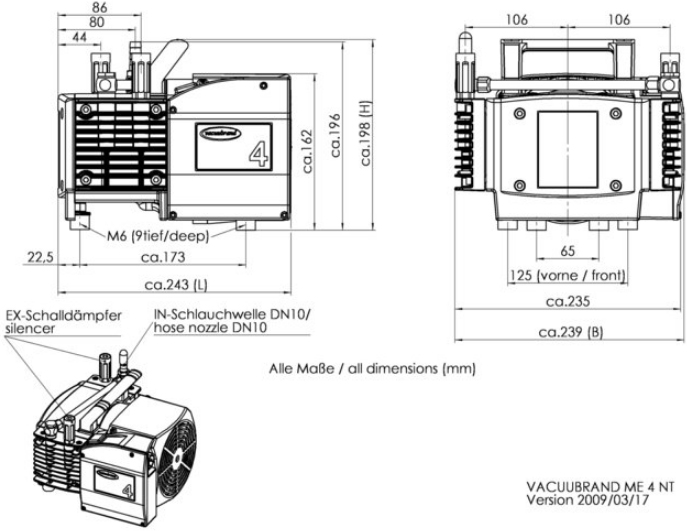

Vacuubrand ME 4 NT Dimensions:


vacuubrand me 4 nt dimensions, 731100, 20731100


Click Here for Vacuubrand ME 4 NT Manual


A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Remanufactured Call us for Availability
Item#: PN16037 Mfr Part#: 696424 Manufacturer: Vacuubrand
This product has been discontinued and is no longer available for sale

Vacuubrand MD8T Diaphragm Dry Vacuum Pump, 220 V Only, 50/60 Hz, 696424



*THIS PRODUCT IS NEW - OPENED, OUT OF THE BOX*



Vacuubrand MD8T Overview:


Vacuubrand Diaphragm Pumps are perfect for many applications. They are oil-free, whisper quiet, and require little service. Diaphragms have especially long lives and hermetically seal the drive space from the pumping chamber to protect mechanical parts from corrosion.

The pumps achieve their distinctively high performance from high pumping chamber volume relavtive to the minimal dead space. The pumps operate absolutely oil free and do not have any sliding components in the gas path.



Vacuubrand MD8T Graph:


vacuubrand md8t dimensions, 696424


Click Here for Vacuubrand MD 8T Manual


A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Discontinued
Item#: PN16460 Mfr Part#: 696073 Manufacturer: Vacuubrand
Price upon request

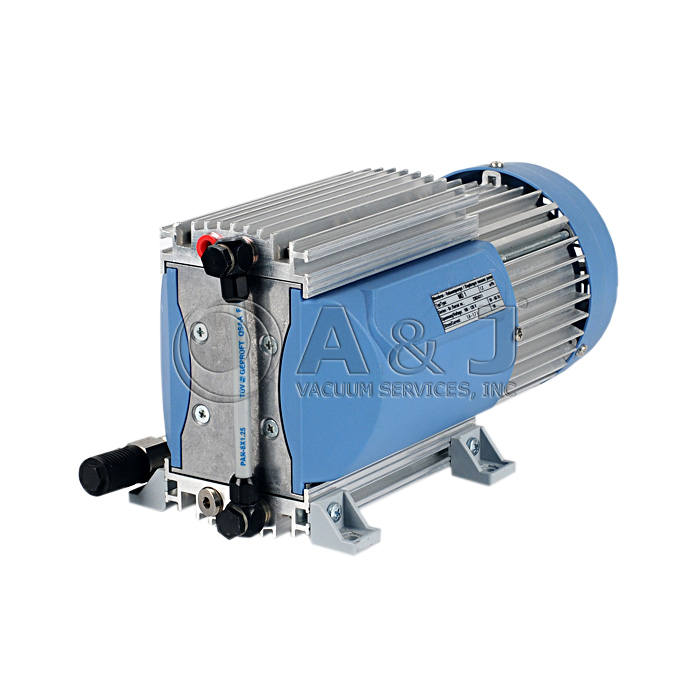

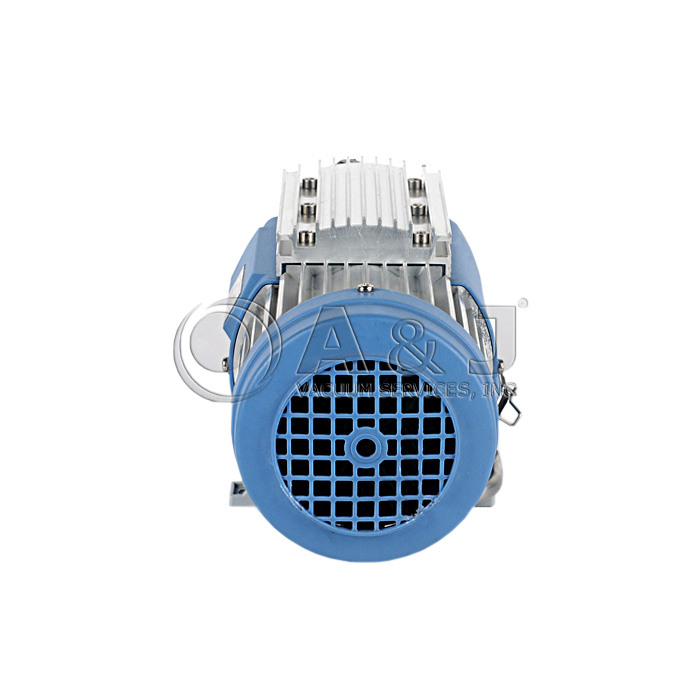

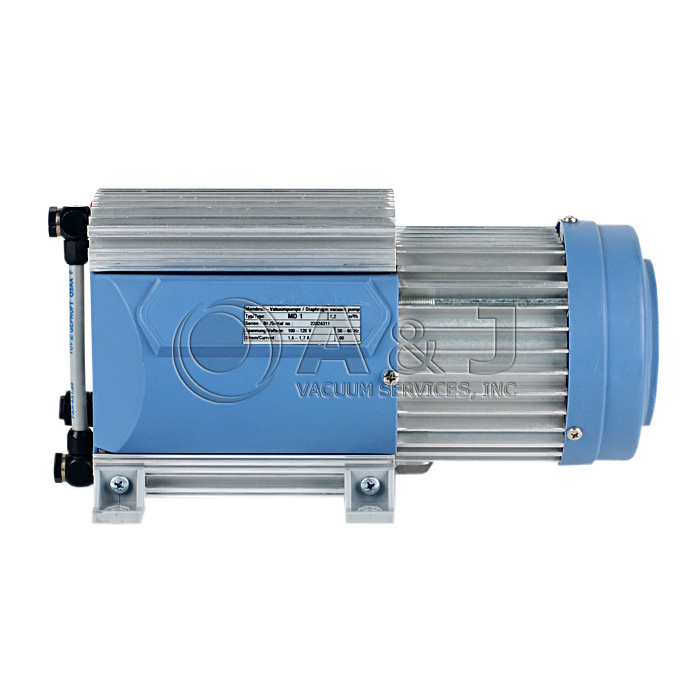

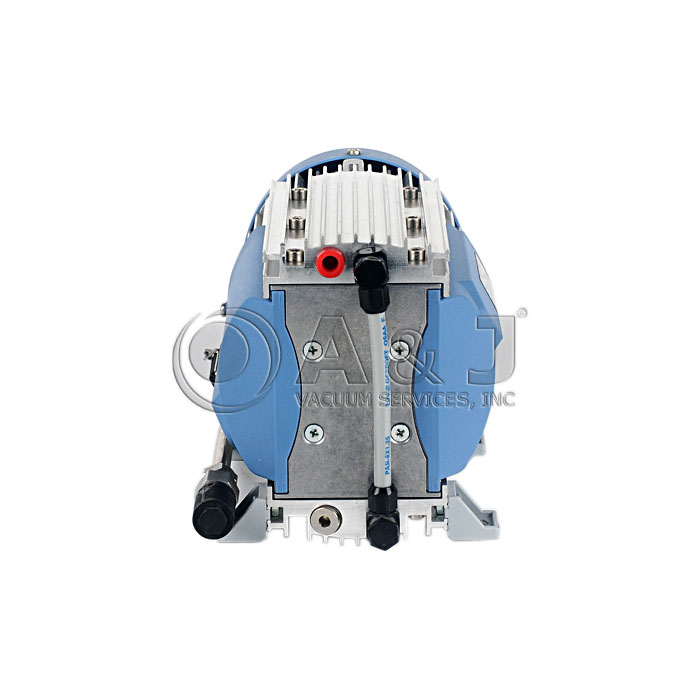

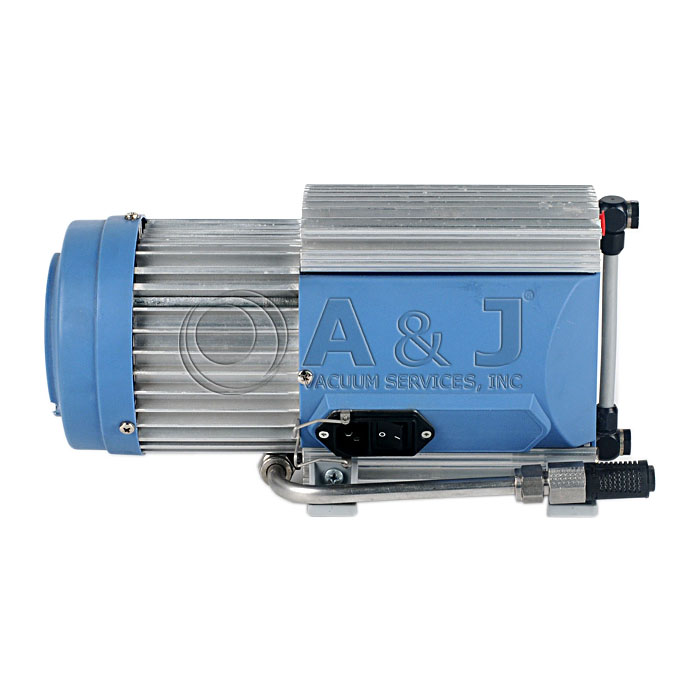

Vacuubrand MD1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.7 cfm, 120 V, 60 Hz, Vacuubrand MD 1 696073



Vacuubrand MD1 Overview:


The Vacuubrand MD1 diaphragm pump is an excellent choice for oil-free evacuation and pumping of non-corrosive gases down to 1.5 mbar ultimate vacuum.

The three-stage Vacuubrand MD1 design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps.

The Vacuubrand MD1 is an ultra-low vibration pump with very long diaphragm lilfetimes and stable ultimate vacuum documented with years of testing.

With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the pumps are suitable for a wide range of applications with non-corrosive gases.



Vacuubrand MD1 Features:


  • Contamination-free pumping and evacuation
  • High flow rate even near ultimate vacuum
  • Excellent ultimate vacuum
  • Whisper quiet and ultra-low vibration
  • Proven long diaphragm life, maintenance-free drive system

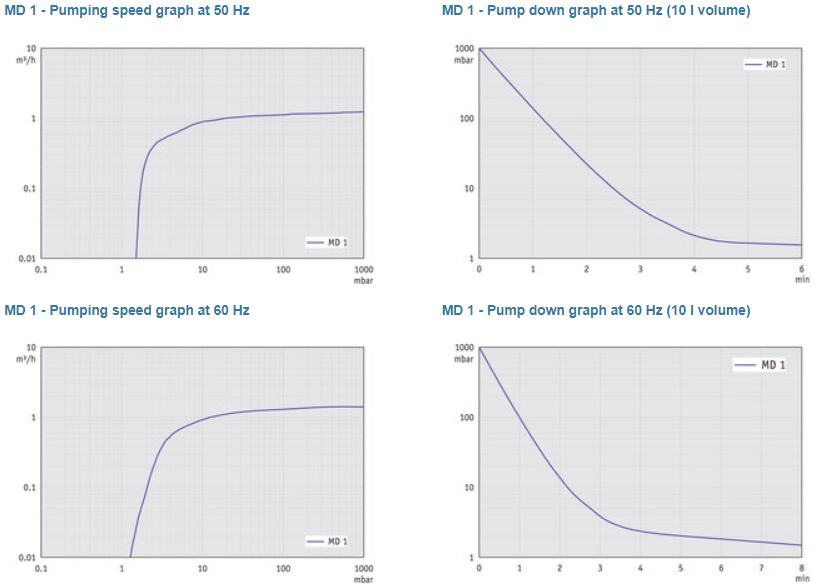

Vacuubrand MD 1 Pumping Speed


vacuubrand md1  pumping speed, 696073

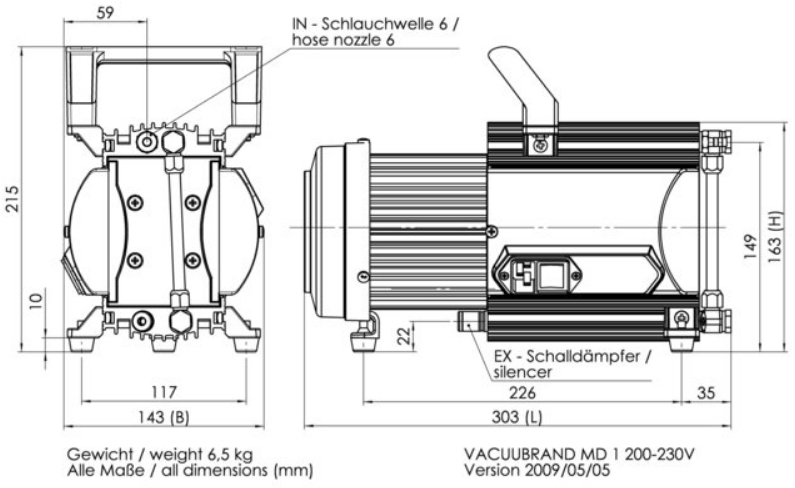

Vacuubrand MD 1 Dimensions


vacuubrand md1 dimensions, 696073


Click Here for Vacuubrand MD 1 Manual


A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Remanufactured Call us for Availability
Item#: PN23494 Mfr Part#: 732003, 20732003 Manufacturer: Vacuubrand
Price upon request

Refurbished Vacuubrand MZ 2 NT Diaphragm Vacuum Pump, Ultimate Pressure 7 mbar, Pumping Speed 1.3 cfm, 100-115 V, 50/60 Hz, 732003, 20732003



Vacuubrand MZ 2 NT Overview:


Fully Remanufactured Vacuubrand MZ 2 NT Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases.

All parts in contact with pumped media are made of aluminum and selected plastics and allow a wide range of applicaitons for non corrosive gases.

The two-stage construction of MZ 2 NT provides the advantageous combination of high pumping speed and an ultimate vacuum down to 7 mbar.

The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life of Vacuubrand MZ 2 NT



Vacuubrand MZ 2 NT Features:


  • Contamination-free pumping and evacuation
  • High flow rate even near ultimate vacuum
  • Whisper quiet
  • Very low vibration
  • Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs.



Vacuubrand MZ 2 NT Pumping Speed


vacuubrand mz 2 nt pumping speed, 732003, 20732003



Vacuubrand MZ 2 NT Dimensions


vacuubrand mz 2 nt dimensions, 732003, 20732003


Click Here for Vacuubrand MZ 2 NT Manual


A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Remanufactured Call us for Availability
