Fully Refurbished Agilent Technologies / Varian DS202 DS 202 Dual Stage Rotary Vane Vacuum Pump, Single Phase, 949-9320 9499320
The Agilent Varian DS202 1Ph is a dual-stage, Rotary Vane Pump oil sealed, driven by a single-phase electric motor. The pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric. The entire pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise. The pump is equipped with a special anti-suckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers. The air entering the pump after the anti-suckback device has closed prevents the oil in the casing from filling the stator chambers. The inner seals are achieved by the lubricating oil, thanks to the close machining tolerances.
Agilent Varian HS 402 Dual Stage Rotary Vane Pump coupled with a KF 25 DN Inlet Flange and KF 25 DN Outlet Flange. This Varian / Agilent Rotary Vane Pump has a peak pumping velocity of 12.3 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
Agilent HS 602/ Varian HS602 Dual Stage Rotary Vane Vacuum Pump, 7499365R005
Agilent HS 602 Overview
The Agilent Technologies / Varian HS 602 Dual Stage Rotary Vane Pump is oil sealed and driven by a single phase electric motor. The pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric.
The entire Varian HS 602 pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise.
The Agilent HS 602 pump is equipped with a special antisuckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers.
Agilent HS 602 Pumping Speed:
Agilent HS 602 Dimensions:
Click Here for Agilent Rotary Vane Pumps Manual
A&J Vacuum also repair / rebuild and service Agilent HS 602 Vacuum Pumps, and all other Agilent Varian Turbo pumps along with Varian Scroll Dry Pumps, and Turbomolecular repairs as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Agilent Technologies / Varian HS 602 Dual Stage Rotary Vane Pump, *MODULE ONLY*
Agilent HS 602 Overview
The Agilent Technologies / Varian HS 602 Dual Stage Rotary Vane Pump is oil sealed and driven by a single phase electric motor. The pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric.
The entire Varian HS 602 pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise.
The Agilent HS 602 pump is equipped with a special antisuckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers.
Agilent HS 602 Pumping Speed:
Agilent HS 602 Dimensions:
Click Here for Agilent Rotary Vane Pumps Manual
A&J Vacuum also repair / rebuild and service Agilent HS 602 Vacuum Pumps, and all other Agilent Varian Turbo pumps along with Varian Scroll Dry Pumps, and Turbomolecular repairs as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The HS 652 and HS 852 pumps are dual-stage, rotary vane pumps oil sealed, driven by a single-phase electric motor. These high vacuum pumps are suitable for pumping non corrosive gases. The pump works with force-feed lubrication, providedby an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric. The entire pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise. The pump is equipped with a special antisuckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers. The air entering the pump after the anti-suckback device has closed prevents the oil in the casing from filling the stator chambers.
Agilent HS 602 / Varian HS 602 Dual Stage Rotary Vane Pump, Single Phase, 220/240 V, 8499365R002, HS-602
Agilent HS 602 Overview
The Agilent Technologies / Varian HS 602 Dual Stage Rotary Vane Pump is oil sealed and driven by a single phase electric motor. The pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric.
The entire Varian HS 602 pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise.
The Agilent HS 602 pump is equipped with a special antisuckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers.
Agilent HS 602 Pumping Speed:
Agilent HS 602 Dimensions:
Click Here for Agilent Rotary Vane Pumps Manual
A&J Vacuum also repair / rebuild and service Agilent HS 602 Vacuum Pumps, and all other Agilent Varian Turbo pumps along with Varian Scroll Dry Pumps, and Turbomolecular repairs as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Remanufactured Agilent SCIEX HS 602 / Varian HS602 Dual Stage Rotary Vane Pump, Single Phase, 220/240 V, SCIEX SQ331, HS-602
The Agilent Sciex HS 602 / PN SQ331 is a Dual Stage Rotary Vane Pump oil sealed and driven by a single phase electric motor. The pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric.
The entire Varian Agilent SQ331, HS 602 pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise.
The SCIEX HS 602 pump is equipped with a special antisuckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers.
A&J Vacuum also repair / rebuild and service Agilent SCIEX SQ331 pump and HS 602 Vacuum Pumps, and all other Agilent Varian Turbo pumps along with Varian Scroll Dry Pumps, and Turbomolecular repairs as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Agilent HS602 / Varian HS602 Dual Stage Rotary Vane Pump, Single Phase, 220/240 V, 8499365R001, HS-602
Agilent HS 602 Overview
The Agilent Technologies / Varian HS 602 Dual Stage Rotary Vane Pump is oil sealed and driven by a single phase electric motor. The pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric.
The entire Varian HS 602 pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise.
The Agilent HS 602 pump is equipped with a special antisuckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers.
Agilent HS 602 Pumping Speed:
Agilent HS 602 Dimensions:
Click Here for Agilent Rotary Vane Pumps Manual
A&J Vacuum also repair / rebuild and service Agilent HS 602 Vacuum Pumps, and all other Agilent Varian Turbo pumps along with Varian Scroll Dry Pumps, and Turbomolecular repairs as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Agilent Varian DS402 Dual Stage Rotary Vane Vacuum Pump, Single Phase, 949-9330M009
The Agilent Varian DS402 / 9499330M009 1Ph is a dual-stage, Rotary Vane Pump oil sealed, driven by a single-phase electric motor. The pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This ensures proper lubrication even when pressures are close to atmospheric. The entire pump functional block is immersed in the oil contained in the casing. The oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise. The pump is equipped with a special anti-suckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers. The air entering the pump after the anti-suckback device has closed prevents the oil in the casing from filling the stator chambers. The inner seals are achieved by the lubricating oil, thanks to the close machining tolerances.

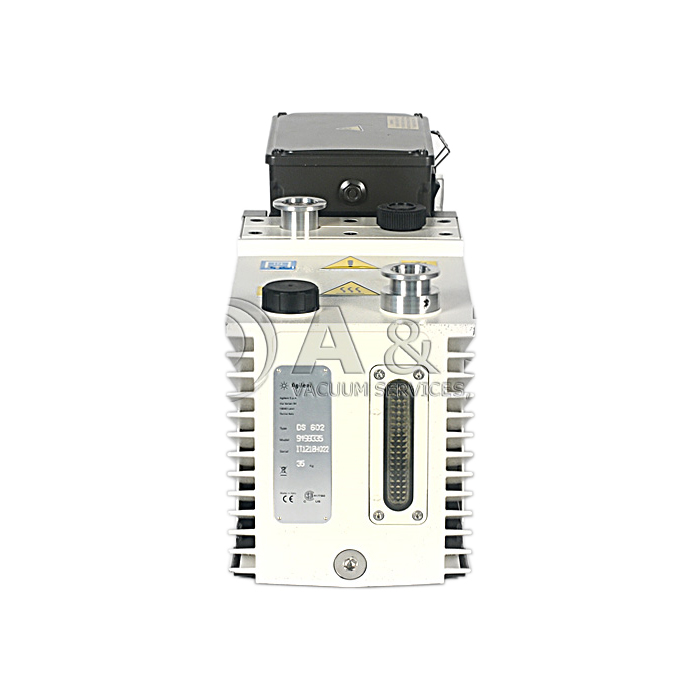

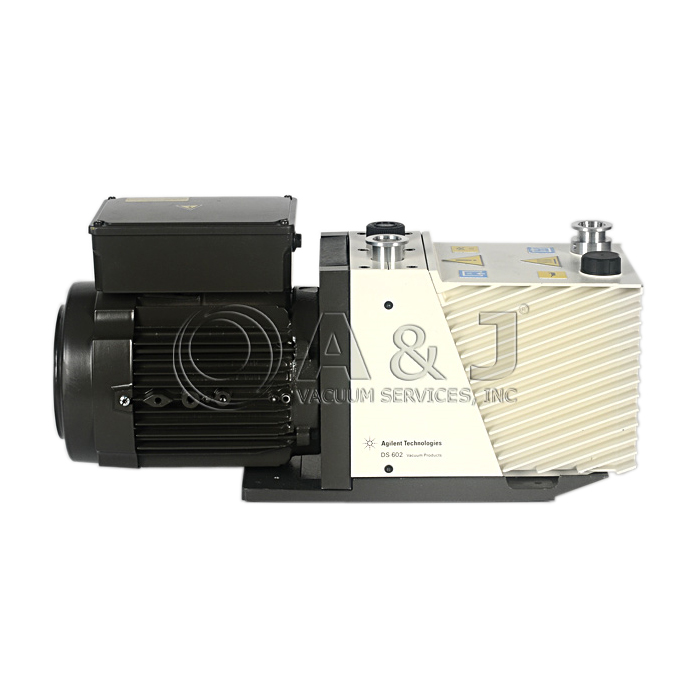

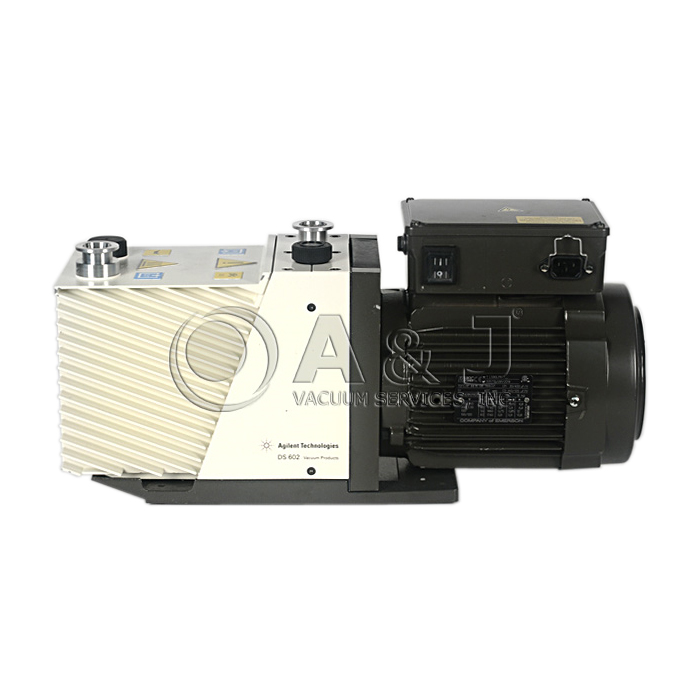

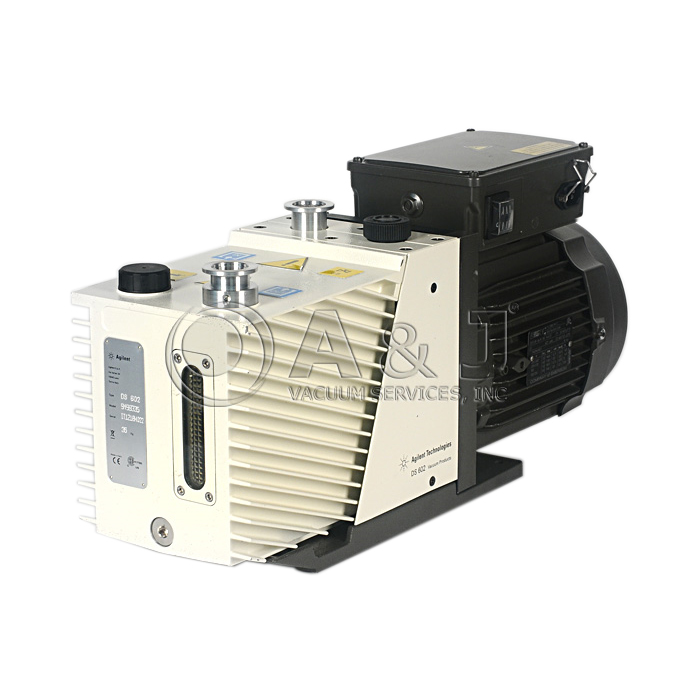

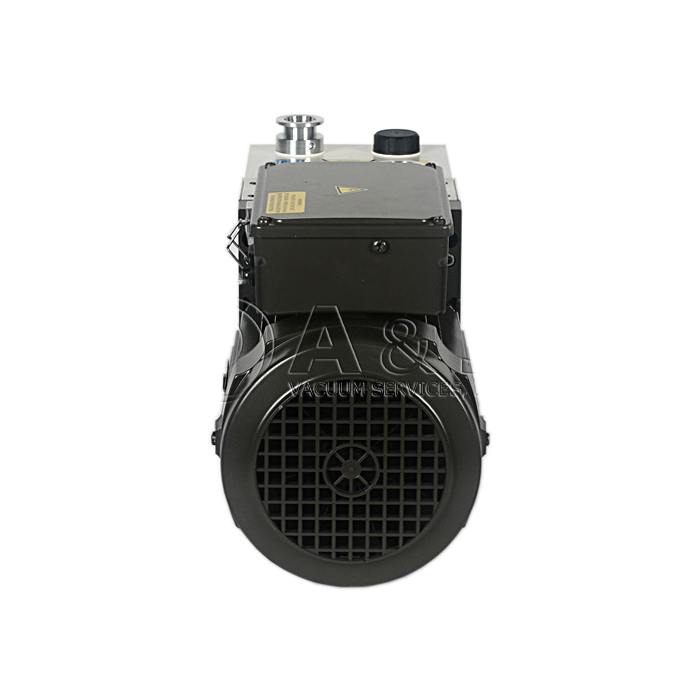

Agilent Varian DS602 9499335M004 Dual Stage Rotary Vane Vacuum Pump, Single Phase, 949-9335-M004
Agilent Varian DS602 Overview:
This is a fully remanufacturd Agilent DS602 Vacuum Pump. 1 Ph 115/220 VAC Voltage required, pump is curnetly set to 115 VAC US Voltage, can be easily changed to 220 VAC. DS602 Rotary Vane Pump oil sealed, driven by a single-phase electric motor.
The Varian DS-602 pump works with force-feed lubrication, provided by an auxiliary gear-pump driven by the rotor of the vacuum pump itself. This vacuum pump design ensures proper lubrication even when pressures are close to atmospheric.
The entire Varian DS 602 vacuum pump functional block is immersed in the oil contained in the casing. The AJVS Elite Z vacuum pump oil guarantees perfect sealing of the discharge valves, enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise.
The DS602 vacuum pump is equipped with a special anti-suckback device which automatically isolates the vacuum system when the pump stops. This avoids rises in pressure or oil flow in the vacuum system while air is allowed back into the stator chambers. The air entering the DS-602 vacuum pump after the anti-suckback device has closed prevents the oil in the casing from filling the stator chambers. The inner seals are achieved by the lubricating oil, thanks to the close machining tolerances.

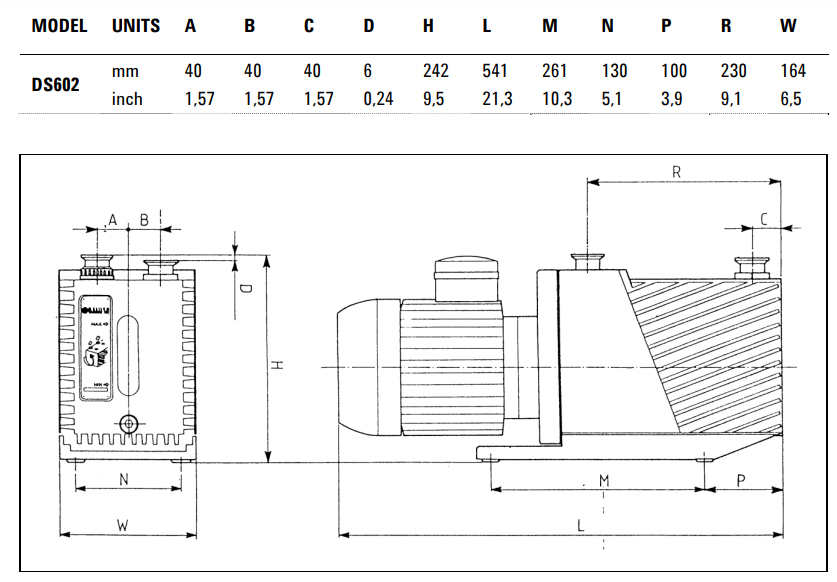

Agilent Varian DS602 Dimensions:
A&J Vacuum repair / rebuild and service all Agilent DS 602 vacuum pumps, 949-9335-M004 Agilent Twistorr 304 Agilent TV 81, V-81 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
