Found 25 products
Item#: PN06673 Mfr Part#: Leybold D8B Manufacturer: Leybold
PRICE: $5,188.00
WEB SAVINGS: $2,238.00
YOU PAY: $2,950.00

Fully Rebuilt Leybold / Oerlikon D8B (D8 B) Dual Stage Rotary Vane Pump with KF16 Inlet Flange and KF16 Outlet Flange, Set to 115 VAC



Leybold D8B Overview:


Fully refurbished Leybold / Oerlikon D8B Dual Stage Rotary Vane Pump coupled with a KF16 Inlet Flange and KF16 Outlet Flange. This Leybold / Oerlikon Rotary Vane Pump has a peak pumping velocity of 6.9 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Leybold / Oerlikon D8B Pump comes with an entire 12-Month Warranty.

A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.

The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.



Leybold D8B Applications:


  • Gas analyzers
  • Leak detection
  • Mass spectrometers
  • Other spectrometers
  • Electron microscopes
  • Surface analyzers
  • Centrifuges
  • Sterilization
  • Electron tubes
  • Lamps
  • TV tubes (CRT)
  • Refrigeration
  • Air conditioning
  • Drying
  • Distillation
  • Metallurgy
  • Free drying
  • CVD.LPCVD
  • Ion implantation
  • Dry etching
  • Load-lock
  • Cryogenics
  • Gas recovery
  • Oxygen pumping

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D8B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock

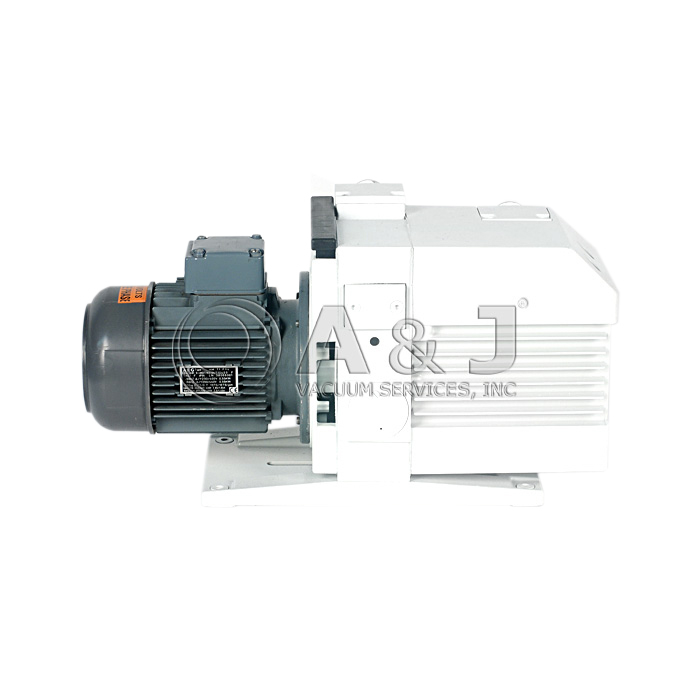

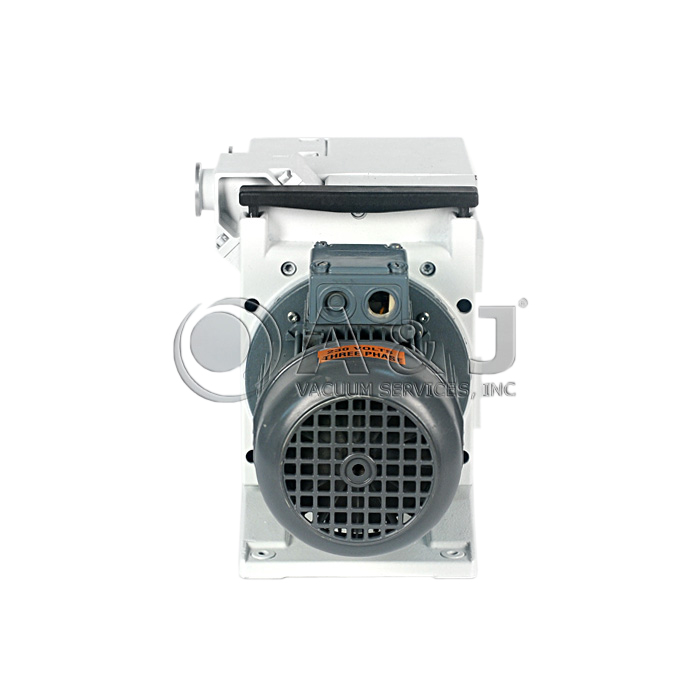

Item#: PN17843 Mfr Part#: 10266 Manufacturer: Leybold
PRICE: $2,075.70
WEB SAVINGS: $170.20
YOU PAY: $1,905.50

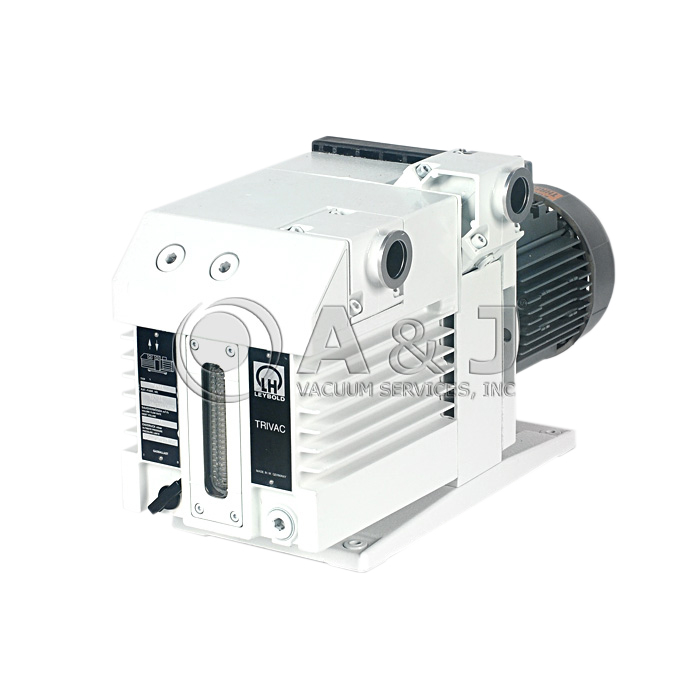

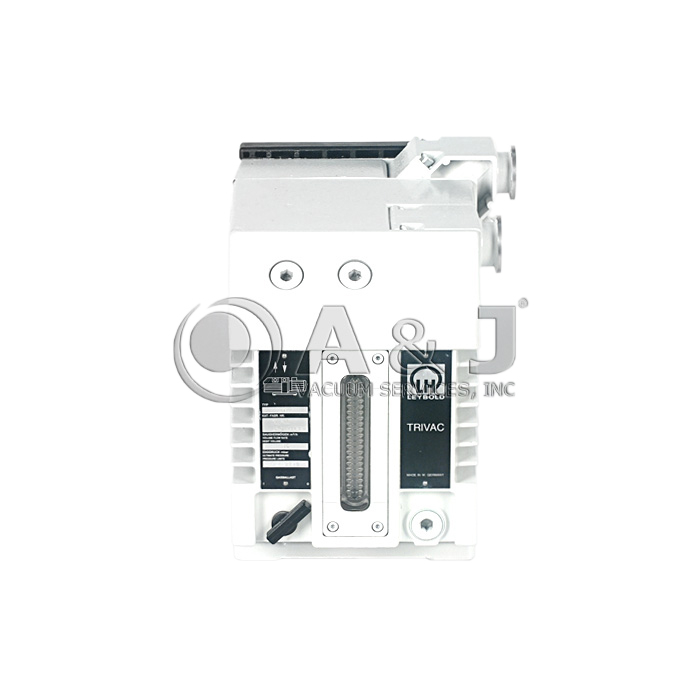

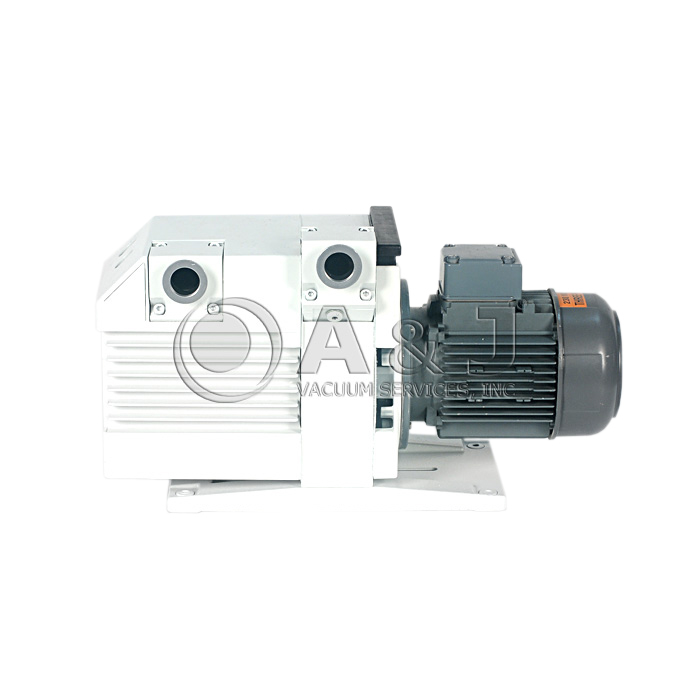

Fully Remanufactured Oerlikon / Leybold Trivac S16B Rotary Vane Pump, Three Phase, Hydrocarbon oil, 10266



Leybold S16B Overview:


The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassembly. The pump module can be easily removed without
special tools.

The rotor, mounted eccentrically in the pump housing, has two radially sliding vanes which divide the pump chamber into several compartments. The volume of each compartment changes periodically with the rotation of the rotor.


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac S16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN20621 Mfr Part#: 11276 / 898229 Manufacturer: Leybold
PRICE: $7,891.00
WEB SAVINGS: $3,541.00
YOU PAY: $4,350.00

Fully remanufactured Leybold Vacuum D25B TRIVAC Vacuum Pump 200-240 / 380-415 VAC 50/60 HZ, 11276, 898229, 11335, 18 CFM, 30.8 m3/h Also known as Oerlikon D 25B



Leybold D25B TRIVAC Overview:


The LEYBOLD TRIVAC D25B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D25B pump 11276 can be wired for low 230V or 400 V 50/60 Hz  The Leybold D 25 B is a excelent vacuum pump for vapor handling. The Leybold D25B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D25B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 25 B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.6 L min, 1.4 L max. The TRIVAC D25 Pump has grate water vapor capacity of 476 g/h.

Leybold D 25 B pumps are also very quiet with nise level of 52 db(A) without gass ballast, and 56 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below. 11335.



Leybold D25B TRIVAC Pumping speed:


Leybold D25B TRIVAC Pumping speed



Available D25B pump voltages configurations:


Leybold D 25 B Vacuum Pump with single phase motor 115VAC 50/60 hz, Leybold Part Number 91276V001

Leybold D25B Vacuum Pump with Three phase motor 230/400VAC 50/60 hz, Leybold Part Number 11276

Click Here to view D16B and D25B Operation Manual to view all pump configurations



New TRIVAC D25B Pump is supplied with the following accessories:


  • 1 Centering Ring
  • 1 Centering ring with dirt trap
  • 2 clamps DN 25 KF
  • Operating instructions
  • Spare parts list
  • For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.



Typical D 25 B Vacuum pump Applications:


  • Vacuum Ovens
  • Leak detectors and Leak detector systems
  • Surface analysis instruments
  • Scanning electron microscopes
  • Load lock
  • Spectroscopy
  • University Research Labs
  • As a backing pump for turbomolecular pump systems
  • Beam welding



Leybold D25B Dimensions:


Leybold D25B TRIVAC Dimensions


Click Here for Leybold D16B Manual


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D25B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock

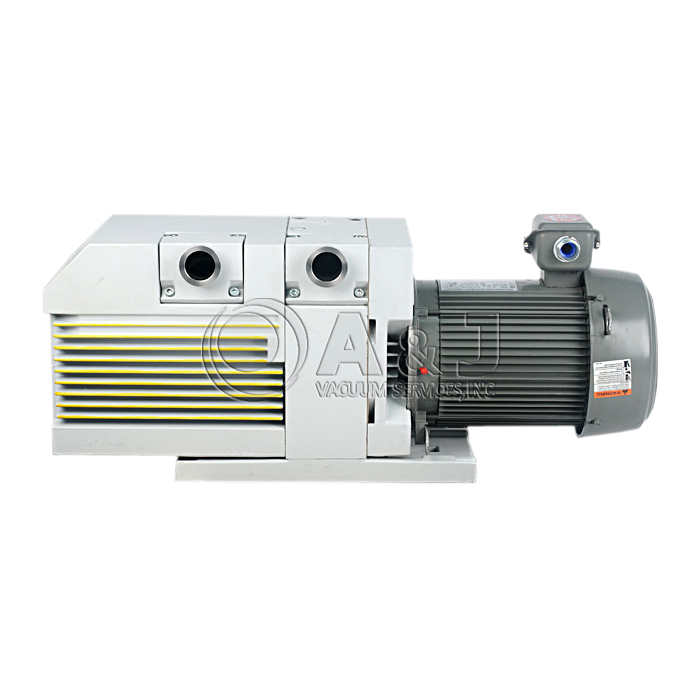

Item#: PN21040 Mfr Part#: 11296 Manufacturer: Leybold
PRICE: $10,593.00
WEB SAVINGS: $4,843.00
YOU PAY: $5,750.00

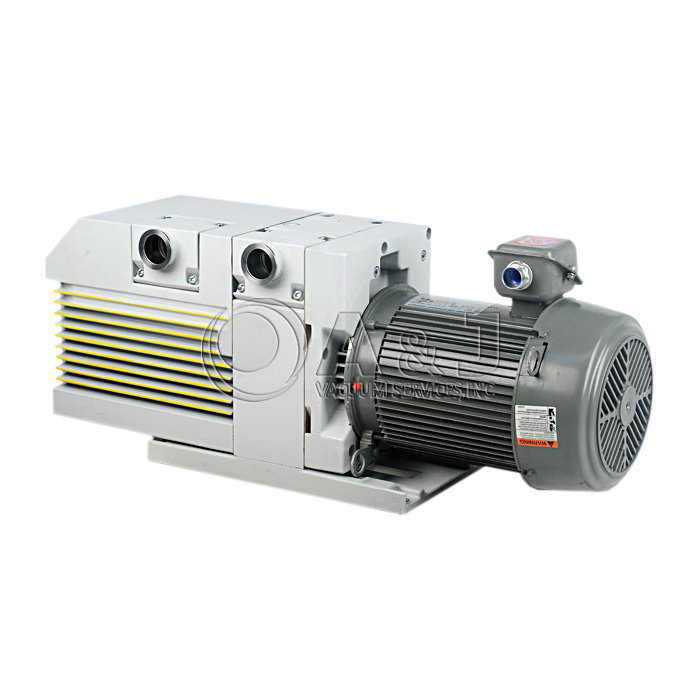

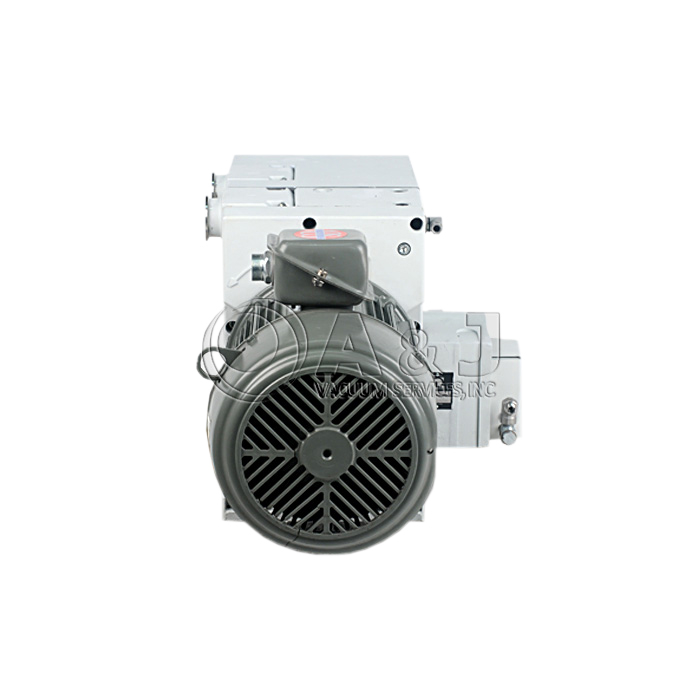

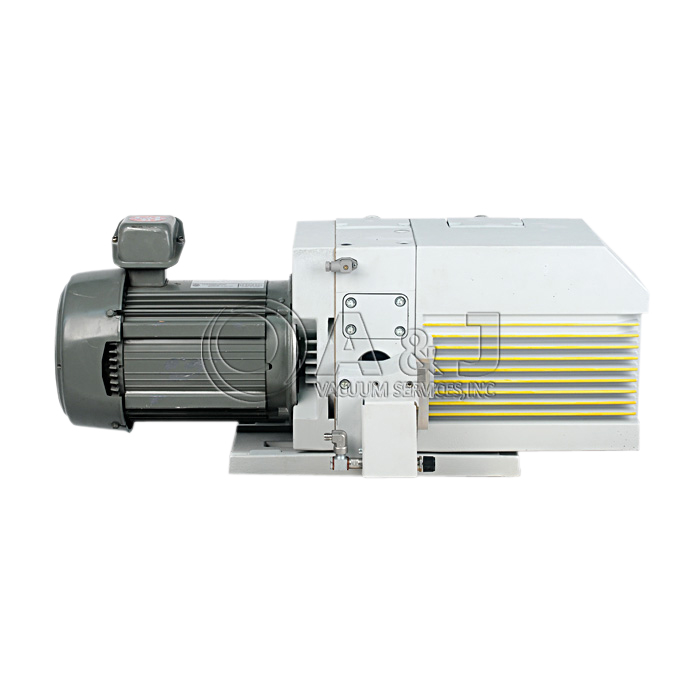

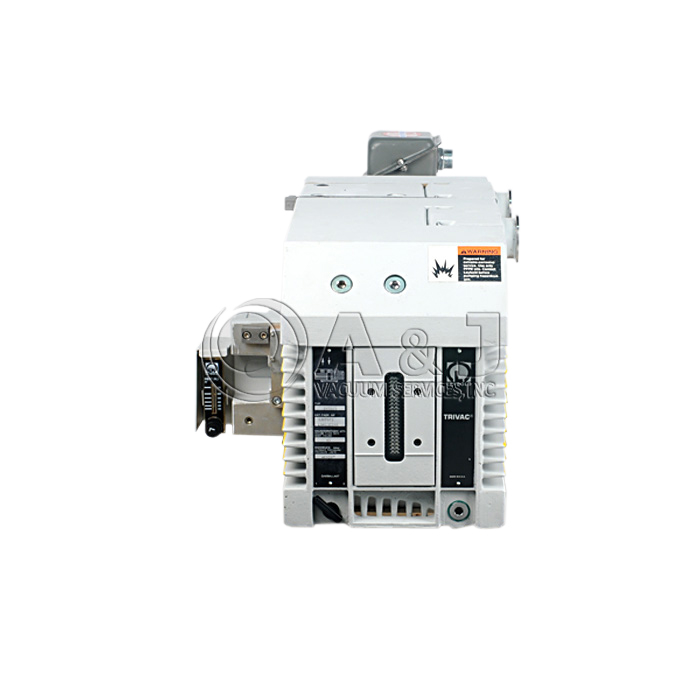

Fully Remanufactured Leybold D65B TRIVAC Vacuum Pump, Hydrocarbon Oil, 3-Phase 200-230/460V 60 HZ 45 CFM, 11296, D 65 B



Leybold D65B TRIVAC Overview:


The LEYBOLD D 65 B TRIVAC vacuum pumps are oil-sealed rotary vane vacuum pumps. The Leybold D65B is a excelent two stage vacuum pump for vapor handling. The Leybold D40B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D40B is perfectly suitable for many Industrial and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D65B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D65B oil requirement 2.0 L min, 3.3 L max. The TRIVAC D65 Pump has grate water vapor capacity of 1925 g/h.

Leybold D 65 B pumps are also very quiet with nise level of 57 db(A) without gass ballast, and 59 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 40 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D40B vane vacuum pumps are available as corrosive PFPE application pumps, and are called D65BCS models, Leybold Part Number 11388

Leybold D 40B Pump can be easily configured into Pump and Vacuum Pump Booster package. There are several different options and booster pumps available build vacuum puming system. Leybold Roots pump called ROVAC WA 251, WAU 251, WS 251 and WSU 251. Direct booster mounting adapter alows quick and easy booster pump installation on top of D40B Vacuum Pump.



Leybold D65B TRIVAC Pumping speed:


Leybold D40B TRIVAC Pumping speed, 11286



New TRIVAC D65B Pump is supplied with the following accessories:


  • 1 Centering Ring
  • 1 Centering ring with dirt trap
  • 2 clamps DN 40 KF
  • Operating instructions
  • Spare parts list
  • For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.



Typical D 65 B Vacuum pump Applications:


  • Vacuum oating
  • Chemistry and pharmaceuticals
  • Matallurgy / Vacuum furnaces
  • Lamps and tubes manufacturing
  • Space simulation
  • Envirment engineering
  • Cooling and air conditioning industry
  • As a backing pump for large turbomolecular pump systems
  • Freeze drying systems
  • High vacuum pumping systems



Leybold D65B Dimensions:


Leybold D40B TRIVAC Dimensions, 11286


Click Here for Leybold D40B and D65B operation Instructions


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all Leybold D40B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN06666 Mfr Part#: 11227 Manufacturer: Leybold
PRICE: $2,450.00
WEB SAVINGS: $1,255.00
YOU PAY: $1,195.00

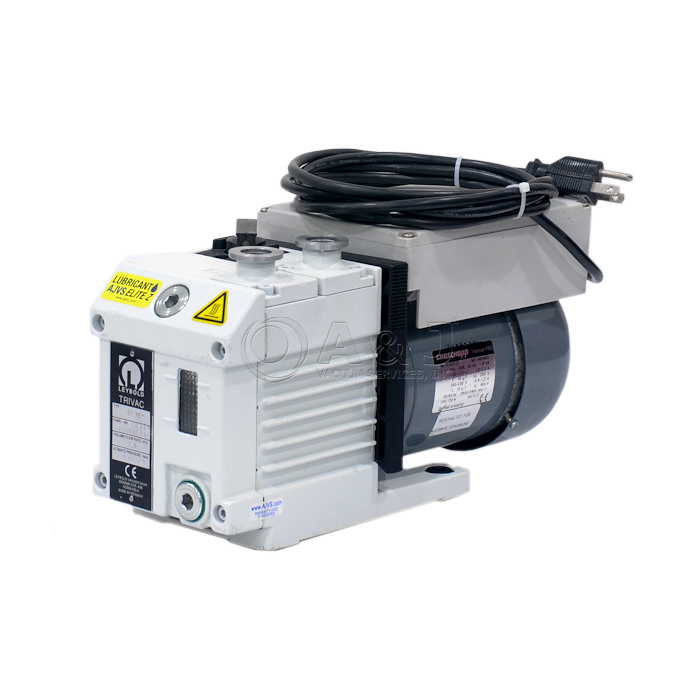

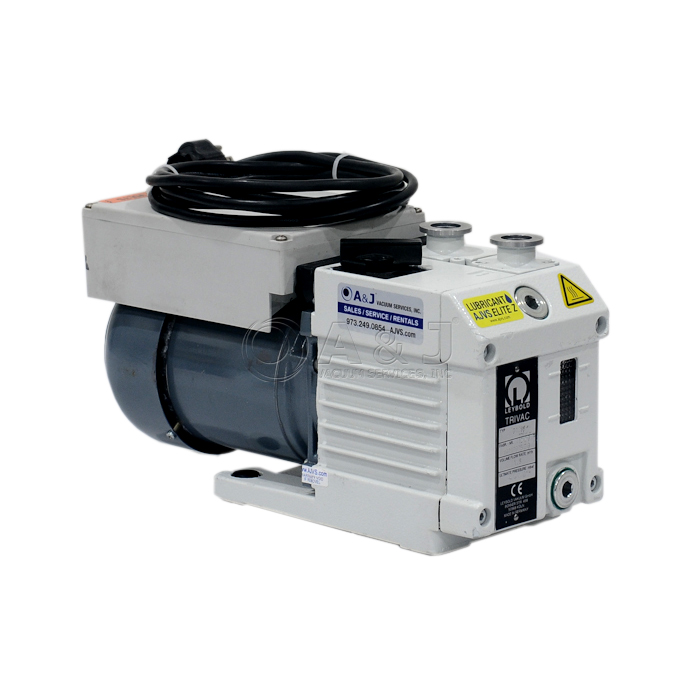

Fully rebuilt Leybold / Oerlikon D1.6B (D1.6 B) Dual Stage Rotary Vane Pump with KF16 Inlet Flange and KF16 Outlet Flange



Leybold D1.6B Overview:


This Leybold D-1.6B Rotary Vane Pump has a peak pumping velocity of 1.75 cfm and a final pressure of 1 x 10-3 Torr.

Leybold D1.6B Vacuum Pump has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Leybold / Oerlikon D1.6B Pump comes with an entire 12-Month Warranty.

A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.

The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.



This pump is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!



Rotary Vane Pump Applications:


  • Gas analyzers
  • Leak detection
  • Mass spectrometers
  • Other spectrometers
  • Electron microscopes
  • Surface analyzers
  • Centrifuges
  • Sterilization
  • Electron tubes
  • Lamps
  • TV tubes (CRT)
  • Refrigeration
  • Air conditioning
  • Drying
  • Distillation
  • Metallurgy
  • Free drying
  • CVD.LPCVD
  • Ion implantation
  • Dry etching
  • Load-lock
  • Cryogenics
  • Gas recovery
  • Oxygen pumping

A&J Vacuum services and repairs Leybold/Oerlikon Vacuum, along with all other Leybold/Oerlikon Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured Call us for Availability

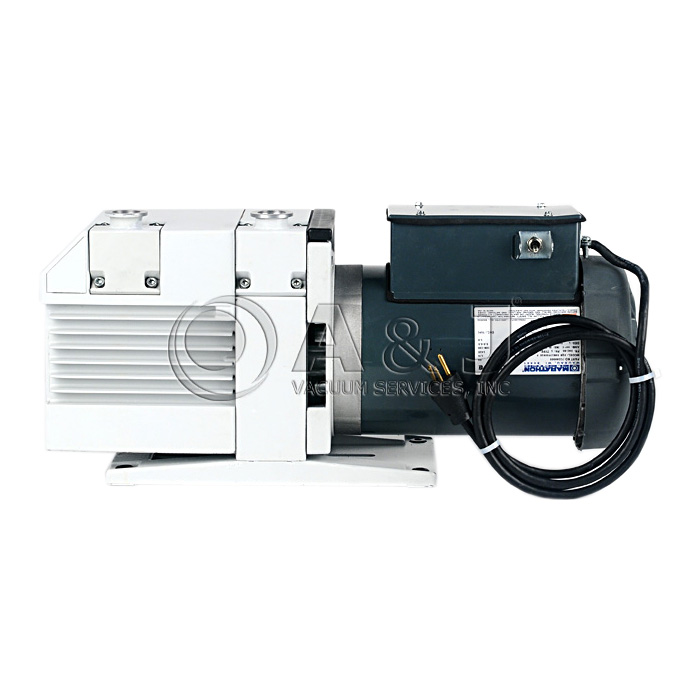

Item#: PN16690 Mfr Part#: 91265-2 Manufacturer: Leybold
PRICE: $2,650.00
WEB SAVINGS: $500.00
YOU PAY: $2,150.00

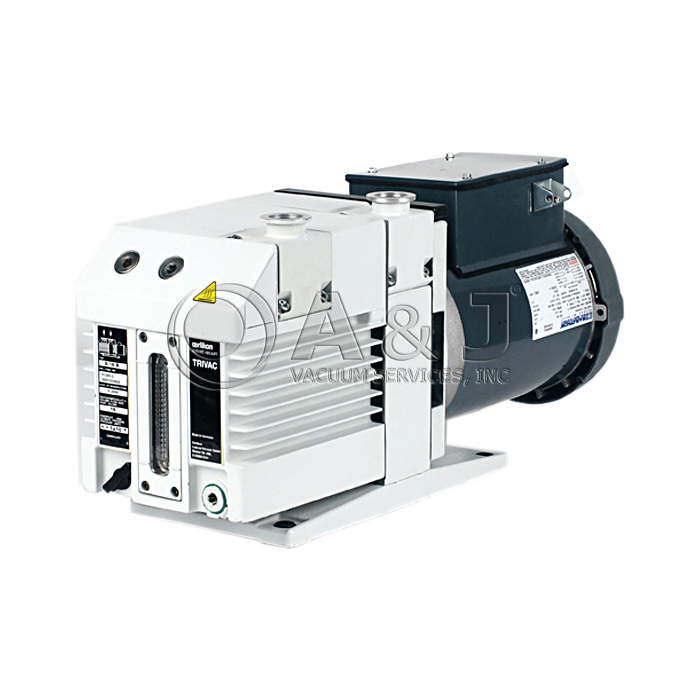

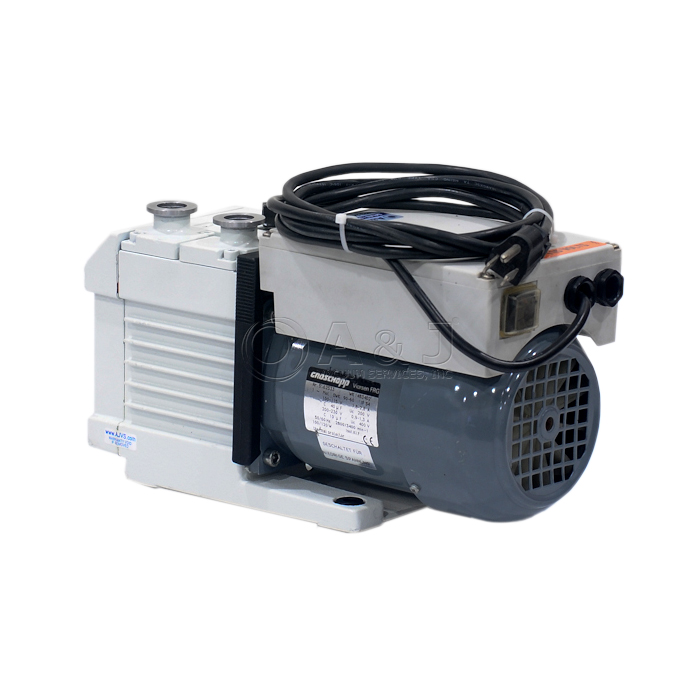

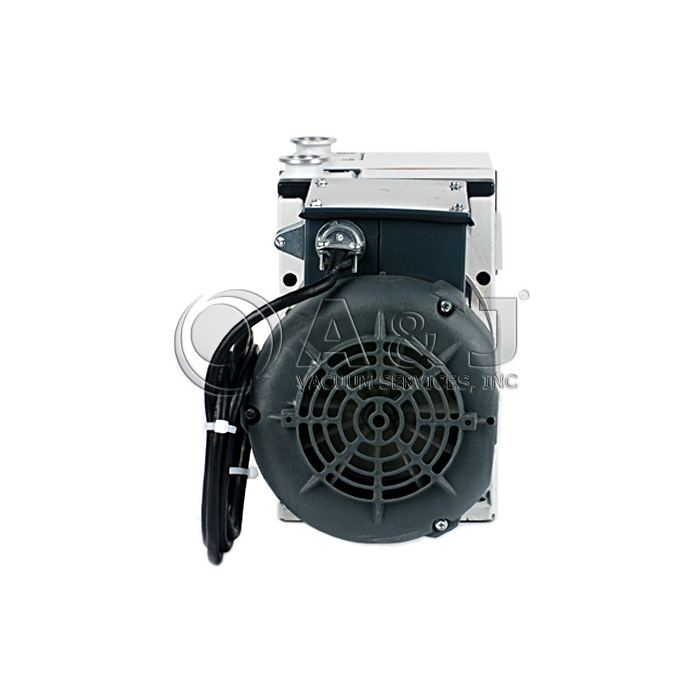

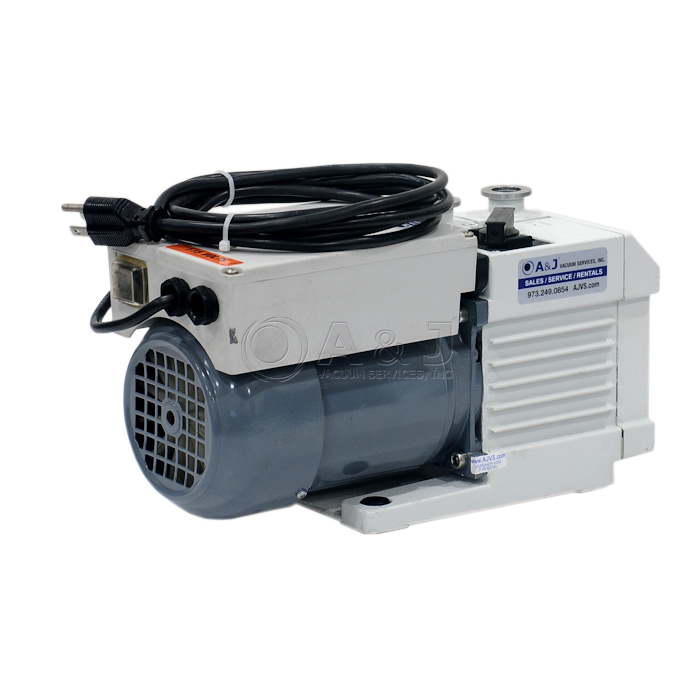

Oerlikon / Leybold Trivac D16B Rotary Vane Vacuum Pump, Single Phase, 208-230 V, 50/60 Hz, Hydrocarbon Oil, 91265-2



Leybold D16B Overview:


Oerlikon / Leybold Trivac B pumps are oil-sealed rotary vane pumps. Trivac B pumps can pump gases and vapors and evacuate vessels or vacuum systems in the fine vacuum range. Those of standard design are not suitable for pumping greater than atmospheric concentrations of oxygen, hazardous gases, or extremely aggressive or corrosive media.

The drive motor of the Trivac B is directly flanged to the pump at the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connections are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation of the oil level.

The LEYBOLD TRIVAC D16B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D16B pump 898199-1 is wire wired for low 20-230V 60 Hz Voltage. The Leybold D 16 B is a well know pump with excelent reputation for vapor handling capability. The Leybold D16B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D16B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 16 B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.5 L min, 1.0 L max. The TRIVAC D16 Pump has grate water vapor capacity of 305 g/h.

Leybold D 16 B pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 54 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below. 91255-2.





Available D16B pump voltages configurations:


Leybold D 16 B Vacuum Pump with single phase motor 230VAC 50/60 hz, Leybold Part Number 91265-2

Leybold D16B Vacuum Pump with Three phase motor 230/400VAC 50/60 hz, Leybold Part Number 11266

Click Here to view D16B and D25B Operation Manual to view all pump configurations



New TRIVAC D16B Pump is supplied with the following accesories:


  • 1 Centering Ring
  • 1 Centering ring with dirt trap
  • 2 clamps DN 25 KF
  • Operating instructions
  • Spare parts list
  • For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.



Typical D 16 B Vacuum pump Applications:


  • Vacuum Ovens
  • Leak detectors and Leak detector systems
  • Surface analysis instruments
  • Scanning electron microscopes
  • Load lock
  • Spectroscopy
  • University Research Labs
  • As a backing pump for turbomolecular pump systems
  • Beam welding




A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability

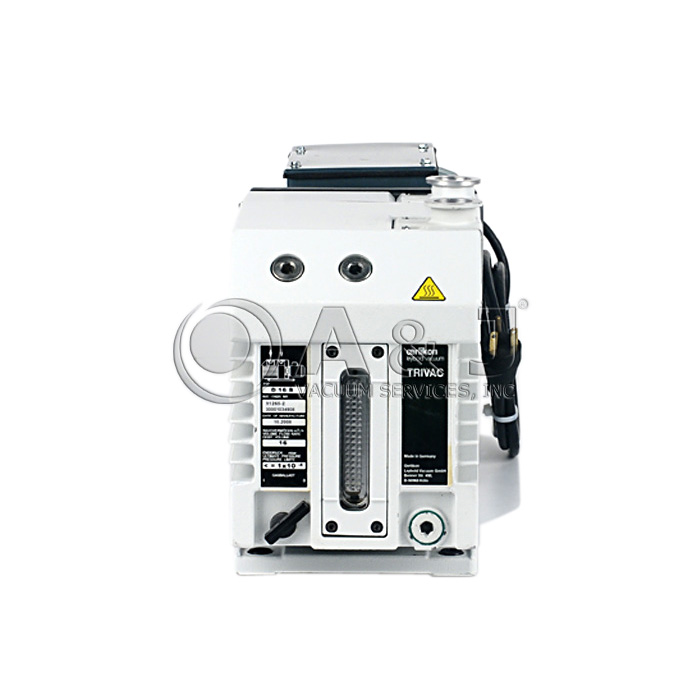

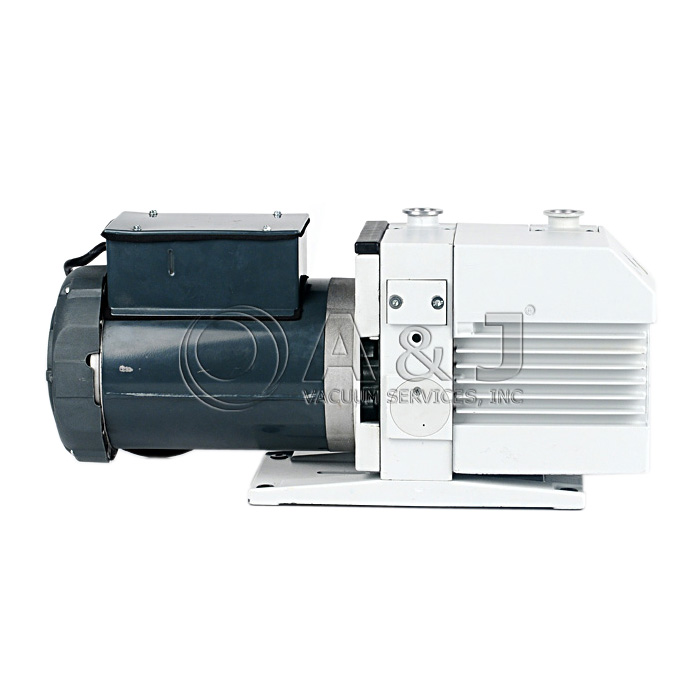

Item#: PN06675 Mfr Part#: 91265-1 Manufacturer: Leybold
PRICE: $4,750.00
WEB SAVINGS: $2,325.00
YOU PAY: $2,425.00

Fully Re-manufactured Leybold Trivac D16B Rotary Vane Pump, Single Phase, 115/208-230 VAC, 50/60 Hz, Hydrocarbon Oil, 91265-1



Leybold D16B Overview:


Oerlikon / Leybold Trivac B pumps are oil-sealed rotary vane pumps. Trivac B pumps can pump gases and vapors and evacuate vessels or vacuum systems in the fine vacuum range. Those of standard design are not suitable for pumping greater than atmospheric concentrations of oxygen, hazardous gases, or extremely aggressive or corrosive media.

The drive motor of the Trivac B is directly flanged to the pump at the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connections are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation of the oil level.

The LEYBOLD TRIVAC D16B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D16B pump 898199-1 is wire wired for low 20-230V 60 Hz Voltage. The Leybold D 16 B is a well know pump with excelent reputation for vapor handling capability. The Leybold D16B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D16B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 16 B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.5 L min, 1.0 L max. The TRIVAC D16 Pump has grate water vapor capacity of 305 g/h.

Leybold D 16 B pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 54 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below. 91255-2.





Available D16B pump voltages configurations:


Leybold D 16 B Vacuum Pump with single phase motor 230VAC 50/60 hz, Leybold Part Number 91265-2

Leybold D16B Vacuum Pump with Three phase motor 230/400VAC 50/60 hz, Leybold Part Number 11266

Click Here to view D16B and D25B Operation Manual to view all pump configurations



New TRIVAC D16B Pump is supplied with the following accesories:


  • 1 Centering Ring
  • 1 Centering ring with dirt trap
  • 2 clamps DN 25 KF
  • Operating instructions
  • Spare parts list
  • For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.



Typical D 16 B Vacuum pump Applications:


  • Vacuum Ovens
  • Leak detectors and Leak detector systems
  • Surface analysis instruments
  • Scanning electron microscopes
  • Load lock
  • Spectroscopy
  • University Research Labs
  • As a backing pump for turbomolecular pump systems
  • Beam welding




A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability

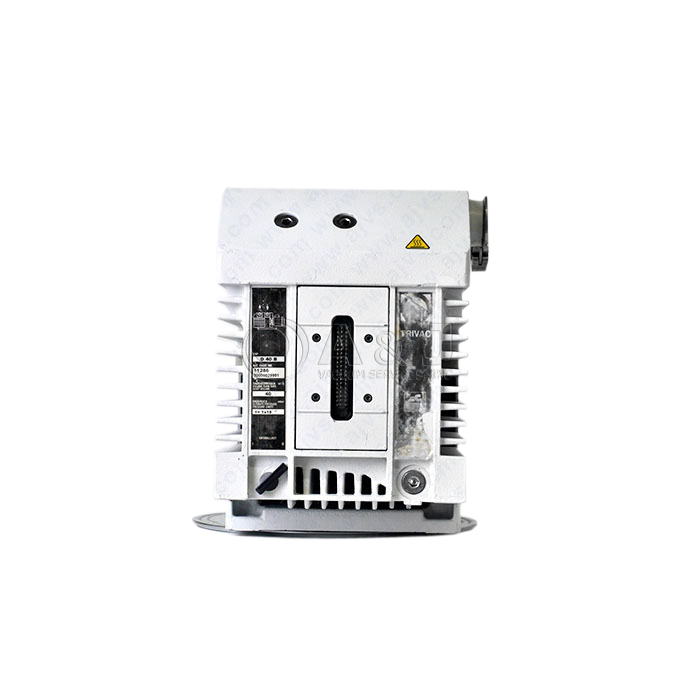

Item#: PN06680 Mfr Part#: Manufacturer: Leybold
PRICE: $3,992.28
WEB SAVINGS: $78.28
YOU PAY: $3,914.00

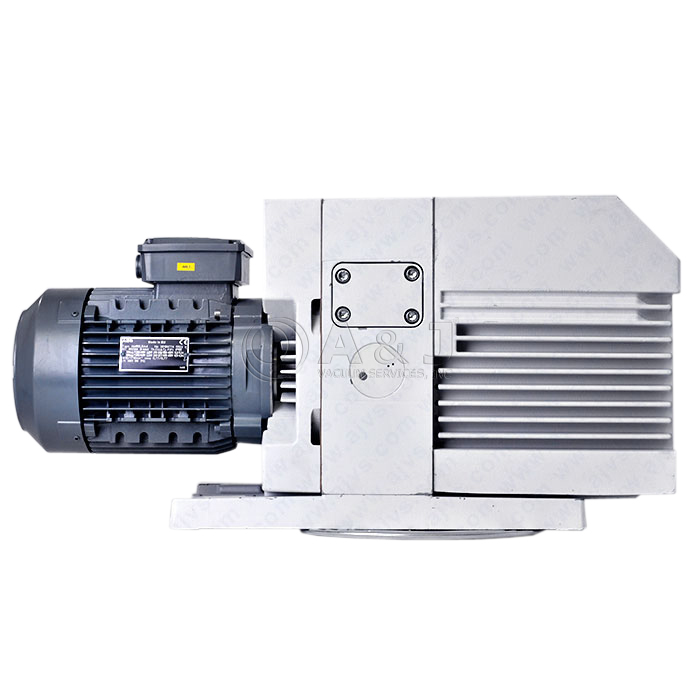

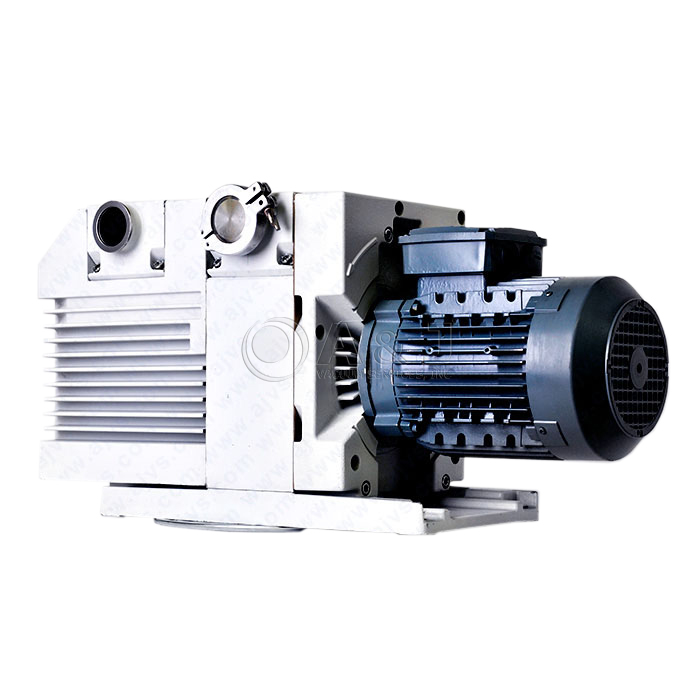

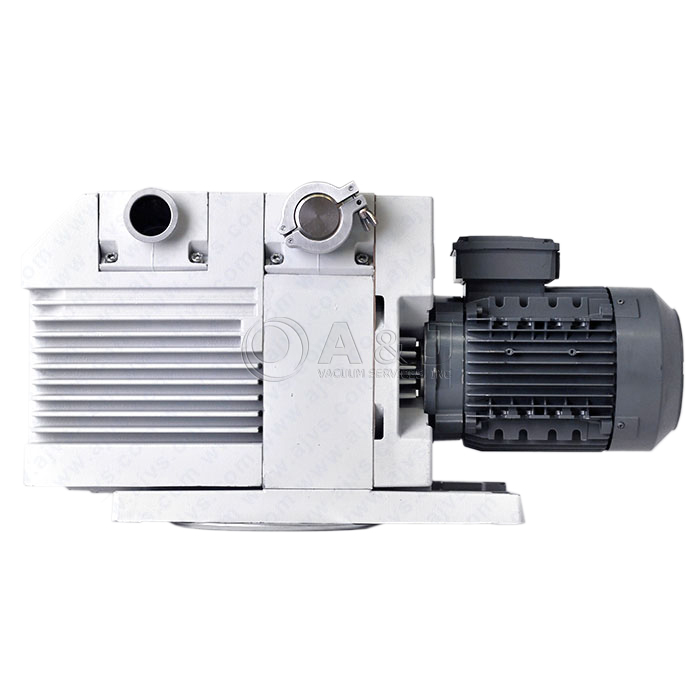

Fully rebuilt Leybold / Oerlikon D40B (D40 B) Dual Stage Rotary Vane Pump with KF40 Inlet Flange and KF40 Outlet Flange



Leybold D40B Overview:


Fully refurbished Leybold / Oerlikon D40B Dual Stage Rotary Vane Pump coupled with a KF40 Inlet Flange and KF40 Outlet Flange. This Leybold / Oerlikon Rotary Vane Pump has a peak pumping velocity of 32.5 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Leybold / Oerlikon D40B Pump comes with an entire 12-Month Warranty.

A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.

The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.



Leybold D40B Applications:


  • Gas analyzers
  • Leak detection
  • Mass spectrometers
  • Other spectrometers
  • Electron microscopes
  • Surface analyzers
  • Centrifuges
  • Sterilization
  • Electron tubes
  • Lamps
  • TV tubes (CRT)
  • Refrigeration
  • Air conditioning
  • Drying
  • Distillation
  • Metallurgy
  • Free drying
  • CVD.LPCVD
  • Ion implantation
  • Dry etching
  • Load-lock
  • Cryogenics
  • Gas recovery
  • Oxygen pumping

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D8B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability

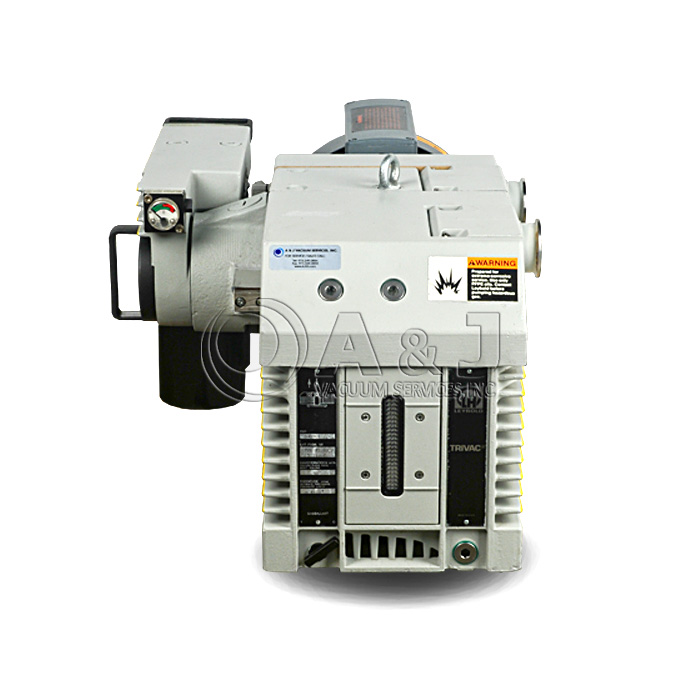

Item#: PN06681 Mfr Part#: Manufacturer: Leybold
PRICE: $7,725.00
WEB SAVINGS: $2,230.00
YOU PAY: $5,495.00

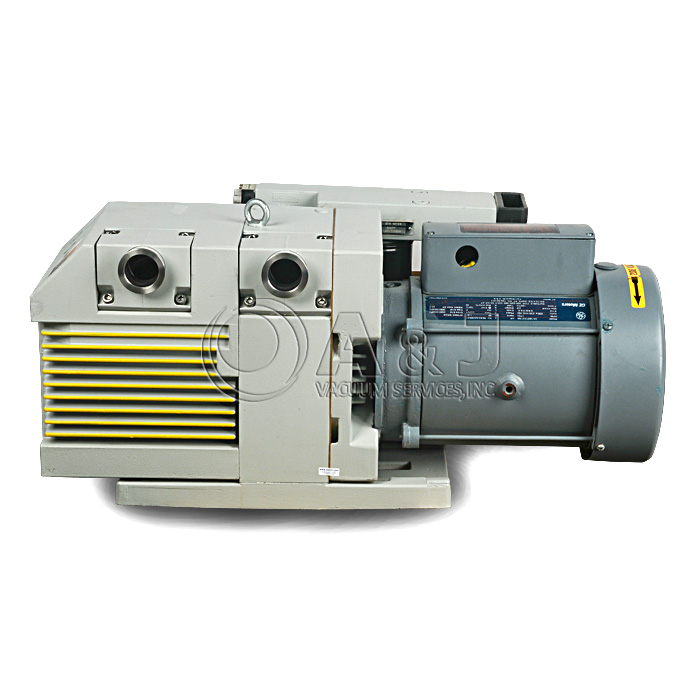

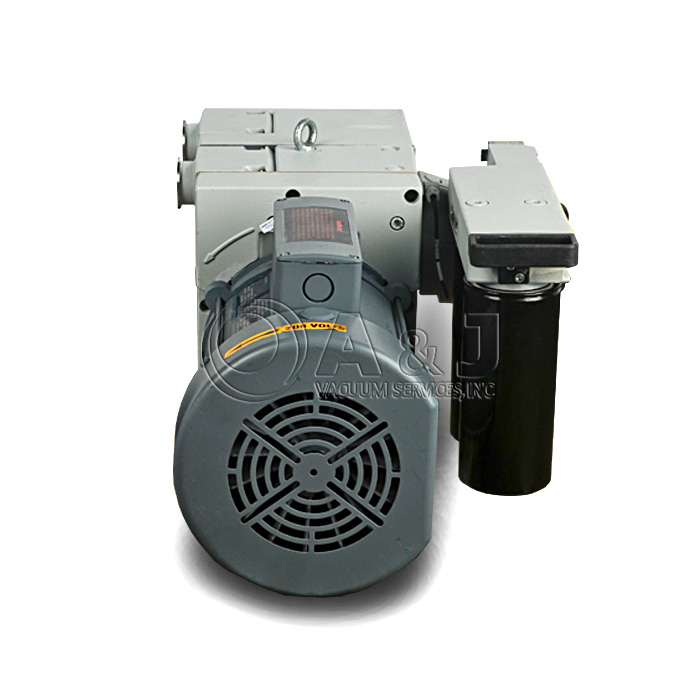

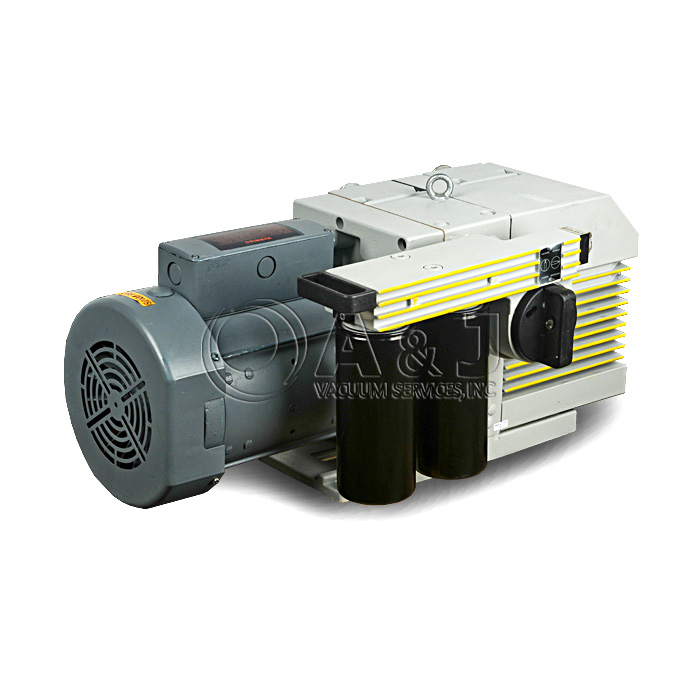

Oerlikon / Leybold D 40 BCS Dual Stage Rotary Vane Vacuum Pump, CFS Filtration Module Installed, PFPE Fluid

Fully refurbished Leybold / Oerlikon D40BCS PFPE Dual Stage Rotary Vane Pump coupled with a KF40 Inlet Flange and KF40 Outlet Flange. This Leybold / Oerlikon Rotary Vane Pump has a peak pumping velocity of 32.5 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Leybold / Oerlikon D40BCS PFPE Pump comes with an entire 12-Month Warranty.

Overview:

  • Peak Pumping Speed: 32.5 cfm
  • KF40 Inlet Flange
  • KF40 Outlet Flange
  • Ultimate Pressure: 1 x 10-3 Torr.
  • This pump is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!

Rotary Vane Pump Applications:

  • Gas analyzers
  • Leak detection
  • Mass spectrometers
  • Other spectrometers
  • Electron microscopes
  • Surface analyzers
  • Centrifuges
  • Sterilization
  • Electron tubes
  • Lamps
  • TV tubes (CRT)
  • Refrigeration
  • Air conditioning
  • Drying
  • Distillation
  • Metallurgy
  • Free drying
  • CVD.LPCVD
  • Ion implantation
  • Dry etching
  • Load-lock
  • Cryogenics
  • Gas recovery
  • Oxygen pumping

Technology:

A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.

The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.


Condition: Remanufactured Call us for Availability
Item#: PN07496 Mfr Part#: S307871 Manufacturer: Leybold
PRICE: $10,450.00
WEB SAVINGS: $4,455.00
YOU PAY: $5,995.00

Fully Remanufactured Oerlikon / Leybold D 65 B Dual Stage Rotary Vane Vacuum Pump, PFPE Fluid, 200-230/460 V, S307871



Leybold D65B Overview:


TRIVAC B pumps are oil-sealed rotary vane pumps. The TRIVAC D 40 B and D 65 B are dual-stage pumps. The number in the type designation (40 or 65) indicates the pumping speed in m3 / h-1.

TRIVAC B pumps can pump gases and vapours and evacuate vessels or vacuum systems in the fine vacuum range.

The drive motor of the TRIVAC B is directly flanged to the pump at the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connections are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation of the oil level.

The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassembly. The pump module can be easily removed without special tools.


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D65B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Call us for Availability
Contact
A&J Vacuum Services
16 Somerset Place, Clifton, NJ 07012
Customer Service
Phone: 973-249-0854, Fax: 973-249-0855
Service Hours
8:00am to 5:00pm, Monday thru Friday EST
All trademarks, trade names or logons mentioned or used are the property of their respective owners.
