Found 7 products
Item#: PN18604 Mfr Part#: AGCCBL103 Manufacturer: Agilent Technologies / Varian
PRICE: $0.00
YOU PAY: $150.00

Agilent FRG 700 to AGD 100 Vacuum Gauge Interface Cable, 3M, AGCCBL103,


Condition: New In Stock
Item#: PN07265 Mfr Part#: 9699960, Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies FRG 700 Vacuum Gauge Interface Cable, 3M, 9699960



Agilent Cable Overview:


Agilent Technologies FRG-700 Vacuum Gauge Interface Cable for the FRG-700 Full Range Pirani IMG Vacuum Gauge.

Agilent Technologies FRG-700 Full Range Pirani IMG Vacuum Gauge.

Over the whole measuring range, the measuring signal is output as a logarithm of the pressure.

The gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one measurement signal is output. The Pirani measurement circuit is always on.

The gauge is factory-calibrated. If used under different climatic conditions, through extreme temperatures, aging or contamination, and after exchanging the sensor, the characteristic curve can be offset and readjustment may become necessary

The cold cathode measuring circuit, which is dominant for low pressures (<1×10-3mbar), is factory-calibrated and cannot be adjusted. By way of contrast, the Pirani measuring circuit can be adjusted. Any adjustment has a negligible effect on the pressure range between approx. 10-2mbar and 102mbar.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
Item#: PN16238 Mfr Part#: R32453010 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies Connection Cable for XGS 600 Gauge Controller, Non-Bakeable, 10 ft, R32453010



Agilent Overview:


The Agilent Technologies XGS-600 Gauge Controller uses three different kinds of gauge cards which, between them, operate all Agilent Vacuum Gauges. Choose from:

  • Convection gauges such as thermocouple or Convec Torr
  • Hot filament ion gauges
  • Inverted magnetron (cold cathode or Penning) gauges

Up to six cards can be installed in the XGS-600 Controller, in practically any combination to suit your particular application. Everything else is standard equipment. This yields maximum flexibility for matching the system to your vacuum measurement requirements. The XGS-600 Gauge Controller allows for simultaneous operation of up to 12 gauges and can display readings for up to 8 gauges at any one time. All settings are stored in flash memory.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
Item#: PN17361 Mfr Part#: 9710018 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies Filament Replacement Kit for UHV-24P Ion Gauge, Tungsten, 9710018



Agilent Filament Overview:


The Agilent Technologies hot-cathode ionization gauge tubes employ a heated filament for the source of electrons. The Agilent UHV-24 has a wide range of operating pressure capabilities. It can measure pressures below 2 x 10-10 Torr. Because of its small diameter and closed structure, its ionization rate is at least twice that of other ionization gauges. The small collector diameter limits the X-ray current, which also helps extend the lower pressure limit of the gauge.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
Item#: PN17365 Mfr Part#: R3080301 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent Technologies PCB Assembly, Inverted Magnetron Ion Gauge Card for the XGS-600 Multi-Gauge Controller, R3080301



Agilent XGS 600 Overview:


The Agilent Technologies XGS-600 Gauge Controller uses three different kinds of gauge cards which, between them, operate all Agilent Vacuum Gauges. Choose from:

  • Convection gauges such as thermocouple or Convec Torr
  • Hot filament ion gauges
  • Inverted magnetron (cold cathode or Penning) gauges

Up to six cards can be installed in the XGS-600 Controller, in practically any combination to suit your particular application. Everything else is standard equipment. This yields maximum flexibility for matching the system to your vacuum measurement requirements. The XGS-600 Gauge Controller allows for simultaneous operation of up to 12 gauges and can display readings for up to 8 gauges at any one time. All settings are stored in flash memory.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
Item#: PN17367 Mfr Part#: R03413010 Manufacturer: Agilent Technologies / Varian
Price upon request

Varian Agilent Connection Cable for XGS-600 Gauge Controller and IMG-UHV or IMG 300 Vacuum Gauges, Bakeable, 10 ft, R03413010



Agilent Connection Cable Overview:


The Agilent Technologies XGS-600 Gauge Controller uses three different kinds of gauge cards which, between them, operate all Agilent Vacuum Gauges. Choose from:

  • Convection gauges such as thermocouple or Convec Torr
  • Hot filament ion gauges
  • Inverted magnetron (cold cathode or Penning) gauges

Up to six cards can be installed in the XGS-600 Controller, in practically any combination to suit your particular application. Everything else is standard equipment. This yields maximum flexibility for matching the system to your vacuum measurement requirements. The XGS-600 Gauge Controller allows for simultaneous operation of up to 12 gauges and can display readings for up to 8 gauges at any one time. All settings are stored in flash memory.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
Item#: PN18603 Mfr Part#: ADG100 Manufacturer: Agilent Technologies / Varian
PRICE: $0.00
YOU PAY: $1,023.00

Agilent AGD-100 ACTIVE GAUGE DISPLAY, ADG 100



Agilent / Varian AGD 100 Overview:


AGC-100 is a single channel controller compatible with the FRG 7xx, PVG-5xx, PCG-75x and CDG-500 series of active gauges and automatically identifies the active gauge connected.

AGD-100 is a low cost single channel display option for the FRG-700/702, PVG-5xx and PCG-75x series of active gauges.

Both units have user selectable measurement unit (mbar, Torr, Pascal), and adjustable setpoint control.



Agilent / Varian AGD 100 Features:


  • Simplified setup with automatic identification of Agilent active gauges
  • Universal compatibility with user-selectable pressure units (mbar, Torr, Pascal)
  • Utilize pressure readings to perform critical operations

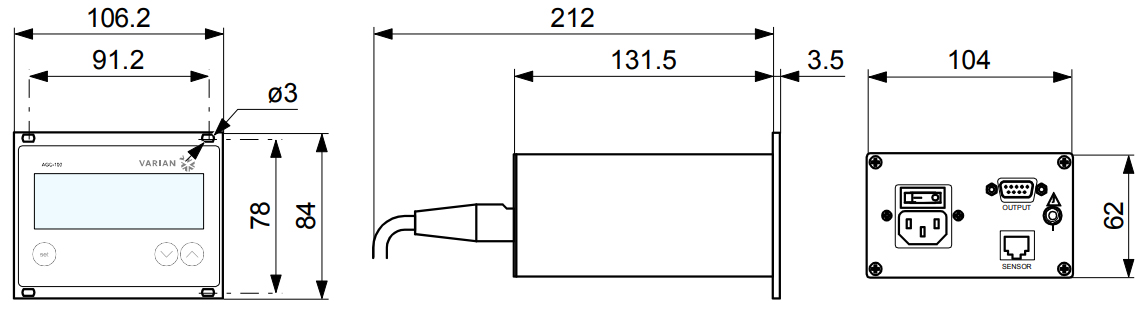

Agilent / Varian AGD 100 Dimensions[mm]:


AGD-100 ACTIVE GAUGE DISPLAY, ADG 100




A&J Vacuum Services offers full repair/service of Agilent Controllers, along with all other brands offered on our website. AJVS also services Agilent turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
