Found 4 products
Item#: PN15797 Mfr Part#: D38661000 Manufacturer: Edwards Vacuum
PRICE: $1,975.00
WEB SAVINGS: $425.00
YOU PAY: $1,550.00

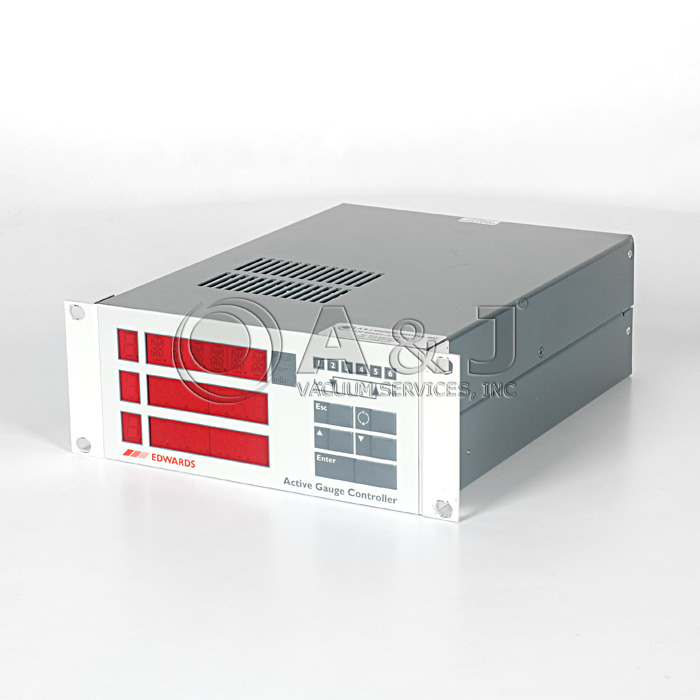

Edwards AGC Active Gauge Controller Triple Display, D38661000, EDWARDS AGC D3866



Edwards AGC Overview:


The Edwards Active Gauge Controller (AGC) is used with the Edwards Active vacuum gauges. The AGC interfaces directly to 3 or 6 (depending on the AGC model) Active vacuum gauges providing a comprehensive control and display system.

You can use any of the following gauges with the AGC D38661000:

  • Active Pirani APG-M, APG-L
  • Active Inverted Magnetron AIM-S, AIM-X
  • Active Thermocouple ATC-M, ATC-D with ATC-E
  • Active Ion Gauge IGC-I2R, IGC-EBEAM, AIGX
  • Active Strain Gauge ASG
  • Wide Range Gauge WRG
  • Active Linear Pirani APGX
  • Linear Convection Gauge APGX-H

Gauges can be turned on and off manually from the front panel or can be programmed to switch on automatically when the pressure measured by another gauge reaches a pre-set level.

The display and control features of the AGC are accessed through a menu structure. You move through the menu with simple keystroke combinations entered from the front panel. Security of gauge settings is achieved by a two level password system which restricts access to certain areas of the menu. In addition, the AGC can be interfaced to other microprocessor and data acquisition systems through an optional serial RS232 communications link.

The AGC Controller has 6 outputs which can be programmed as gauge pressure set points and so used to control the operation of auxiliary equipment. An optional relay board can be fitted which increases the load capability of these outputs.

The AGC Controller has one chart recorder output for each gauge channel (3 or 6 depending on version). These give an analogue output in the range 0 to 10 V corresponding to the pressure measured by the gauge.


THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.



Edwards AGC Dimensions:


Edwards AGC D38660000, Dimensions


Click Here for Edwards AGC Manual


A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured In Stock
Item#: PN06950 Mfr Part#: D38662000 Manufacturer: Edwards Vacuum
PRICE: $1,975.00
WEB SAVINGS: $425.00
YOU PAY: $1,550.00

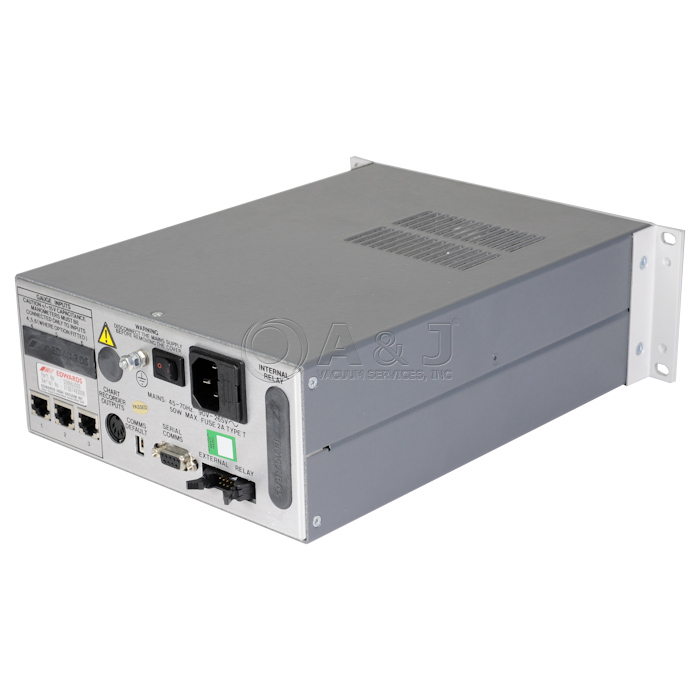

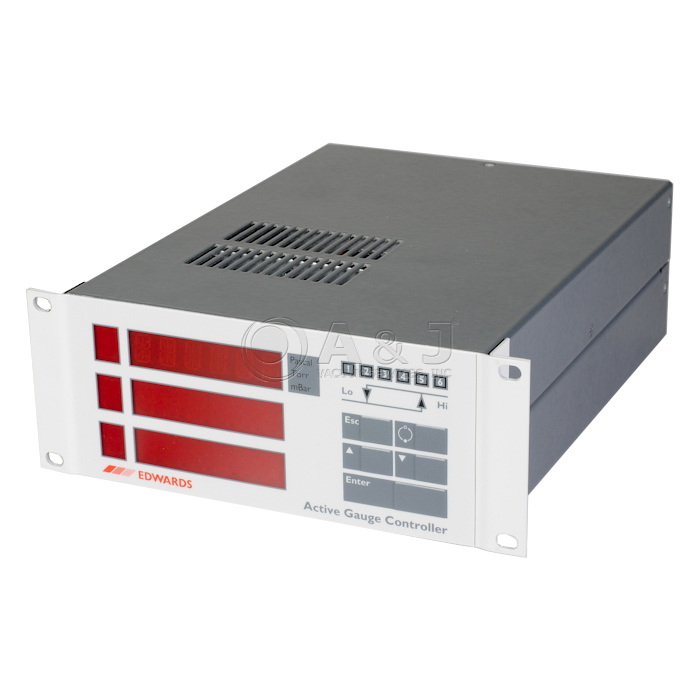

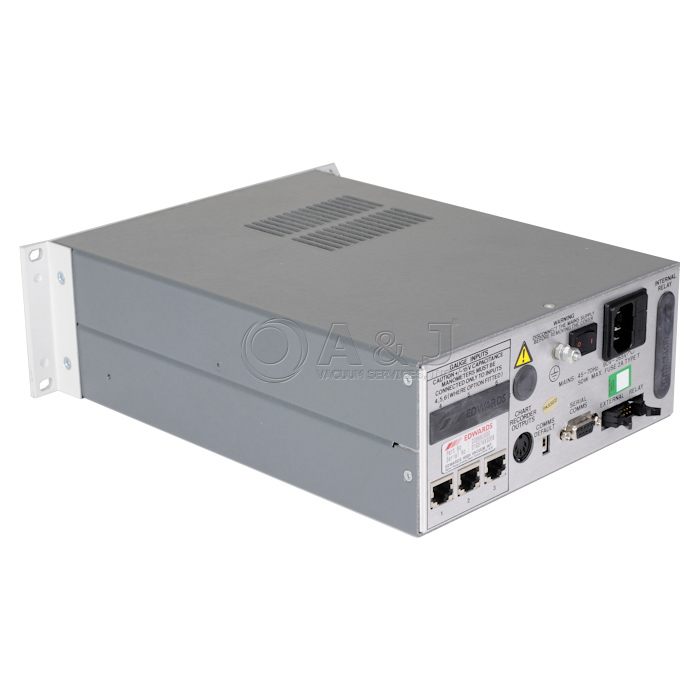

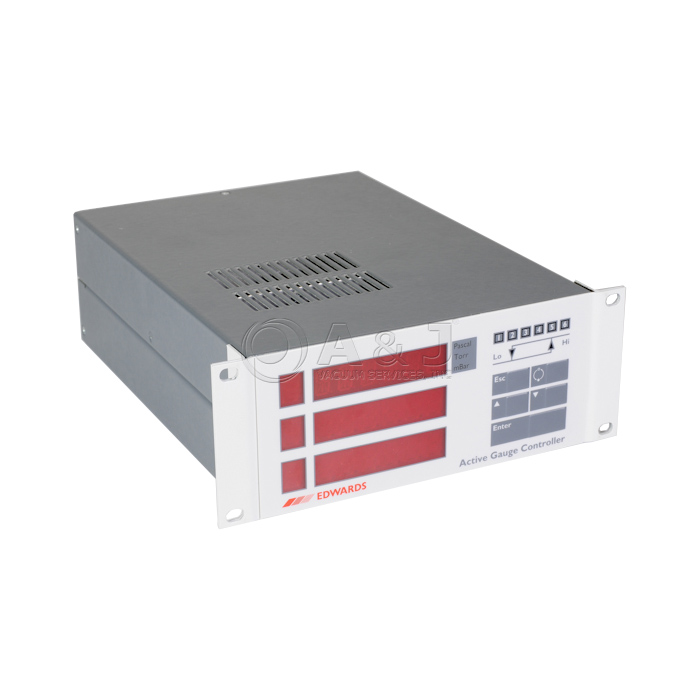

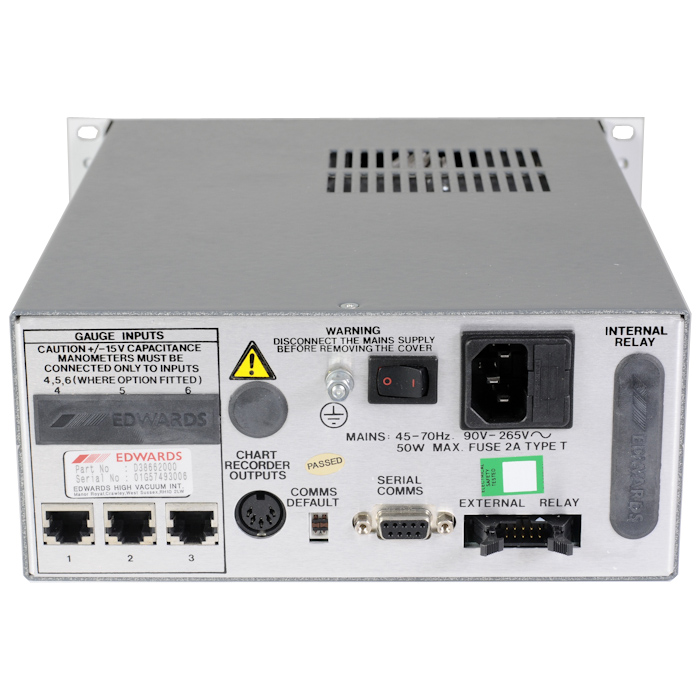

Edwards AGC Active Gauge Controller Triple Display, D38662000



Edwards AGC Overview:


The Edwards Active Gauge Controller (AGC) is used with the Edwards Active vacuum gauges. The AGC interfaces directly to 3 or 6 (depending on the AGC model) Active vacuum gauges providing a comprehensive control and display system.

You can use any of the following gauges with the AGC D38662000:

  • Active Pirani APG-M, APG-L
  • Active Inverted Magnetron AIM-S, AIM-X
  • Active Thermocouple ATC-M, ATC-D with ATC-E
  • Active Ion Gauge IGC-I2R, IGC-EBEAM, AIGX
  • Active Strain Gauge ASG
  • Wide Range Gauge WRG
  • Active Linear Pirani APGX
  • Linear Convection Gauge APGX-H

Gauges can be turned on and off manually from the front panel or can be programmed to switch on automatically when the pressure measured by another gauge reaches a pre-set level.

The display and control features of the AGC are accessed through a menu structure. You move through the menu with simple keystroke combinations entered from the front panel. Security of gauge settings is achieved by a two level password system which restricts access to certain areas of the menu. In addition, the AGC can be interfaced to other microprocessor and data acquisition systems through an optional serial RS232 communications link.

The AGC Controller has 6 outputs which can be programmed as gauge pressure set points and so used to control the operation of auxiliary equipment. An optional relay board can be fitted which increases the load capability of these outputs.

The AGC Controller has one chart recorder output for each gauge channel (3 or 6 depending on version). These give an analogue output in the range 0 to 10 V corresponding to the pressure measured by the gauge.


THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.



Edwards AGC Dimensions:


Edwards AGC D38660000, Dimensions


Click Here for Edwards AGC Manual


A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured Call us for Availability
Item#: PN17626 Mfr Part#: D38655000 Manufacturer: Edwards Vacuum
PRICE: $1,975.00
WEB SAVINGS: $525.00
YOU PAY: $1,450.00

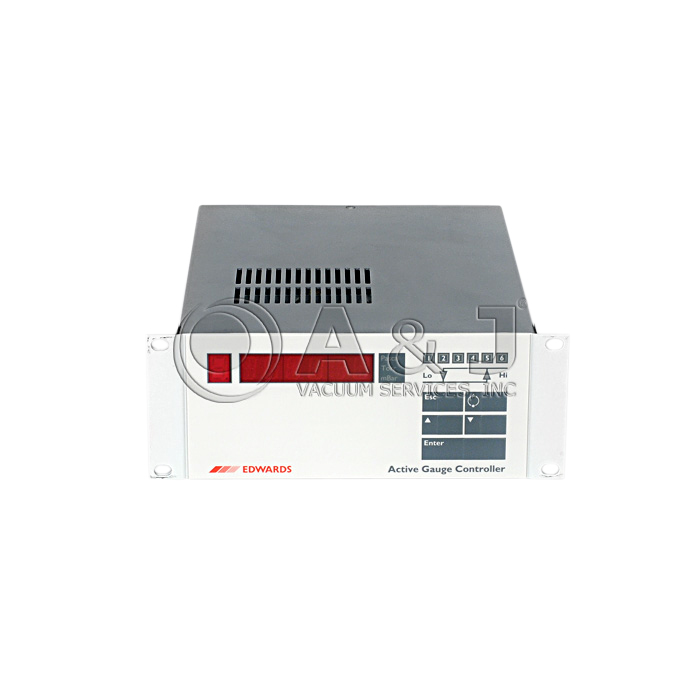

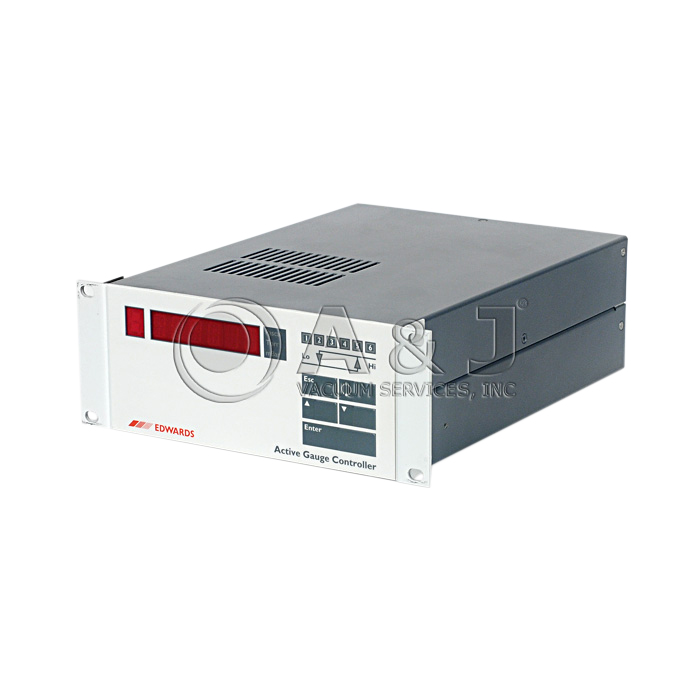

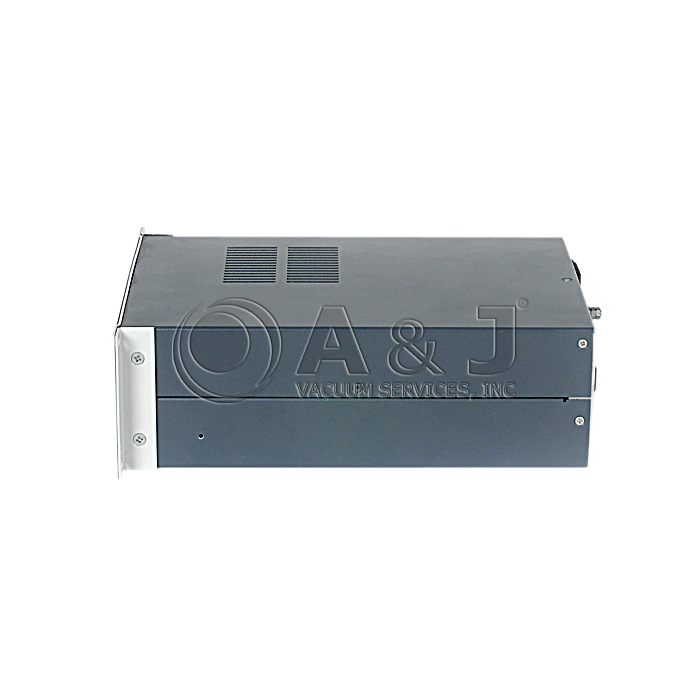

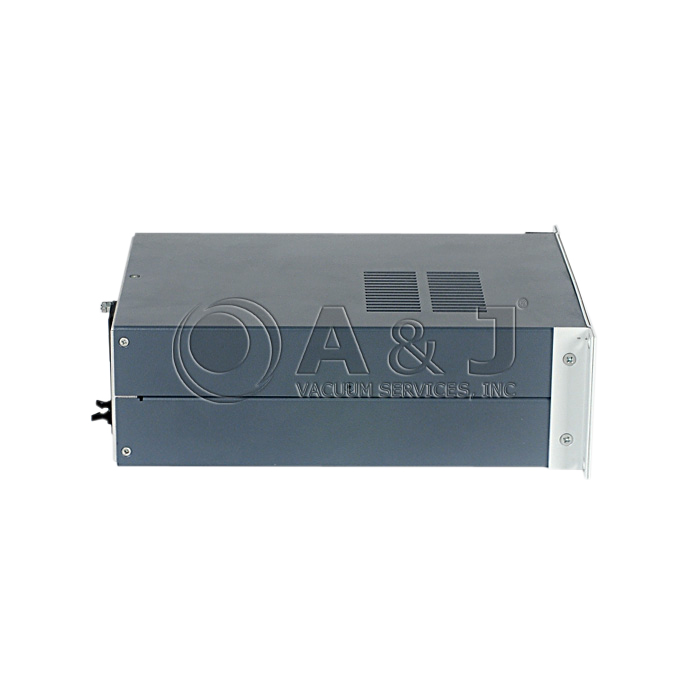

Edwards AGC Active Gauge Controller, Single Display, D38655000, AGC D3865



Edwards AGC Overview:


The Edwards Active Gauge Controller (AGC) is used with the Edwards Active vacuum gauges. The AGC interfaces directly to 3 or 6 (depending on the AGC model) Active vacuum gauges providing a comprehensive control and display system.

You can use any of the following gauges with the AGC D38655000:

  • Active Pirani APG-M, APG-L
  • Active Inverted Magnetron AIM-S, AIM-X
  • Active Thermocouple ATC-M, ATC-D with ATC-E
  • Active Ion Gauge IGC-I2R, IGC-EBEAM, AIGX
  • Active Strain Gauge ASG
  • Wide Range Gauge WRG
  • Active Linear Pirani APGX
  • Linear Convection Gauge APGX-H

Gauges can be turned on and off manually from the front panel or can be programmed to switch on automatically when the pressure measured by another gauge reaches a pre-set level.

The display and control features of the AGC are accessed through a menu structure. You move through the menu with simple keystroke combinations entered from the front panel. Security of gauge settings is achieved by a two level password system which restricts access to certain areas of the menu. In addition, the AGC can be interfaced to other microprocessor and data acquisition systems through an optional serial RS232 communications link.

The AGC Controller has 6 outputs which can be programmed as gauge pressure set points and so used to control the operation of auxiliary equipment. An optional relay board can be fitted which increases the load capability of these outputs.

The AGC Controller has one chart recorder output for each gauge channel (3 or 6 depending on version). These give an analogue output in the range 0 to 10 V corresponding to the pressure measured by the gauge.


THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.



Edwards AGC Dimensions:


Edwards AGC D38660000, Dimensions


Click Here for Edwards AGC Manual


A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured Call us for Availability
Item#: PN20333 Mfr Part#: D38660000 Manufacturer: Edwards Vacuum
PRICE: $1,975.00
WEB SAVINGS: $425.00
YOU PAY: $1,550.00

Edwards AGC Active Gauge Controller Triple Display, D38660000, EDWARDS AGC D3866



Edwards AGC Overview:


The Edwards Active Gauge Controller (AGC) is used with the Edwards Active vacuum gauges. The AGC interfaces directly to 3 or 6 (depending on the AGC model) Active vacuum gauges providing a comprehensive control and display system.

You can use any of the following gauges with the AGC D38660000:

  • Active Pirani APG-M, APG-L
  • Active Inverted Magnetron AIM-S, AIM-X
  • Active Thermocouple ATC-M, ATC-D with ATC-E
  • Active Ion Gauge IGC-I2R, IGC-EBEAM, AIGX
  • Active Strain Gauge ASG
  • Wide Range Gauge WRG
  • Active Linear Pirani APGX
  • Linear Convection Gauge APGX-H

Gauges can be turned on and off manually from the front panel or can be programmed to switch on automatically when the pressure measured by another gauge reaches a pre-set level.

The display and control features of the AGC are accessed through a menu structure. You move through the menu with simple keystroke combinations entered from the front panel. Security of gauge settings is achieved by a two level password system which restricts access to certain areas of the menu. In addition, the AGC can be interfaced to other microprocessor and data acquisition systems through an optional serial RS232 communications link.

The AGC Controller has 6 outputs which can be programmed as gauge pressure set points and so used to control the operation of auxiliary equipment. An optional relay board can be fitted which increases the load capability of these outputs.

The AGC Controller has one chart recorder output for each gauge channel (3 or 6 depending on version). These give an analogue output in the range 0 to 10 V corresponding to the pressure measured by the gauge.


THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.



Edwards AGC Dimensions:


Edwards AGC D38660000, Dimensions


Click Here for Edwards AGC Manual


A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured Call us for Availability
