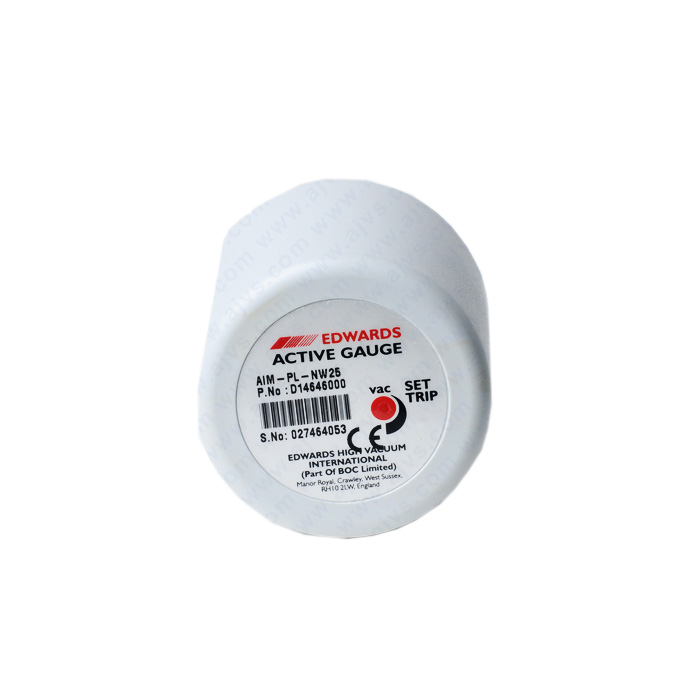

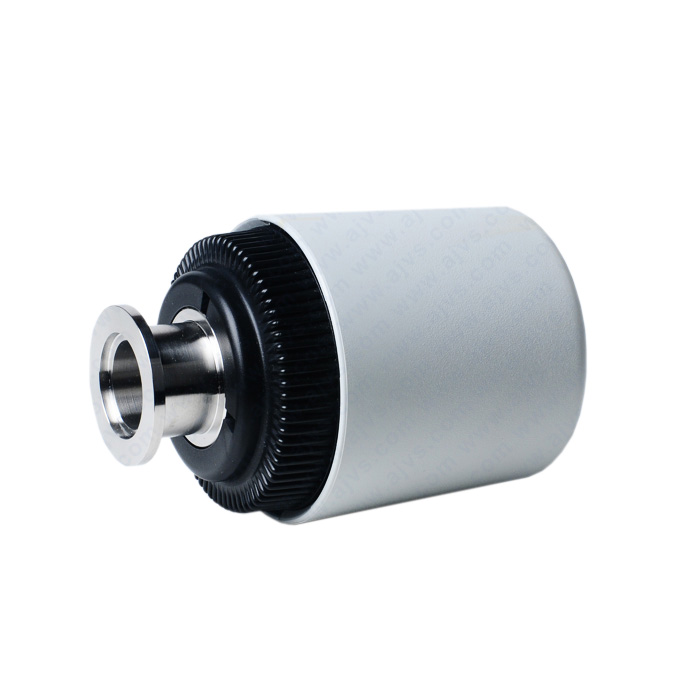

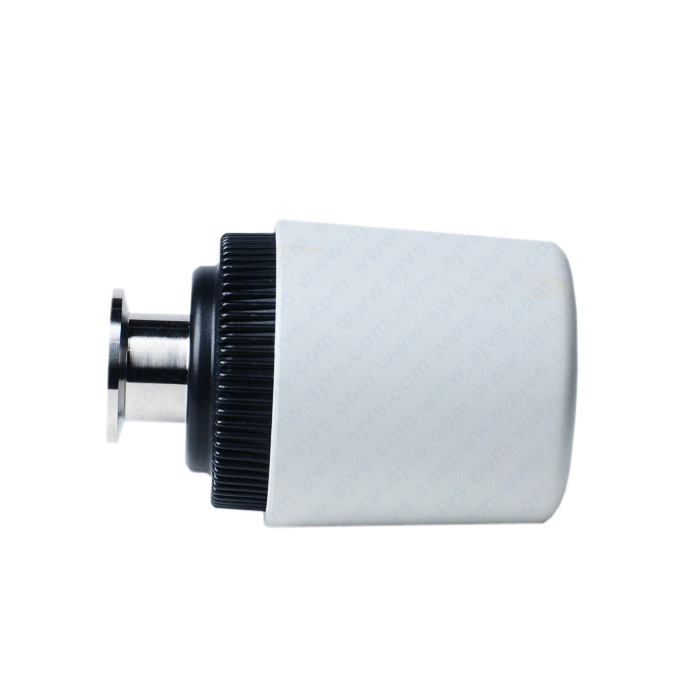

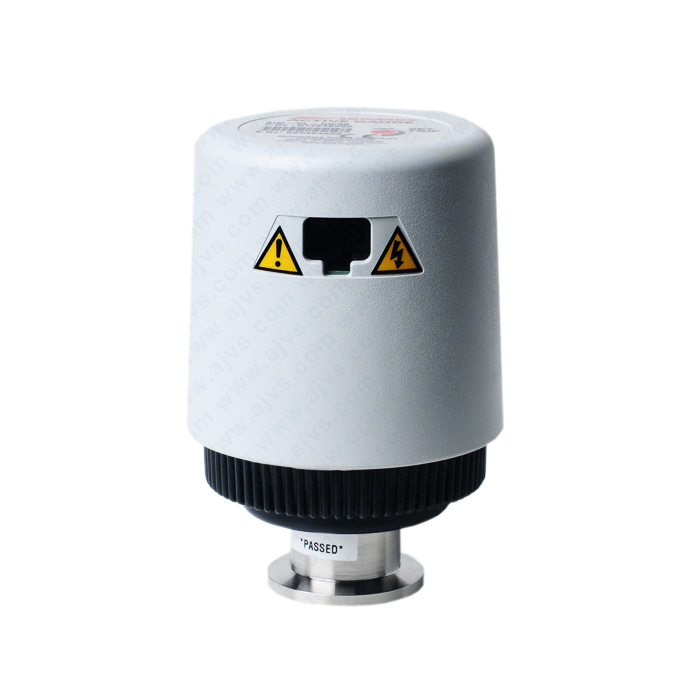

The Edwards Active Inverted Magnetron Gauges (AIM) combine the gauge-head and controller in one compact Active unit. These gauges have proved to be rugged and reliable in a wide range of applications ranging from scientific instruments to industrial processes.

This gauge has a low external magnetic field making it suitable for use with sensitive analytical instruments or maglev turbo pumps. In addition, this gauge features a linear output for easy integration with a computer or PLC.

Edwards AIM PL Technology:

The AIM Gauge is an inverted magnetron gauge head and gauge controller in a single compact unit. The gauge operates as a cold cathode ionisation gauge, in which pressure is measured indirectly as a function of the current that flows in a Townsend discharge maintained in the body tube.

The measurement range of the AIM Gauge is 1 x 10-9 to 1 x 10-2 mbar.

The AIM Gauge requires a 13.5 to 36 V d.c. power supply: it has a 2 to 10 V d.c. analogue output which is related to pressure.

The AIM Gauge is compatible with all of Edwards Active Gauge Controllers and with the appropriate versions of the Active Gauge Displays. Alternatively you can use an independent power supply for the AIM Gauge and you can read the AIM Gauge output signal with a voltmeter or an analogue-to-digital converter.

Edwards AIM PL Applications:

All vacuum applications requiring rugged and reliable pressure indication in the range 1 x 10-2 to 1 x 10-9 mbar. Typical processes range from general vacuum through industrial coaters and furnaces to scientific instruments and semicon.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

Condition: Remanufactured Call us for Availability

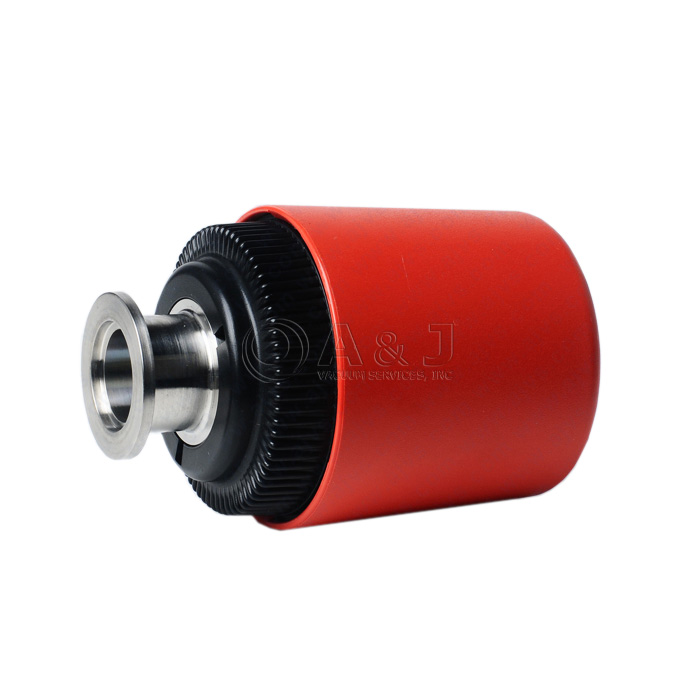

Edwards Inverted Magnetron Gauge AIM SL NW25, D14644000

Item#: PN06948 Mfr Part#: D14644000 Manufacturer: Edwards Vacuum

Price upon request

Edwards Inverted Magnetron Gauge AIM SL NW25 (AIMSLNW25), D14644000

Edwards AIM SL Overview:

Edwards AIM SL Technology:

Edwards AIM SL Applications:

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

Condition: Remanufactured Call us for Availability

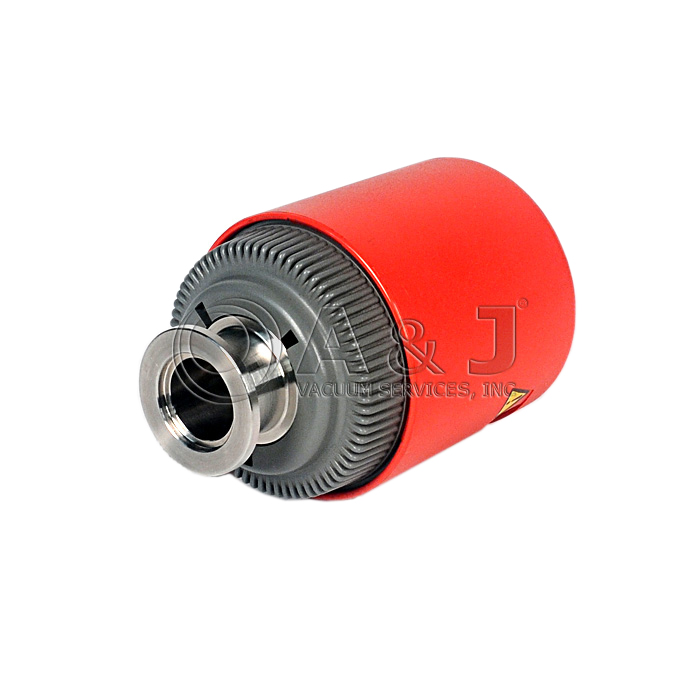

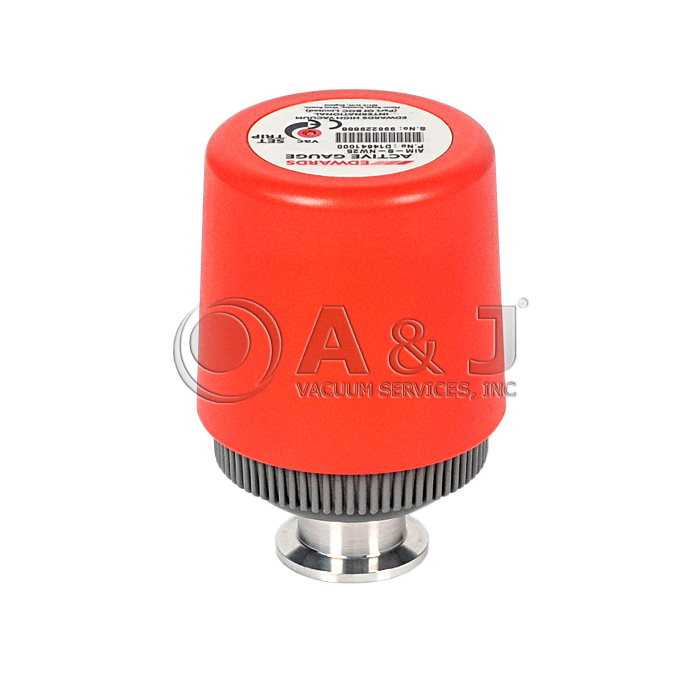

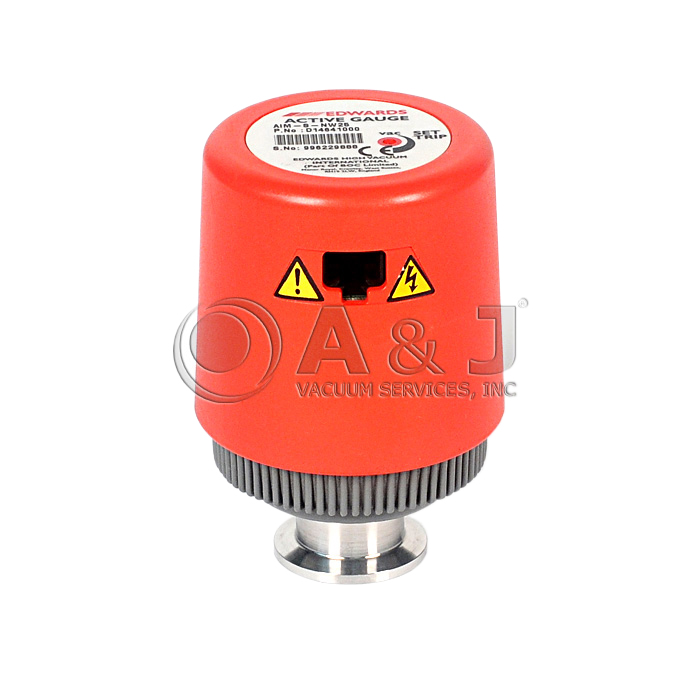

Edwards Inverted Magnetron Gauge AIM SN NW25, D14641000

Item#: PN06949 Mfr Part#: D14641000 Manufacturer: Edwards Vacuum

Price upon request

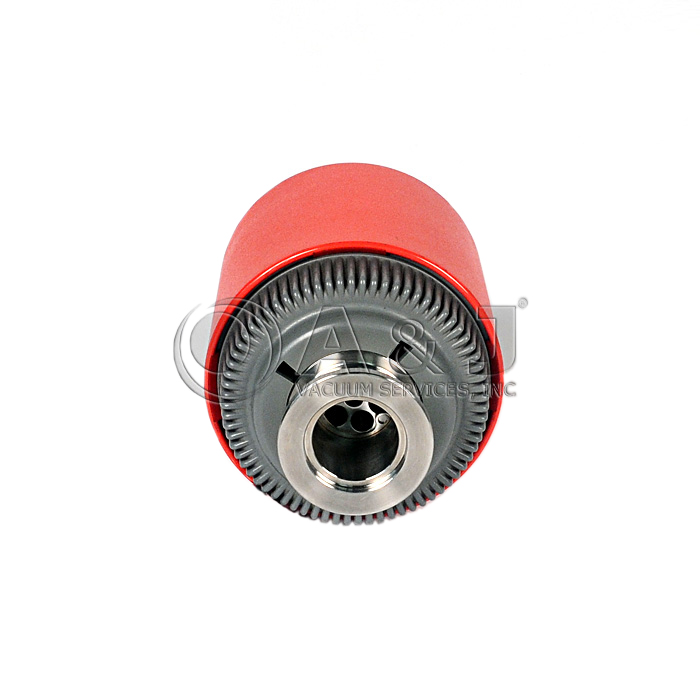

Edwards Inverted Magnetron Gauge AIM SN NW25 (AIMSNNW25), D14641000

Edwards AIM SN Overview:

Edwards AIM SN Technology:

Edwards AIM SN Applications:

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

Condition: Remanufactured Call us for Availability

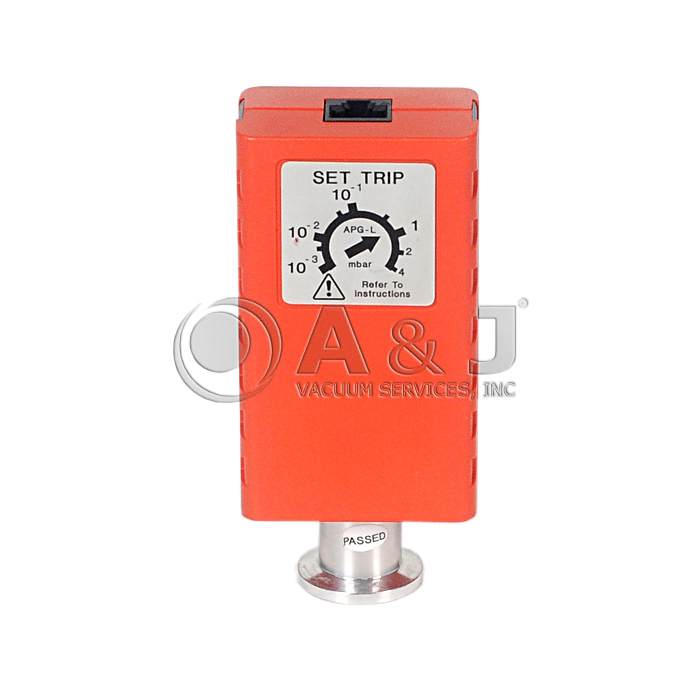

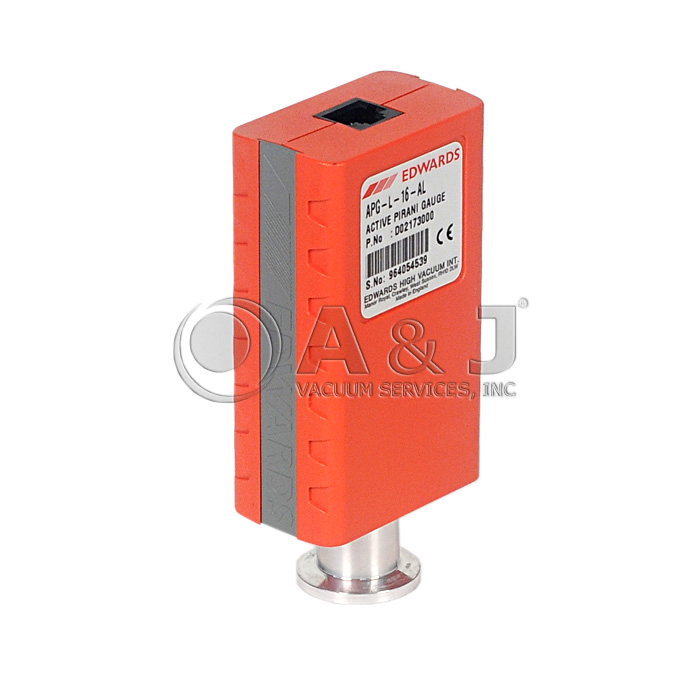

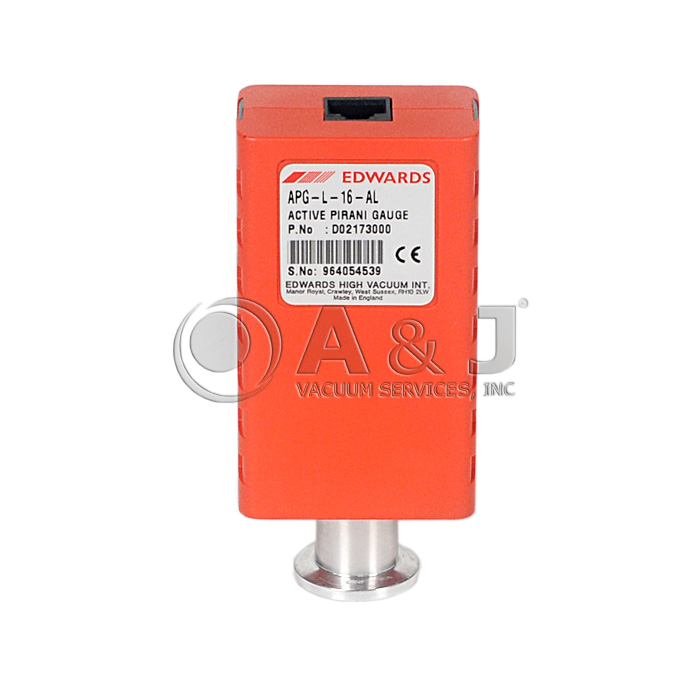

Edwards APG L 16 AL Active Pirani Vacuum Gauge, D02173000

Item#: PN06951 Mfr Part#: D02173000 Manufacturer: Edwards Vacuum

Price upon request

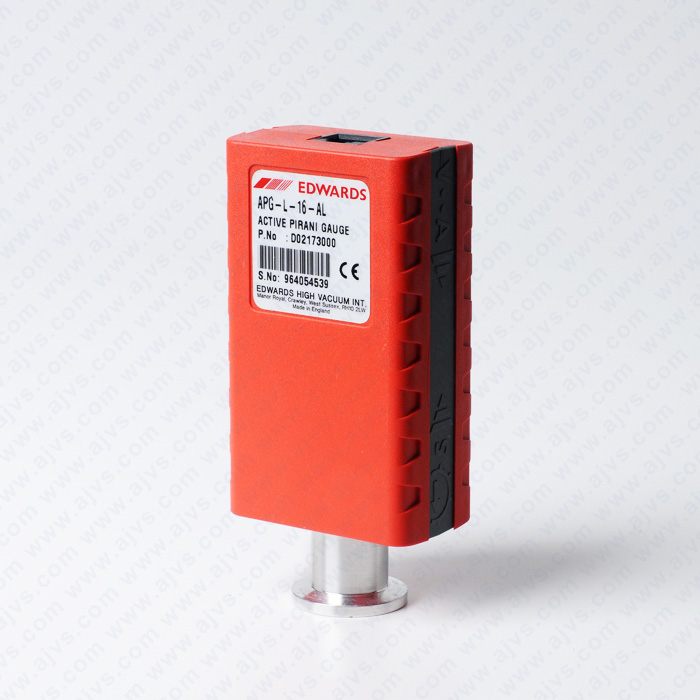

Edwards APG L 16 AL Active Pirani Vacuum Gauge, D02173000

Edwards APG L 16 AL Overview:

The Edwards APG, is a Pirani vacuum gauge and gauge controller in a single compact unit. The measurement range of the APG-M and of the corrosion-resistant APG-MP is 100 to 1 x 10-3 mbar: the range of the APG-L is 10 to 1 x 10-4 mbar. All of the gauges will indicate pressures up to 1000 mbar at reduced accuracy. The APG requires a 20 to 36 V d.c. power supply: it has a 2 to 10 V d.c. analogue output which is related to pressure. The APG is compatible with all of the Edwards AGC’s (Active Gauge Controllers) and with the appropriate versions of the Edwards AGD’s (Active Gauge Displays). Alternatively, you can use an independent power supply for the APG and you can read the APG output signal with a voltmeter or an analogue- to-digital converter.

An 8-way electrical connector socket on the APG is used to connect the APG to your AGC, AGD or electrical supply and voltmeter. Electrical cables fitted with suitable connector plugs are available as accessories. A gauge identification signal is available on the electrical connector: this signal is used by Edwards AGC’s to identify which type of Active gauge is connected, that is one of the following types:
