Found 6 products
Item#: PN07586 Mfr Part#: KF10CRVS Manufacturer: AJVS
PRICE: $9.63
WEB SAVINGS: $2.13
YOU PAY: $7.50

Centering Ring KF 10 With Viton® O-Ring, KF 10 (NW 10), Stainless Steel, The centering ring contains a rubber elastomeric fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF10CRVS, 304 SS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with Viton® O-ring, KF10CRVS

  • A: 0.39 in / 10 mm
  • B: 0.47 in / 12 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center Viton® O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Viton® O-ring provides great resistance to heat and agressive chemicals.

Viton® is a registered treadmark of DuPont Performance Elastomers


Condition: New In Stock
Item#: PN07587 Mfr Part#: KF16CRVS Manufacturer: AJVS
PRICE: $10.18
WEB SAVINGS: $1.68
YOU PAY: $8.50

Centering Ring KF 16 With Viton® O-Ring, KF 16 (NW 16), Stainless Steel, The centering ring contains a rubber elastomeric fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF16CRVS, 304 SS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with Viton® O-ring, KF16CRVS

  • A: 0.63 in / 16 mm
  • B: 0.67 in / 17 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center Viton® O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Viton® O-ring provides great resistance to heat and agressive chemicals.

Viton® is a registered treadmark of DuPont Performance Elastomers


Condition: New In Stock
Item#: PN07588 Mfr Part#: KF25CRVS Manufacturer: AJVS
PRICE: $11.00
WEB SAVINGS: $2.50
YOU PAY: $8.50

Centering Ring KF 25 With Viton® O-Ring, KF 25 (NW 25), Stainless Steel, The centering ring contains a rubber elastomeric fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF25CRVS, 304 SS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with Viton® O-ring, KF25CRVS

  • A: 0.98 in / 25 mm
  • B: 1.02 in / 26 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center Viton® O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Viton® O-ring provides great resistance to heat and agressive chemicals.

Viton® is a registered treadmark of DuPont Performance Elastomers


Condition: New In Stock
Item#: PN07589 Mfr Part#: KF40CRVS Manufacturer: AJVS
PRICE: $17.53
WEB SAVINGS: $2.53
YOU PAY: $15.00

Centering Ring KF 40 With Viton® O-Ring, KF 40 (NW 40), Stainless Steel, The centering ring contains a rubber elastomeric fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF40CRVS, 304 SS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with Viton® O-ring, KF40CRVS

  • A: 1.57 in / 40 mm
  • B: 1.61 in / 41 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center Viton® O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Viton® O-ring provides great resistance to heat and agressive chemicals.

Viton® is a registered treadmark of DuPont Performance Elastomers


Condition: New In Stock
Item#: PN07590 Mfr Part#: KF50CRVS Manufacturer: AJVS
PRICE: $22.50
WEB SAVINGS: $5.50
YOU PAY: $17.00

Centering Ring KF 50 With Viton® O-Ring, KF 50 (NW 50), Stainless Steel, The centering ring contains a rubber elastomeric fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF50CRVS, 304 SS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with Viton® O-ring, KF50CRVS

  • A: 1.97 in / 50 mm
  • B: 2.05 in / 52 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center Viton® O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Viton® O-ring provides great resistance to heat and agressive chemicals.

Viton® is a registered treadmark of DuPont Performance Elastomers


Condition: New In Stock
Item#: PN40708 Mfr Part#: PN40708 / C10512345 Manufacturer: AJVS
PRICE: $30.00
WEB SAVINGS: $6.01
YOU PAY: $23.99

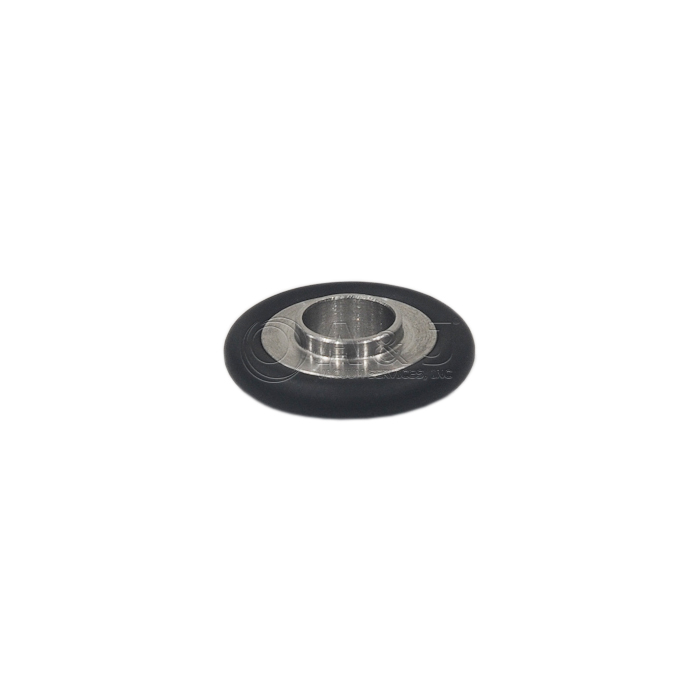

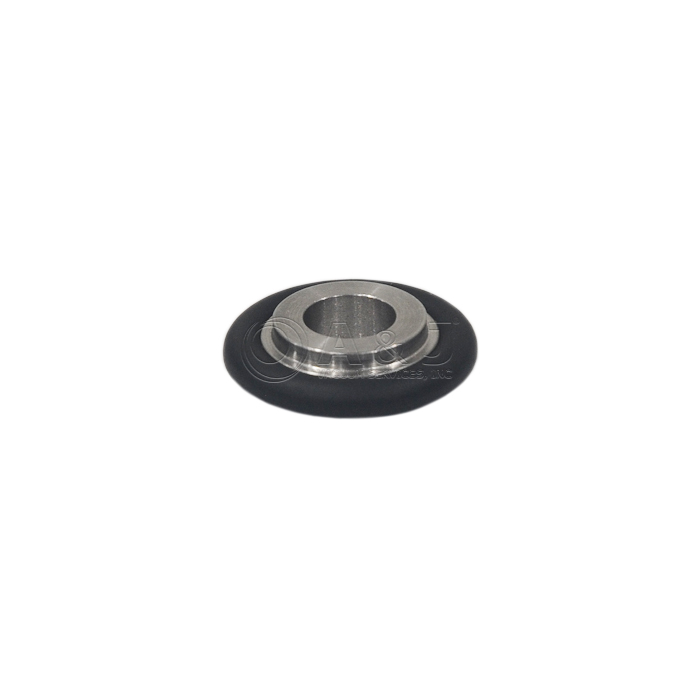

Centering Ring Adapter KF-10 to KF-16, NW10/16, With Viton® O-Ring Stainless Steel, KF10/16, PN40708

NW10 to NW16 O-ring Adapter Overview:

These adapting rings are used to addopt NW10 to NW16 flanges Edwards C10512345

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer fluorocarbon o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

KF (also referred to as NW) assemblies consist of two Flanges, a Center Viton® O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools.

Corrosive resistant stainless steel (316) with Viton® O-ring provides great resistance to heat and agressive chemicals.

Viton® is a registered treadmark of DuPont Performance Elastomers


Condition: New In Stock
