Found 6 products
Item#: PN07798 Mfr Part#: ASA4KA40 Manufacturer: AJVS
PRICE: $399.00
WEB SAVINGS: $24.00
YOU PAY: $375.00

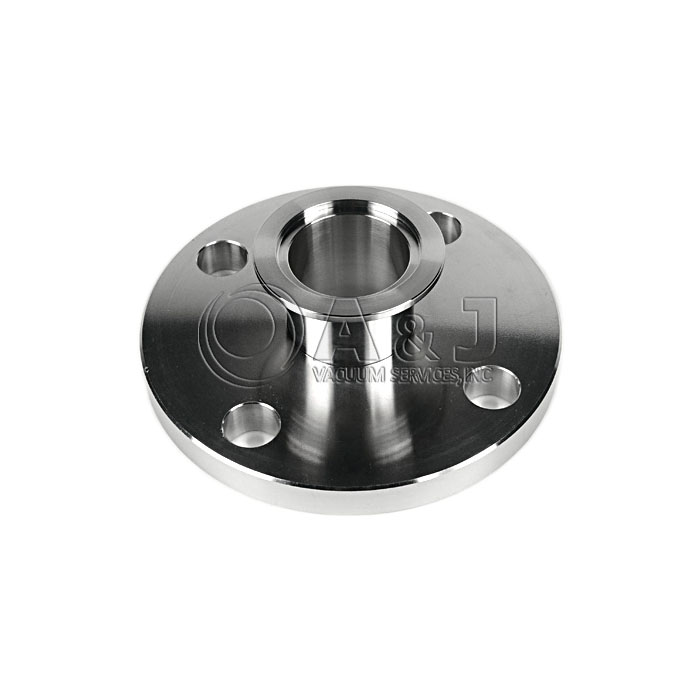

Tubular Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 1.0 inch, Stainless Steel Vacuum Fitting, PN07798


Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 1.0 inch, Stainless Steel Vacuum Fitting Dimensions:

  • A: 4.25 in / 108 mm

  • B: 2.17 in / 55 mm

  • C: 1.65 in / 42 mm

  • D: 1.5 in / 38.1 mm

  • E: 0.62 x 4 in / 15.8 x 4 mm

  • B.C: 3.13 in / 79.4 mm


Overview

Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 1.0 inch, Stainless Steel Vacuum Fitting, PN07798

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40, NW-50.

The KF40 to ASA 1.0 Tubular Adapters are made out of stainless steel, without the ring groove. The KF Tubular Assemblies connect the ISO-KF Flange with ASA vacuum fitting. The KF 40 to ASA 1.0 inch Adapter assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your KF 40 to ASA 1.0 inch Stainless Steel Vacuum Fitting Tubular Adapter.

The KF to NPT Female Pipe Adapters are available in the following sizes:

  • NW 40 to ASA 1.0 inch
  • NW 50 to ASA 1.0 inch
  • NW 40 to ASA 1.5 inch
  • NW 50 to ASA 1.5 inch
  • NW 40 to ASA 3.0 inch
  • NW 50 to ASA 3.0 inch




Condition: New In Stock
Item#: PN07799 Mfr Part#: ASA4KA50 Manufacturer: AJVS
PRICE: $340.00
WEB SAVINGS: $234.01
YOU PAY: $105.99

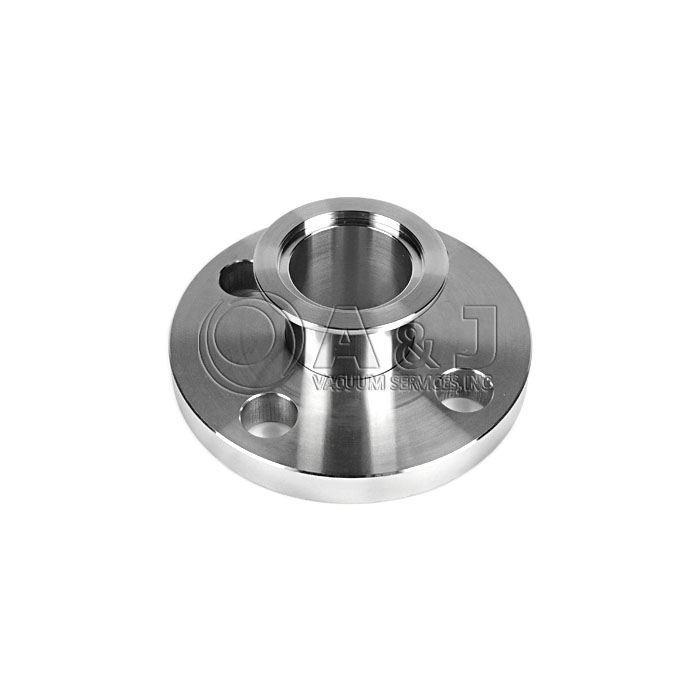

Tubular Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 1.0 inch, Stainless Steel Vacuum Fitting, PN07799


Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 1.0 inch, Stainless Steel Vacuum Fitting Dimensions:

  • A: 4.25 in / 108 mm

  • B: 2.95 in / 75 mm

  • C: 1.65 in / 42 mm

  • D: 2 in / 50.8 mm

  • E: 0.62 x 4 in / 15.8 x 4 mm

  • B.C: 3.13 in / 79.4 mm


Overview

Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 1.0 inch, Stainless Steel Vacuum Fitting, PN07799

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40, NW-50.

The KF50 to ASA 1.0 Tubular Adapters are made out of stainless steel, without the ring groove. The KF Tubular Assemblies connect the ISO-KF Flange with ASA vacuum fitting. The KF 50 to ASA 1.0 inch Adapter assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your KF 50 to ASA 1.0 inch Stainless Steel Vacuum Fitting Tubular Adapter.

The KF to NPT Female Pipe Adapters are available in the following sizes:

  • NW 40 to ASA 1.0 inch

  • NW 50 to ASA 1.0 inch

  • NW 40 to ASA 1.5 inch

  • NW 50 to ASA 1.5 inch

  • NW 40 to ASA 3.0 inch

  • NW 50 to ASA 3.0 inch




Condition: New In Stock
Item#: PN07802 Mfr Part#: ASA7KA40 Manufacturer: AJVS
PRICE: $756.00
WEB SAVINGS: $75.00
YOU PAY: $681.00

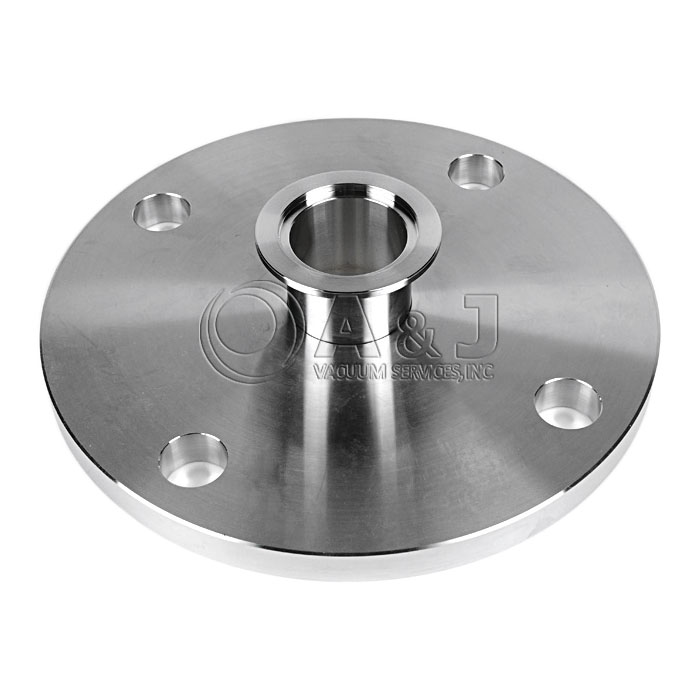

Tubular Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 3.0 inch, Stainless Steel Vacuum Fitting, PN07802


Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 3.0 inch, Stainless Steel Vacuum Fitting Dimensions:

  • A: 7.5 in / 190.5 mm

  • B: 2.17 in / 55 mm

  • C: 1.65 in / 42 mm

  • D: 1.5 in / 38.1 mm

  • E: 0.62 x 4 in / 15.8 x 4 mm

  • B.C: 6 in / 152.4 mm


Overview

Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 3.0 inch, Stainless Steel Vacuum Fitting, PN07802

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40, NW-50.

The KF40 to ASA 3.0 Tubular Adapters are made out of stainless steel, without the ring groove. The KF Tubular Assemblies connect the ISO-KF Flange with ASA vacuum fitting. The KF 40 to ASA 3.0 inch Adapter assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your KF 40 to ASA 3.0 inch Stainless Steel Vacuum Fitting Tubular Adapter.

The KF to NPT Female Pipe Adapters are available in the following sizes:

  • NW 40 to ASA 1.0 inch
  • NW 50 to ASA 1.0 inch
  • NW 40 to ASA 1.5 inch
  • NW 50 to ASA 1.5 inch
  • NW 40 to ASA 3.0 inch
  • NW 50 to ASA 3.0 inch

Condition: New In Stock
Item#: PN07800 Mfr Part#: ASA5KA40 Manufacturer: AJVS
PRICE: $346.00
WEB SAVINGS: $35.00
YOU PAY: $311.00

Tubular Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 1.5 inch, Stainless Steel Vacuum Fitting, PN07800


Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 1.5 inch, Stainless Steel Vacuum Fitting Dimensions:

  • A: 5 in / 127 mm

  • B: 2.17 in / 55 mm

  • C: 1.65 in / 42 mm

  • D: 1.5 in / 38.1 mm

  • E: 0.62 x 4 in / 15.8 x 4 mm

  • B.C: 3.87 in / 98.4 mm


Overview

Adapter KF to ANSI, KF40 (NW40 Flange) to ASA 1.5 inch, Stainless Steel Vacuum Fitting, PN07800

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40, NW-50.

The KF40 to ASA 1.5 Tubular Adapters are made out of stainless steel, without the ring groove. The KF Tubular Assemblies connect the ISO-KF Flange with ASA vacuum fitting. The KF 40 to ASA 1.5 inch Adapter assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your KF 40 to ASA 1.0 inch Stainless Steel Vacuum Fitting Tubular Adapter.

The KF to NPT Female Pipe Adapters are available in the following sizes:

  • NW 40 to ASA 1.0 inch

  • NW 50 to ASA 1.0 inch

  • NW 40 to ASA 1.5 inch

  • NW 50 to ASA 1.5 inch

  • NW 40 to ASA 3.0 inch

  • NW 50 to ASA 3.0 inch


Condition: New
Item#: PN07801 Mfr Part#: ASA5KA50 Manufacturer: AJVS
PRICE: $398.00
WEB SAVINGS: $40.00
YOU PAY: $358.00

Tubular Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 1.5 inch, Stainless Steel Vacuum Fitting, PN07801


Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 1.5 inch, Stainless Steel Vacuum Fitting Dimensions:

  • A: 4.25 in / 108 mm

  • B: 2.95 in / 75 mm

  • C: 1.65 in / 42 mm

  • D: 2 in / 50.8 mm

  • E: 0.62 x 4 in / 15.8 x 4 mm

  • B.C: 3.13 in / 79.4 mm


Overview

Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 1.5 inch, Stainless Steel Vacuum Fitting, PN07799

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40, NW-50.

The KF50 to ASA 1.5 Tubular Adapters are made out of stainless steel, without the ring groove. The KF Tubular Assemblies connect the ISO-KF Flange with ASA vacuum fitting. The KF 50 to ASA 1.5 inch Adapter assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your KF 50 to ASA 1.5 inch Stainless Steel Vacuum Fitting Tubular Adapter.

The KF to NPT Female Pipe Adapters are available in the following sizes:

  • NW 40 to ASA 1.0 inch

  • NW 50 to ASA 1.0 inch

  • NW 40 to ASA 1.5 inch

  • NW 50 to ASA 1.5 inch

  • NW 40 to ASA 3.0 inch

  • NW 50 to ASA 3.0 inch


Condition: New
Item#: PN07803 Mfr Part#: ASA7KA50 Manufacturer: AJVS
PRICE: $950.00
WEB SAVINGS: $115.00
YOU PAY: $835.00

Tubular Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 3.0 inch, Stainless Steel Vacuum Fitting, PN07803


Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 3.0 inch, Stainless Steel Vacuum Fitting Dimensions:

  • A: 7.5 in / 190.5 mm

  • B: 2.95 in / 75 mm

  • C: 1.65 in / 42 mm

  • D: 2 in / 50.8 mm

  • E: 0.75 x 4 in / 19 x 4 mm

  • B.C: 6 in / 152.4 mm


Overview

Adapter KF to ANSI, KF50 (NW50 Flange) to ASA 3.0 inch, Stainless Steel Vacuum Fitting, PN07803

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40, NW-50.

The KF50 to ASA 3.0 Tubular Adapters are made out of stainless steel, without the ring groove. The KF Tubular Assemblies connect the ISO-KF Flange with ASA vacuum fitting. The KF 50 to ASA 3.0 inch Adapter assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your KF 50 to ASA 3.0 inch Stainless Steel Vacuum Fitting Tubular Adapter.

The KF to NPT Female Pipe Adapters are available in the following sizes:

  • NW 40 to ASA 1.0 inch

  • NW 50 to ASA 1.0 inch

  • NW 40 to ASA 1.5 inch

  • NW 50 to ASA 1.5 inch

  • NW 40 to ASA 3.0 inch

  • NW 50 to ASA 3.0 inch


Condition: New
