Found 21 products
Item#: PN06797 Mfr Part#: A73001801 / 73001801 Manufacturer: Edwards Vacuum
PRICE: $895.00
WEB SAVINGS: $51.00
YOU PAY: $844.00

Edwards XDS 35i Dry Scroll Vacuum Pump Tip Seals and Exhaust Kit, A73001801



This XDS35 Kit includes the following parts:


Description

Qty

Exhaust Valve Pad
1

M4 Washer

3
M4 x 8 Cap Srew
3
O-Ring, 29.6 x 2.4
1
Spring
1
O-Ring, 19.6 x 2.4
1
M4 x 12 Cap Screw
3
M5 x 20 Cap Screw
6
M5 Washer
6
XDS30 Tip Seal
2
O-Ring, 246 x 3
1

Click Here to view XDS35i Tip seals replacement instructions Kit A73001801

Click Here to view Edwards XDS 35i Instruction Manual


A&J Vacuum Repair / Rebuild and Service EDWARDS XDS35i Scroll  Pumps models A73001983 and A73005983, we specialize with all Edwards Vacuum Scroll pump repair, AJVS provides all types or service on XDS35i, Tip seal replacement, XDS35 Major  bearing replacement, Electronic s replacement, scroll bellows replacement, along with new line of nXDS Scroll Pumps, Edwards RV series Vacuum Pumps, Edwards Turbo Pumps  repair, Edwards  Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN06799 Mfr Part#: 72601805 Manufacturer: Edwards Vacuum
PRICE: $485.00
WEB SAVINGS: $30.00
YOU PAY: $455.00

Edwards XDS5, XDS10 Tip Seal Kit and Exhaust Kit for Dry Scroll Vacuum Pump, A72601805


The Edwards XDS5 Tip seal Kit and XDS10 Tip Seals and Exhaust Kit includes O-Rings, Tip Seals and Exhaust Valve for the Edwards Vacuum XDS10 Dry Scroll Vacuum Pump.

We also do minor and major repairs for all Edwards Vacuum Dry Scroll Vacuum Pumps.



Tip Seal kit contains the following:


  • 237114034 O-ring Viton 19.5 ID x 3.0
  • A26501066 Exhaust Valve Pad
  • A27102057 Spring 9.27 O/D x 19.5 LG
  • A72601090 Tip Seal XDS5, XDS10
  • H02122033 O-ring 11.6 ID x 2.4 SEC Viton
  • H02122045 O-ring 29.6 ID x 2.4 SEC Viton
  • H02122109 O-ring 199.5 ID x 3.0 SEC Viton
  • H02126012 O-ring 0.487 ID x .103 SEC Viton

A&J Vacuum also Repair / Rebuild and Rervice all Edwards XDS5, XDS10 Scroll Pumps, Turbo Pumps Edwards Vacuum Gauges with Edwards Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN17454 Mfr Part#: A72601842 Manufacturer: Edwards Vacuum
PRICE: $895.00
WEB SAVINGS: $25.00
YOU PAY: $870.00

Edwards XDS5 and XDS10 Dry Scroll Pump Main Motor Bearing, Pack of 5, A72601842


Edwards Vacuum XDS5 and XDS10 Dry Scroll Pump Main Motor Bearing.

We also do major and minor repairs for ALL Edwards dry scroll pumps.


Condition: New In Stock
Item#: PN17455 Mfr Part#: A20408012 Manufacturer: Edwards Vacuum
PRICE: $285.00
WEB SAVINGS: $50.00
YOU PAY: $235.00

Edwards Vacuum XDS5 and XDS10 Dry Scroll Pump Main Motor Bearing.


We also do major and minor repairs for ALL Edwards dry scroll pumps.


THERE ARE NO RETURNS ON THIS PRODUCT.


Condition: New In Stock
Item#: PN20731 Mfr Part#: A73001803 / A730-01-803 Manufacturer: Edwards Vacuum
PRICE: $390.00
WEB SAVINGS: $75.00
YOU PAY: $315.00

Gas Ballast Assembly Kit for Edwards XDS35i, A73001803, Kit #3


Condition: New In Stock
Item#: PN31617 Mfr Part#: A73501718 / A735-01-718 Manufacturer: Edwards Vacuum
PRICE: $2,315.00
WEB SAVINGS: $716.00
YOU PAY: $1,599.00

Bellows for Edwards nXDS6i Scroll Pump / A73501718 / A735-01-718



Product info:

Lenght: 134 mm

O.D. 136 mm

I.D 87 mm



Material type:

Stainless Steel


Condition: New In Stock
Item#: PN18439 Mfr Part#: A73001802 Manufacturer: Edwards Vacuum
PRICE: $1,699.00
WEB SAVINGS: $99.00
YOU PAY: $1,600.00

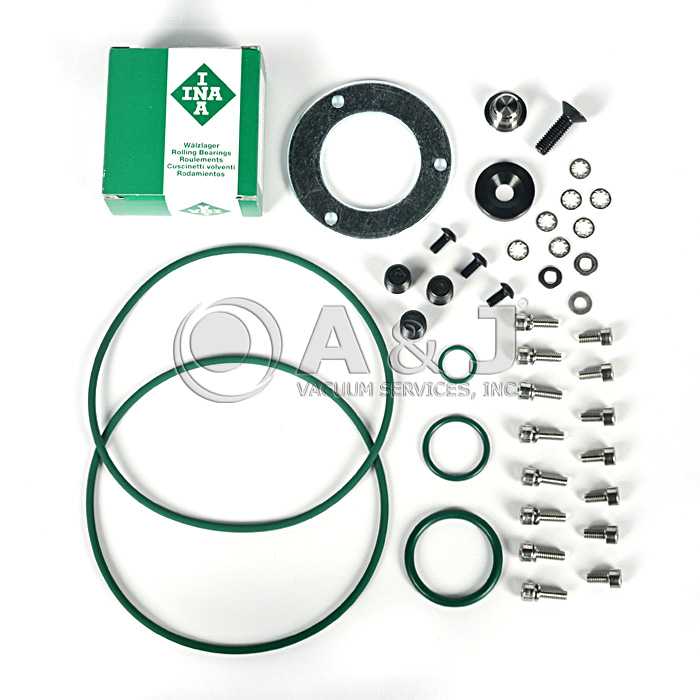

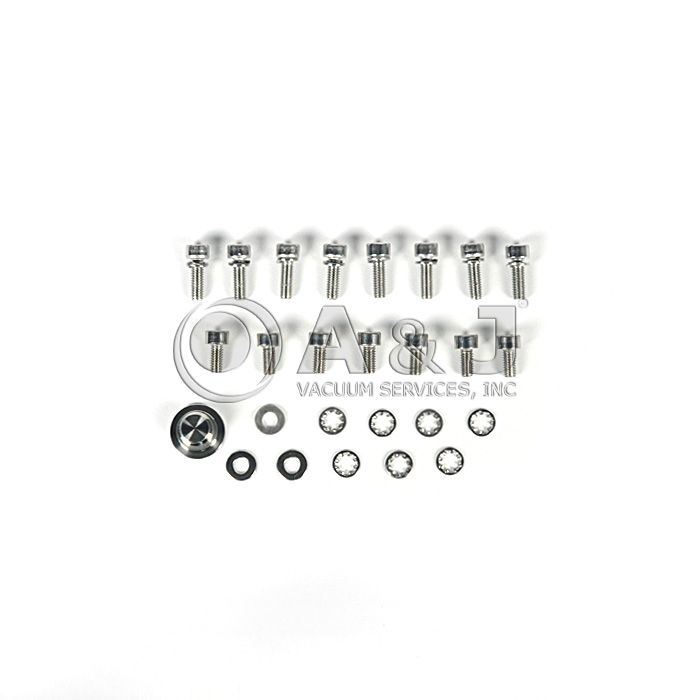

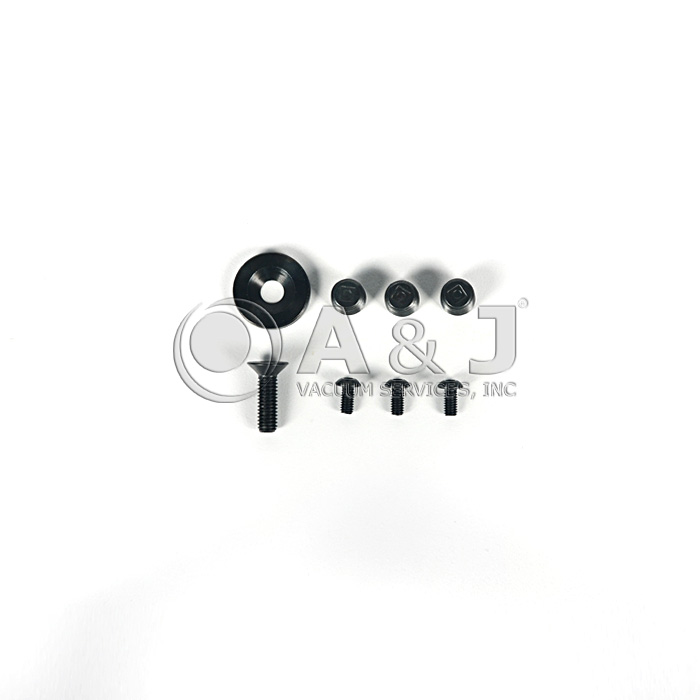

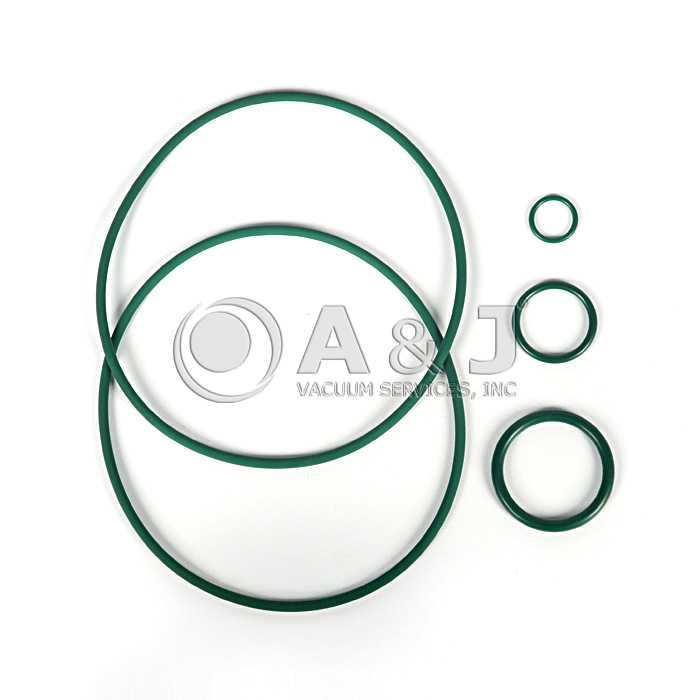

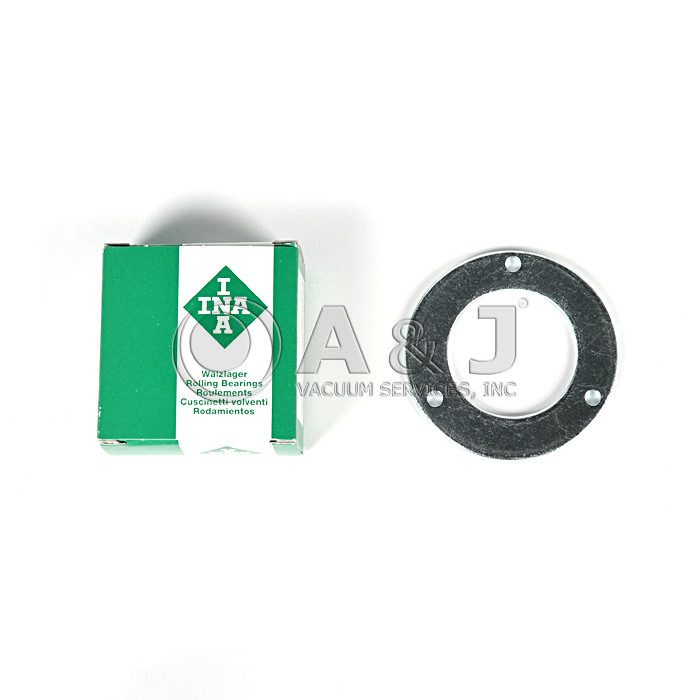

Edwards XDS 35i and XDS 46i Dry Scroll Vacuum Pump General Service Kit, A73001802



This Kit contains the following parts needed for an overhaul and repair of the XDS35i and XDS46i Dry Scroll Vacuum Pump:


Description
Qty
Angular Contact Bearing
1
M4 Washer
6
Shaft End Cap
1
M8 x 25 Screw
1
M8 x 35 Screw
1
M4 x 40 Cap Screw
4
4 x 4 x 12 Key Form
1
M5 x 40 Pan Screw
6
A/C Brg
2
M30 x 2 Thin Nut
1
M4 x 12 Cap Screw
18
M4 Washer
6
Orbital Scroll Plug
1
M6 x 65 Cap Screw
3
Circlip
1
KF25 Flange Ring Cover
1
O-Ring, 174.5 x 3
1
O-Ring, 11.1 x 1.6
1
O-Ring, 49.5 x 3
1
19mm Blanking Plug
1
NW40 Protective Cap
1
M4 Washer
6
O-Ring, 159.5 x 3
1

Click Here to view XDS35i Tip seals replacement instructions Kit A73001801

Click Here to view Edwards XDS 35i Instruction Manual

There are no returns on this product.


A&J Vacuum Repair / Rebuild and Service EDWARDS XDS35i Scroll  Pumps models A73001983 and A73005983, we specialize with all Edwards Vacuum Scroll pump repair, AJVS provides all types or service on XDS35i, Tip seal replacement, XDS35 Major  bearing replacement, Electronic s replacement, scroll bellows replacement, along with new line of nXDS Scroll Pumps, Edwards RV series Vacuum Pumps, Edwards Turbo Pumps  repair, Edwards  Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN41013 Mfr Part#: A73003804 Manufacturer: Edwards Vacuum
PRICE: $0.00
YOU PAY: $245.00

Edwards By-pass valve Kit for XDS 35iE / A73003804







A&J Vacuum Repair / Rebuild and Service Edwards XDS35i SCROLL PUMPS, XDS100B and XDS46i pump service along with all other Edwards Vacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps  repair, Edwards Leak Detector Repair and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN41118 Mfr Part#: GK7440001 Manufacturer: Edwards Vacuum
Price upon request

Edwards OEM Tip Seal Kit, mXDS 3 Scroll Pump , GK7440001, mXDS3




OEM Edwards tip Seal Kit for Edwards mXDS3 Mini Scroll Pump

Edwards Original Tip Seal Service Kit, GK7440001





Click Here to view Edwards mXDS 3 Operating Manual

Click Here to view Edwards mXDS3 Pump Series Broshure






A&J Vacuum repair / rebuild and service all Edwards mXDS 3 Scroll Vacuum Pumps and other Vacuum Pumps, Edwards Helium Leak Detectors, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN41120 Mfr Part#: GK7440003 Manufacturer: Edwards Vacuum
PRICE: $240.00
WEB SAVINGS: $72.00
YOU PAY: $168.00

Edwards OEM Gas Ballast and Exhaust Kit , mXDS 3 Scroll Pump, GK7440003, mXDS3




OEM Edwards Gas Ballast and Exhaust Kit for mXDS3 Mini Scroll Pump

Edwards Original Gas Ballast and Exhaust Service Kit, GK7440003

Used when gas ballast or exhaust pad deteriorates or gets damaged by harsh operation
and sealing properties are reduced. Contains spring, valve pad, gas ballast insert and
additional o-rings



Click Here to view Edwards mXDS 3 Operating Manual

Click Here to view Edwards mXDS3 Pump Series Broshure






A&J Vacuum repair / rebuild and service all Edwards mXDS 3 Scroll Vacuum Pumps and other Vacuum Pumps, Edwards Helium Leak Detectors, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
