Found 8 products
Item#: PN19734 Mfr Part#: D14545802 Manufacturer: Edwards Vacuum
PRICE: $495.00
WEB SAVINGS: $41.00
YOU PAY: $454.00

Edwards AIM Gauge Body Tube Kit, D14545802

The Electrode assembly kit contains one of each of the following components:

  • Cathode Plate
  • Cathode Tube
  • Circlip
  • O-ring
  • Anode Assembly
  • Collar
  • Flat Spanner



Technology



The AIM-X-NW25 Gauge is an inverted magnetron gauge head and gauge controller in a single compact unit. The gauge operates as a cold cathode ionisation gauge, in which pressure is measured indirectly as a function of the current that flows in a Townsend discharge maintained in the body tube.

The measurement range of the AIM-X-NW25 Gauge is 1 x 10-9 to 1 x 10-2 mbar.

The AIM Gauge requires a 13.5 to 36 V d.c. power supply: it has a 2 to 10 V d.c. analogue output which is related to pressure.

The AIM-X-NW25 Gauge is compatible with all of Edwards Active Gauge Controllers and with the appropriate versions of the Active Gauge Displays. Alternatively you can use an independent power supply for the AIM Gauge and you can read the AIM Gauge output signal with a voltmeter or an analogue-to-digital converter.

Applications

All vacuum applications requiring rugged and reliable pressure indication in the range 1 x 10-2 to 1 x 10-9 mbar. Typical processes range from general vacuum through industrial coaters and furnaces to scientific instruments and semicon.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New In Stock
Item#: PN20200 Mfr Part#: D14703801 Manufacturer: Edwards Vacuum
PRICE: $1,350.00
WEB SAVINGS: $112.00
YOU PAY: $1,238.00

Body Tube Assembly Replacement for Edwards WRG-S-DN40CF Wide Range Gauge, D14703801 Edwards WRG Gauge




Overview

The Edwards WRG-S-DN40CF Certified Wide Range Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D1470300C Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.

The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.

The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.



Edwards WRG Technology

The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.

For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S-DN40CF has an easy to program set-point which operates over the entire measurement range.

The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.

The Edwards WRG-S-DN40CF meets EMC requirements for both light industrial emissions and heavy industrial immunity.



Main WRG Gauge Features

  • Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
  • D-type version including cable strain relief and enhanced ingress protection - IP44
  • Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
  • Easily programmed set point covering entire measuring range
  • Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
  • Automatic vacuum setting of Pirani gauge element
  • Single push button atmosphere setting
  • Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
  • Ultra compact, featuring recessed electrical connector
  • Easy service; both Pirani and magnetron elements are individually replaceable
  • Comprehensive failure mode diagnostics facility

Click here for Edwards WRG-S-DN40CF Operation Manual D1470300Chttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf

Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf




A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New In Stock
Item#: PN20201 Mfr Part#: D14701801 Manufacturer: Edwards Vacuum
PRICE: $1,099.00
WEB SAVINGS: $49.00
YOU PAY: $1,050.00

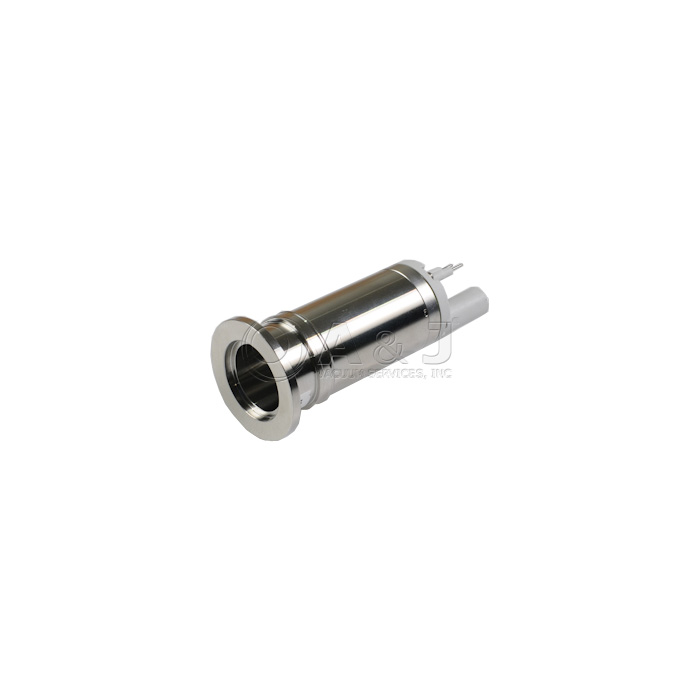

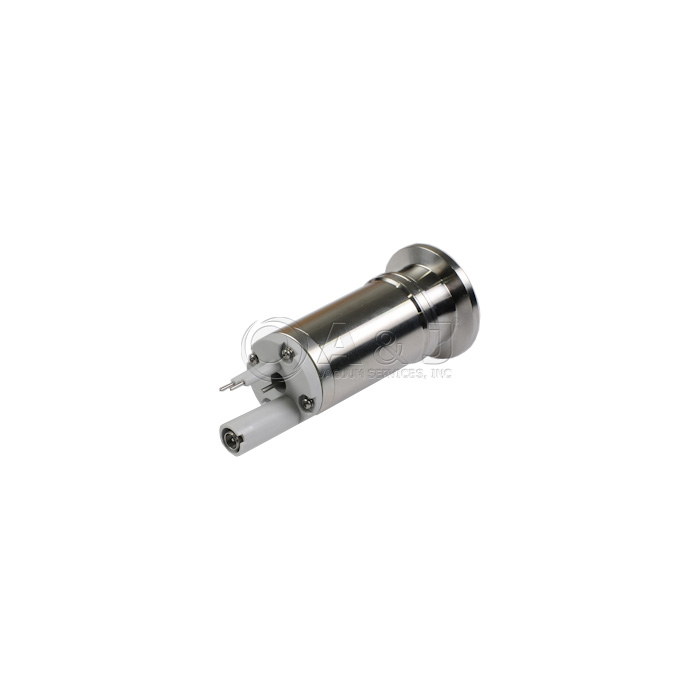

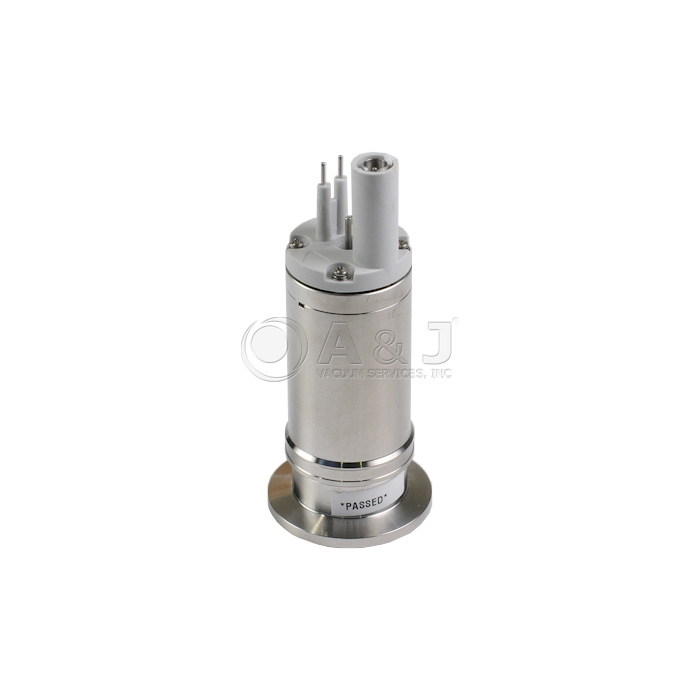

Body Tube Assembly Replacement for Edwards WRG-S-25NW Wide Range Gauge, D14701801 Edwards WRG Gauge




Overview

The Edwards WRG-S-25NW Wide Range Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D1470300C Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.

The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.

The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.



Edwards WRG Technology

The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.

For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S-DN40CF has an easy to program set-point which operates over the entire measurement range.

The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.

The Edwards WRG-S-DN40CF meets EMC requirements for both light industrial emissions and heavy industrial immunity.



Main WRG Gauge Features

  • Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
  • D-type version including cable strain relief and enhanced ingress protection - IP44
  • Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
  • Easily programmed set point covering entire measuring range
  • Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
  • Automatic vacuum setting of Pirani gauge element
  • Single push button atmosphere setting
  • Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
  • Ultra compact, featuring recessed electrical connector
  • Easy service; both Pirani and magnetron elements are individually replaceable
  • Comprehensive failure mode diagnostics facility

Click here for Edwards WRG-S-25NW Operation Manual D14703801https://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf

Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf




A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New In Stock
Item#: PN20202 Mfr Part#: D14701802 Manufacturer: Edwards Vacuum
PRICE: $675.00
YOU PAY: $675.00

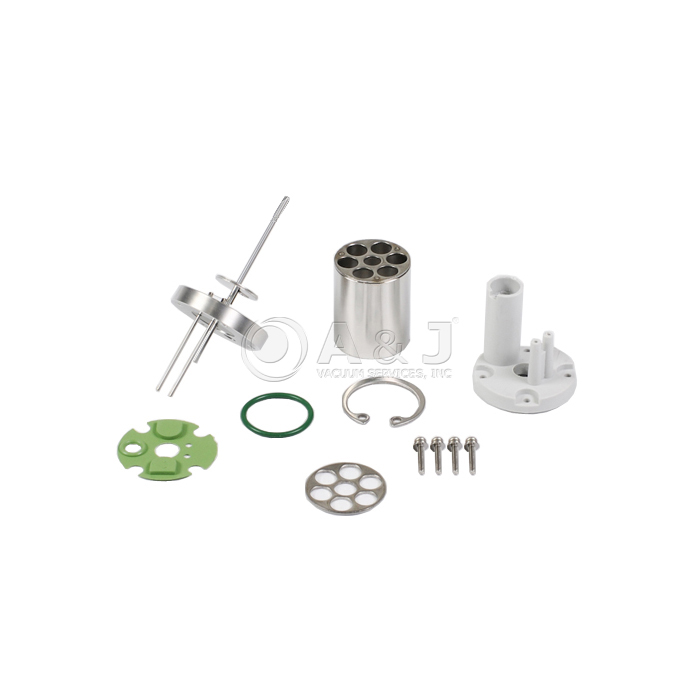

Edwards WRG-S Wide Range Gauge, Electrode Kit Assembly D14701802




Overview

The Edwards WRG-S Wide Range Gauge Electrode Kit Assembly D14701802 allows user to replace and repair WRG Gauge on site.

WRG Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D14701803 Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.

The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.

The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.



Edwards WRG Technology

The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.

For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S has an easy to program set-point which operates over the entire measurement range.

The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.

The Edwards WRG-S meets EMC requirements for both light industrial emissions and heavy industrial immunity.



Main WRG Gauge Features

  • Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
  • D-type version including cable strain relief and enhanced ingress protection - IP44
  • Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
  • Easily programmed set point covering entire measuring range
  • Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
  • Automatic vacuum setting of Pirani gauge element
  • Single push button atmosphere setting
  • Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
  • Ultra compact, featuring recessed electrical connector
  • Easy service; both Pirani and magnetron elements are individually replaceable
  • Comprehensive failure mode diagnostics facility

Click here for Edwards WRG-S Operation Manual D14703801http://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf

Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf




A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New In Stock
Item#: PN20203 Mfr Part#: D14701803 Manufacturer: Edwards Vacuum
PRICE: $779.00
WEB SAVINGS: $80.00
YOU PAY: $699.00

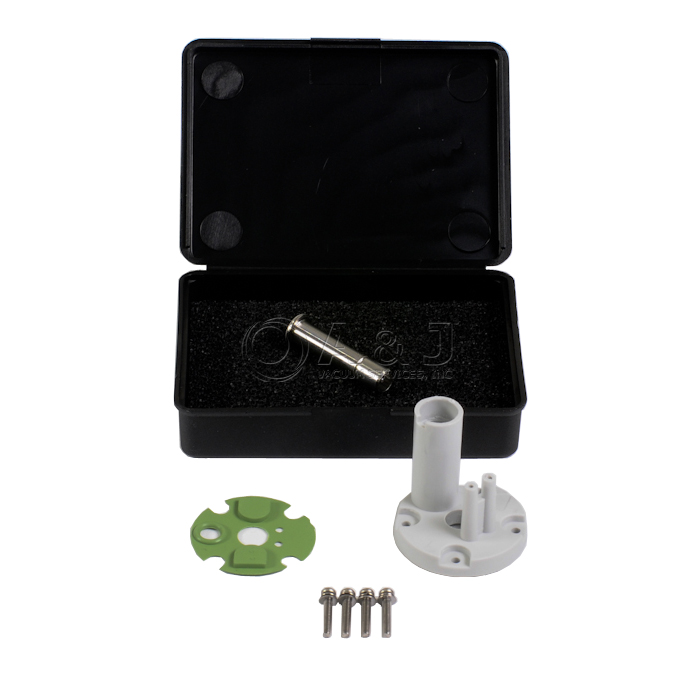

Edwards WRG-S Wide Range Gauge Pirani Tube Replacement Kit D14701803




Overview

The Edwards WRG-S Wide Range Gauge Pirani Tube Replacement D14701803 allows user to replace and repair WRG Gauge on site.

WRG Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D14701803 Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.

The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.

The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.



Edwards WRG Technology

The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.

For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S has an easy to program set-point which operates over the entire measurement range.

The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.

The Edwards WRG-S meets EMC requirements for both light industrial emissions and heavy industrial immunity.



Main WRG Gauge Features

  • Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
  • D-type version including cable strain relief and enhanced ingress protection - IP44
  • Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
  • Easily programmed set point covering entire measuring range
  • Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
  • Automatic vacuum setting of Pirani gauge element
  • Single push button atmosphere setting
  • Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
  • Ultra compact, featuring recessed electrical connector
  • Easy service; both Pirani and magnetron elements are individually replaceable
  • Comprehensive failure mode diagnostics facility

Click here for Edwards WRG-S Operation Manual D14703801http://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf

Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf




A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New In Stock
Item#: PN23924 Mfr Part#: D14545801 Manufacturer: Edwards Vacuum
PRICE: $455.00
WEB SAVINGS: $20.00
YOU PAY: $435.00



The Electrode assembly kit contains one of each of the following components:

  • Cathode Plate
  • Cathode Tube
  • Circlip
  • O-ring
  • Anode Assembly
  • Collar
  • Flat Spanner



Technology



The AIM-X-NW25 Gauge is an inverted magnetron gauge head and gauge controller in a single compact unit. The gauge operates as a cold cathode ionisation gauge, in which pressure is measured indirectly as a function of the current that flows in a Townsend discharge maintained in the body tube.

The measurement range of the AIM-X-NW25 Gauge is 1 x 10-9 to 1 x 10-2 mbar.

The AIM Gauge requires a 13.5 to 36 V d.c. power supply: it has a 2 to 10 V d.c. analogue output which is related to pressure.

The AIM-X-NW25 Gauge is compatible with all of Edwards Active Gauge Controllers and with the appropriate versions of the Active Gauge Displays. Alternatively you can use an independent power supply for the AIM Gauge and you can read the AIM Gauge output signal with a voltmeter or an analogue-to-digital converter.

Applications

All vacuum applications requiring rugged and reliable pressure indication in the range 1 x 10-2 to 1 x 10-9 mbar. Typical processes range from general vacuum through industrial coaters and furnaces to scientific instruments and semicon.

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
Item#: PN36214 Mfr Part#: D02395801 Manufacturer: Edwards Vacuum
PRICE: $500.00
WEB SAVINGS: $75.00
YOU PAY: $425.00

Edwards APGX-H Stainless Steel Tube, NW16, D02395801






*Complete APGX-H-NW16 is not included*



Edwards APGX-H-NW16 (Stainless Steel) Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10-4 mbar (1000 to 2.3 x 10-4 Torr). The use of APGX-H-NW16 convection technology ensures accuracy and sensitivity are maintained to the top of the range.

The Edwards APGX-H-NW16 is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.

The Edwards APGX-H-NW25 uses the constant temperature principle in which the cooling effect of the gas on the filament is overcome by varying the voltage applied, which in turn maintains a constant resistance and keeps the circuit in equilibrium. This voltage is therefore a measure of the pressure in the gauge tube. It should be noted that different gasses have different thermal properties and as such the output of Edwards APGX-H-NW16 is gas dependant.



APGX-H NW16 Dimensions:




*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*




A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
Item#: PN20204 Mfr Part#: D14701804 Manufacturer: Edwards Vacuum
PRICE: $880.00
WEB SAVINGS: $40.01
YOU PAY: $839.99

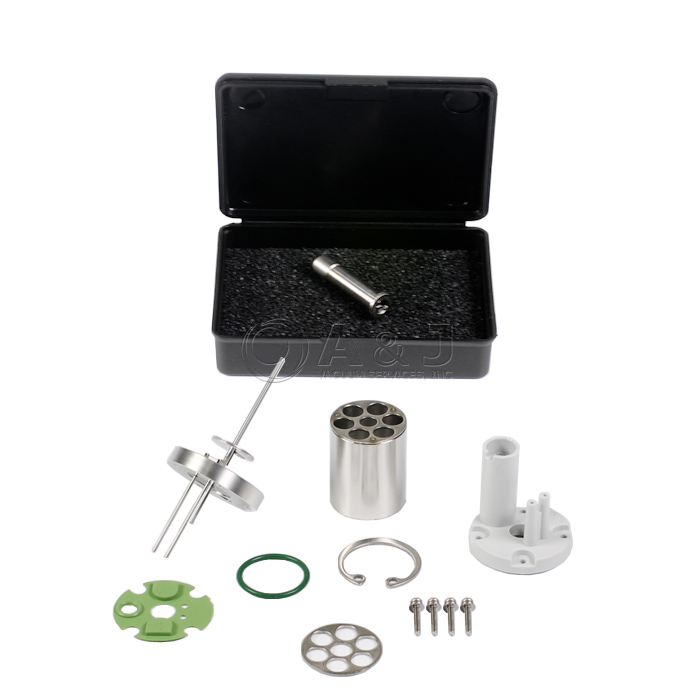

Edwards WRG-S Wide Range Gauge Full Body Tube Service Kit D14701804




Overview

The Edwards WRG-S Wide Range Gauge Full Body Tube Service Kit D14701804 allows user to replace and repair WRG Gauge on site.

WRG Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D14701804 Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.

The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.

The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.



Edwards WRG Technology

The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.

For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S has an easy to program set-point which operates over the entire measurement range.

The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.

The Edwards WRG-S meets EMC requirements for both light industrial emissions and heavy industrial immunity.



Main WRG Gauge Features

  • Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
  • D-type version including cable strain relief and enhanced ingress protection - IP44
  • Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
  • Easily programmed set point covering entire measuring range
  • Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
  • Automatic vacuum setting of Pirani gauge element
  • Single push button atmosphere setting
  • Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
  • Ultra compact, featuring recessed electrical connector
  • Easy service; both Pirani and magnetron elements are individually replaceable
  • Comprehensive failure mode diagnostics facility

Click here for Edwards WRG-S Operation Manual D14701804 http://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf

Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf




A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
Contact
A&J Vacuum Services
16 Somerset Place, Clifton, NJ 07012
Customer Service
Phone: 973-249-0854, Fax: 973-249-0855
Service Hours
8:00am to 5:00pm, Monday thru Friday EST
All trademarks, trade names or logons mentioned or used are the property of their respective owners.
