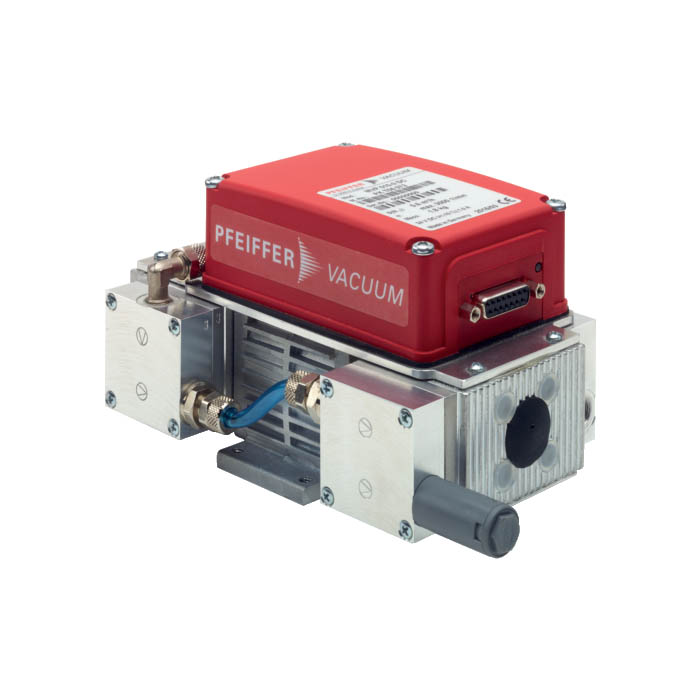

Pfeiffer MVP 010-3 DC Diaphragm Vacuum Pump Overview:
Pfeiffer MVP 10 Diaphragm Vacuum Pump is a dry compressor vacuum pump with four pump stages.
Pfeiffer MVP010 diaphragm pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 010 3 DC Vacuum Pump Applications:
A&J Vacuum repair / rebuild and service all Pfeiffer Adixen MVP Series Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Technical Data:
Pumping speed | 0.6 m³/h | 0.35 cfm | 10 l/min |
Ultimate pressure without gas ballast | ≤ 1 hPa | ≤ 0.75 Torr | ≤ 1 mbar |
Flange (in) | G 1/8" |
Number of pumping stages | 4 |
Flange (out) | G 1/8" with silencer (separate package) |
Motor version | DC motor |
Voltage: Range | ± 10 % |
Current max. | 2.5 A |
Rated current absorption | 1.3 A |
Short circuit current of power supply, max. | 45 A |
Protection category | IP 20 |
Operating altitude, max. | 2000 m |
Rotation speed | 540-3,000 rpm | 540-3,000 min-1 |
Cooling method, standard | Convection cooled |
Ambient temperature | 5-40 °C | 41-104 °F | 278-313 K |
Temperature: Storage | 5-40 °C | 41-104 °F | 278-313 K |
Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
I/O interfaces | RS-485 |
Sound pressure level | 50 dB(A) |
Emission sound pressure level without gas ballast or purge | 50 dB(A) |
Switch New | No |
Leak rate | ≤ 5 · 10-4 Pa m3/s | ≤ 3.75 · 10-3 Torr l/s | ≤ 5 · 10-3mbar l/s |
Weight | 2 kg | 4.41 lb |
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
