Found 2 products
Item#: PN15507 Mfr Part#: 3617OB Manufacturer: Solvay Solexis
PRICE: $236.39
WEB SAVINGS: $4.64
YOU PAY: $231.75

Solvay Solexis Fomblin PFPE, Y L-VAC 16/6 Grade Inhert Vacuum Pump Lubricant, 1 kg, 3617OB


Overview

Fomblin PFPE fluid can be used in diffusion pumps without any modification to the pump. The major advantage in changing to Fomblin fluid is the reduction in contamination of the vacuum apparatus due to their very low backstreaming characteristics and elimination of solid deposit formation.

Working in the appropriate temperature range, the use of a cooling baffle is not critical with regard to ultimate pressure value, but best stability performance have been obtained with a single water cooled baffle. Low ultimate pressure is a typical benefit.

It is recommended that fluid temperature be kept below 280 °C for long fluid life. Under recommended operating procedures, Fomblin PFPE fluids will not decompose. However, gross pump misuse above 290 °C could result in partial decomposition and release of toxic gases. Improved safety can be obtained by absorbing the gases in a glass tube filled with granular calcium oxide at the end of the vacuum system.

Applications

Fomblin fluids are suggested for applications requiring the highest quality vacuum such as in scanning electron and transmission microscopes, mass spectrometers, particle accelerators, ion implantation, plasma and vapor deposition processes.

In addition, it is suggested for pumps handling reactive gases such as UF6, F2, oxygen, ozone and tritium, as the fluid can be used in direct contact with these gases without reaction and fluid degradation.






A&J Vacuum repairs / rebuilds and services all Vacuum Pumps, including Turbo Vacuum Pumps and Rotary Vane Pumps, Pumping Stations.  Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN07257 Mfr Part#: 3617OB Manufacturer: Solvay Solexis
PRICE: $236.39
WEB SAVINGS: $4.64
YOU PAY: $231.75

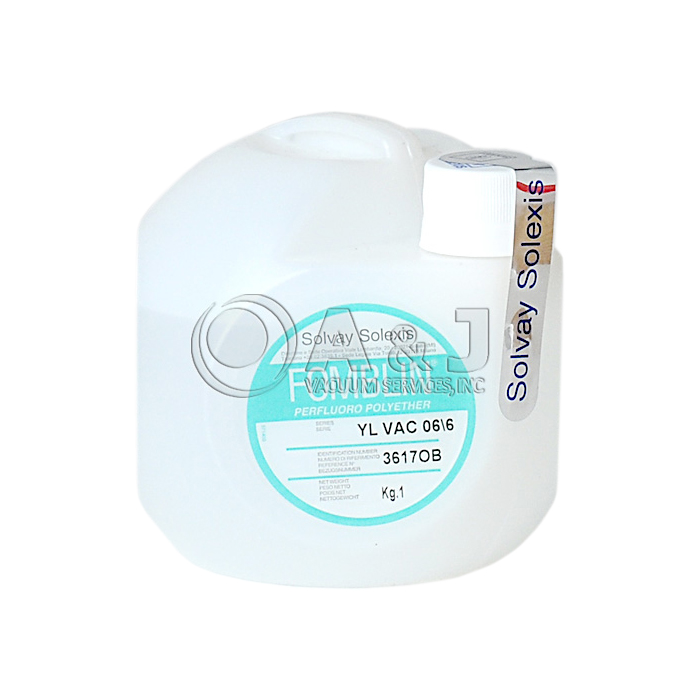

Solvay Solexis Fomblin PFPE, Y L-VAC 06/6 Grade Inhert Vacuum Pump Lubricant, 1 kg, 3617OB


Overview

Fomblin PFPE fluid can be used in diffusion pumps without any modification to the pump. The major advantage in changing to Fomblin fluid is the reduction in contamination of the vacuum apparatus due to their very low backstreaming characteristics and elimination of solid deposit formation.

Working in the appropriate temperature range, the use of a cooling baffle is not critical with regard to ultimate pressure value, but best stability performance have been obtained with a single water cooled baffle. Low ultimate pressure is a typical benefit.

It is recommended that fluid temperature be kept below 280 °C for long fluid life. Under recommended operating procedures, Fomblin PFPE fluids will not decompose. However, gross pump misuse above 290 °C could result in partial decomposition and release of toxic gases. Improved safety can be obtained by absorbing the gases in a glass tube filled with granular calcium oxide at the end of the vacuum system.

Applications

Fomblin fluids are suggested for applications requiring the highest quality vacuum such as in scanning electron and transmission microscopes, mass spectrometers, particle accelerators, ion implantation, plasma and vapor deposition processes.

In addition, it is suggested for pumps handling reactive gases such as UF6, F2, oxygen, ozone and tritium, as the fluid can be used in direct contact with these gases without reaction and fluid degradation.






A&J Vacuum repairs / rebuilds and services all Vacuum Pumps, including Turbo Vacuum Pumps and Rotary Vane Pumps, Pumping Stations.  Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854








Condition: New
