Edwards EMF 3 Odor Element for the EMF3 Oil Mist Exhaust Filter, (pack of 1) A22304081 / A223-04-081
Overview:
Edwards EMF3 Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter. Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.
The EMF3 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:
- Edwards Speedivac 2
- Edwards E2M1.5
- Edwards E2M2
Edwards EMF3 Mist Element for the EMF3 Oil Mist Exhaust Filter, (pack of 1) A22304197
Overview:
Edwards EMF3 Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter. Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.
The EMF3 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:
- Edwards Speedivac 2
- Edwards E2M1.5
- Edwards E2M2
Edwards EMF10 Odor Element for the EMF10 Oil Mist Exhaust Filter, (pack of 1)
Overview:
Edwards EMF Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter. Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.
The EMF10 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:
- Edwards RV3
- Edwards RV 5
- Edwards RV8
- Edwards E1M5
- Edwards E2M5
- Edwards E1M8
- Edwards E2M8
- Edwards E2M12
Edwards Vacuum EMF3 D Seal, Between Upper and Lower Body Halves. A27159536
Edwards Vacuum EMF10 D Seal, Between Upper and Lower Body Halves. A27159535
Edwards Vacuum EMF 20 D Seal, Between Upper and Lower Body Halves, A27159534
Edwards EMF20 Odor Element for the EMF20 Oil Mist Exhaust Filter, (pack of 1)
Overview:
Edwards EMF20 Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter. Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.
The EMF20 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:
- Edwards RV12
- Edwards E1M18
- Edwards E2M18
Edwards EMF20 Mist Element for the EMF 20 Oil Mist Exhaust FIlter, (Pack of 1) A22304199
Overview:
Edwards EMF20 Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter.
Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.
The EMF20 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:
- Edwards RV12
- Edwards E1M18
- Edwards E2M18
Edwards Activated Alumina For Edwards FL20K Foreline Inlet Trap, 1LB, H02600050
Overview:
New Edwards Activated Alumina for Edwards FL20K Foreline Inlet Trap (H026-00-050).
- Remarkable trapping properties for oil mist (99.7%)
- Long lasting, strong saturation tolerance
- Able to rejuvenate by baking process
Edwards Activated Alumnia is compatible with the following pump models: RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12, E1M18, E2M18, E2M28 and E2M30

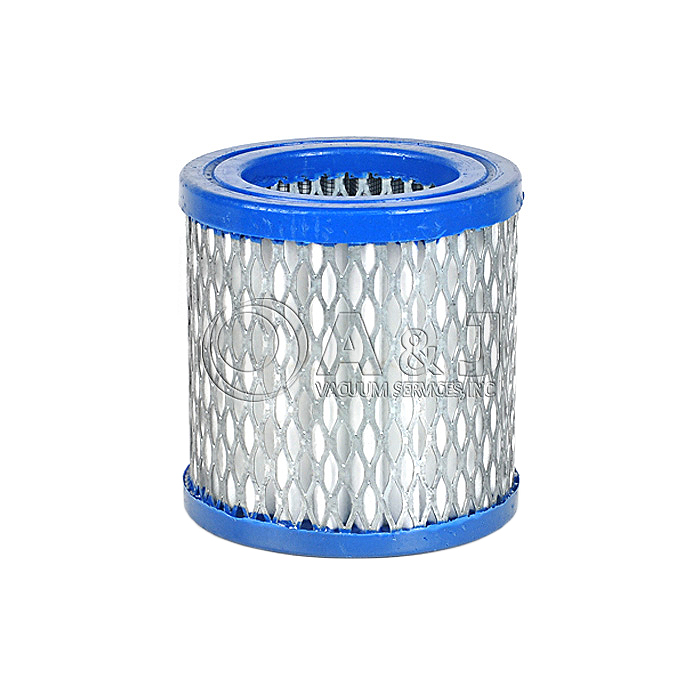

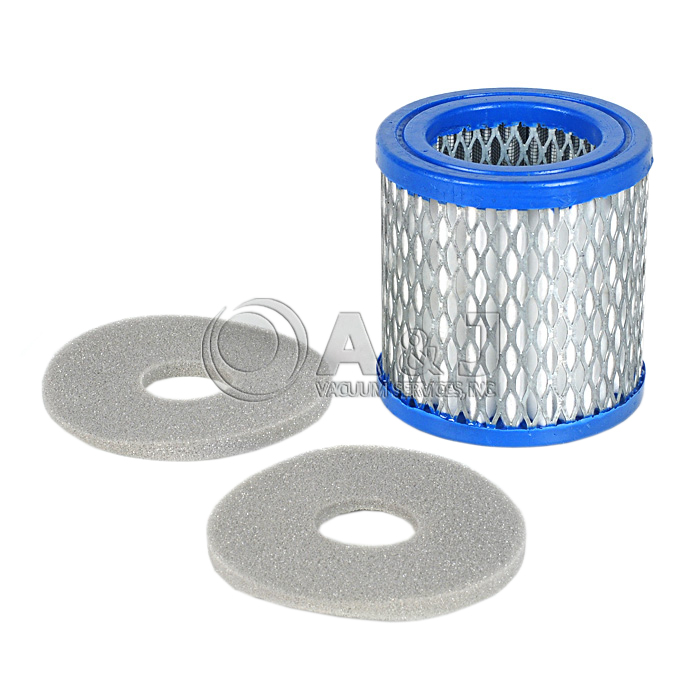

Edwards ITF20K (ITF 20K) Vacuum Pump Inlet Dust Filter Replacement Filter, A442-01-800
Overview:
Replacement Filter for Edwards Vacuum ITF20K Inlet Dust Filter.
Inlet traps, dust filters and catchpots have an aluminium body with a removable metal top cover/or sight-glass. The inlet-port is at a tangent to the body to achieve a degree of centrifugal separation of solid and liquid particles.
All inlet traps, catchpots and filters of the same size have the same body. The traps and filters have containers and filter elements which fit inside the body.
To provide maximum protection to the pumping system they should be installed as close to the vacuum pumping system as is possible.
The ITF Inlet Dust Filter prevents the entry of dust particles into the pump.
The filter material is a man-made fibre. You can see the condition of the filter element through the sight-glass.
Features:
- Thick aluminum casting, to withstand abrasion
- Tangential entry port, to promote centrifugal separation of dust particles
- Filter efficiency better than 96%
