Found 2 products

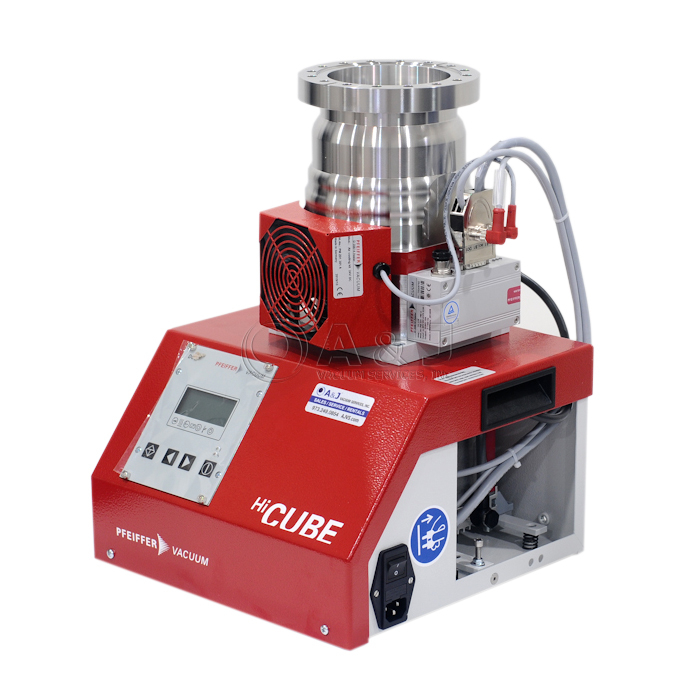

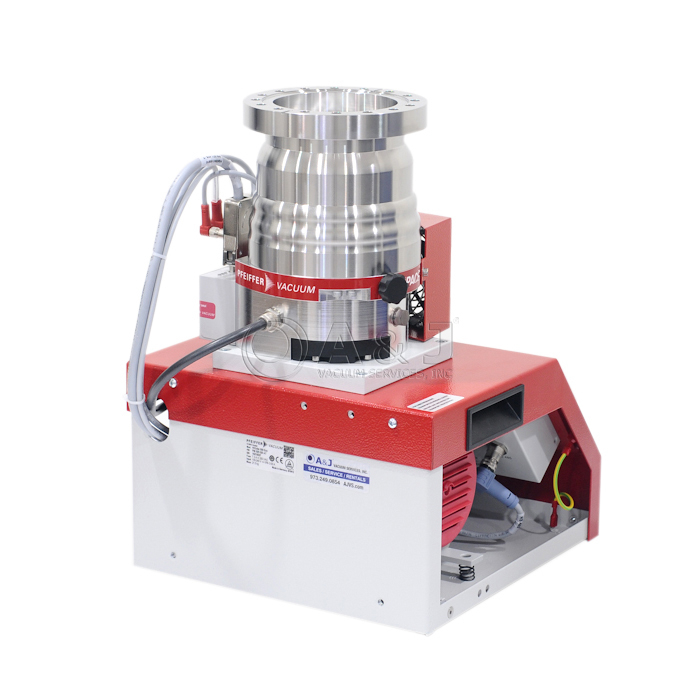

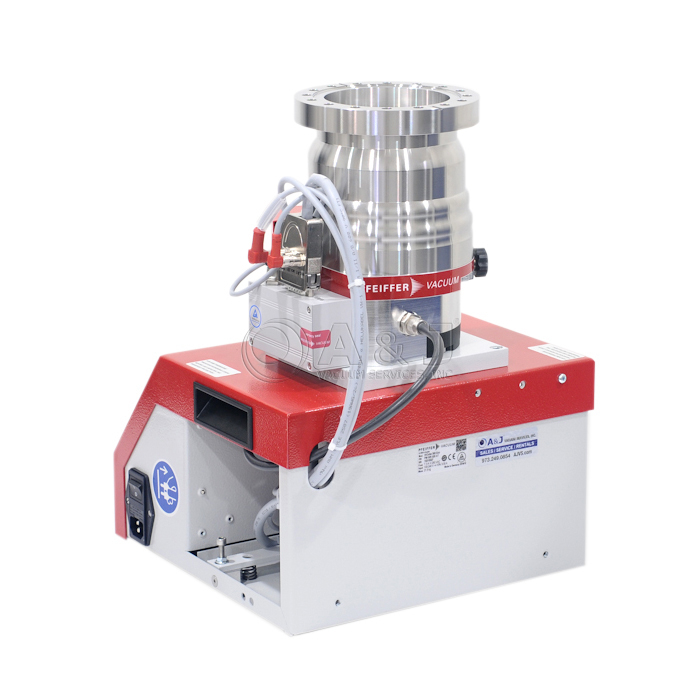

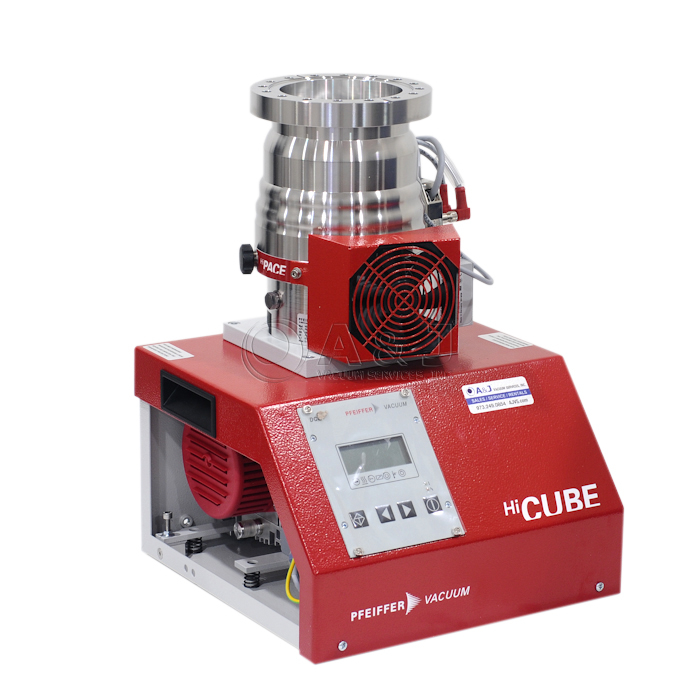

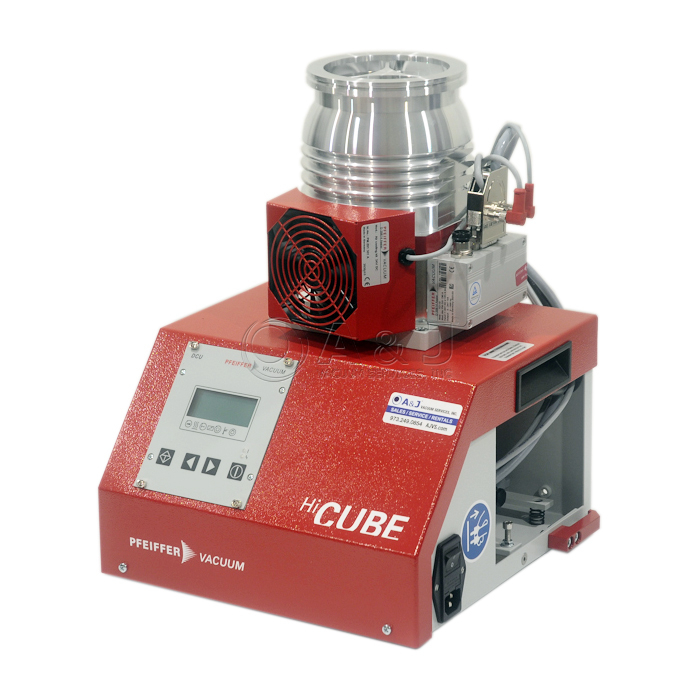

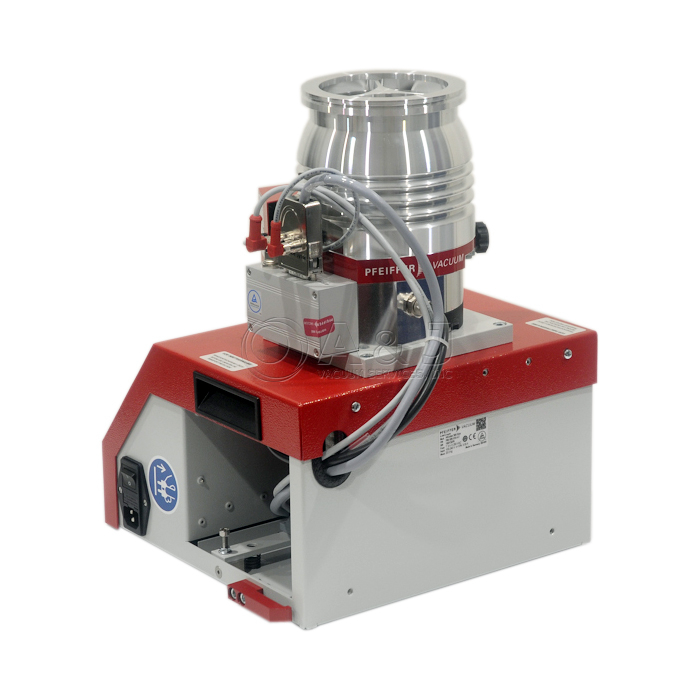

Item#: PN20578 Mfr Part#: PMS8420000 / PM 025 021 AT Manufacturer: Pfeiffer Vacuum
PRICE: $17,300.00
WEB SAVINGS: $5,190.00
YOU PAY: $12,110.00

New HiCube 300H Eco Pfeiffer Turbo Pumping Station, Includes HiPace 300H Turbo Pump ISO 100, MVP 030-3 DC Diaphragm Vacuum Pump and DCU 002 Control Unit, PMS8420000, PM025021AT 100-240 VAC 50/60 Hz



Pfeiffer HiCube 300H Eco Overview


The Pfeiffer Vacuum HiCube300H Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. Also available with CF-F Inlet Flangethat  makes this system trully Ultra High Vacuum (UHV).

This Turbo Pumping station is equipped with MVP 030-3 Diaphragm pump which gives  better backing pump pumping speeds than Pfeiffer MVP 015-2.

The Hicube 300H Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.

The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Hicube 300H Eco Features:


  • Compact series of pumping stations for all high vacuum applications
  • Available in many configurations to meet every application Click Here for more Info.
  • Ultimate Pressure: < 1 x 10-7 mbar
  • Pumping Speed for N2: 260 l/s
  • Pumping speed backing pump at 50 Hz 1.8 m3/h
  • Air-cooled and ready for operation with HiPace 300 Turbo Pump and MVP 015-4 DC Dry Diaphragm Backing Pump
  • Pfeiffer HiCube 300H Eco comes with  ISO100-K inlet flange
  • DCU 002 Control Unit
  • HICUBE 300H Eco voltage requirement 100-240 V AC, 50/60 Hz;
  • Pumping Station Components: HiPace 300, MVP030-3 DC, Cooling Fan, DCU 002
  • Weight 17.5 Kg / 38.58 lbs



Pfeiffer HiPace 300 Eco Product Description:


Pfeiffer HiCube 300 Eco Turbo Pumping Station PMS7610000, Product Overview



Typical High Vacuum Hicube300 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiPace 300 Eco Dimensions:


Pfeiffer HiCube 300 Eco Turbo Pumping Station Dimensions ISO 100


Click Here for Pfeiffer HiCube 300 Manual

Click Here for Pfeiffer HiPace 300 Manual

Click Here for Pfeiffer MVP 030-3 DC Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HICUBE 300 ECO Pumping Stations PM S76 100 00, Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN20579 Mfr Part#: PMS8520000 / PM 025 022 AT Manufacturer: Pfeiffer Vacuum
PRICE: $17,300.00
WEB SAVINGS: $5,190.00
YOU PAY: $12,110.00

Pfeiffer HiCube300H Eco Turbo Pumping Station, Includes HiPace 300H Turbo Pump CF 100 Conflat, MVP 030-3 DC Diaphragm Vacuum Pump and DCU 002 Control Unit, PMS8520000, 100-240 VAC 50/60 Hz



Pfeiffer HiCube 300 H Eco Overview


The Pfeiffer Vacuum HiCube300H Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. Also available with CF-F Inlet Flangethat  makes this system trully Ultra High Vacuum (UHV).

The Hicube 300H Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.

The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Hicube 300H Eco Features:


  • Compact series of pumping stations for all high vacuum applications
  • Available in many configurations to meet every application Click Here for more Info.
  • Ultimate Pressure: < 1 x 10-7 mbar
  • Pumping Speed for N2: 260 l/s
  • Pumping speed backing pump at 50 Hz 1.8 m3/h
  • Air-cooled and ready for operation with HiPace 300 Turbo Pump and MVP 030-3 Dry Diaphragm Backing Pump
  • Pfeiffer HiCube 300H Eco comes with  DN100-CF-F inlet flange
  • DCU 002 Control Unit
  • HICUBE 300H Eco voltage requirement 100-240 V AC, 50/60 Hz;
  • Pumping Station Components: HiPace 300, MVP 030 DC, Cooling Fan, DCU 002
  • Weight 19.5 Kg / 42.99 lbs



Pfeiffer HiPace 300 Eco Product Description:


Pfeiffer HiCube 300 Eco Turbo Pumping Station PMS7610000, Product Overview



Typical High Vacuum Hicube300 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiPace 300 Eco Dimensions:


Pfeiffer HiCube 300 Eco Turbo Pumping Station Dimensions CF 100


Click Here for Pfeiffer HiCube 300 Manual

Click Here for Pfeiffer HiPace 300 Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HICUBE 300 ECO Pumping Stations PM S85 200 00, Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
