Agilent Varian Turbo V 81 Navigator Turbo Pump Controller, 9698996, 120/220 VAC, 969-8919
The controller is a solid-state frequency converter with the following features:
- Drives the pumps of the 81-NAV family.
- Powers the pump cooling fan.
- Drives the vent valve.
- Provides and acquires the pressure of the wide range gauge.
- Remote I/Os compatible with the previous version.
- Navigator default serial compatible with the previous RS 232 and 485 version.
The dedicated controller is a solid-state frequency converter which is driven by a single chip microcomputer and consists of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section. The power supply, together with the 3-phase output, converts the single phase AC mains supply or 24Vdc supply into a 3-phase, low voltage, medium frequency output which is required to power the pump. The controller can be operated by a remote host computer via the serial connection. A Windows- based software is available (optional).
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Agilent Turbo TV 81 AG Rack Controller to be used with the Turbo V 81 Turbo Pump, 1/4 Rack, 100/240 V, Varian 969-8988
Overview:
The Turbo-V 81-AG 9698988 Rack Controllers are microprocessor-controlled, solid-state, frequency converter with self-diagnostic and self-protection features.
Controller features:
- Front/Remote/Serial Operation
- 24 VDC pump fan cooling drive
- Vent valve drive
- Pump speed reading after stop commend
- Pressure reading
- Input voltage auto setting
- Profibus interface (optional)
The Turbo V 81 AG Rack Controller is available in three models:
- Base version
- with RS 232-485 option
- with Profibus option
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

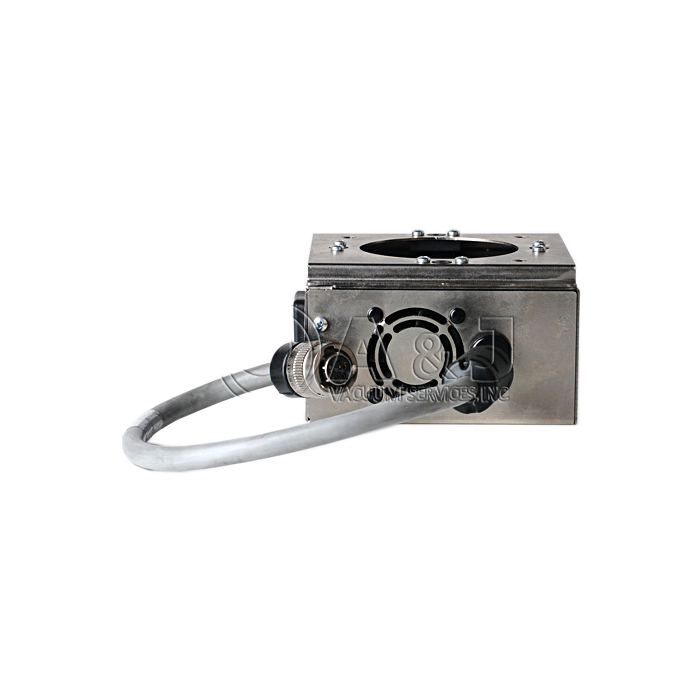

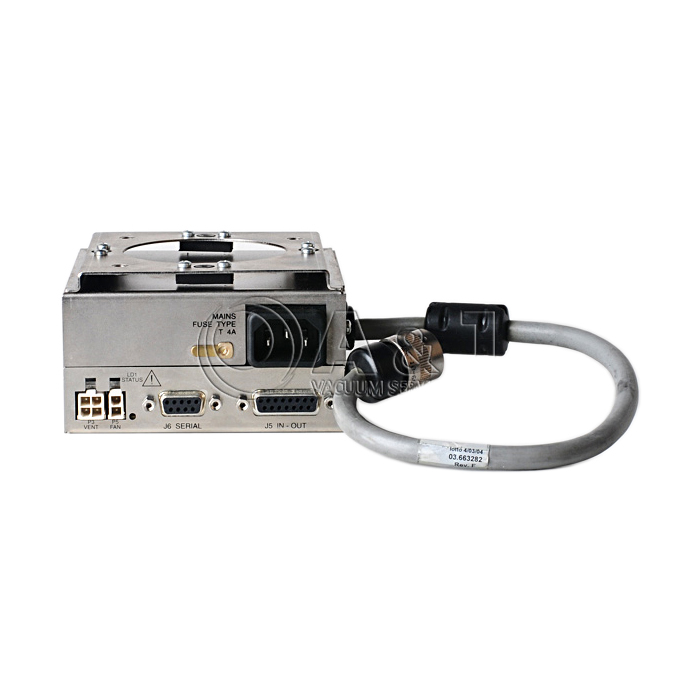

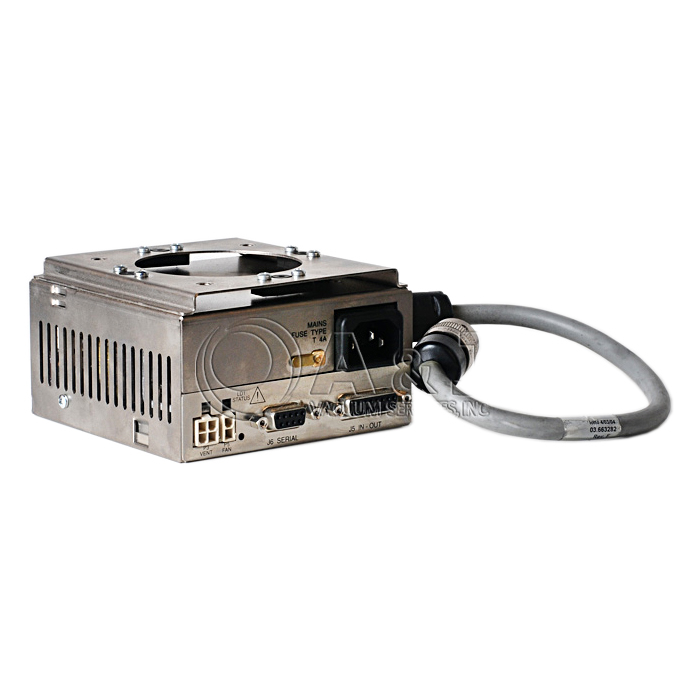

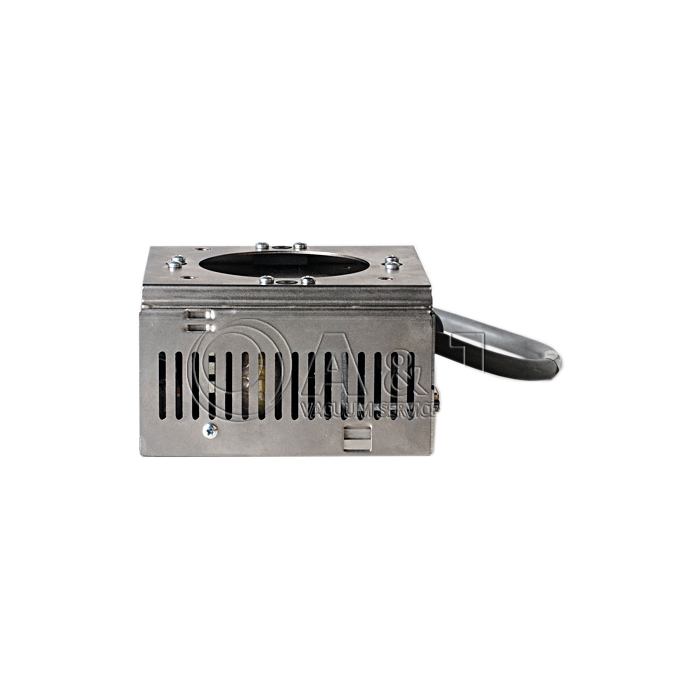

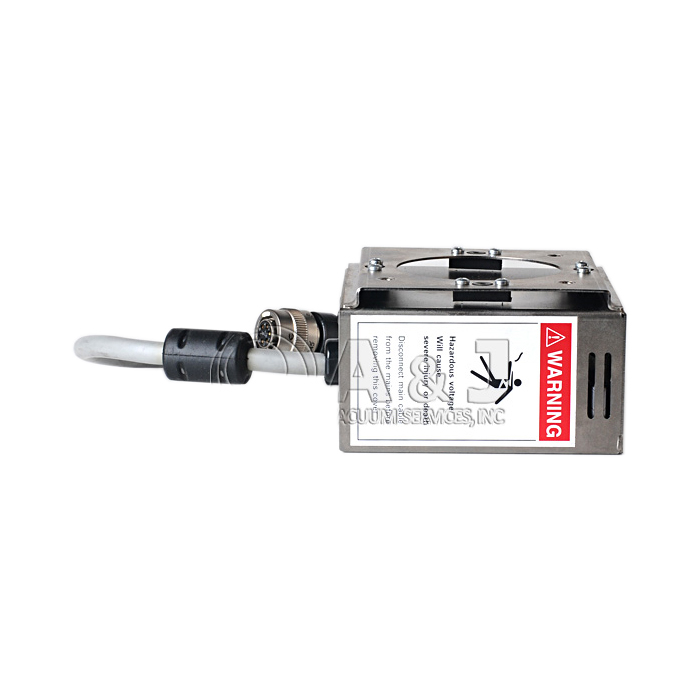

Agilent Technologies / Varian TV 301 Navigator Turbo Vacuum Pump Controller, 24 VDC, 9698972M009, Bruker, 9300010200
The Varian Turbo V 301 Navigator controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.
The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump.
The controller can be operated by a remote host computer via the serial connection. A Windows based software is available (optional).
This controller is designed to be used with the Varian TV 301 Turbomolecular Pump.
Unit is NEW and comes with a FULL 3-MONTH WARRANTY!
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
NOTE: TV 301 SERIES TURBO PUMPS AND CONTROLLERS HAVE BECOME OBSOLETE - THEY HAVE BEEN REPLACED BY THE TWISTORR 304 FS SERIES
Overview:
The Varian Turbo V 301 Navigator controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.
The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump.
The controller can be operated by a remote host computer via the serial connection. A Windowsbased software is available (optional).
This controller is designed to be used with the Varian TV 301 Turbomolecular Pump.
Unit is NEW and comes with a FULL 3-MONTH WARRANTY!
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
The Turbo-V 301 Rack controllers are micro-processorcontrolled, solid-state, frequency converter with selfdiagnostic and self-protection features. The controllers drive (within ten steps) the Turbo-V 301 pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump.
They incorporate all the facilities required for the automatic operation of the Turbo-V 301 pump series. Remote start/stop, pump status signals, forepump start/stop, interlock control (for pressure switch, water flow switch, etc.) capability, are provided via auxiliary connectors.
The controller is available in two versions which differ only in the factory-set input voltage:
• Model 969-9437 (220 Vac, 50-60 Hz)
• Model 969-9537 (120 Vac, 50-60 Hz)
Controller Designed to operate with Varian Agilent TV 301 Navigator Turbomolecular Pump. TV301.
The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer
- Front panel display and keyboard
- Rear panel with input/output connectors
- PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits.
The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump. The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
This product is discontinued with no replacement.
The Turbo-V 301 Rack controllers are micro-processorcontrolled, solid-state, frequency converter with selfdiagnostic and self-protection features. The controllers drive (within ten steps) the Turbo-V 301 pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump.
They incorporate all the facilities required for the automatic operation of the Turbo-V 301 pump series. Remote start/stop, pump status signals, forepump start/stop, interlock control (for pressure switch, water flow switch, etc.) capability, are provided via auxiliary connectors.
The controller is available in two versions which differ only in the factory-set input voltage:
• Model 969-9437 (220 Vac, 50-60 Hz)
• Model 969-9537 (120 Vac, 50-60 Hz)
Controller Designed to operate with Varian Agilent TV 301 Navigator Turbomolecular Pump. TV301.
The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer
- Front panel display and keyboard
- Rear panel with input/output connectors
- PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits.
The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump. The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Varian Turbo V 1001 Navigator Turbo Pump Controller, 120/220 V, 50/60 Hz, (TV1001), 9698978
Overview:
The Varian Turbo V 1001 Navigator controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.
The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump.
The controller can be operated by a remote host computer via the serial connection. A Windowsbased software is available (optional).
This controller is designed to be used with the Varian TV 1001 Turbomolecular Pump.
Unit is NEW and comes with a FULL 3-MONTH WARRANTY!
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
NOTE: TV 301 SERIES TURBO PUMPS AND CONTROLLERS HAVE BECOME OBSOLETE - THEY HAVE BEEN REPLACED BY THE TWISTORR 304 FS SERIES
The Varian Turbo V 301 Navigator controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.
The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump.
The controller can be operated by a remote host computer via the serial connection. A Windows based software is available (optional).
This controller is designed to be used with the Varian TV 301 Turbomolecular Pump.
Unit is NEW and comes with a FULL 3-MONTH WARRANTY!
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Fully Remanufactured Agilent Turbo V 81 AG 969-8989 Rack Controller to be used with the Turbo V 81 Turbo Pump, 1/4 Rack, 100/240 V, RS 232/485, 9698989
Overview:
The Turbo-V 81-AG Rack Controllers are microprocessor-controlled, solid-state, frequency converter with self-diagnostic and self-protection features.
Agilent TV81 Controller features:
- Front/Remote/Serial Operation
- 24 VDC pump fan cooling drive
- Vent valve drive
- Pump speed reading after stop commend
- Pressure reading
- Input voltage auto setting
- Profibus interface (optional)
The Turbo V 81 AG Rack Controller is available in three models:
- Base version
- with RS 232-485 option
- with Profibus option
Overview:
The Turbo-V 81-AG Rack Controllers are microprocessor-controlled, solid-state, frequency converter with self-diagnostic and self-protection features.
Controller features:
- Front/Remote/Serial Operation
- 24 VDC pump fan cooling drive
- Vent valve drive
- Pump speed reading after stop commend
- Pressure reading
- Input voltage auto setting
- Profibus interface (optional)
The Turbo V 81 AG Rack Controller is available in three models:
- Base version
- with RS 232-485 option
- with Profibus option
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
