Found 5 products
Item#: PN00389 Mfr Part#: D39700000 Manufacturer: Edwards Vacuum
PRICE: $2,500.00
WEB SAVINGS: $100.00
YOU PAY: $2,400.00

Edwards Vacuum TIC Instrument Controller, 3 Gauge, RS232/RS485, D39700000,  Vacuum Gauge Controller without Pump Control



Edwards Tic Instrument D39700000 3 Gauge Overview:


The TIC Instrument Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows™-based PC program provides full remote setup, control and data logging functions via the RS232 interface.

Three TIC Instrument Controllers are available; the three head and six head versions can accomodate 3 or 6 active gauges including the Active Ion Gauge Controller (ebeam version). The six head capman version can accept up to three Edwards Barocel® Capacitance Manometers.



Edwards Tic Instrument, 3 Gauge Features:


  • Edwards TIC Controller automatically recognizes and controls active gauges including APG100 Pirani, convection, thermocouple, strain, inverted magnetron, wide range and active ion gauges. To enable complete integration into PC and PLC controlled processes, all Edwards TIC variants include RS232 and RS485 interface.



  • Edwards TIC Controller has six pressure related set points, which operate open collector outputs rated at 24 V d.c. 50 mA. Using the optional relay boxes, these may be linked to 250 V a.c. changeover relays to provide a useful accessory control capability. All relay boxes include a logic bypass facility for further system integration.



  • In most instances, Edwards TIC systems may be simply and quickly configured using the range of standard cables on offer, there is therefore no need for the customer to prepare loom assemblies or relay boxes and special interfaces.



  • Edwards TIC includes lookup tables for a range of commonly encountered process gasses (N2, He, Ar, CO2, Kr & Ne). Selecting the appropriate gas enables direct readout of the correct pressure without the need to apply conversion factors.



  • Edwards TIC is packaged in a compact case and may be panel or rack (¼ 19 inch rack 3U) mounted. With the addition of the bezel it becomes an attractive bench-top instrument. The large 128 x 64 pixel backlit graphics LCD and mobile phone style menu system simplifies programming and with a choice of summary screens excellent visibility of displayed parameters is assured.



  • TIC Controller will operate from mains supplies with voltages between 90 and 264 V a.c., and frequencies between 47 and 63 Hz. No user intervention being required.






A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN24548 Mfr Part#: D39590000 Manufacturer: Edwards Vacuum
PRICE: $1,150.00
WEB SAVINGS: $104.05
YOU PAY: $1,045.95

Edwards ADC Active Digital Standard Vacuum Gauge Controller, 1 Gauge Display , D39590000

Edwards ADC Active 1 Gauge Digital Display D39590000 Overview:

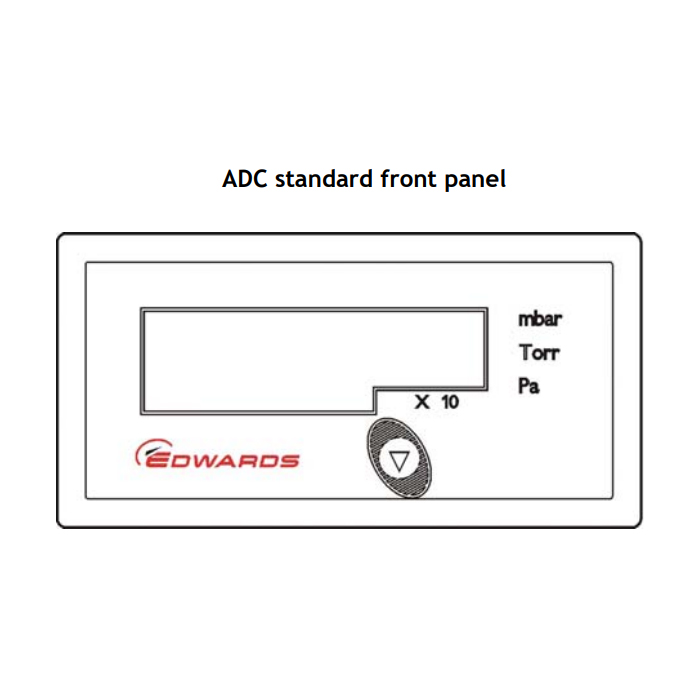

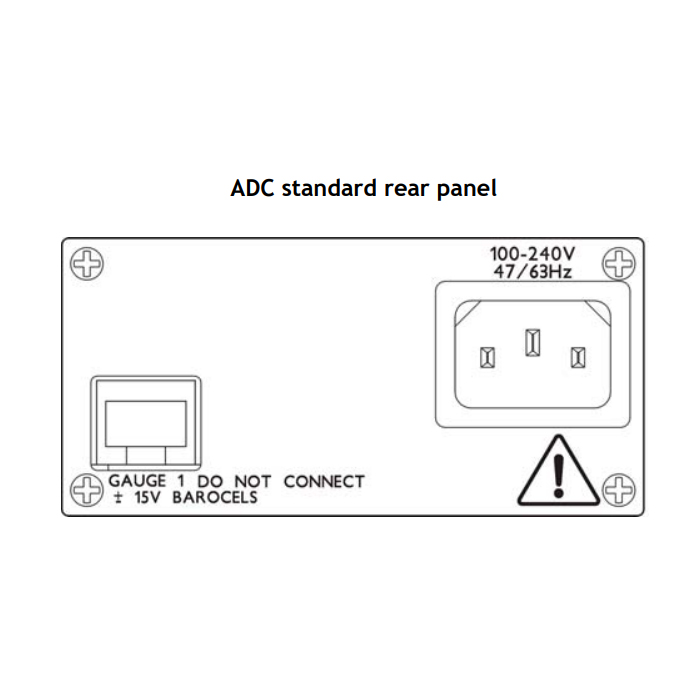

The Edwards Active Digital Controller (ADC) is a compact single gauge controller and display in one. It features a LED display and simple push-button operation controls. The Edwards ADC controller automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units.

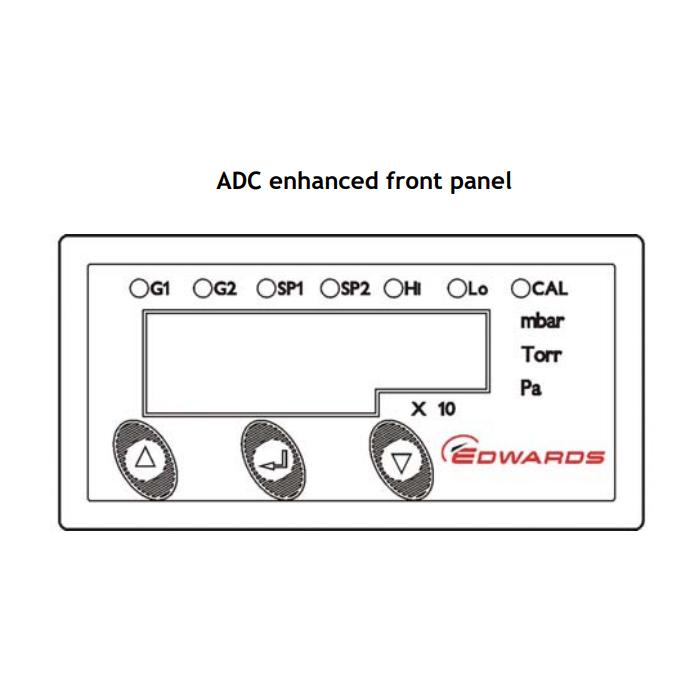

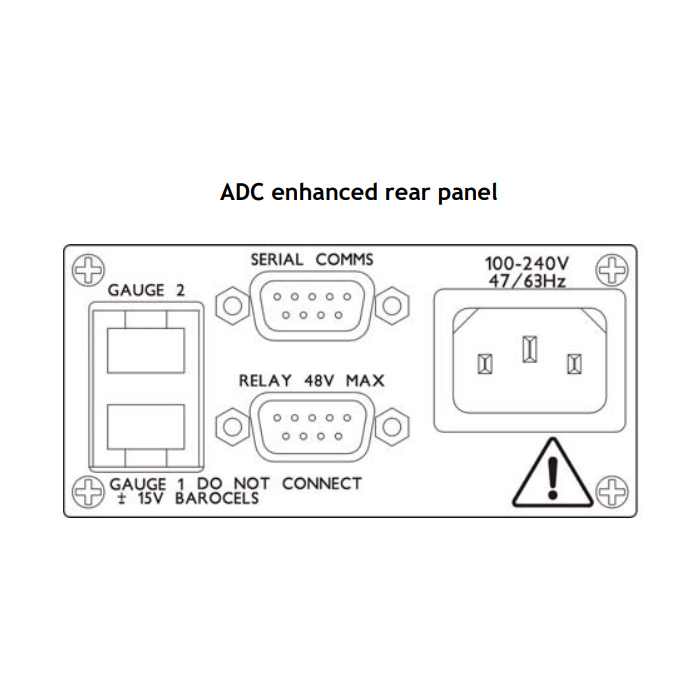

There are two versions of Edwards ADC Gauge Controller available; the standard ADC Controller simply displays the pressure in choice of units, and the enhanced ADC includes a second gauge connection, two set-point relays, two analogue outputs and an RS232 interface.
The ADC mk2 enhanced controller can now support 2 different gauges e.g. APG100 and AIM.



Edwards Tic Instrument, 3 Gauge Features:


  • Plug and measure operation means you simply plug in the mains supply, connect the gauge and ADC displays the measured pressure
  • The ADC supports Edwards gauges with a total measuring range of 2000 to 1 x 10-9 mbar (1500 to 7.5 x 10-10 Torr)
  • Bright LED display gives clear, long distance readability
  • The Edwards ADC Gauge displays units in mbar, Torr, Pascal or Volts
  • Small 1/8 DIN enclosure, may be panel or bench mounted
  • Simple push-button control makes operation highly intuitive






A&J Vacuum services and repairs All Edwards Turbo Pump0s, Vacuum Pump, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN24549 Mfr Part#: D39591500 Manufacturer: Edwards Vacuum
PRICE: $1,450.00
WEB SAVINGS: $70.00
YOU PAY: $1,380.00

Edwards ADC mkII Active Digital  Enhanced Vacuum Gauge Controller, 1 Gauge,  D39591500

Edwards ADC mkII Active Emhanced 1 Gauge Digital Display D39591500 Overview:

The Edwards Active Digital Controller (ADC) is a compact single gauge controller and display in one. It features a LED display and simple push-button operation controls. The Edwards ADC controller automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units.


There are two versions of Edwards ADC Gauge Controller available; the standard ADC Controller simply displays the pressure in choice of units, and the enhanced ADC includes a second gauge connection, two set-point relays, two analogue outputs and an RS232 interface.
The ADC mk2 enhanced controller can now support 2 different gauges e.g. APG100 and AIM.



Edwards Tic Instrument, 3 Gauge Features:


  • Plug and measure operation means you simply plug in the mains supply, connect the gauge and ADC displays the measured pressure
  • The ADC supports Edwards gauges with a total measuring range of 2000 to 1 x 10-9 mbar (1500 to 7.5 x 10-10 Torr)
  • Bright LED display gives clear, long distance readability
  • The Edwards ADC Gauge displays units in mbar, Torr, Pascal or Volts
  • Small 1/8 DIN enclosure, may be panel or bench mounted
  • Simple push-button control makes operation highly intuitive






A&J Vacuum services and repairs All Edwards Turbo Pump0s, Vacuum Pump, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN40973 Mfr Part#: D39700000 Manufacturer: Edwards Vacuum
PRICE: $2,202.00
WEB SAVINGS: $307.00
YOU PAY: $1,895.00

Demo Like New Edwards Vacuum TIC Instrument Controller, 3 Gauge, RS232/RS485, D39700000,  Vacuum Gauge Controller without Pump Control



Edwards Tic Instrument D39700000 3 Gauge Overview:


The TIC Instrument Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows™-based PC program provides full remote setup, control and data logging functions via the RS232 interface.

Three TIC Instrument Controllers are available; the three head and six head versions can accomodate 3 or 6 active gauges including the Active Ion Gauge Controller (ebeam version). The six head capman version can accept up to three Edwards Barocel® Capacitance Manometers.



Edwards Tic Instrument, 3 Gauge Features:


  • Edwards TIC Controller automatically recognizes and controls active gauges including APG100 Pirani, convection, thermocouple, strain, inverted magnetron, wide range and active ion gauges. To enable complete integration into PC and PLC controlled processes, all Edwards TIC variants include RS232 and RS485 interface.



  • Edwards TIC Controller has six pressure related set points, which operate open collector outputs rated at 24 V d.c. 50 mA. Using the optional relay boxes, these may be linked to 250 V a.c. changeover relays to provide a useful accessory control capability. All relay boxes include a logic bypass facility for further system integration.



  • In most instances, Edwards TIC systems may be simply and quickly configured using the range of standard cables on offer, there is therefore no need for the customer to prepare loom assemblies or relay boxes and special interfaces.



  • Edwards TIC includes lookup tables for a range of commonly encountered process gasses (N2, He, Ar, CO2, Kr & Ne). Selecting the appropriate gas enables direct readout of the correct pressure without the need to apply conversion factors.



  • Edwards TIC is packaged in a compact case and may be panel or rack (¼ 19 inch rack 3U) mounted. With the addition of the bezel it becomes an attractive bench-top instrument. The large 128 x 64 pixel backlit graphics LCD and mobile phone style menu system simplifies programming and with a choice of summary screens excellent visibility of displayed parameters is assured.



  • TIC Controller will operate from mains supplies with voltages between 90 and 264 V a.c., and frequencies between 47 and 63 Hz. No user intervention being required.






A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Demo In Stock
Item#: PN00390 Mfr Part#: D39701000 Manufacturer: Edwards Vacuum
PRICE: $3,350.00
WEB SAVINGS: $258.00
YOU PAY: $3,092.00

Edwards Vacuum TIC Instrument and Pressure Gauge Controller, 6 Gauge, RS232/RS485, D39701000 Without Pump Control



Edwards Tic Instrument, 6 Gauge Overview:


The TIC Instrument Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows™-based PC program provides full remote setup, control and data logging functions via the RS232 interface.

Three TIC Instrument Controllers are available; the three head and six head versions can accomodate 3 or 6 active gauges including the Active Ion Gauge Controller (ebeam version). The six head capman version can accept up to three Edwards Barocel® Capacitance Manometers.



Edwards Tic Instrument, 6 Gauge Features:


  • Edwards TIC Controller automatically recognizes and controls active gauges including APG100 Pirani, convection, thermocouple, strain, inverted magnetron, wide range and active ion gauges. To enable complete integration into PC and PLC controlled processes, all Edwards TIC variants include RS232 and RS485 interface.



  • Edwards TIC Controller has six pressure related set points, which operate open collector outputs rated at 24 V d.c. 50 mA. Using the optional relay boxes, these may be linked to 250 V a.c. changeover relays to provide a useful accessory control capability. All relay boxes include a logic bypass facility for further system integration.



  • In most instances, Edwards TIC systems may be simply and quickly configured using the range of standard cables on offer, there is therefore no need for the customer to prepare loom assemblies or relay boxes and special interfaces.
  • Edwards TIC includes lookup tables for a range of commonly encountered process gasses (N2, He, Ar, CO2, Kr & Ne). Selecting the appropriate gas enables direct readout of the correct pressure without the need to apply conversion factors.



  • Edwards TIC is packaged in a compact case and may be panel or rack (¼ 19 inch rack 3U) mounted. With the addition of the bezel it becomes an attractive bench-top instrument. The large 128 x 64 pixel backlit graphics LCD and mobile phone style menu system simplifies programming and with a choice of summary screens excellent visibility of displayed parameters is assured.



  • TIC Controller will operate from mains supplies with voltages between 90 and 264 V a.c., and frequencies between 47 and 63 Hz. No user intervention being required.






A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
