Found 6 products
Item#: PN07597 Mfr Part#: KF16CRNS Manufacturer: AJVS
PRICE: $10.00
WEB SAVINGS: $3.00
YOU PAY: $7.00

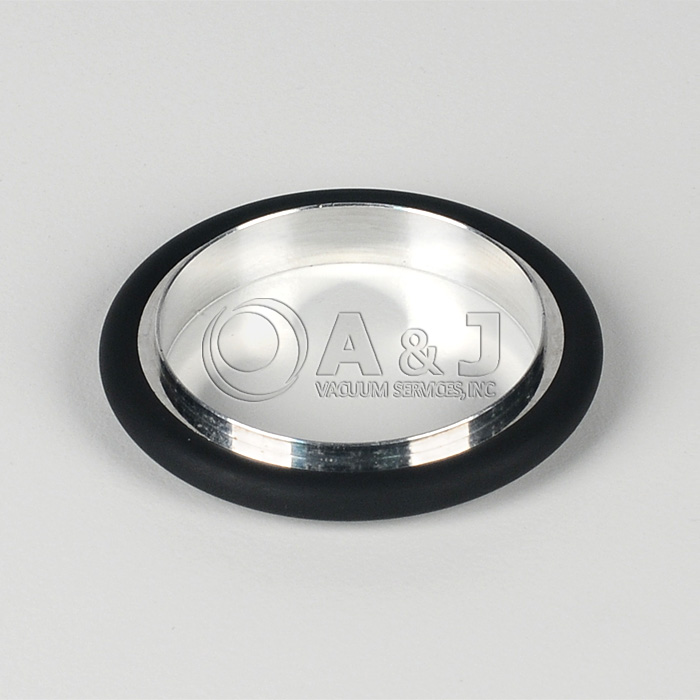

Centering Ring KF 16 With NBR O-Ring, KF 16 (NW 16), Stainless Steel, The centering ring contains a rubber elastomeric buna o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF16CRNS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with NBR O-ring

  • A: 0.63 in / 16 mm
  • B: 0.67 in / 17 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer Buna-N o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center NBR O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Buna-N O-ring provides great resistance to heat and agressive chemicals.


Condition: New In Stock
Item#: PN07598 Mfr Part#: KF25CRNS Manufacturer: AJVS
PRICE: $12.00
WEB SAVINGS: $2.01
YOU PAY: $9.99

Centering Ring KF 25 With NBR O-Ring, KF 25 (NW 25), Stainless Steel, The centering ring contains a rubber elastomeric buna o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF25CRNS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with NBR O-ring

  • A: 0.98 in / 25 mm
  • B: 1.02 in / 26 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer Buna-N o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center NBR O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Buna-N O-ring provides great resistance to heat and agressive chemicals.


Condition: New In Stock
Item#: PN07599 Mfr Part#: KF40CRNS Manufacturer: AJVS
PRICE: $11.40
WEB SAVINGS: $2.45
YOU PAY: $8.95

Centering Ring KF 40 With NBR O-Ring, KF 40 (NW 40), Stainless Steel, The centering ring contains a rubber elastomeric buna o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF40CRNS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with NBR O-ring

  • A: 1.57 in / 40 mm
  • B: 1.61 in / 41 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer Buna-N o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center NBR O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Buna-N O-ring provides great resistance to heat and agressive chemicals.


Condition: New In Stock
Item#: PN07600 Mfr Part#: KF50CRNS Manufacturer: AJVS
PRICE: $12.40
WEB SAVINGS: $1.65
YOU PAY: $10.75

Centering Ring KF 50 With NBR O-Ring, KF 50 (NW 50), Stainless Steel, The centering ring contains a rubber elastomeric buna o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF50CRNS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with NBR O-ring

  • A: 1.97 in / 50 mm
  • B: 2.05 in / 52 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer Buna-N o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center NBR O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Buna-N O-ring provides great resistance to heat and agressive chemicals.


Condition: New In Stock
Item#: PN07596 Mfr Part#: KF10CRNS Manufacturer: AJVS
PRICE: $5.35
WEB SAVINGS: $0.40
YOU PAY: $4.95

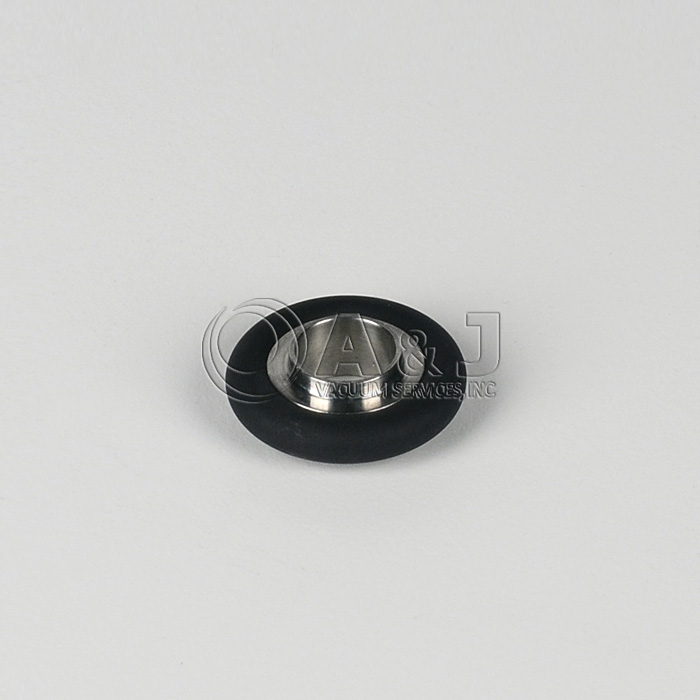

Centering Ring KF 10 With NBR O-Ring, KF 10 (NW 10), Stainless Steel, The centering ring contains a rubber elastomeric buna o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF10CRNS

Centering_Ring_With_ORing_DimensionsStainless Steel ring with NBR O-ring

  • A: 0.39 in / 10 mm
  • B: 0.47 in / 12 mm
  • C: 0.31 in / 8 mm
  • D: 0.15 in / 3.9 mm

Overview:

The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.

The Centering Rings are available in Aluminum / Viton®, Aluminum / NBR, Stainless Steel / Viton® or Stainless Steel / NBR.

The centering ring contains a rubber elastomer Buna-N o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50

Standard sizes for quick flange fittings are KF-10, KF-16, KF-25 and KF-50 with Flange sizes NW-10, NW16, NW-25, NW-40

KF (also referred to as NW) assemblies consist of two Flanges, a Center NBR O-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Corrosive resistant stainless steel (316) with Buna-N O-ring provides great resistance to heat and agressive chemicals.


Condition: New
Item#: PN40709 Mfr Part#: PN40709 / C10512346 Manufacturer: AJVS
PRICE: $19.25
WEB SAVINGS: $4.50
YOU PAY: $14.75

Centering Ring Adapter KF-10 to KF-16, NW10/16, With Nitrile O-Ring Stainless Steel, KF10/16, PN40709 / C10512346

NW10 to NW16 O-ring Adapter Overview:

These adapting rings are used to addopt NW10 to NW16 flanges Edwards C10512346

The centering ring contains a rubber Nitrile o-ring. Those are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50




Condition: New
