Found 82 products
Item#: PN01402 Mfr Part#: 104643FR Manufacturer: Adixen / Alcatel
PRICE: $292.60
WEB SAVINGS: $26.60
YOU PAY: $266.00

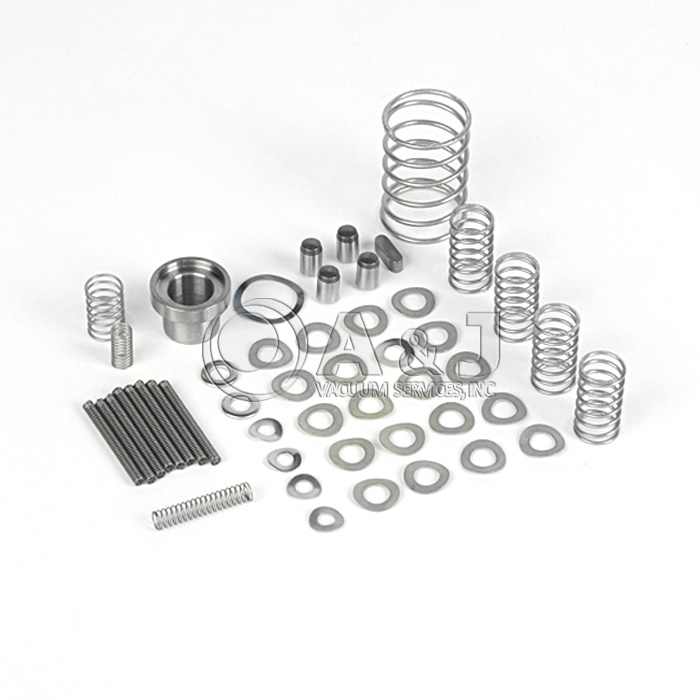

Alcatel Adixen, Major Repair Kit for Adixen SD Series Vacuum Pump 1015 SD, Pascal Standard, PN 104643FR


Overview

The Alcatel Adixen Major Repair Kit includes everything needed for major overhauls on the Alcatel Adixen SD Pascal Series 1015 SD Pump.The parts included in the Alcatel Adixen Major Repair Kits for SD Series 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021 pumps, are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen SD Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal SD Series Rotary Vane Vacuum Pumps.

The Alcatel, Adixen Major Repair Kit for 1015 SD Series Pump contains the following parts:

part #

Description

qty

250011

Ring,Shouldered,Steel,Standard

1

320035

O'RING,VITON,17.12 X 2.62MM

3

320036

O'RING,VITON,12.1 X 2.7 MM

1

320067

O'RING,VITON,63.09 X 3.53 MM

1

320109

O'RING,VITON,33 X 2.5 MM

1

340024

DEVICE,ABS,VITON,BROWN,70DUROM

1

390007

VALVE DISK,VITON

4

40005

O'RING,VITON,9.25 X 1.78 MM

1

420029

WASHER,FLAT,STEEL,ZINC CHROMAT

2

52541

SPRING,VALVE

4

52553

COUPLER,ELASTIC,2004-20A/AC

1

53040

Spring,Vane,S/S

6

580031

SLEEVE,GAS,BALLAST,ALCATEL

1

65758FR

VANE,GX,1ST STAGE

2

65784

Sight glass,2010/15/21 CP

1

65791

VALVE,FOR PASCAL PUMP

1

65797

SPRING

1

65799

SPRING

1

71040

PIN,CENTERING,2004-63AAC-C

4

71067

KEY,SHAFT

1

71161

C-CLIP,2004/8/12/20AAC

1

720007

PAD,FELT,2010C2/15SD/05C1/21C2

1

73452

WASHER,WAVED,STEEL,M4

4

73453

WASHER,WAVED,STEEL,M5

1

73460

WASHER,WAVED,S.S.,M6

19

79148

O'RING,VITON,165 X 3 MM

1

79509

O'RING,VITON,28 X 3 MM

1

79513

O'RING,VITON,90 X 2 MM

1

79537

O'RING,VITON,7.5 X 1.5 MM

4

82004

O'RING,VITON,5.7 X 1.9 MM

1

82007

O'RING,VITON,10.77 X 2.62 MM

3

82014

O'RING,VITON,34.1 X 3.6 MM

1

82025

O'RING,VITON,29.3 X 3.6 MM

1

82063

SEAL,SHAFT,VITON

4

82604

PLUG,DRAIN,PLASTIC,2004A-2063C

4

230044FR

VANE,GX,OIL PUMP

3

340023

NIB,ANTISUCK BACK,VITON

1

84646

WASHER,WAVED

1

P52700

Lever,ASB,Viton,2012/20A&AC

1

Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN01404 Mfr Part#: 52614ACFR Manufacturer: Adixen / Alcatel
PRICE: $326.70
WEB SAVINGS: $29.70
YOU PAY: $297.00

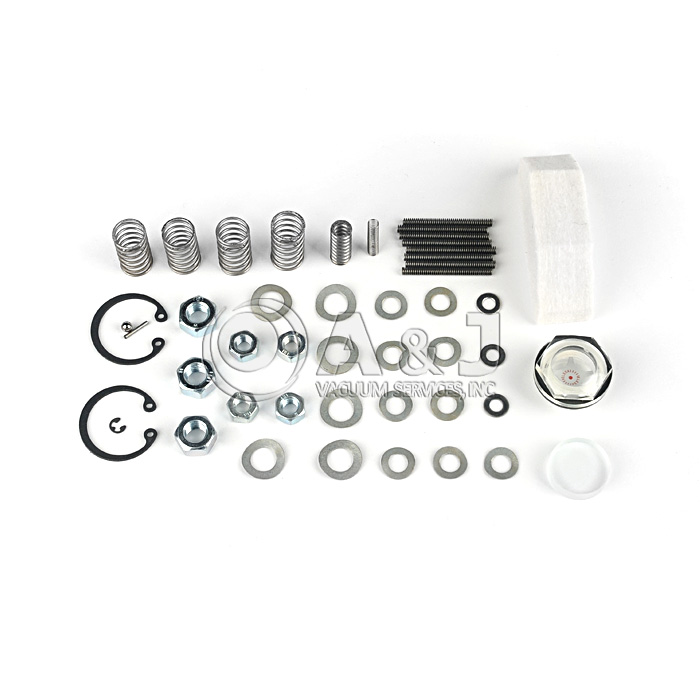

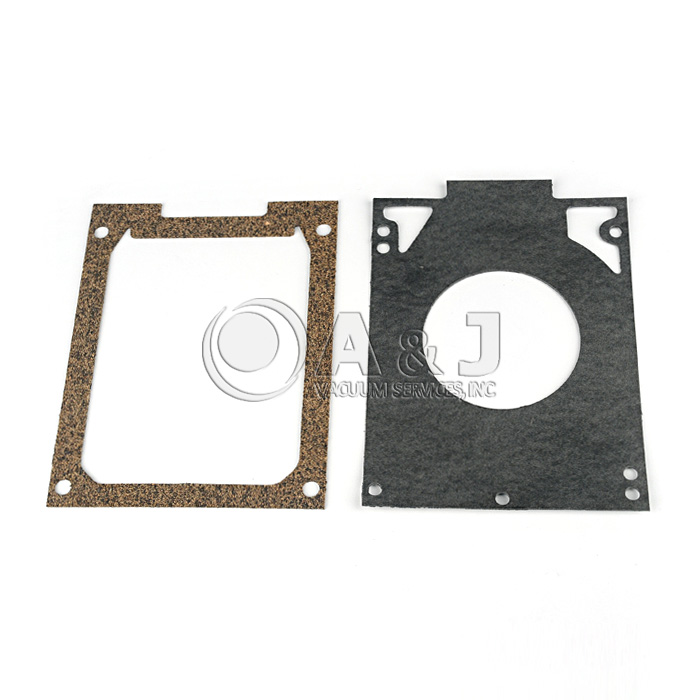

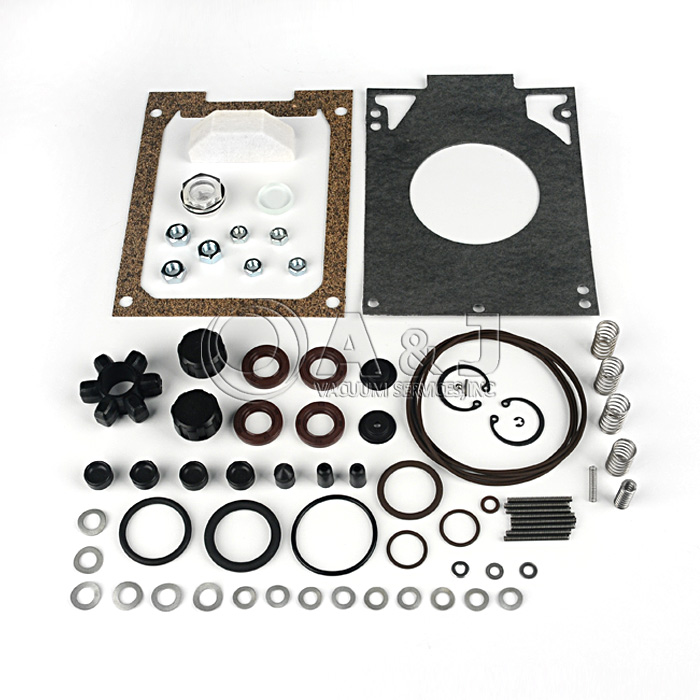

Alcatel Adixen, Major Repair Kit for Adixen 2004 AC  Vacuum Pumps, PN 52614ACFR, 52614


Overview

The Alcatel Adixen 2004 AC Major Repair / Rebuild Kit includes everything needed for major overhauls on the Alcatel Adixen 2004 AC Rotary Vane Vacuum Pumps. The parts included in the Alcatel Adixen Major Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen 2004 AC Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen 2004 AC Rotary Vane Vacuum Pumps.

Alcatel Adixen, 2004 AC Major Repair Kit contains the following parts:

DESCRIPTION PART NO. QTY
ASB Lever 52750 1
Valve Spring A52541 2
Coupling A52553 1
Fan Plate Gasket A52555 1
Exhaust Clapper A52557 1
Gas Ballast Valve - Viton A52562 1
Gas Ballast Valve - Buna A52562B 1
Gas Ballast Spring A52563 1
Ball Spring A52564 1
Exhaust Clapper A52642 1
Exhaust Valve A52655 2
Oil Case Gasket A52755 1
Felt Pad A52990 1
Vane Spring A53040 4
Pin A71050 1
Clip A71161 1
Nut A71211 4
Nut A71214 3
Flat Washer M4 A73339 3
Waved Washer M6 A73454 9
Waved Washer M8 A73455 6
Stage O-Ring A79030 5
O-Ring A79238 1
O-Ring A82056 1
Viton Shaft Seal A82063 3
Double Lip Viton Shaft Seal A82063-01 1
O-Ring A82105 1
O-Ring A82120 1
O-Ring A82122 1
Steel Ball A82522 1
Drain Plug A82604 2
Sight Glass A83546 1
Clip A83653 2
2nd Stage Vane A83946G 4
O-Ring A84149 2




A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, AC Series  2004 AC, 2008 AC, 2012 AC, 2020 AC, DDC195, DDC310, CD200, CD300. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN01427 Mfr Part#: 103903FR Manufacturer: Adixen / Alcatel
PRICE: $327.80
WEB SAVINGS: $29.80
YOU PAY: $298.00

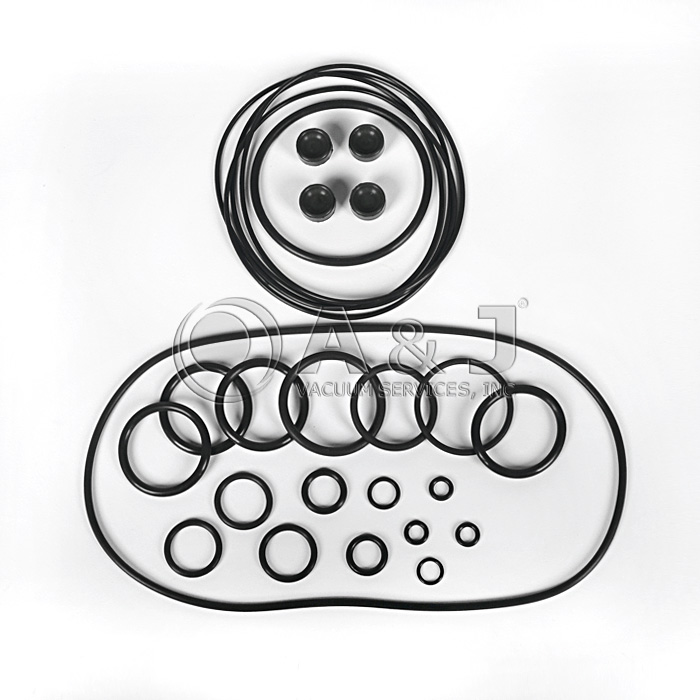

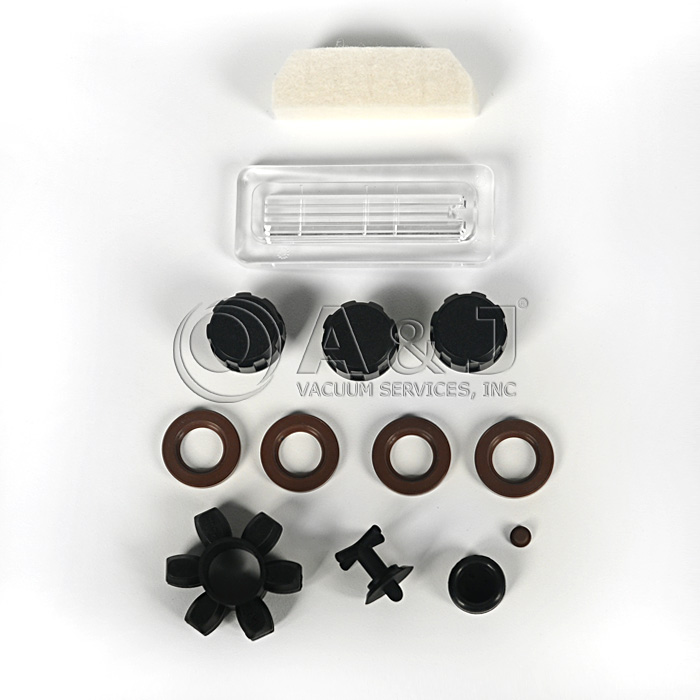

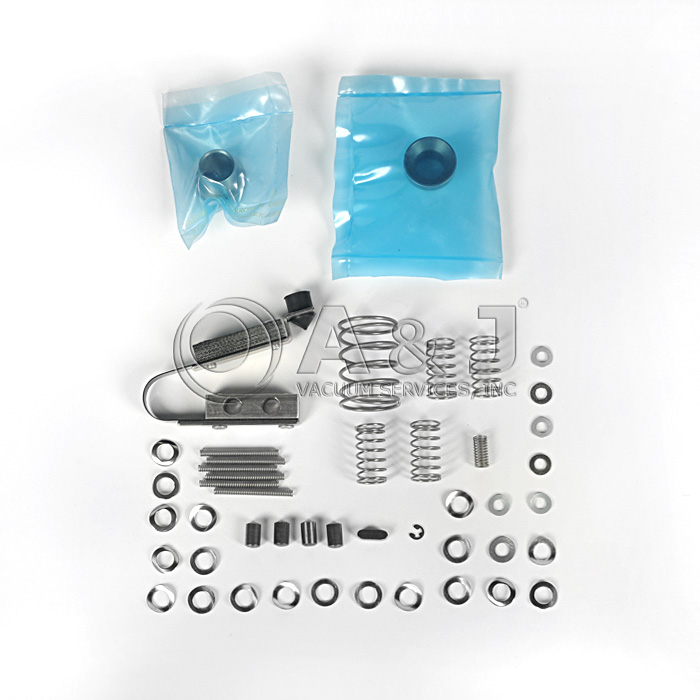

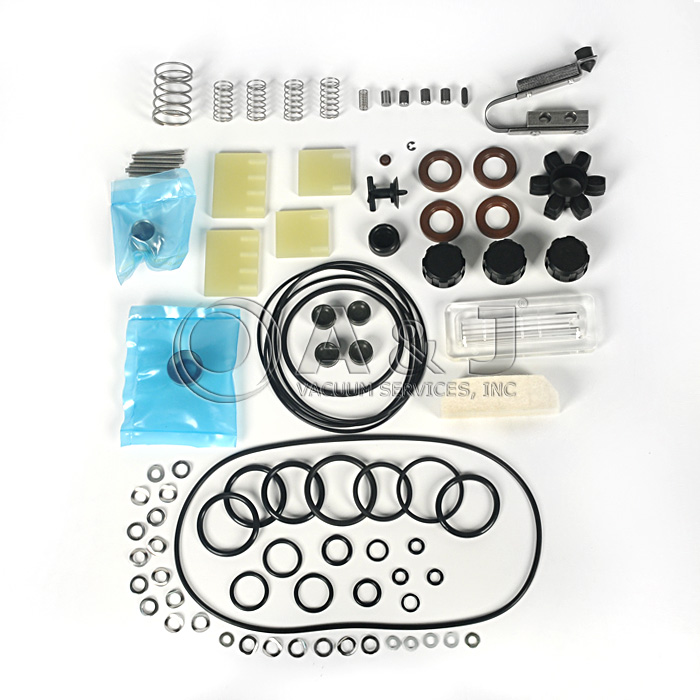

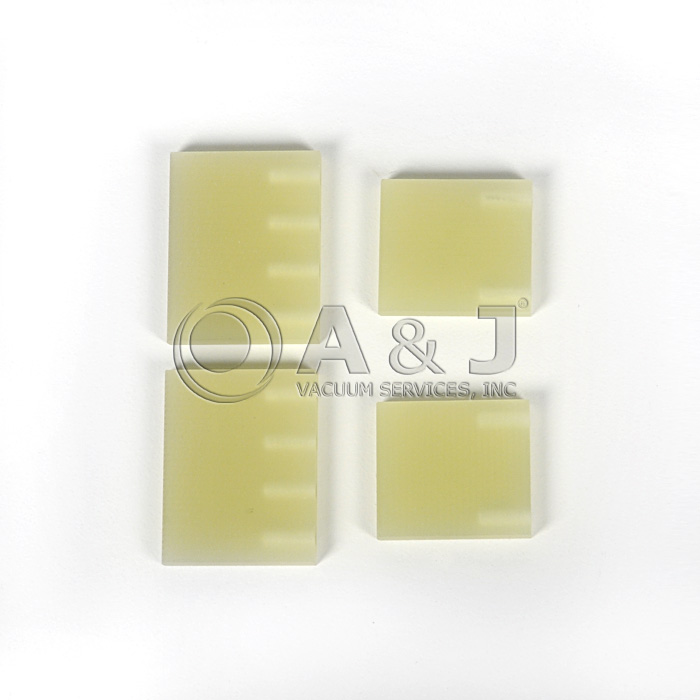

Alcatel Adixen, Major Repair Kit for Adixen SD Series Vacuum Pump 2010 SD, Pascal Standard, PN 103903FR


Overview

The Alcatel Adixen Major Repair Kit includes everything needed for major overhauls on the Alcatel Adixen SD Pascal Series 2010 SD Pump.The parts included in the Alcatel Adixen Major Repair Kits for SD Series 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021 pumps, are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen SD Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal SD Series Rotary Vane Vacuum Pumps.

The Alcatel, Adixen Major Repair Kit for 2010 SD Series Pump contains the following parts:

part #

Description

qty

250011

Ring,Shouldered,Steel,Standard

1

320035

O'RING,VITON,17.12 X 2.62MM

3

320036

O'RING,VITON,12.1 X 2.7 MM

1

320067

O'RING,VITON,63.09 X 3.53 MM

1

320109

O'RING,VITON,33 X 2.5 MM

1

340024

DEVICE,ABS,VITON,BROWN,70DUROM

1

390007

VALVE DISK,VITON

4

40005

O'RING,VITON,9.25 X 1.78 MM

1

420029

WASHER,FLAT,STEEL,ZINC CHROMAT

2

52541

SPRING,VALVE

4

52553

COUPLER,ELASTIC,2004-20A/AC

1

53040

Spring,Vane,S/S

6

580031

SLEEVE,GAS,BALLAST,ALCATEL

1

65756FR

VANE,GX,2ND STAGE

2

65757FR

VANE,GX,1ST STAGE

2

65784

Sight glass,2010/15/21 CP

1

65791

VALVE,FOR PASCAL PUMP

1

65797

SPRING

1

65799

SPRING

1

71040

PIN,CENTERING,2004-63AAC-C

4

71067

KEY,SHAFT

1

71161

C-CLIP,2004/8/12/20AAC

1

720007

PAD,FELT,2010C2/15SD/05C1/21C2

1

73452

WASHER,WAVED,STEEL,M4

4

73453

WASHER,WAVED,STEEL,M5

1

73460

WASHER,WAVED,S.S.,M6

19

79148

O'RING,VITON,165 X 3 MM

1

79509

O'RING,VITON,28 X 3 MM

1

79513

O'RING,VITON,90 X 2 MM

4

79537

O'RING,VITON,7.5 X 1.5 MM

1

82004

O'RING,VITON,5.7 X 1.9 MM

3

82007

O'RING,VITON,10.77 X 2.62 MM

1

82014

O'RING,VITON,34.1 X 3.6 MM

1

82025

O'RING,VITON,29.3 X 3.6 MM

4

82063

SEAL,SHAFT,VITON

4

82604

PLUG,DRAIN,PLASTIC,2004A-2063C

3

DRAWING

Drawing Layout

1

P52700

Lever,ASB,Viton,2012/20A&AC

1

Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN01405 Mfr Part#: 52610 Manufacturer: Adixen / Alcatel
PRICE: $96.42
WEB SAVINGS: $8.77
YOU PAY: $87.65

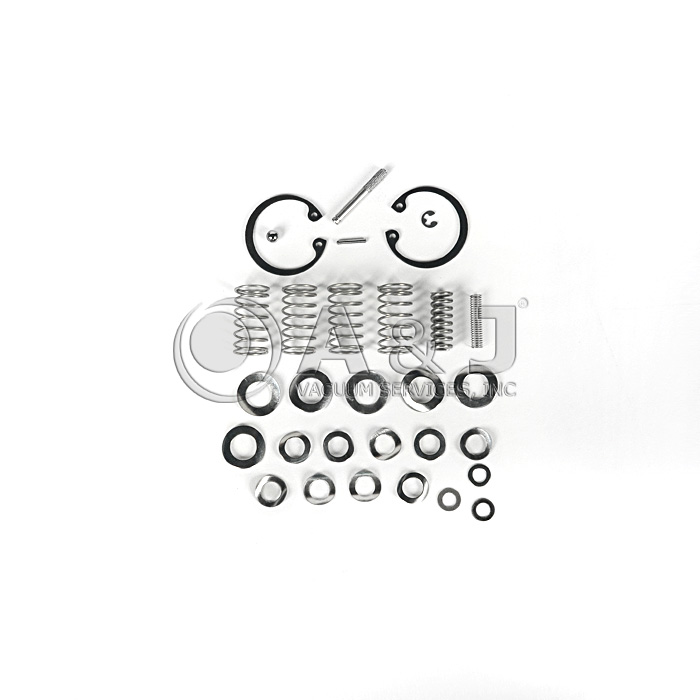

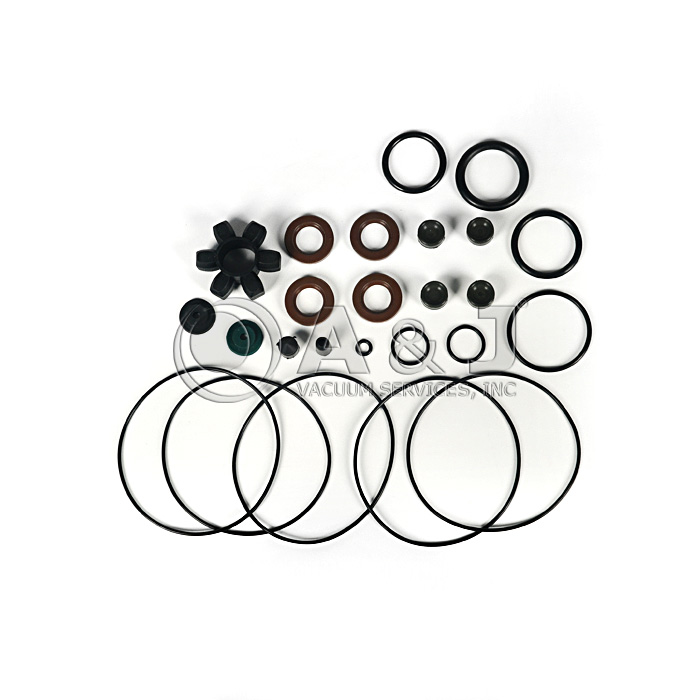

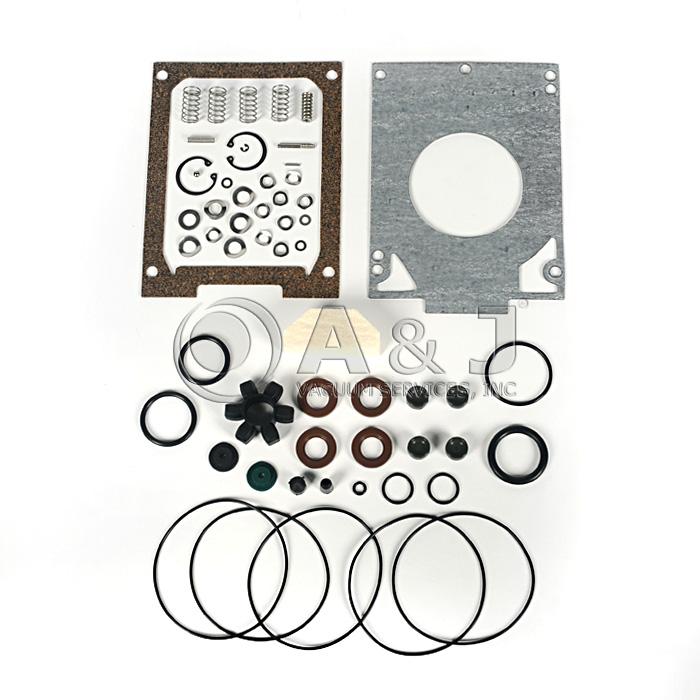

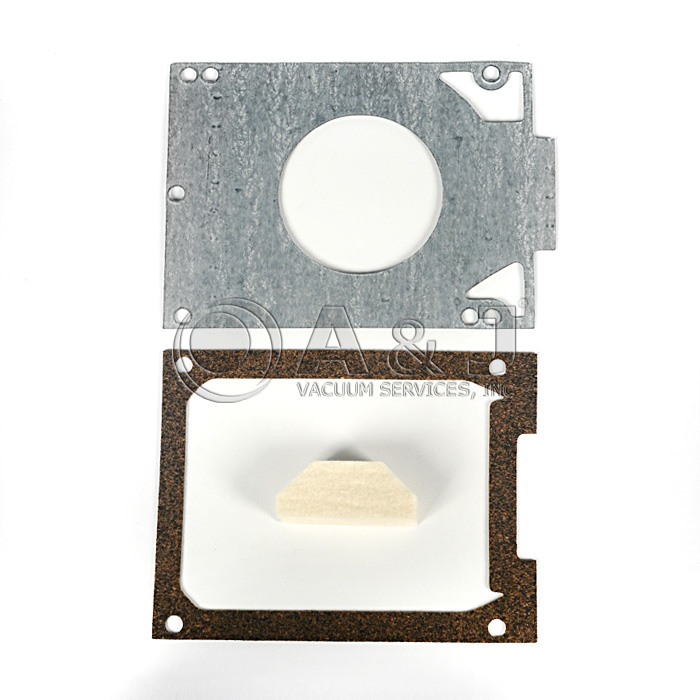

Alcatel Adixen, Minor Repair Kit for Adixen 2004, 2008, 2012, 2020 A Vacuum Pumps, Viton,  PN 52610


Overview

The Alcatel Adixen 2004, 2008, 2012, 2020 A Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Alcatel Adixen 2004, 2008, 2012, 2020 A Rotary Vane Vacuum Pumps. The parts included in the Alcatel Adixen Minor Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen 2004, 2008, 2012, 2020 A Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen 2004, 2008, 2012, 2020 A Rotary Vane Vacuum Pumps.

Alcatel Adixen, 2004, 2008, 2012, 2020 A Minor Repair Kit contains the following parts:

DESCRIPTION PART NO. QTY
Valve Spring 52541 4
Coupling 52553 1
Fan Plate Gasket 52555 1
Exhaust Clapper 52557 1
Discharge Valve 52655 4
Case Gasket 52755 1
Felt Pad 52990 1
Washer 73339 3
O-Ring, 28 x 5 mm 79238 1
O-Ring, 82 x 2 mm 82033 5
Shaft Seal 82063 4
O-Ring, 26.57 x 3.53 mm 82120 1
O-Ring, 29.3 x 3.6 mm 82122 1
O-Ring, 38 x 2.5 mm 83633 1
C-Clip 83653 2
Gas Ballast Valve 52562B 1
Gas Ballast Spring 52563 1
Gas Ballast Spring Ball 52564 1
Exhaust Clapper 52642 1
Retaining Pin 54071 1
Doweal Pin 71050 1
C-Clip 71161 1
Waved Washer 73460 9
Waved Washer 73461 6
O-Ring, 5 x 2 mm 82105 1
Gas Ballast Ball 82522 1
O-Ring, 16 x 2 mm 84149 2
White Front Locking Carton U30007193 1
Nib 54340V 1


A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN01445 Mfr Part#: 103905FR Manufacturer: Adixen / Alcatel
PRICE: $401.50
WEB SAVINGS: $36.50
YOU PAY: $365.00

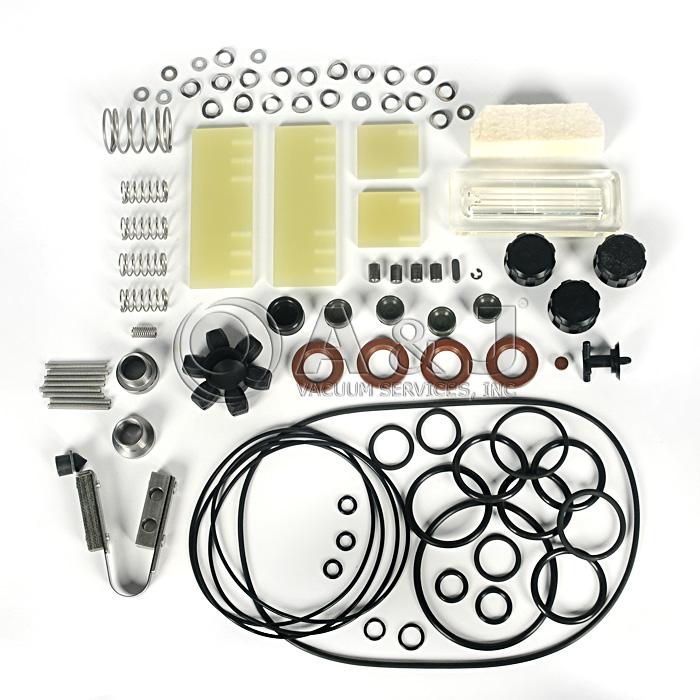

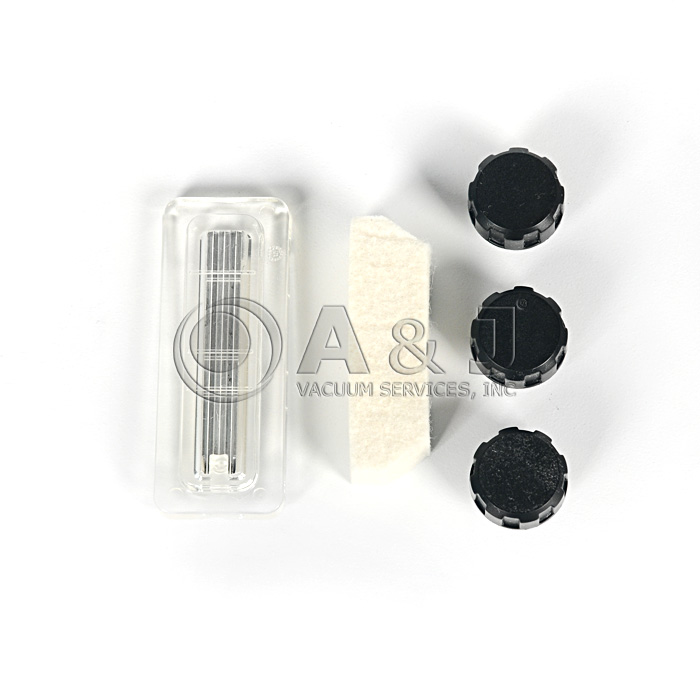

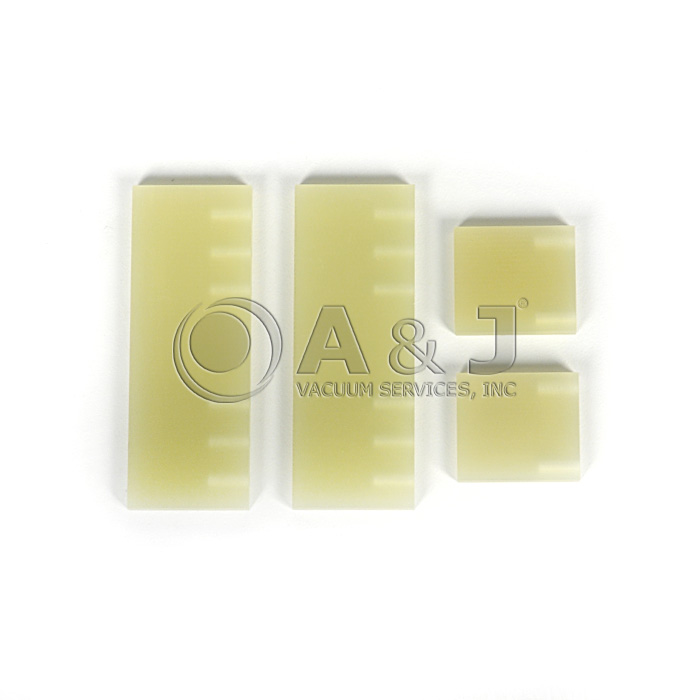

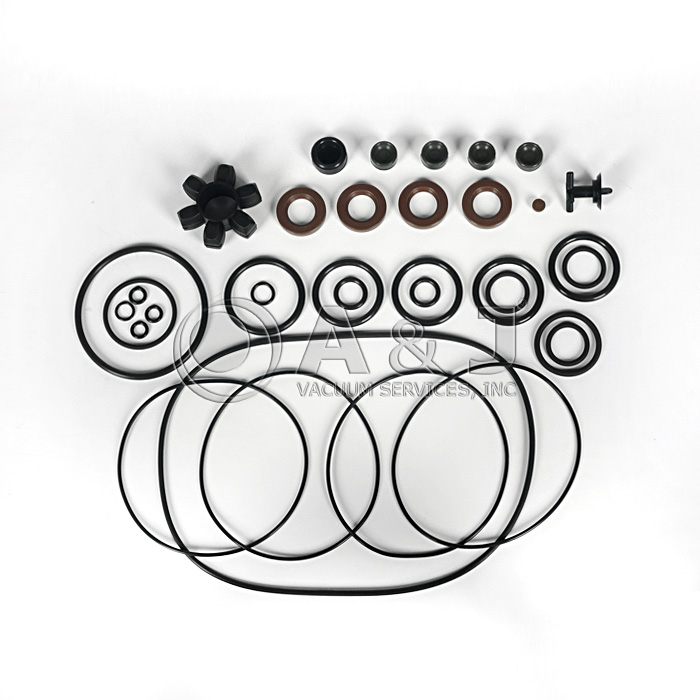

Alcatel Adixen, Major Repair Kit for Adixen SD Series Vacuum Pump 2021 SD, Pascal Standard, PN 103905FR


Overview

The Alcatel Adixen Major Repair Kit includes everything needed for major overhauls on the Alcatel Adixen SD Pascal Series 2021 SD Pump.The parts included in the Alcatel Adixen Major Repair Kits for SD Series 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021 pumps, are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen SD Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal SD Series Rotary Vane Vacuum Pumps.

The Alcatel, Adixen Major Repair Kit for 2021 SD Series Pump contains the following parts:

part #

Description

qty

65756FR

VANE,GX,2ND STAGE

2

65759FR

VANE,GX,1ST STAGE

2

340024

DEVICE,ABS,VITON,BROWN,70DUROM

1

390007

VALVE DISK,VITON

4

52700

LEVER,ASB,VITON,2012/20A&AC

1

580031

SLEEVE,GAS,BALLAST,ALCATEL

1

65791

VALVE,FOR PASCAL PUMP

1

82063

SEAL,SHAFT,VITON

4

250011

Ring,Shouldered,Steel,Standard

1

320035

O'RING,VITON,17.12 X 2.62MM

3

320036

O'RING,VITON,12.1 X 2.7 MM

1

320067

O'RING,VITON,63.09 X 3.53 MM

1

320109

O'RING,VITON,33 X 2.5 MM

1

40005

O'RING,VITON,9.25 X 1.78 MM

1

420029

WASHER,FLAT,STEEL,ZINC CHROMAT

2

52541

SPRING,VALVE

4

52553

COUPLER,ELASTIC,2004-20A/AC

1

53040

Spring,Vane,S/S

8

65784

SIGHT GLASS,2010/15/21CP

1

65797

SPRING

1

65799

SPRING

1



71040

PIN,CENTERING,2004-63AAC-C

4

71067

KEY,SHAFT

1

71161

C-CLIP,2004/8/12/20AAC

1

720007

PAD,FELT,2010C2/15SD/05C1/21C2

1

73452

WASHER,WAVED,STEEL,M4

4

73453

WASHER,WAVED,STEEL,M5

1

73460

WASHER,WAVED,S.S.,M6

19

79148

O'RING,VITON,165 X 3 MM

1

79509

O'RING,VITON,28 X 3 MM

1

79513

O'RING,VITON,90 X 2 MM

4

79537

O'RING,VITON,7.5 X 1.5 MM

1

82004

O'RING,VITON,5.7 X 1.9 MM

3

82007

O'RING,VITON,10.77 X 2.62 MM

1

82014

O'RING,VITON,34.1 X 3.6 MM

1

82025

O'RING,VITON,29.3 X 3.6 MM

4

82604

PLUG,DRAIN,PLASTIC,2004A-2063C

3

Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.




Condition: New In Stock
Item#: PN01448 Mfr Part#: 54285 Manufacturer: Adixen / Alcatel
PRICE: $198.00
WEB SAVINGS: $18.00
YOU PAY: $180.00

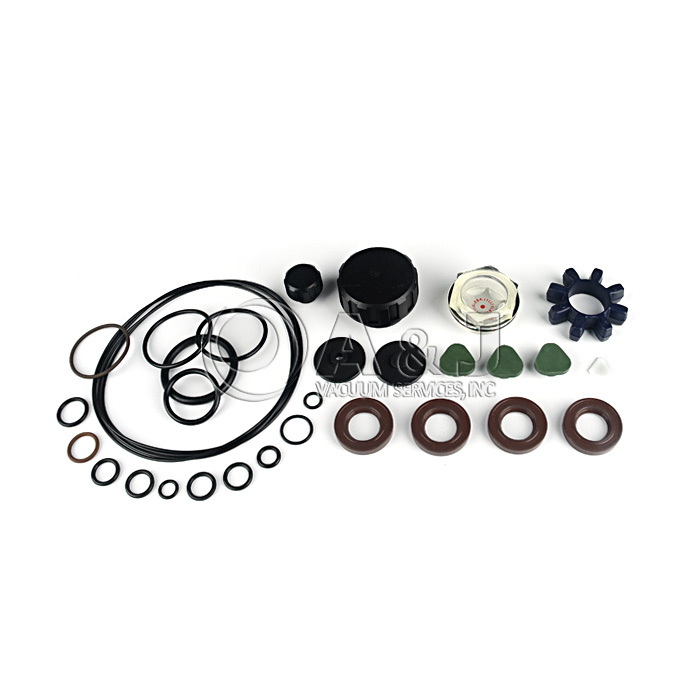

Alcatel Adixen, Minor Repair Kit for Adixen 2033 and 2033 SD Vacuum Pumps, PN 54285


Overview

The Alcatel Adixen Minor Repair Kit includes everything needed for minor overhauls on the Alcatel Adixen SD Pascal Series 1005 SD Pump.The parts included in the Alcatel Adixen Minor Repair Kits are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen SD Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal SD Series Rotary Vane Vacuum Pumps.

The Alcatel, Adixen Minor Kit PN 54285 contains the following parts:

PN

Desc.

Qty

103306

GASKET,SIGHT GLASS

1

105452R

SIGHT GLASS,OIL,PLASTIC

1

320067

O'RING,VITON,63.09 X 3.53 MM

1

53443

VALVE,DISCHRG,VITON 2033/63C

3

54091

COUPLER,ELSTC,BLUE,2030-2033C

1

54114

SPRING,GAS BALLAST

1

54128

GASKET,CASE,2033C

1

54134

VALVE,EXHAUST,2033/63C

1

54145

SPRING

1

54149

SPRING

1

54196

MEMBRANE,OIL PUMP

1

54224

CLAPPER,2033/63

1

73446

WASHER,WAVED,S.S.,M10

4

73460

WASHER,WAVED,S.S.,M6

16

73461

WASHER,WAVED,S.S.,M8

23

79234

O'RING,BUNA,8 X 2 MM

2

82108

O'RING,BUNA,9.19 X 2.62 MM

1

82109

O'RING,BUNA,10.77 X 2.62 MM

1

82112

O'RING,BUNA,15.54 X 2.62 MM

1

65059

PAD,FELT,2033-2033CP+

1

65079

ASSY,SIGHT GLASS,2033/2063CP+

1

71188

C-CLIP,2033/63C

2

71338

NUT

1

75024

SCREW,SOCKET HEAD CAP,YLW CH

1

76135

Sight glass, Window,W/seal

1

76261

PIN,COTTER,2033/63

1

76261C

C-CLIP,2033/63

1

79010

O'RING,BUNA,128 X 2 MM

4

79051

O'RING,BUNA,41 X 3 MM

1

79100

SEAL,SHAFT,BUNA

3

79101

SEAL,SHAFT,VITON

1

82024

O'RING,VITON,12.37 X 2.62 MM

4

82122

O'RING,BUNA,29.3 X 3.6 MM

1

82129

O'RING,BUNA,40.64 X 5.33 MM

1

82604

PLUG,DRAIN,PLASTIC,2004A-2063C

1

82925

PLUG,FILL,2033-2063C

1

83633

O'RING,BUNA,38 X 2.5 MM

1

84149

O'RING,BUNA,16 X 2 MM

1

87926

O'RING,BUNA,44 X 3 MM

1

87954

SPRING,VALVE

3

54451G

VANE,GX,OIL PUMP

1

DRAWING

Drawing Layout

1


A & J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN10034 Mfr Part#: 65060 Manufacturer: Adixen / Alcatel
PRICE: $291.50
WEB SAVINGS: $26.50
YOU PAY: $265.00

Alcatel Adixen, Minor Repair Kit for Adixen 2033 CP Vacuum Pumps, PN 65060


Overview

The Alcatel Adixen 2003 CP Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Alcatel Adixen 2033 CP Rotary Vane Vacuum Pumps. The parts included in the Alcatel Adixen Minor Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen 2033, 2063 CP and CP+ Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen 2033 CP Rotary Vane Vacuum Pumps.

Alcatel Adixen, 2033 CP Minor Repair Kit contains the following parts:

Part #

description

qty

52752

PLUG,DRAIN

                               1.00

53443

VALVE,DISCHRG,VITON 2033/63C

                               3.00

54091

COUPLER,ELSTC,BLUE,2030-2033C

                               1.00

54128

GASKET,CASE,2033C

                               1.00

54134

VALVE,EXHAUST,2033/63C

                               1.00

54145

SPRING

                               1.00

54149

SPRING

                               1.00

54196

MEMBRANE,OIL PUMP

                               1.00

54224

CLAPPER,2033/63

                               1.00

65059

PAD,FELT,2033-2033CP+

                               1.00

65148

SPRING

                               1.00

71188

C-CLIP,2033/63C

                              2.00

71191

C-CLIP,2033/63C

                               1.00

71338

NUT

                               1.00

73339

WASHER,FLAT,SMALL O.D.,S.S.,M4

                               2.00

73446

WASHER,WAVED,S.S.,M10

                               4.00

73460

WASHER,WAVED,S.S.,M6

                             21.00

73461

WASHER,WAVED,S.S.,M8

                             23.00

75024

SCREW,SOCKET HEAD CAP,YLW CH

                               1.00

76261

PIN,COTTER,2033/63

                               1.00

76261C

C-CLIP,2033/63

                               1.00

79101

SEAL,SHAFT,VITON

                               4.00

79134

O'RING,VITON,8 X 2 MM

                               2.00

79136

O'RING,VITON,95 X 3 MM

                               1.00

79137

O'RING,VITON,148 X 2 MM

                               4.00

79303

O'RING,VITON,4.47 X 1.78 MM

                               2.00

82007

O'RING,VITON,10.77 X 2.62 MM

                               4.00

82013

O'RING,VITON,40.64 X 5.33 MM

                               1.00

82015

O'RING,VITON,9.19 X 2.62 MM

                               1.00

82022

O'RING,VITON,17.12 X 2.62 MM

                               1.00

82024

O'RING,VITON,12.37 X 2.62 MM

                               4.00

82025

O'RING,VITON,29.3 X 3.6 MM

                               2.00

82027

O'RING,VITON,91.44 X 5.33 MM

                               2.00

82039

O'RING,VITON,128 X 2 MM

                               4.00

82056

O'RING,VITON,37 X 2.5 MM

                               1.00

82067

O'RING,VITON,44 X 3 MM

                               2.00

82925

PLUG,FILL,2033-2063C

                               1.00

87954

SPRING,VALVE

                               3.00

65079

ASSY,SIGHT GLASS,2033/2063CP+

                               1.00

54451G

VANE,GX,OIL PUMP

                               1.00



A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN01407 Mfr Part#: 52624 Manufacturer: Adixen / Alcatel
PRICE: $127.00
WEB SAVINGS: $12.00
YOU PAY: $115.00

Alcatel Adixen, Minor Repair Kit for Adixen 2004 AC, 2008 AC, 2012 AC, 2020 AC, DDC195, DDC310, CD200, CD300 Vacuum Pumps, PN 52624


Overview

The Alcatel Adixen 2004 AC, 2008 AC, 2012 AC, 2020 AC, DDC195, DDC310, CD200, CD300 Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Alcatel Rotary Vane Vacuum Pumps.The parts included in the Alcatel Adixen Minor Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen 2004 AC, 2008 AC, 2012 AC, 2020 AC, DDC195, DDC310, CD200, CD300 Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen 2004 AC, 2008 AC, 2012 AC, 2020 AC, DDC195, DDC310, CD200, CD300 Rotary Vane Vacuum Pumps.

Alcatel 2004 AC, 2008 AC, 2012 AC, 2020 AC, DDC195, DDC310, CD200, CD300 Minor Repair Kit contains the following parts:

DESCRIPTION PART NO. QTY
Valve Spring A52541 4
Coupling A52553 1
Fan Plate Gasket A52555 1
Exhaust Clapper A52557 1
Gas Ballast Valve - Viton A52562 1
Gas Ballast Valve - Buna A52562B 1
Gas Ballast Spring A52563 1
Exhaust Clapper A52642 1
Exhaust Valve A52655V 4
Oil Case Gasket A52755 1
Felt Pad A52990 1
Vane Spring A53040 8
Viton Nib A54340 1
Pin A71050 1
Clip A71161 1
Nut A71211 4
Nut A71214 3
Flat Washer M4 A73339 3
Waved Washer M6 A73454 9
Waved Washer M8 A73455 6
O-Ring A82004 1
O-Ring A82025 1
Stage O-Ring A82033 5
O-Ring A82056 1
Viton Shaft Seal A82063 3
Double Lip Viton Shaft Seal A82063-01 1
O-Ring A82208 2
O-Ring A82253 1
Steel Ball A82522 1
Drain Plug A82604 2
Sight Glass A83546 1
C-Clip A83653 2
O-Ring E02124025 1




A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, AC Series  2004 AC, 2008 AC, 2012 AC, 2020 AC, DDC195, DDC310, CD200, CD300. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN01408 Mfr Part#: 65885FR Manufacturer: Adixen / Alcatel
PRICE: $338.80
WEB SAVINGS: $30.80
YOU PAY: $308.00

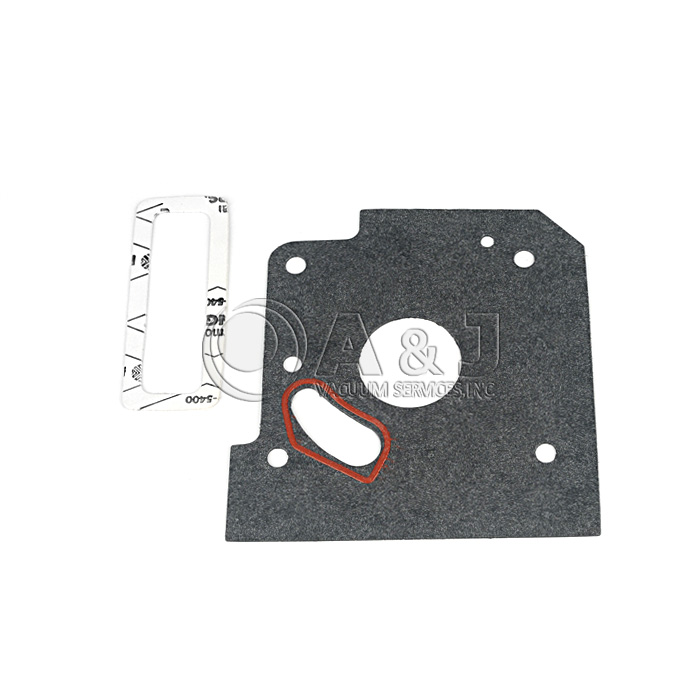

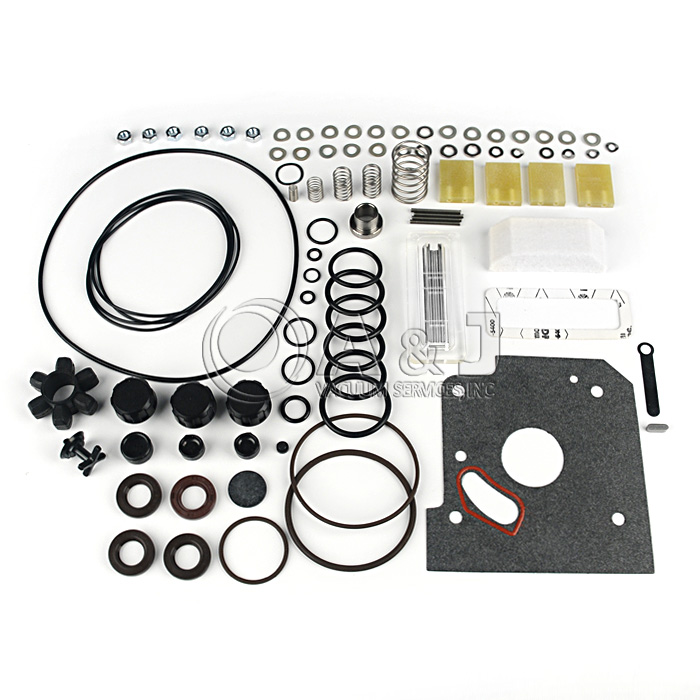

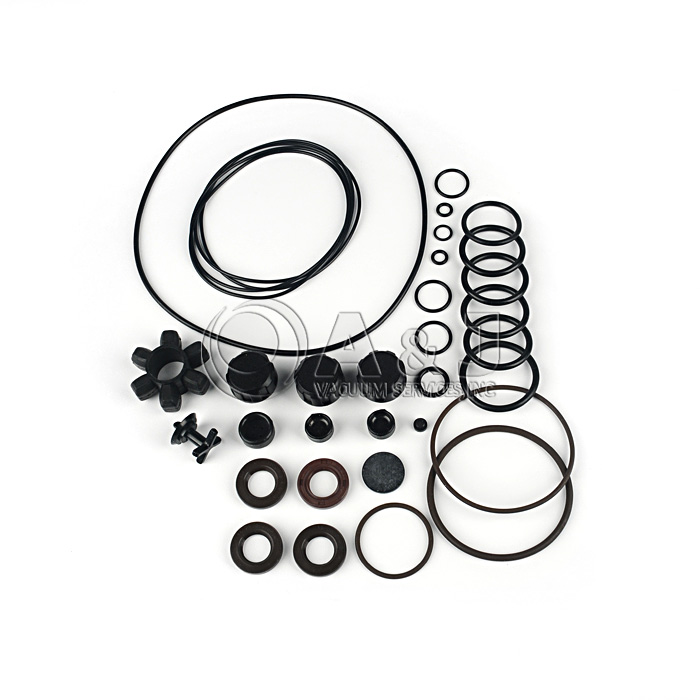

Alcatel Adixen, Major Repair Kit for Adixen Pascal Series 2005 Pump, PN 65885FR


Overview

The Alcatel Adixen Major Repair Kit includes everything needed for major overhauls on the Alcatel Adixen Pascal Series 2005.The parts included in the Alcatel Adixen Major Repair Kits for 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021 pumps, are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen SD Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal SD Series Rotary Vane Vacuum Pumps.

The Alcatel, Adixen Major Repair Kit for 2005 Pump contains the following parts:

DESCRIPTION PART NO. QTY

O-Ring

A320067

1

O-Ring

A320109

1

Valve Spring

A52541

2

Coupling

A52553

1

Exhaust Valve

A52655

2

Vane Spring

A53040

4

Spring

A65617

1

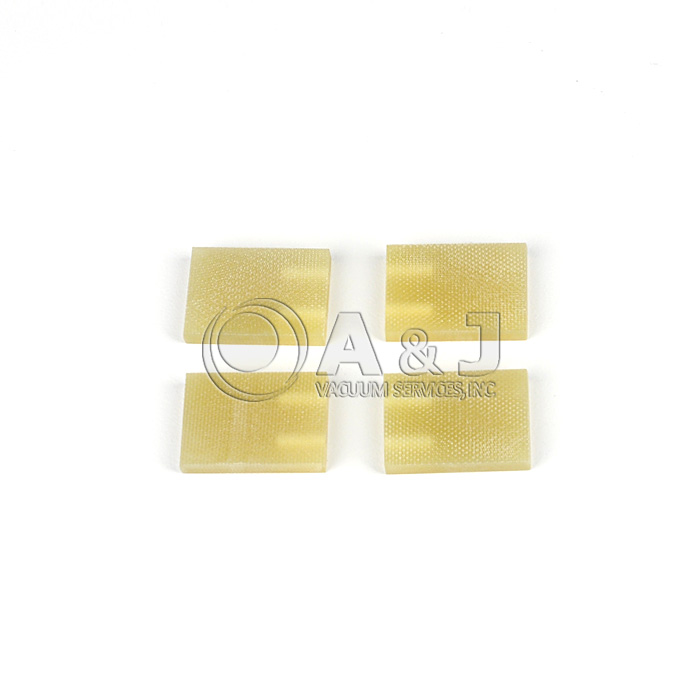

1st/2nd Stage Vane

A65760G

4

Sight Glass

A65784

1

Sight Glass Gasket

A65789

1

Exhaust Valve

A65791

2

Gas Ballast Sleeve

A65792

1

Felt Pad

A65794

1

Module Gasket

A65795

4

Gas Ballast Spring

A71050

1

ASB Device

A65798

1

ASB Spring

A65799

4

Shouldered Ring

A65846

1

Membrane

A65857

1

Blade

A65861

1

Shaft Key

A71067

1

Nut

A71211

6

Flat Washer M6

A73301

4

Flat Washer M5

A73304

2

Waved Washer M4

A73452

4

Waved Washer M5

A73453

1

Waved Washer M6

A73454

18

O-Ring

A79046

1

O-Ring

A79067

1

O-Ring

A79072

1

O-Ring

A79514

4

O-Ring

A79516

1

Viton Shaft Seal

A82063

3

Double Lip Viton Shaft Seal

A82063-01

1

O-Ring

A82105

2

O-Ring

A82110

1

O-Ring

A82122

4

O-Ring

A82125

1

Drain Plug

A82604

3

O-Ring

A84149

3

Washed Washer

A84646

1

A & J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Item#: PN01409 Mfr Part#: 104975 Manufacturer: Adixen / Alcatel
PRICE: $179.30
WEB SAVINGS: $16.30
YOU PAY: $163.00

Alcatel Adixen, Minor Repair Kit for Adixen 2005, 2010, 2015, 2021 C1/C2 Vacuum Pumps, Pascal Standard, PN 104975


Overview

The Alcatel Adixen 2005, 2010, 2015, 2021 C1/C2 Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Alcatel Adixen 2005, 2010, 2015, 2021 C1/C2 Pascal Series Rotary Vane Vacuum Pumps. The parts included in the Alcatel Adixen Minor Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen C1/C2 Series Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal C1/C2 Series Rotary Vane Vacuum Pumps.

Alcatel Adixen, Minor Repair Kit contains the following parts:

52553 COUPLER, ELASTIC, 2004-20A/AC, QTY.1

340024 DEVICE, ABS, VITON, BROWN, 70DUROM, QTY.1

65789 GASKET, SIGHT GLASS, QTY.1

340023 NIB, ANTISUCK BACK, VITON, QTY.1

82007 O'RING, VITON, 10.77 X 2.62 MM, QTY.1

320036 O'RING, VITON 12.1 X 2.7 MM, QTY.1

79148 O'RING, VITON, 165 X 3 MM, QTY.1

320035 O'RING, VITON, 17.12 X 2.62 MM, QTY.3

79509 O'RING, VITON, 28 X 3 MM, QTY.1

82025 O'RING, VITON, 29.3 X 3.6 MM, QTY.4

320109 O'RING, VITON, 33 X 2.5 MM, QTY.1

82014 O'RING, VITON, 34.1 X 3.6 MM, QTY.1

40007 O'RING, VITON, 34.52 X 3.53 MM, QTY.1

82004 O'RING, VITON, 5.7 X 1.9 MM, QTY.2

320067, O'RING, VITON, 63.09 X 3.53 MM, QTY.1

82003 O'RING, VITON, 7.2 X 1.9 MM, QTY.1

79537 O'RING, VITON, 7.5 X 1.5 MM, QTY.1

40005 O'RING, VITON, 9.25 X 1.78 MM, QTY.1

79513 O'RING, VITON, 90 X 2 MM, QTY.4

720007 PAD, FELT, 2010 C2/15SD, 05C1/21C2, QTY.1

71040 PIN, CENTERING, 2004-63ACC-C, QTY.4

82063 SEAL, SHAFT, VITON, QTY.4

580031 SLEEVE, GAS, BALLAST, QTY.1

65797 SPRING, QTY.1

65799 SPRING, QTY.1

52541 SPRING, VALVE, QTY. 4

53040 SPRING, VALVE, MW, QTY.8

390007 VALVE DISK, VITON, QTY.4

230044FR, VANE, GX, OIL PUMP, QTY.1

420029 WASHER, FLAT, STEEL, ZINK CHROMAT, QTY.2

84646 WASHER, WAVED, QTY.1

73460 WASHER, WAVED, S.S, M6, QTY.16

73452 WASHER, WAVED, STEEL, M4, QTY.4

73453 WASHER, WAVED, STEEL, M5, QTY.1


A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New In Stock
Contact
A&J Vacuum Services
16 Somerset Place, Clifton, NJ 07012
Customer Service
Phone: 973-249-0854, Fax: 973-249-0855
Service Hours
8:00am to 5:00pm, Monday thru Friday EST
All trademarks, trade names or logons mentioned or used are the property of their respective owners.
