Found 9 products
Item#: PN17195 Mfr Part#: KSBA00A2MM9A Manufacturer: Pfeiffer Vacuum
PRICE: $32,900.00
WEB SAVINGS: $4,000.00
YOU PAY: $28,900.00

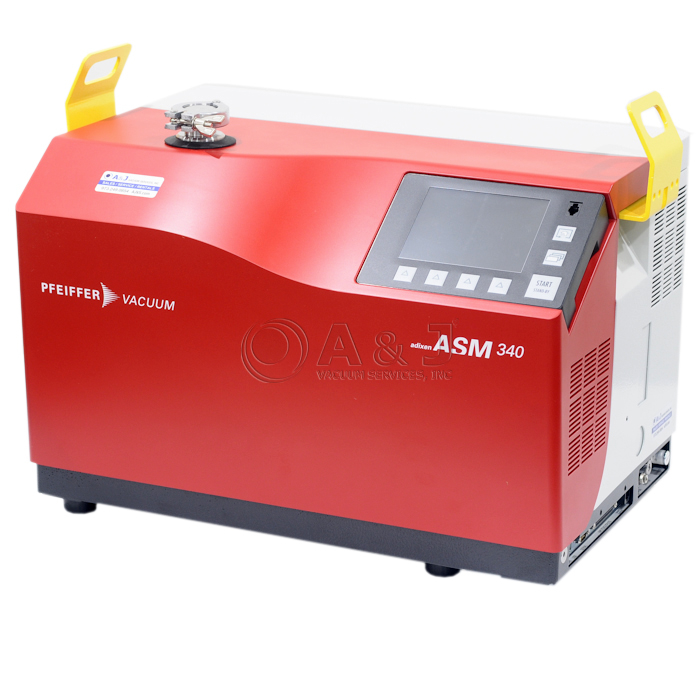

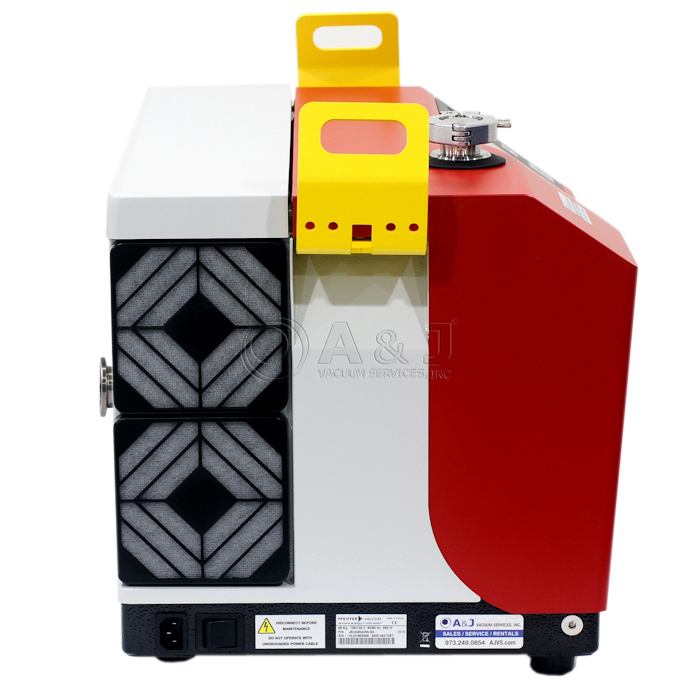

Pfeiffer Adixen ASM340D Helium Leak Detector Dry Version, Universal Voltage 90-240 V, 50/60 Hz KSBA00A2MM9A, Configurable I/O 37 pins, RS-232 and USB



Pfeiffer Adixen ASM 340 Dry-Version Helium Leak Detector - Product Overview:


The Pfeiffer ASM 340 Dry Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 D guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340D has various applications in small production environments for maintenance. The ASM 340-D has an effective pumping system and is available in two different versions dry or conventional. ASM 340 Dry is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 D is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340 D (Dry Version) is a fully automatic, multi-purpose, compact table top dry helium/hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. The ASM 340 D is ideally suited for both repetitive and non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.

The ASM 340 D has a high sensitivity of 5*E-12 atm. cc/sec helium for inboard vacuum testing and 5*E-9 atm. cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure of up to 25 mbar and 100 mbar qualitative testing pressure for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and recovery time.

The ASM 340 D has a high resolution 3-mass 180-degree deflection mass spectrometer with a VHS preamplifier, which adds enhanced sensitivity, stability, and durability. The ASM 340 D has a high performance (53 l/s) Pfeiffer hybrid turbo molecular drag pump with an added superior compression ration and low maintenance operation. The leak detector features an integrated 2CFM oil-free roughing module for high performance testing and a universal power supply for global accommodations.



Pfeiffer Adixen ASM 340 Dry leak detector comes with the following parts:


  • Leak Detector

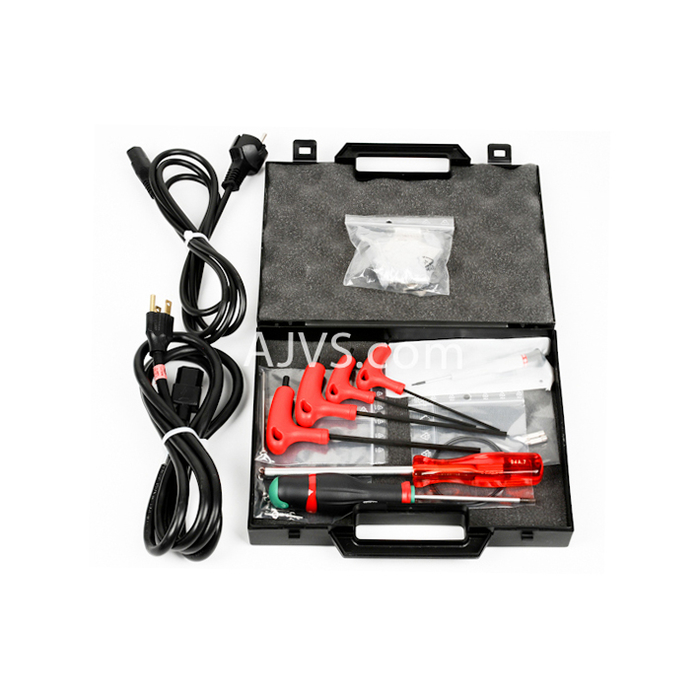

  • Tool Kit

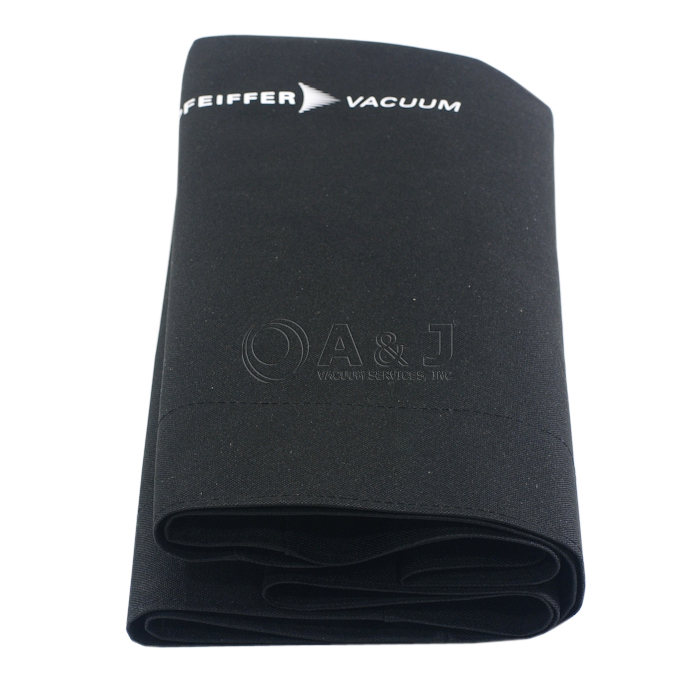

  • Cover
  • Power Cable 115V
  • Power Cable 220V
  • ASM Software
  • Manuals
  • Brochure

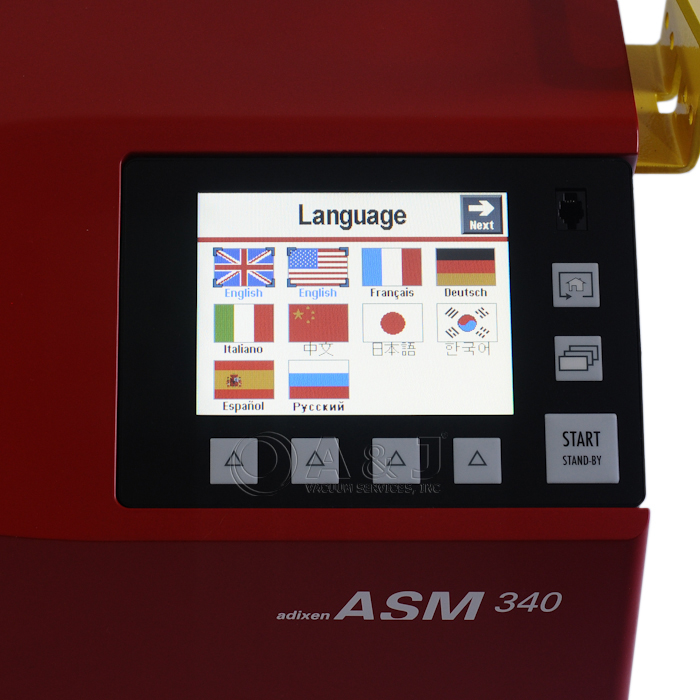

Pfeiffer/Adixen ASM 340 Control panel:

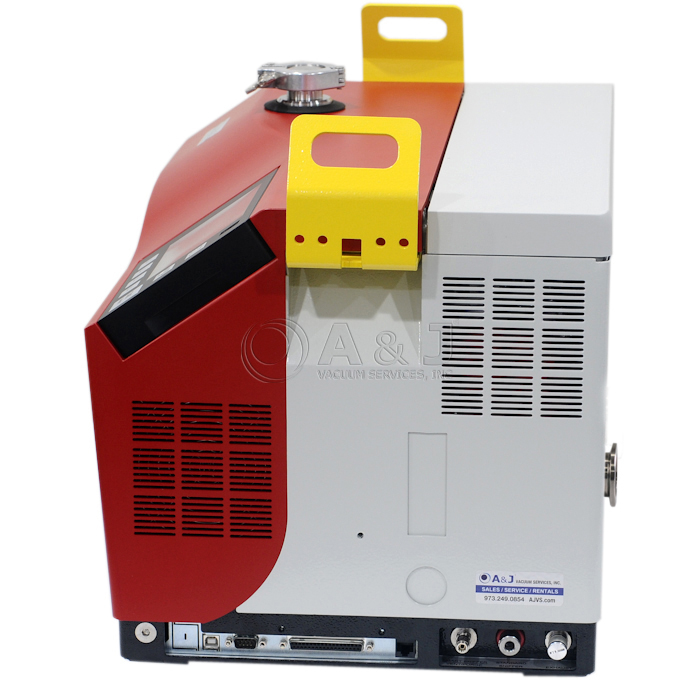

Pfeiffer/Adixen ASM 340 Dry Front panel, KSBA00A2MM9A



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.



Adixen/Pfeiffer ASM 340 Dry Features:


  • Oil-Free Pumping System, Backing Pump Capacity of 3.4 m^3/h
  • 2.5 l/s Helium Pumping Speed
  • Customizable and Detachable Operator Interface
  • Integrated SD Card for Data Processing
  • Fully Configurable I/O Interface (37 Pins D-Sub) to Fit to Customer Needs
  • Integrated Wireless Bluetooth Communication
  • Wired or Wireless Remote Control and Sniffer Probes Available as Accessories



Adixen/Pfeiffer ASM 340 Dry Inside:


Adixen/Pfeiffer ASM 340 Dry Inside, KSBA00A2MM9A



Adixen/Pfeiffer ASM 340 Dry Dimensions:


Adixen/Pfeiffer ASM 340 Dry Dimension, KSBA00A2MM9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 D Operating


A&J Vacuum services and repairs Pfeiffer Adixen ASM 340D (Dry Version) Helium Leak Detectors, along with all other helium leak detectors available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN17391 Mfr Part#: D10RSS0PB710 Manufacturer: Pfeiffer Vacuum
Price upon request

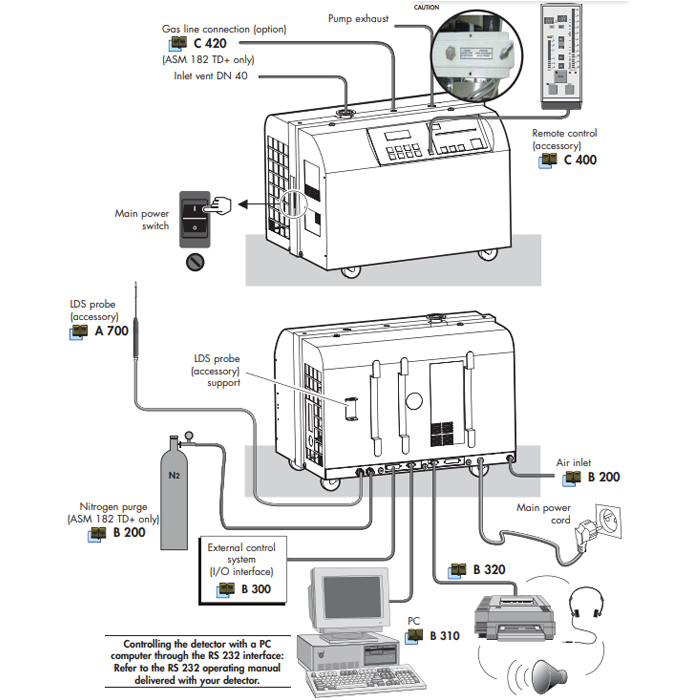

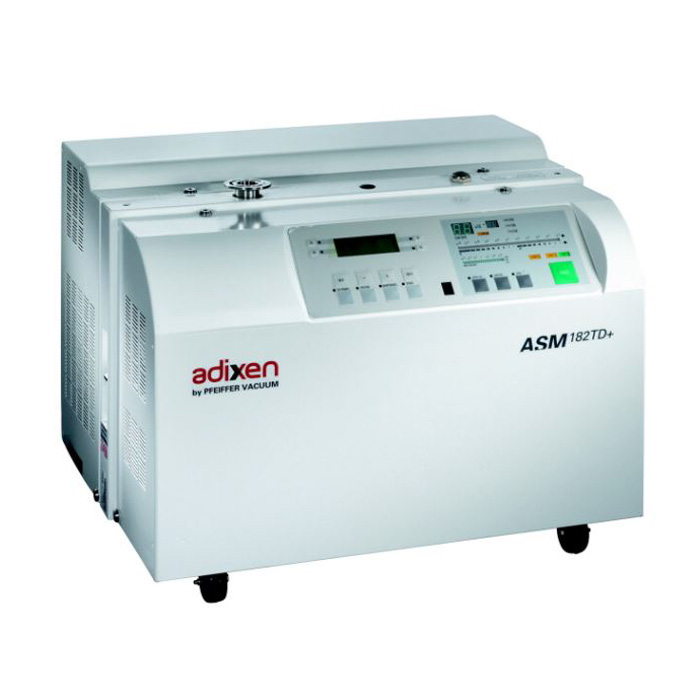

Pfeiffer Vacuum Adixen ASM 182 TD+ Standard Helium Leak Detector, 4.4 l/s Pumping Speed, 110/130 V, US Power Cable, D10RSS0PB710



Pfeiffer Vacuum Adixen ASM 182 TD+ Helium Leak Detector - Product Overview:


The Pfeiffer Adixen ASM 182/192 series includes the latest evolutions of Adixen leak detectors, of which thousands are utilized in successful daily operation throughout the world in various applications and industries, including the automotive, chemical and mechanical, and electrical, electronics and packaging industries. A standout product of this series is the Adixen ASM 182 TD+ helium leak detector, utilized extensively in quality control purposes and maintenance of semiconductor processing systems, as well as quality control of vacuum components. Additionally, it is utilized as a blister-testing appliance within the pharmaceutical industry. This brand of Pfeiffer Adixen leak detectors offers several unique features, among them high sensitivity [5 x 10^(-12) mbar l/s], in addition to rapid response time while activated in spraying mode.

The Adixen ASM 182 TD+ leak detector is extremely flexible and user-friendly, with an emphasis on operational durability and ease-of-access. Automatic operation is provided throughout a vast range of processes, including atmospheric sniffer testing and refinement of extended gas lines and tubing. The ASM 182 TD+ mechanism likewise features a range of distinct operating modes, including gross leak mode and ultra-sensitive vacuum fine leak mode. Readily available basic functions, combined digital and analog display, and a range of advanced functions are also included for user convenience.



Pfeiffer/Adixen ASM 182 TD+ Features:


  • Frictionless ACP Dry Pump with 25 m^3/h Backing Capacity
  • 4.4 l/s Helium Pumping Speed
  • 110/130 V
  • US Power Cable (15 A)
  • English Language Voice Synthesizer
  • Remote Control Featuring Units in mbar l/s

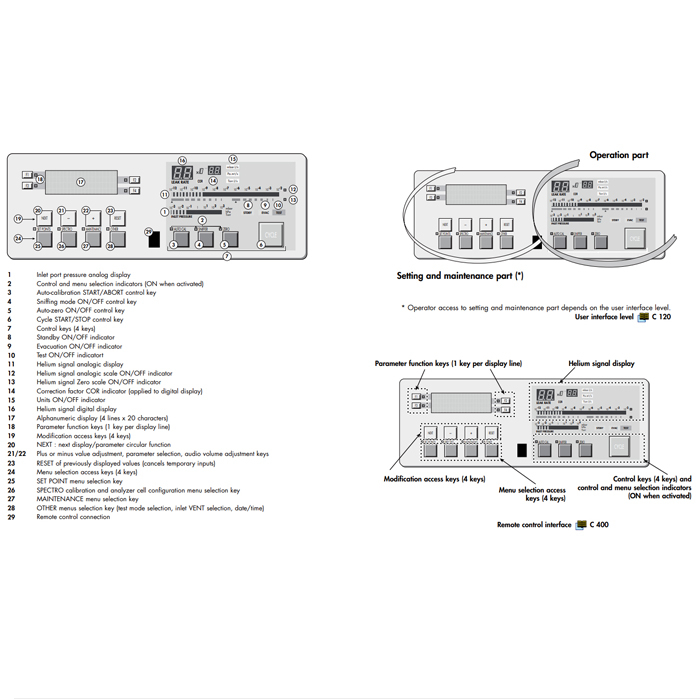

Pfeiffer/Adixen ASM 182 TD+ Control Panel:


Pfeiffer/Adixen ASM 310 Front panel, BSAA0000MM9A



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.



Pfeiffer/Adixen ASM 182 TD+ Dimensions (mm):


Pfeiffer/Adixen ASM 182 TD+, D10RSS0PB710


Click Here for Pfeiffer/Adixen ASM 182 TD+ Manual


A&J Vacuum offers full service and repair of Pfeiffer ASM 182 TD+ Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer Vacuum turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN19754 Mfr Part#: JSVA00A2ML9A Manufacturer: Pfeiffer Vacuum
PRICE: $31,200.00
WEB SAVINGS: $2,400.00
YOU PAY: $28,800.00

Pfeiffer Adixen ASM340Wet, Helium Leak Detector Wet Version with Configurable I/O Interface Board, 100-130 V, 50/60 Hz JSVA00A2ML9A



Adixen/Pfeiffer ASM340 Wet-Version Helium Leak Detector - Product Overview:


The Pfeiffer ASM 340 Wet Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 W guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340W has various applications in small production environments for maintenance. The ASM 340-W has an effective pumping system and is available in two different versions dry or conventional. ASM 340 Wet is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 W is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340W is a fully automatic, multi-purpose, compact tabletop helium/hydrogen wet (oil-lubricated pump) leak detector. The product consists of a Pfeiffer hybrid turbomolecular drag high-vacuum pump and a large integrated 11 CFM rotary vane roughing/backing pump. It is ideally suited for rapid repetitive and non-repetitive sequential testing applications requiring high-performance operation for both inboard vacuum testing and outboard sniffer testing.



Pfeiffer Adixen ASM 340 leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Cover
  • Power Cable 115V
  • Oil A200
  • ASM Software
  • Funnel
  • Oil Drain Fitting
  • Manuals
  • Brochure



Pfeiffer/Adixen ASM 340 Control panel:

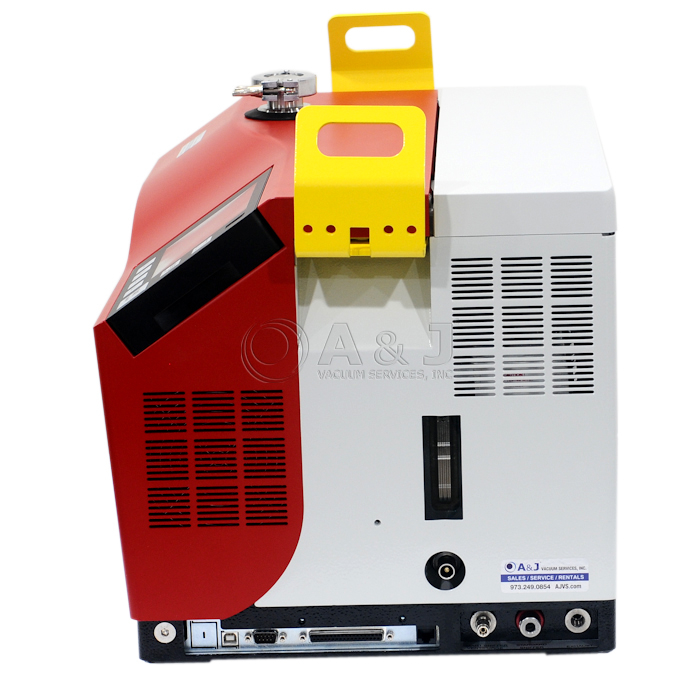

Pfeiffer/Adixen ASM 340 W Front panel, JSVA00A2ML9A



Adixen/Pfeiffer ASM340 W Features:


  • High sensitivity of 5*E-12 atm. cc/sec. helium for inboard vacuum testing and 5E-9 atm. cc/sec. helium for outboard sniffer testing.
  • Quantitative inlet port test pressure of up to 25 mbar (18,750 microns) and 100 mbar (75,000 microns) qualitative testing for massive leak identification.
  • High helium pumping speed at inlet of 2.5 L/S He. for quick response and recovery time.
  • High-resolution 3-mass (He4, He3, H2) 180-degree deflection mass spectrometer with VHS preamplifier (multi-channel electron multiplier) for added sensitivity, stability and repeatability.
  • Large, detachable color touch screen control/display panel with SD card for recording capability and user-friendly interface.
  • Pump Details: High-performance 53 L/S Pfeiffer hybrid turbo molecular drag pump with added superior compression ratio and low maintenance requirements.
  • Independent ramped dual yttria-coated iridium filaments concealed within analyzer, to enhance durability and reliability while lowering maintenance.
  • High roughing capacity of 11 CFM with reliable low RPM rotary vane mechanical pump for added performance and continuous long life operation.
  • Integrated helium-calibrated leak for fully automatic calibration with temperature and age compensation.
  • Wired or wireless remote control and sniffer probes available as accessories
  • Integrated selectable languages with digital voice for worldwide recognition. Available languages include: English, French, German, Italian, Spanish, Russian, Japanese, Chinese, Korean.



This ASM 340W system, as well as all other Pfeiffer Adixen helium leak detectors, is fully protected against power failure, air in-rushes, and incorrect operations/user error. Access to the 24-hour extended support program (ESP) is fully included and readily available to the user.



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.



Adixen/Pfeiffer ASM 340 W Inside:


Adixen/Pfeiffer ASM 340 Wet Inside, JSVA00A2ML9A



Adixen/Pfeiffer ASM 340 W Dimensions:


Adixen/Pfeiffer ASM 340 Wet Dimension, JSVA00A2ML9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 W Operating


A&J Vacuum Services offers full repair/service of Pfeiffer Adixen 340W (Wet Version) Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN23852 Mfr Part#: JSVA00A2MH9A/JSVA00A2MH9A Manufacturer: Pfeiffer Vacuum
Price upon request

Pfeiffer Adixen ASM 340 W, Helium Leak Detector Wet Version, Configurable I/O Interface Board, 200-240 V, 50/60 Hz, JSVA00A2MH9A



Adixen/Pfeiffer ASM340 Wet-Version Helium Leak Detector - Product Overview:


The Pfeiffer ASM 340 Wet Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 W guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340W has various applications in small production environments for maintenance. The ASM 340-W has an effective pumping system and is available in two different versions dry or conventional. ASM 340 Wet is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 W is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340W is a fully automatic, multi-purpose, compact tabletop helium/hydrogen wet (oil-lubricated pump) leak detector. The product consists of a Pfeiffer hybrid turbomolecular drag high-vacuum pump and a large integrated 11 CFM rotary vane roughing/backing pump. It is ideally suited for rapid repetitive and non-repetitive sequential testing applications requiring high-performance operation for both inboard vacuum testing and outboard sniffer testing.



Pfeiffer Adixen ASM 340 leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Cover
  • Power Cable
  • Oil A200
  • ASM Software
  • Funnel
  • Oil Drain Fitting
  • Manuals
  • Brochure



Pfeiffer/Adixen ASM 340 Control panel:


Pfeiffer/Adixen ASM 340 W Front panel, JSVA00A2ML9A



Adixen/Pfeiffer ASM340 W Features:


  • High sensitivity of 5*E-12 atm. cc/sec. helium for inboard vacuum testing and 5E-9 atm. cc/sec. helium for outboard sniffer testing.
  • Quantitative inlet port test pressure of up to 25 mbar (18,750 microns) and 100 mbar (75,000 microns) qualitative testing for massive leak identification.
  • High helium pumping speed at inlet of 2.5 L/S He. for quick response and recovery time.
  • High-resolution 3-mass (He4, He3, H2) 180-degree deflection mass spectrometer with VHS preamplifier (multi-channel electron multiplier) for added sensitivity, stability and repeatability.
  • Large, detachable color touch screen control/display panel with SD card for recording capability and user-friendly interface.
  • Pump Details: High-performance 53 L/S Pfeiffer hybrid turbo molecular drag pump with added superior compression ratio and low maintenance requirements.
  • Independent ramped dual yttria-coated iridium filaments concealed within analyzer, to enhance durability and reliability while lowering maintenance.
  • High roughing capacity of 11 CFM with reliable low RPM rotary vane mechanical pump for added performance and continuous long life operation.
  • Integrated helium-calibrated leak for fully automatic calibration with temperature and age compensation.
  • Wired or wireless remote control and sniffer probes available as accessories
  • Integrated selectable languages with digital voice for worldwide recognition. Available languages include: English, French, German, Italian, Spanish, Russian, Japanese, Chinese, Korean.



This ASM 340W system, as well as all other Pfeiffer Adixen helium leak detectors, is fully protected against power failure, air in-rushes, and incorrect operations/user error. Access to the 24-hour extended support program (ESP) is fully included and readily available to the user.



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.



Adixen/Pfeiffer ASM 340 W Inside:


Adixen/Pfeiffer ASM 340 Wet Inside, JSVA00A2ML9A



Adixen/Pfeiffer ASM 340 W Dimensions:


Adixen/Pfeiffer ASM 340 Wet Dimension, JSVA00A2ML9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 W Operating


A&J Vacuum Services offers full repair/service of Pfeiffer Adixen 340W (Wet Version) Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN21057 Mfr Part#: KSBA00A5MM9A/KSBA00A5MM9A Manufacturer: Pfeiffer Vacuum
PRICE: $31,680.00
WEB SAVINGS: $2,880.00
YOU PAY: $28,800.00

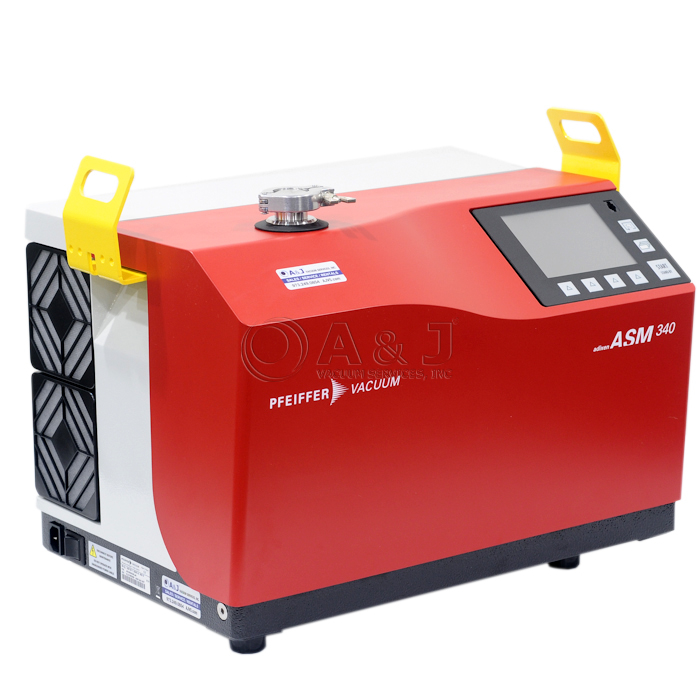

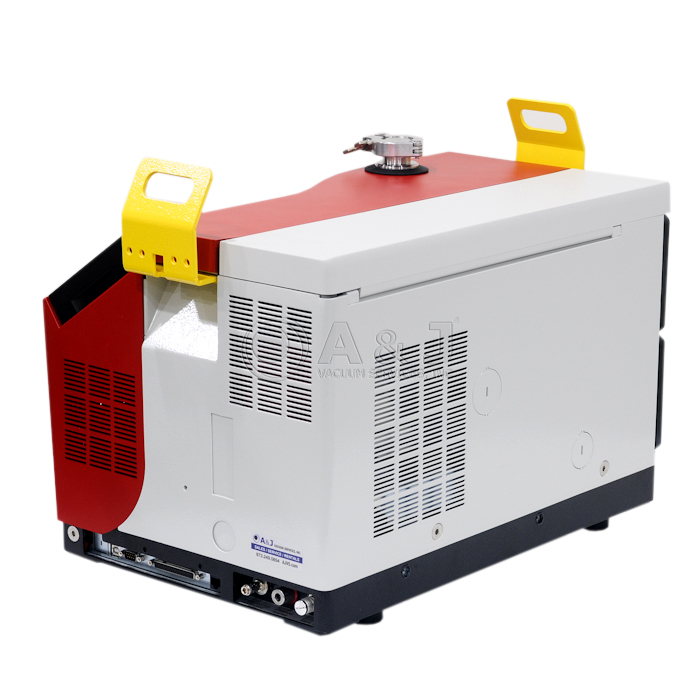

Pfeiffer Adixen ASM 340 Dry, Helium Leak Detector Dry Version, With Bluetooth, Universal Voltage 90-240 V, 50/60 Hz KSBA00A5MM9A



Pfeiffer Adixen ASM 340 Dry-Version Helium Leak Detector - Product Overview:


The Pfeiffer ASM 340 Dry Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 D guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340D has various applications in small production environments for maintenance. The ASM 340-D has an effective pumping system and is available in two different versions dry or conventional. ASM 340 Dry is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 D is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340 D is a fully automatic, multi-purpose, compact table top dry helium / hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. Ideally suited for repetitive or non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.

The ASM 340 D has a high sensitivity of 5E-12 atm. cc/sec helium for inboard vacuum testing and 5E-9 atm cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure up to 25 mbar and 100 mbar qualitative testing for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and clean up time.

The ASM 340 D has a high resolution 3-mass 180 degree deflection mass spectrometer with a VHS preamplifier which adds sensitivity, stability and repeatability. The ASM 340 has a high performance (53 l/s) Pfeiffer hybrid turbo molecular drag pump with added superior compression ration and low maintenance operation. It also features an integrated 2CFM oil-free roughing module for high performance testing and a universal power supply for global accommodations.



Pfeiffer Adixen ASM 340 Dry leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Cover
  • Power Cable 115V
  • Power Cable 220V
  • ASM Software
  • Manuals
  • Brochure



Pfeiffer/Adixen ASM 340 Control panel:


Pfeiffer/Adixen ASM 340 Front panel, KSBA00A5MM9A



Adixen/Pfeiffer ASM 340 Dry Features:


  • Oil free pumping system, backing pump capacity 3.4 m3/h
  • 2.5 l/s helium pumping speed
  • Customizable and detachable operator interface
  • Integrated SD card for data processing
  • Fully configurable I/O interface (37 pins D-Sub) to fit to customer needs
  • Integrated wireless Bluetooth communication
  • Wired or wireless remote control and sniffer probes available as accessories



Adixen/Pfeiffer ASM 340 Dry Inside:


Adixen/Pfeiffer ASM 340 Dry Inside, KSBA00A5MM9A



Adixen/Pfeiffer ASM 340 Dry Dimensions:


Adixen/Pfeiffer ASM 340 Dry Dimension, KSBA00A5MM9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 D Operating


A&J Vacuum services and repairs Adixen/Pfeiffer Vacuum Pumps, Adixen/Pfeiffer Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN22844 Mfr Part#: D20RT00PB710 Manufacturer: Pfeiffer Vacuum
Price upon request

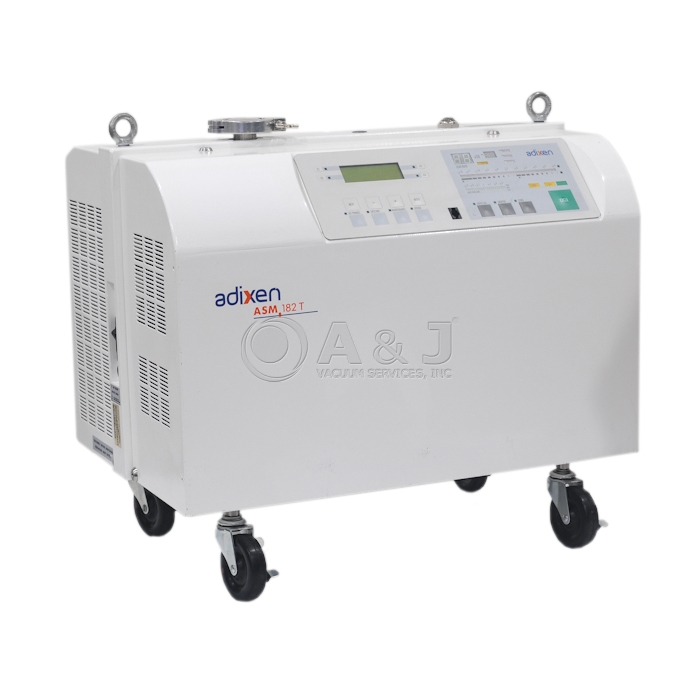

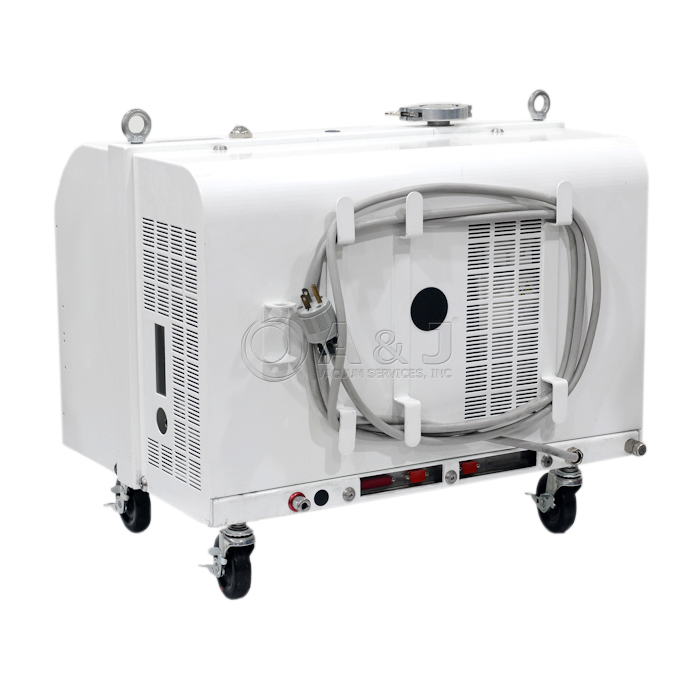

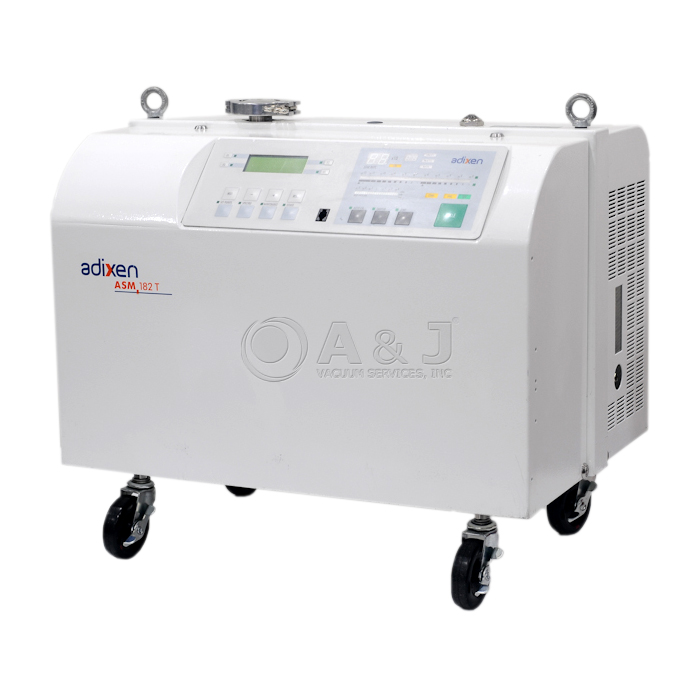

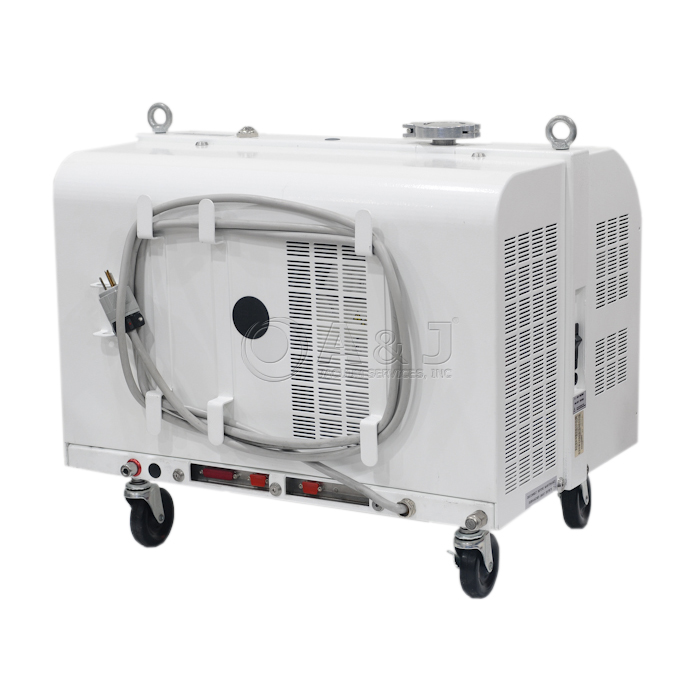

Pfeiffer Adixen ASM 182 T Helium Leak Detector, 4.4 l/s Pumping Speed, 110/130 V, US Power Cable, D20RT00PB710



Pfeiffer/Adixen ASM 182T Overview:


The Pfeiffer Adixen ASM 182 T is a fully-automatic, multi-purpose helium leak detector. The ASM 182 T system incorporates a 130 L/S hybrid turbomolecular high vacuum pump, with an integrated 16 CFM two-stage rotary vane roughing/backing pump.The Pfeiffer Adixen ASM 182 T leak detector is ideally suited for operations requiring continuously high performance operation and production usage rates.



Outstanding Features and Benefits of the ASM182T Helium Leak Detector Include:


  • High sensitivity of 5*E-12 atm. cc/sec. helium (according to AVS 2.1 and ISO 3530 standards) at full pumping speed.

  • Unmatched inlet port helium pumping speed of 4.4 liters per second for quick response and clean-up time, allowing the ASM 182 T to outperform competing helium leak detectors with regard to pump velocity and overall efficiency.

  • High inlet port test pressure of up to 6 mbar (4500 microns) in full contraflow configuration for maximum performance results.

  • A high-resolution 180-degree deflection mass spectrometer with VHS preamplifier (multi-channel electron multiplier) for added sensitivity, stability, and durability.

  • Capacity to test large volumes of up to 250 liters without the need to utilize external pumping to increase sensitivity, giving the ASM 182 T a significant advantage over previous leak detectors in flow capacity and pump velocity.

  • Automated dual vacuum test schematics of gross leak contraflow and fine leak direct flow used for extended-range testing.

  • Auto-calibration utilizing an internal helium-calibrated leak with temperature, as well as percentage loss compensation for extended accuracy and simplified operation.

  • High roughing capacity of 16 CFM with an incorporated two-stage rotary vane pump for large-volume evacuation and rapid production cycles.

  • Simplified start-up and shut-down process featuring a single button; shut down can be executed regardless of mode of operation, accompanied by a selectable user interface for user-friendly operation.

  • Standard extended-interface capability which includes: 5 dry-contact outputs, 6 inputs, analog leak rate output, and comprehensive RS232 interface. The ASM 182 T System, alongh with other, similar Adixen helium leak detectors, is fully protected against power failure, errors resulting from movement during operation,and air penetration resulting in compromised operations. Additionally, access to the 24-hour extended support program (ESP) is likewise included for the Pfeiffer ASM 182 T helium leak detector.



Pfeiffer/Adixen ASM 310 Control panel:


Pfeiffer/Adixen ASM 182 T Front panel, D20RT00PB710





A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.

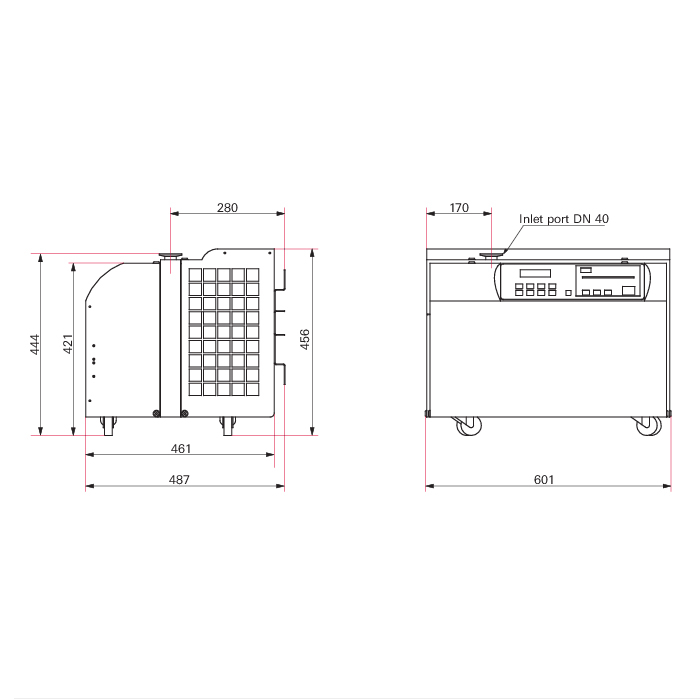

Pfeiffer/Adixen ASM182T Dimensions:


Pfeiffer/Adixen ASM 182T, D20RT00PB710


Click Here for Pfeiffer/Adixen ASM 182 T Manual


A&J Vacuum Services offers full repair/service of Pfeiffer ASM 182 T Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN23667 Mfr Part#: MSXA00A2MM9A/MSXA00A2MM9A Manufacturer: Pfeiffer Vacuum
PRICE: $28,270.00
WEB SAVINGS: $2,570.00
YOU PAY: $25,700.00

Pfeiffer Adixen ASM 340 I, Integrable Version Without Primary Pumping, Universal Voltage 100-240 V, 50/60 Hz MSXA00A2MM9A



Pfeiffer Adixen ASM 340 Integrable Version Helium Leak Detector - Product Overview:


The Pfeiffer ASM 340 I Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 I guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340I has various applications in small production environments for maintenance. The ASM 340-I has an effective pumping system and is available in two different versions dry or conventional. ASM 340 I is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 I is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340 I (Integrable Version) is a fully automatic, multi-purpose, compact table top dry helium/hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. The ASM 340 D is ideally suited for both repetitive and non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.

The ASM 340 I has a high sensitivity of 5*E-12 atm. cc/sec helium for inboard vacuum testing and 5*E-9 atm. cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure of up to 25 mbar and 100 mbar qualitative testing pressure for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and recovery time.

The ASM 340 I has a high resolution 3-mass 180-degree deflection mass spectrometer with a VHS preamplifier, which adds enhanced sensitivity, stability, and durability. The ASM 340 I has a high performance (53 l/s) Pfeiffer hybrid turbo molecular drag pump with an added superior compression ration and low maintenance operation. The leak detector features an integrated 2CFM oil-free roughing module for high performance testing and a universal power supply for global accommodations.



Pfeiffer Adixen ASM 340 I leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Cover
  • Power Cable 115V
  • Power Cable 220V
  • ASM Software
  • Manuals
  • Brochure



Pfeiffer/Adixen ASM 340 Control panel:


Pfeiffer/Adixen ASM 340 I Front panel, MSXA00A2MM9A



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.



Adixen/Pfeiffer ASM 340 I Features:


  • Without backing pump
  • 2.5 l/s helium pumping speed
  • Customizable and detachable operator interface
  • Integrated SD card for data processing
  • Fully configurable I/O interface (37 pins D-sub) to fit to customer needs
  • Wired or wireless remote control and sniffer probes available as accessories
  • Special accessory for I/O compatibility mode dedicated to HLT 5xx



Adixen/Pfeiffer ASM 340 I Dimensions:


Adixen/Pfeiffer ASM 340 I Dimension, MSXA00A2MM9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 I Operating


A&J Vacuum services and repairs Pfeiffer Adixen ASM 340I (Integrable Version) Helium Leak Detectors, along with all other helium leak detectors available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN24024 Mfr Part#: MSXA00A2MM9A Manufacturer: Pfeiffer Vacuum
PRICE: $25,500.00
WEB SAVINGS: $12,000.00
YOU PAY: $13,500.00

Fully Re-manufactured Pfeiffer Adixen ASM 340 I, Integrable Version Without Primary Pump, Universal Voltage 100-240 V, 50/60 Hz MSXA00A2MM9A



Pfeiffer Vacuum ASM 340I Integrable Version Helium Leak Detector - Product Overview:

This ASM 340 can be integrated and operated with Dry or Oil Lubricated Primary Pump. (sold seperately)


The Pfeiffer Adixen ASM 340 I Leak Detector is a high performance and very easy operation. Pfeiffer ASM340 I guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340I has various applications in small production environments for maintenance. The ASM 340-I has an effective pumping system and is available in two different versions dry or conventional. ASM 340 I is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 I is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340 I (Integrable Version) is a fully automatic, multi-purpose, compact table top dry helium/hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. The ASM 340 D is ideally suited for both repetitive and non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.

The Pfeiffer Vacuum ASM 340 I has a high sensitivity of 5*E-12 atm. cc/sec helium for inboard vacuum testing and 5*E-9 atm. cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure of up to 25 mbar and 100 mbar qualitative testing pressure for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and recovery time.

The ASM 340 I has a high resolution 3-mass 180-degree deflection mass spectrometer with a VHS preamplifier, which adds enhanced sensitivity, stability, and durability. The ASM 340 I has a high performance (53 l/s) Pfeiffer hybrid turbo molecular drag pump with an added superior compression ration and low maintenance operation.



Pfeiffer Adixen ASM 340 I leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Cover
  • Power Cable 115V
  • Power Cable 220V
  • ASM Software
  • Manuals
  • Brochure



Pfeiffer/Adixen ASM 340 Control panel:


Pfeiffer/Adixen ASM 340 I Front panel, MSXA00A2MM9A



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.



Adixen/Pfeiffer ASM 340 I Features:


  • Without backing pump
  • 2.5 l/s helium pumping speed
  • Customizable and detachable operator interface
  • Integrated SD card for data processing
  • Fully configurable I/O interface (37 pins D-sub) to fit to customer needs
  • Wired or wireless remote control and sniffer probes available as accessories
  • Special accessory for I/O compatibility mode dedicated to HLT 5xx



Adixen/Pfeiffer ASM 340 I Dimensions:


Adixen/Pfeiffer ASM 340 I Dimension, MSXA00A2MM9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 I Operating


A&J Vacuum services and repairs Pfeiffer Adixen ASM 340I (Integrable Version) Helium Leak Detectors, along with all other helium leak detectors available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Remanufactured Call us for Availability
Item#: PN24311 Mfr Part#: KSBA00A4MM9A/KSBA00A4MM9A Manufacturer: Pfeiffer Vacuum
Price upon request

Pfeiffer Adixen ASM 340 D, Helium Leak Detector Dry Version, Ethernet, Universal Voltage 90-240 V, 50/60 Hz KSBA00A4MM9A



Pfeiffer Adixen ASM 340 Dry-Version Helium Leak Detector - Product Overview:


The Pfeiffer ASM 340 Dry Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 D guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340D has various applications in small production environments for maintenance. The ASM 340-D has an effective pumping system and is available in two different versions dry or conventional. ASM 340 Dry is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 D is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340 D (Dry Version) is a fully automatic, multi-purpose, compact table top dry helium/hydrogen leak detector. It consists of a Pfeiffer hybrid turbo drag vacuum pump and integrated oil-free roughing/backing pump. The ASM 340 D is ideally suited for both repetitive and non-repetitive sequential testing applications requiring ultra-clean operations for both inboard vacuum testing and outboard sniffer testing.

The ASM 340 D has a high sensitivity of 5*E-12 atm. cc/sec helium for inboard vacuum testing and 5*E-9 atm. cc/sec helium for outboard sniffer testing. It has a high quantitative inlet port test pressure of up to 25 mbar and 100 mbar qualitative testing pressure for massive leak identification. A high helium pumping speed (2.5 l/s) allows for quick response and recovery time.

The ASM 340 D has a high resolution 3-mass 180-degree deflection mass spectrometer with a VHS preamplifier, which adds enhanced sensitivity, stability, and durability. The ASM 340 D has a high performance (53 l/s) Pfeiffer hybrid turbo molecular drag pump with an added superior compression ration and low maintenance operation. The leak detector features an integrated 2CFM oil-free roughing module for high performance testing and a universal power supply for global accommodations.



Pfeiffer Adixen ASM 340 Dry leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Cover
  • Power Cable 115V
  • Power Cable 220V
  • ASM Software
  • Manuals
  • Brochure



Pfeiffer/Adixen ASM 340 Control panel:


Pfeiffer/Adixen ASM 340 Dry Front panel, KSBA00A2MM9A



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.



Adixen/Pfeiffer ASM 340 Dry Features:


  • Oil-Free Pumping System, Backing Pump Capacity of 3.4 m^3/h
  • 2.5 l/s Helium Pumping Speed
  • Customizable and Detachable Operator Interface
  • Integrated SD Card for Data Processing
  • Fully Configurable I/O Interface (37 Pins D-Sub) to Fit to Customer Needs
  • Integrated Wireless Bluetooth Communication
  • Wired or Wireless Remote Control and Sniffer Probes Available as Accessories



Adixen/Pfeiffer ASM 340 Dry Inside:


Adixen/Pfeiffer ASM 340 Dry Inside, KSBA00A2MM9A



Adixen/Pfeiffer ASM 340 Dry Dimensions:


Adixen/Pfeiffer ASM 340 Dry Dimension, KSBA00A2MM9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 D Operating


A&J Vacuum services and repairs Pfeiffer Adixen ASM 340D (Dry Version) Helium Leak Detectors, along with all other helium leak detectors available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Contact
A&J Vacuum Services
16 Somerset Place, Clifton, NJ 07012
Customer Service
Phone: 973-249-0854, Fax: 973-249-0855
Service Hours
8:00am to 5:00pm, Monday thru Friday EST
All trademarks, trade names or logons mentioned or used are the property of their respective owners.
