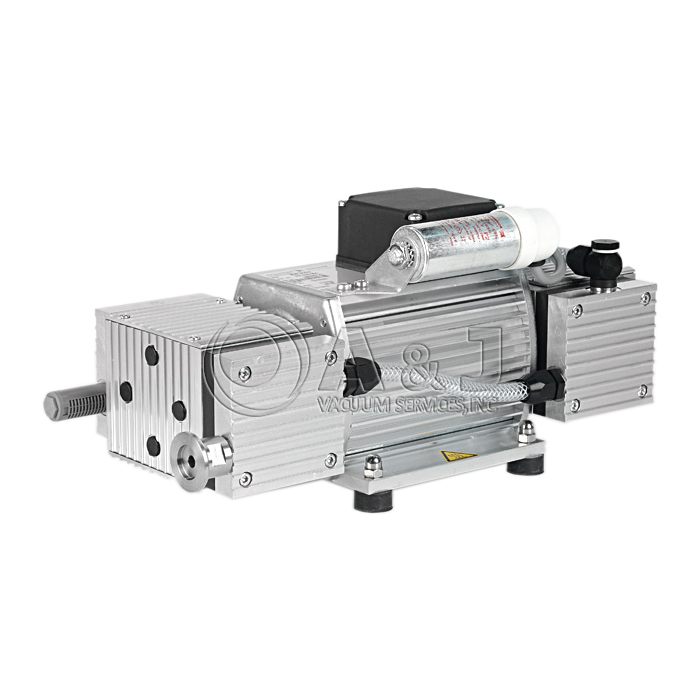

The Pfeiffer MVP 015 4 Diaphragm Pump Overview:
The Pfeiffer MVP 015-4 Diaphragm Pump can be applied in all areas where an oil-free, dry vacuum is required. Particularly the pump is suitable as backing pump for many Pfeiffer Vacuum turbo pumps in applications involving light gas loads only.
The Pfeiffer Vacuum MVP 015 Vacuum Pump Applications:
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Technical Data:
Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
Cooling method, standard | Convection cooled |
Current max. | 2,9 A |
Emission sound pressure level without gas ballast or purge | 52 dB(A) |
Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
Flange (in) | DN 16 ISO-KF; G 1/8" |
Flange (out) | G 1/8” with silencer |
Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
Leak rate | ≤ 5 · 10-4 Pa m3/s | ≤ 3.75 · 10-3 Torr l/s | ≤ 5 · 10-3mbar l/s |
Mains cable | Yes |
Mains requirement: voltage | 120 V |
Mains requirement: voltage (range) | ± 10 % |
Motor version | 1-ph motor |
Number of pumping stages | 4 |
Operating altitude, max. | 2000 m |
Protection category | IP54 |
Pumping speed at 60 Hz | 0.6 m³/h | 0.35 cfm | 10 l/min |
Rated current absorption | 0.8 A |
Rotation speed at 60 Hz | 1,800 rpm | 1,800 min-1 |
Sound pressure level | 52 dB(A) |
Switch New | No |
Temperature: Storage | 5-40 °C | 41-104 °F | 278-313 K |
Ultimate pressure without gas ballast | 5 · 10-1 hPa | 3.75 · 10-1Torr | 5 · 10-1 mbar |
Weight | 7.5 kg | 16.53 lb |
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
