- 211 SCFM Pumping Speed
- 0.075 Torr Maximum Vacuum
- 208/230/460 V Operation
- Integrated anti-suck back valve

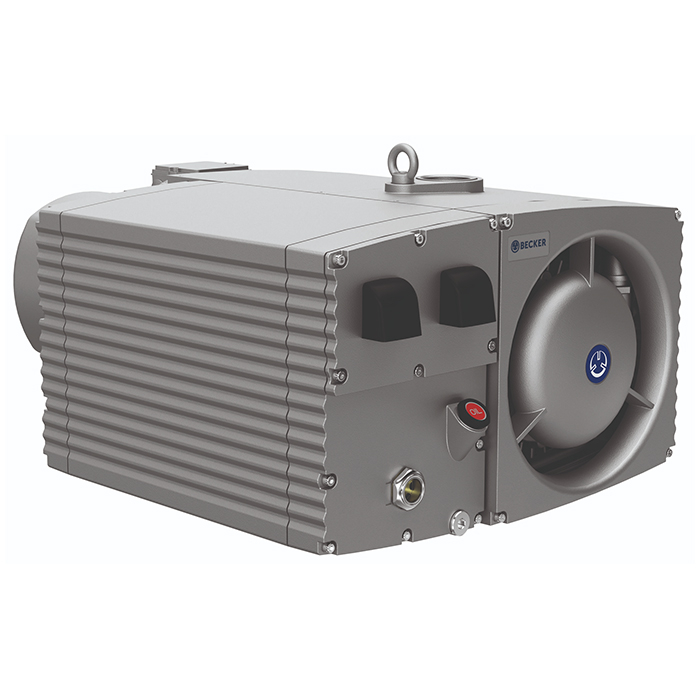

Becker U 5.301/0-62XL Rotary Vane Pump, 211 SCFM, 0.075 Torr, Oil Flooded Vacuum Pump, 208/230/460 V, 3 phase, 60 Hz, TEFC Motor, G052852
Becker U 5.301 Key Features & Attributes:
- 211 SCFM Pumping Speed
- 0.075 Torr Maximum Vacuum
- Integrated anti-suck back valve
- Air-cooled oil cooler
- Horizontally mounted external inlet filter
U5.301 / G052852 Overview:
The Becker U Series rotary vane pumps are engineered for durability and perform exceptionally well in vacuum applications involving significant pressure differentials. Inside the cylindrical housing, a rotor is mounted off-center and features slots that hold precision-engineered sliding vanes. As the rotor turns, the vanes slide in and out, forming separate working chambers. Unlike dry-running rotary vane pumps, the oil-lubricated versions not only reduce friction but also use the circulating oil to seal the chambers. This sealing function enables the pumps to reach deeper vacuum levels, making them particularly suitable for demanding high-vacuum applications
The Becker U5.301 is a traditional oil-lubricated rotary vane vacuum pump.
It comprises a housing, an eccentrically mounted rotor, radially sliding vanes, and inlet and outlet ports.
Becker G052852 has a non-return valve is located in the connection flange, which opens only during operation. As the rotor spins, gas enters the expanding chamber until it is sealed off by the next sliding vane. The trapped gas is then compressed until the outlet valve opens, releasing it against atmospheric pressure.The resulting vacuum draws oil into the scoop chamber, which not only lubricates but also helps seal the vanes. The oil used in the compression process is subsequently separated by air de-oiling components.
Becker U 5.301 Scope of Delivery:
- U 5.301 rotary vane pump coupled to a 3 phase motor
- Initial charge of Becker’s synthetic oil
U5.301 / G052852 Applications:
- The new U Series can be used across a wide range of applications from vacuum chamber machines, form-fill-seal machines and tray sealer
- The U 5.301 ideally suited for the vacuum packaging of food
A&J Vacuum services and repairs Becker U 5.301 rotary vane pumps , along with all other Becker vacuum pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Becker U 5.301/0-62XL Rotary Vane Pump, 211 SCFM, 0.075 Torr, Oil Flooded Vacuum Pump, 208/230/460 V, 3 phase, 60 Hz, TEFC Motor, G052852
Becker U 5.301 Technical Specifications:
Open Flow SCFM: 211
Maximum Vacuum: 0.075 Torr
Horsepower: 12.1
Noise Level dB(A): 76
Weight without Motor: 199 lbs
A&J Vacuum services and repairs Becker U 5.301 rotary vane pumps , along with all other Becker vacuum pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Becker U 5.301/0-62XL Rotary Vane Pump, 211 SCFM, 0.075 Torr, Oil Flooded Vacuum Pump, 208/230/460 V, 3 phase, 60 Hz, TEFC Motor, G052852
Becker U 5.301 Key Features & Attributes:
- 211 SCFM Pumping Speed
- 0.075 Torr Maximum Vacuum
- Integrated anti-suck back valve
- Air-cooled oil cooler
- Horizontally mounted external inlet filter
U5.301 / G052852 Overview:
The Becker U Series rotary vane pumps are engineered for durability and perform exceptionally well in vacuum applications involving significant pressure differentials. Inside the cylindrical housing, a rotor is mounted off-center and features slots that hold precision-engineered sliding vanes. As the rotor turns, the vanes slide in and out, forming separate working chambers. Unlike dry-running rotary vane pumps, the oil-lubricated versions not only reduce friction but also use the circulating oil to seal the chambers. This sealing function enables the pumps to reach deeper vacuum levels, making them particularly suitable for demanding high-vacuum applications
The Becker U5.301 is a traditional oil-lubricated rotary vane vacuum pump.
It comprises a housing, an eccentrically mounted rotor, radially sliding vanes, and inlet and outlet ports.
Becker G052852 has a non-return valve is located in the connection flange, which opens only during operation. As the rotor spins, gas enters the expanding chamber until it is sealed off by the next sliding vane. The trapped gas is then compressed until the outlet valve opens, releasing it against atmospheric pressure.The resulting vacuum draws oil into the scoop chamber, which not only lubricates but also helps seal the vanes. The oil used in the compression process is subsequently separated by air de-oiling components.
Becker U 5.301 Scope of Delivery:
- U 5.301 rotary vane pump coupled to a 3 phase motor
- Initial charge of Becker’s synthetic oil
U5.301 / G052852 Applications:
- The new U Series can be used across a wide range of applications from vacuum chamber machines, form-fill-seal machines and tray sealer
- The U 5.301 ideally suited for the vacuum packaging of food
A&J Vacuum services and repairs Becker U 5.301 rotary vane pumps , along with all other Becker vacuum pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Becker U 5.301/0-62XL Rotary Vane Pump, 211 SCFM, 0.075 Torr, Oil Flooded Vacuum Pump, 208/230/460 V, 3 phase, 60 Hz, TEFC Motor, G052852
Becker U 5.301 Technical Specifications:
Open Flow SCFM: 211
Maximum Vacuum: 0.075 Torr
Horsepower: 12.1
Noise Level dB(A): 76
Weight without Motor: 199 lbs
A&J Vacuum services and repairs Becker U 5.301 rotary vane pumps , along with all other Becker vacuum pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
