Adixen 2063 H1 Pascal Vacuum Pump, 3-Phase Motor, Hydrocarbon Oil, 200-400 V 50Hz, 230-460 V 60Hz, 2063H1
Condition:
New
Item#:PN58219
Mfr Part#:2063H1
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Adixen 2063 H1 Pascal Vacuum Pump, 3-Phase Motor, Hydrocarbon Oil, 200-400 V 50Hz, 230-460 V 60Hz, 2063H1
2063 H1 Pascal / 2063H1 Overview:
The Pfeiffer Adixen 2063 H1 Pascal Vacuum Pump has a direct drive motor, making it very compact. An electrically insulated fold-away handle is used for easy carrying. The anit-suckback system ensures the tightness of the pump during accidental or voluntary shutdowns.

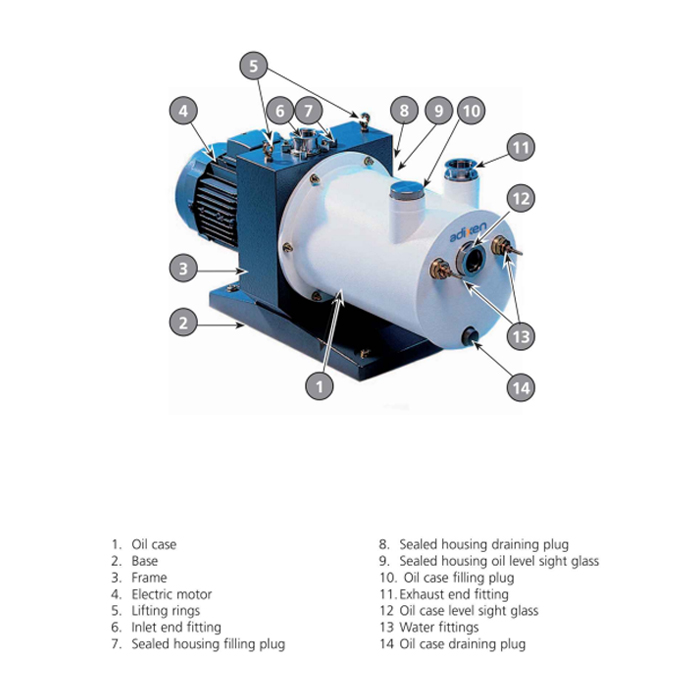

The Adixen 2063 pump comes with universal three-phase motor can be disassembled independently of the rest of the pump, without the need to drain the oil case. On the oil case, a vertical sight glass can be used to inspect the oil level easily when filling the tank and during the operation of the pump.
Oil casing is made of stainless steel sheet. All welds are checked with the helium leak detector.
A rotary seal near the motor works with two other seals. The additional seals form a sealed compartment immersed in oil. If one of the seals deteroriates, it will become apparent from the chance in oil level.
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen 2033H1 and 2063H1 Pascal Series Vacuum Pumps along with all other Alcatel Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Adixen 2063 H1 Pascal Vacuum Pump, 3-Phase Motor, Hydrocarbon Oil, 200-400 V 50Hz, 230-460 V 60Hz, 2063H1
Adixen 2063 H1 Pascal Technical Data:
| Frequency | 50/60 HZ |
| Number of stages | 2 |
| Nominal rotation speed | 1500/1800 tr/mn |
| Nominal flow rate | 65/78 m³/h 50 CFM |
| Flow rate Pneurop method | 12.5/15 m³/h 8.8 CFM |
| Partial ultimate pressure* with A120 oil |
<1.10-4 mbar <1.10-2 Pa |
| Exhaust pressure (maximum) | 2 bar |
| Internal gas volume | 3540 cm³ |
| Helium tightness ** - below atmospherique pressure - up to 1000 mbar |
≤1.10-7 mbar.l.s-1 <2.10-6 mbar.I.s-1 |
| Oil capacity (case) | 7.5 l |
| Oil capacity (sealed housing) | 0.27 l |
| Coling water flow rate | 2 l/mn |
| Water pressure | 3 bar |
| Weight (pump + motor) | 107 (236) kg (lb) |
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen 2033H1 and 2063H1 Pascal Series Vacuum Pumps along with all other Alcatel Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
