- Inlet Flange: 63 CF-F Conflat

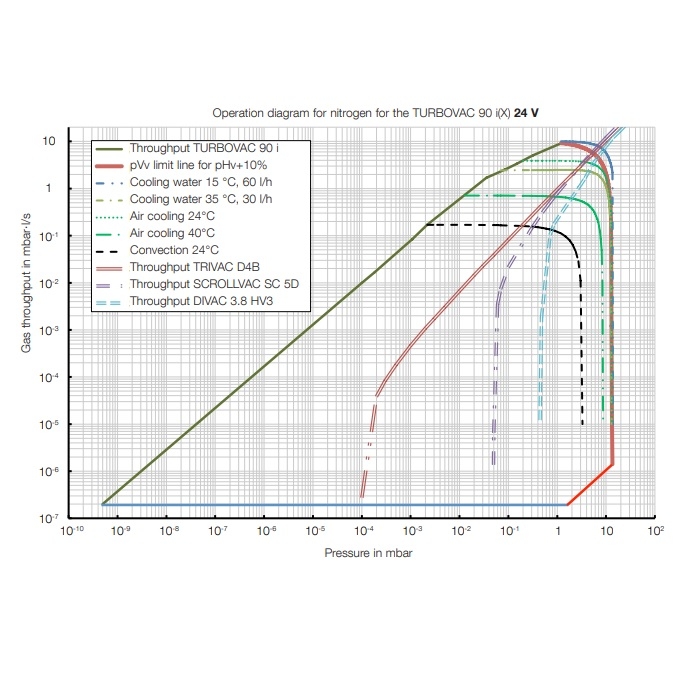

- Pumping Speed : 90 l/s
- Ultimate Pressure: 5.000 × 10⁻¹⁰ mbar
- DIVAC 1.4 Diaphragm Pump
Shopping Cart ( )
Leybold Turbolab Core 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 63 CF-F), DIVAC 1.4T Diaphragm Pump, 501591V01000500
Condition:
New
In Stock
Item#:PN24406
Mfr Part#:501591V01000500
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold Turbolab Core 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 63 CF-F), DIVAC 1.4T Diaphragm Pump, 501591V01000500
Leybold Turbolab Core 90i Features:
- Simple Compact design
- Enhanced pumps performance
- Turbolab Core 501591V01000500 comes with 63 CF-F Conflat High Vacuum Inlet flange
- Small Footprint
- Turbolab Core has a Backlight Display
- Easy to relocate pumps out and away from the system frame
- Cost effective
- Features dedicated ports for the connection of accesories and two Leybold Vacuum Gauges
- Outstanding performance under loads
Turbolab Core 90i / 501591V01000500 Overview:
The Leybold Turbolab 90i Core Turbo Pumping Station is a fully portable, simple bench top turbo pump pumping system based on well known Leybold Vacuum components. For many of the High Vacuum Applications. Leybold TurboLab Core Station comes completely preassembled with Turbovac 90i Turbo Pump with DN 63 CF-F High Vacuum Inlet Flange.
Leybold Turbolab 501591V01000500 is equipped with ScrollVac Divac 1.4 Diaphragm Pumps.
The Leybold Turbovac 90i Core Station has a state of the art design with the latest Turbovac 90i Turbo pump and dry diaphragm backing pumps technology.
Leybold TurboLab Core 90i Turbo Pumping System is equipped with Monitoring and Data Analysis feature. All critical system parameters and settings are logged to an internal memory automatically based on default time interval which you the user can change very easily.
Opening the trend view on your laptop or mobile device will display the events overtop of your trended parameter. This allows you to quickly compare the data surrounding your system events, which helps to diognosis conditions that effects your system.
Please note: Mains Cable is not included. Please see accessories tab for proper mains cable.
TurbolabCore90i Applications:
- Analytics
- High and Ultra high vacuum systems
- Research, Development and Scientific
- Micro balances
- Electron-beam welding
- Laboratories
- Surface physics
A&J Vacuum also repair / rebuild and service all Leybold Turbolab 90i Core Turbo Pumping Systems along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Pumps, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Turbolab Core 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 63 CF-F), DIVAC 1.4T Diaphragm Pump, 501591V01000500
Leybold Turbolab Core 90i Technical Data:
| Connector Electrical Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Connection Outlet Flange | Hose Nozzle ID 10 mm 1/8" BSPP (or G 1/8") Female |
| Connection Inlet Flange | DN 63 CF (4.5") |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 0.248 m |
| Dimension Length | 0.420 m |
| Dimension Width | 0.300 m |
| IP Rating | IP20 |
| Power Supply Frequency | 50 Hz 60 Hz |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 90-264V 50/60Hz |
| Weight | 27 kg | 60 lb |
| Connection Inlet / Outlet Flange | DN 63 CF (4.5") | Hose Nozzle ID 10 mm |
| Classification Dry or Wet Pump | Dry |
| Classification Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar |
| Power at Ultimate | 250 W |
| Pressure Ultimate | 5.000 × 10⁻¹⁰ mbar |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.090 m³/s |
| Altitude Max | 2000 m |
| Variant of Backing Pump | DIVAC 1.4 |
A&J Vacuum also repair / rebuild and service all Leybold Turbolab 90i Core Turbo Pumping Systems along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Pumps, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
